IslandPath Analysis: Burkholderia sp. 383

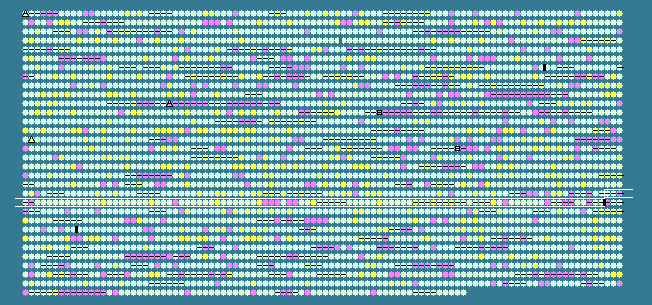

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.93 STD DEV: 3.60
Burkholderia sp. 383 chromosome 2, complete sequence - 1..3587082
3174 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2098	 65.40	0	2410748..2411221	+	157	78062951	-	Bcep18194_B2104	-	3-demethylubiquinone-9 3-methyltransferase
2099	 68.69	0	2411373..2412164	-	263	78062952	-	Bcep18194_B2105	-	aminoglycoside resistance protein
2100	 62.44	-1	2412444..2412893	-	149	78062953	-	Bcep18194_B2106	-	histone-like DNA-binding protein
2101	 67.92	0	2413151..2414269	+	372	78062954	-	Bcep18194_B2107	-	acyltransferase 3
2102	 63.14	-1	2414328..2414582	-	84	78062955	-	Bcep18194_B2108	-	hypothetical protein
2103	 63.74	0	2414876..2415763	-	295	78062956	-	Bcep18194_B2109	-	UDP-glucose pyrophosphorylase
2104	 69.22	0	2416355..2417530	+	391	78062957	-	Bcep18194_B2110	-	acyltransferase 3
2105	 68.82	0	2418070..2420535	-	821	78062958	-	Bcep18194_B2111	-	glycosyl transferase, group 1
2106	 66.33	0	2420532..2422028	-	498	78062959	-	Bcep18194_B2112	-	polysaccharide biosynthesis protein
2107	 68.74	0	2422025..2424241	-	738	78062960	-	Bcep18194_B2113	-	hypothetical protein
2108	 69.11	0	2424716..2425780	+	354	78062961	-	Bcep18194_B2114	-	acyltransferase 3
2109	 64.28	0	2425816..2426862	+	348	78062962	-	Bcep18194_B2115	-	GDP-mannose 4,6-dehydratase
2110	 68.93	0	2426849..2427820	+	323	78062963	-	Bcep18194_B2116	-	NAD-dependent epimerase/dehydratase
2111	 65.83	0	2427931..2429121	-	396	78062964	-	Bcep18194_B2117	-	O-succinylhomoserine sulfhydrylase
2112	 64.32	0	2429367..2430899	-	510	78062965	-	Bcep18194_B2118	-	amidophosphoribosyltransferase
2113	 66.67	0	2430951..2431445	-	164	78062966	-	Bcep18194_B2119	-	colicin V production protein
2114	 70.80	+1	2431452..2432297	-	281	78062967	-	Bcep18194_B2120	-	hypothetical protein
2115	 66.36	0	2432327..2433637	-	436	78062968	-	Bcep18194_B2121	-	folylpolyglutamate synthetase
2116	 65.52	0	2433738..2434610	-	290	78062969	-	Bcep18194_B2122	-	acetyl-CoA carboxylase subunit beta
2117	 66.91	0	2434675..2435490	-	271	78062970	trpA	Bcep18194_B2123	-	tryptophan synthase subunit alpha
2118	 65.73	0	2435579..2436430	-	283	78062971	-	Bcep18194_B2124	-	DNA methylase N-4/N-6
2119	 65.75	0	2436440..2437633	-	397	78062972	-	Bcep18194_B2125	-	tryptophan synthase subunit beta
2120	 68.66	0	2437688..2438389	-	233	78062973	-	Bcep18194_B2126	-	N-(5'-phosphoribosyl)anthranilate isomerase
2121	 67.77	0	2438386..2439198	-	270	78062974	truA	Bcep18194_B2127	-	tRNA pseudouridine synthase A
2122	 70.86	+1	2439198..2441606	-	802	78062975	-	Bcep18194_B2128	-	hypothetical protein
2123	 63.86	0	2442253..2443497	+	414	78062976	flgE	Bcep18194_B2129	-	flagellar hook protein FlgE
2124	 64.88	0	2443602..2444723	-	373	78062977	-	Bcep18194_B2130	-	aspartate-semialdehyde dehydrogenase
2125	 66.10	0	2445023..2446090	-	355	78062978	-	Bcep18194_B2131	-	3-isopropylmalate dehydrogenase
2126	 62.67	-1	2446170..2446820	-	216	78062979	leuD	Bcep18194_B2132	-	isopropylmalate isomerase small subunit
2127	 65.32	0	2447038..2448447	-	469	78062980	-	Bcep18194_B2133	-	isopropylmalate isomerase large subunit
2128	 67.71	0	2448669..2449433	-	254	78062981	-	Bcep18194_B2134	-	hypothetical protein
2129	 68.00	0	2449460..2450281	-	273	78062982	-	Bcep18194_B2135	-	hypothetical protein
2130	 65.12	0	2450683..2451006	+	107	78062983	-	Bcep18194_B2136	-	hypothetical protein
2131	 64.05	0	2451135..2451860	+	241	78062984	-	Bcep18194_B2137	-	glutathione S-transferase-like protein
2132	 66.67	0	2451911..2452309	-	132	78062985	-	Bcep18194_B2138	-	hypothetical protein
2133	 70.85	+1	2452325..2453710	-	461	78062986	-	Bcep18194_B2139	-	major facilitator transporter
2134	 67.65	0	2453926..2454840	+	304	78062987	-	Bcep18194_B2140	-	LysR family transcriptional regulator
2135	 65.43	0	2454939..2456471	-	510	78062988	-	Bcep18194_B2141	-	amino acid transporter
2136	 65.59	0	2456574..2457038	-	154	78062989	-	Bcep18194_B2142	-	AsnC family transcriptional regulator
2137	 68.09	0	2457137..2457907	-	256	78062990	-	Bcep18194_B2143	-	dimethylargininase
2138	 69.86	0	2458105..2459355	-	416	78062991	-	Bcep18194_B2144	-	hypothetical protein
2139	 67.69	0	2459465..2459854	-	129	78062992	-	Bcep18194_B2145	-	glyoxalase/bleomycin resistance protein/dioxygenase
2140	 71.06	+1	2459927..2460904	+	325	78062993	-	Bcep18194_B2146	-	AraC family transcriptional regulator
2141	 60.68	-1	2460994..2462295	-	433	78062994	gltA	Bcep18194_B2147	-	type II citrate synthase
2142	 61.54	-1	2462349..2462621	-	90	78062995	-	Bcep18194_B2148	-	hypothetical protein
2143	 62.39	-1	2462629..2463330	-	233	78062996	sdhB	Bcep18194_B2149	-	succinate dehydrogenase iron-sulfur subunit
2144	 64.64	0	2463352..2465130	-	592	78062997	sdhA	Bcep18194_B2150	-	succinate dehydrogenase flavoprotein subunit
2145	 60.98	-1	2465134..2465502	-	122	78062998	-	Bcep18194_B2151	-	succinate dehydrogenase subunit D
2146	 55.64	-2	2465507..2465923	-	138	78062999	-	Bcep18194_B2152	-	succinate dehydrogenase subunit C
2147	 65.33	0	2466094..2466918	-	274	78063000	-	Bcep18194_B2153	-	GntR family transcriptional regulator
2148	 64.54	0	2467207..2468193	+	328	78063001	-	Bcep18194_B2154	-	malate dehydrogenase
2149	 71.92	+1	2468378..2469385	+	335	78063002	-	Bcep18194_B2155	-	citrate lyase beta subunit-like
2150	 64.53	0	2469616..2470131	+	171	78063003	-	Bcep18194_B2156	-	hypothetical protein
2151	 66.74	0	2470154..2471605	+	483	78063004	prpD	Bcep18194_B2157	-	2-methylcitrate dehydratase
2152	 63.94	0	2471658..2474375	+	905	78063005	acnA	Bcep18194_B2158	-	aconitate hydratase
2153	 66.21	0	2474480..2474914	-	144	78063006	-	Bcep18194_B2159	-	hypothetical protein
2154	 68.75	0	2474911..2475342	-	143	78063007	-	Bcep18194_B2160	-	hypothetical protein
2155	 63.69	0	2475342..2475677	-	111	78063008	-	Bcep18194_B2161	-	ArsR family transcriptional regulator
2156	 63.94	0	2475898..2476227	+	109	78063009	-	Bcep18194_B2162	-	hypothetical protein
2157	 67.19	0	2476308..2478041	+	577	78063010	-	Bcep18194_B2163	-	sedolisin
2158	 66.11	0	2478190..2479620	+	476	78063011	-	Bcep18194_B2164	-	major facilitator transporter
2159	 65.27	0	2479635..2480567	-	310	78063012	-	Bcep18194_B2165	-	LysR family transcriptional regulator
2160	 70.81	+1	2480653..2482149	-	498	78063013	-	Bcep18194_B2166	-	major facilitator transporter
2161	 66.07	0	2482293..2483129	-	278	78063014	-	Bcep18194_B2167	-	ABC spermidine/putrescine transporter, inner membrane subunit
2162	 66.67	0	2483167..2484423	-	418	78063015	-	Bcep18194_B2168	-	ABC spermidine/putrescine transporter, inner membrane subunit
2163	 64.66	0	2484526..2485572	-	348	78063016	-	Bcep18194_B2169	-	ABC spermidine/putrescine transporter, periplasmic ligand binding protein
2164	 66.58	0	2485650..2486756	-	368	78063017	-	Bcep18194_B2170	-	spermidine/putrescine ABC transporter ATPase
2165	 69.36	0	2486865..2488388	+	507	78063018	-	Bcep18194_B2171	-	GntR family transcriptional regulator
2166	 71.40	+1	2488425..2489459	-	344	78063019	-	Bcep18194_B2172	-	lipase chaperone
2167	 66.12	0	2489463..2490557	-	364	78063020	-	Bcep18194_B2173	-	triacylglycerol lipase
2168	 67.32	0	2490786..2492918	-	710	78063021	-	Bcep18194_B2174	-	TonB-dependent copper receptor
2169	 70.73	+1	2493000..2493368	-	122	78063022	-	Bcep18194_B2175	-	hypothetical protein
2170	 64.62	0	2493524..2494060	-	178	78063023	-	Bcep18194_B2176	-	cytochrome B561
2171	 66.20	0	2494286..2494924	+	212	78063024	-	Bcep18194_B2177	-	hypothetical protein
2172	 70.88	+1	2494973..2495707	-	244	78063025	-	Bcep18194_B2178	-	peptidase M23B
2173	 66.67	0	2496133..2496453	+	106	78063026	-	Bcep18194_B2179	-	hypothetical protein
2174	 65.51	0	2496572..2496916	-	114	78063027	-	Bcep18194_B2180	-	hypothetical protein
2175	 65.39	0	2497118..2498530	-	470	78063028	-	Bcep18194_B2181	-	6-phosphogluconate dehydrogenase
2176	 70.25	0	2498628..2499269	-	213	78063029	-	Bcep18194_B2182	-	hypothetical protein
2177	 70.23	0	2499266..2500303	-	345	78063030	-	Bcep18194_B2183	-	NAD-dependent deacetylase
2178	 65.59	0	2500325..2500603	-	92	78063031	-	Bcep18194_B2184	-	hypothetical protein
2179	 70.78	+1	2500933..2501175	+	80	78063032	-	Bcep18194_B2185	-	hypothetical protein
2180	 70.22	0	2501197..2501928	+	243	78063033	-	Bcep18194_B2186	-	GCN5-related N-acetyltransferase
2181	 61.98	-1	2501950..2502354	-	134	78063034	-	Bcep18194_B2187	-	hypothetical protein
2182	 70.21	0	2502547..2503506	+	319	78063035	-	Bcep18194_B2188	-	flavin-dependent oxidoreductase
2183	 69.18	0	2503807..2506272	+	821	78063036	-	Bcep18194_B2189	-	MscS mechanosensitive ion channel
2184	 67.51	0	2506300..2507133	-	277	78063037	-	Bcep18194_B2190	-	TetR family transcriptional regulator
2185	 68.98	0	2507226..2508347	+	373	78063038	-	Bcep18194_B2191	-	HlyD family secretion protein
2186	 65.72	0	2508340..2509926	+	528	78063039	-	Bcep18194_B2192	-	EmrB/QacA family drug resistance transporter
2187	 68.62	0	2509940..2511427	+	495	78063040	-	Bcep18194_B2193	-	RND efflux system outer membrane lipoprotein
2188	 62.76	-1	2511758..2513293	+	511	78063041	-	Bcep18194_B2194	-	catalase
2189	 67.65	0	2513371..2513982	+	203	78063042	-	Bcep18194_B2195	-	ankyrin repeat-containing protein
2190	 63.91	0	2514062..2514532	+	156	78063043	-	Bcep18194_B2196	-	hypothetical protein
2191	 63.27	-1	2514651..2515445	-	264	78063044	-	Bcep18194_B2197	-	aminoglycoside phosphotransferase
2192	 61.94	-1	2515804..2516163	+	119	78063045	-	Bcep18194_B2198	-	hypothetical protein
2193	 66.34	0	2516227..2518059	+	610	78063046	-	Bcep18194_B2199	-	pseudomonalisin
2194	 67.99	0	2518511..2520172	+	553	78063047	-	Bcep18194_B2200	-	hypothetical protein
2195	 62.06	-1	2520309..2520959	-	216	78063048	-	Bcep18194_B2201	-	flavin-nucleotide-binding protein
2196	 67.62	0	2521279..2522745	+	488	78063049	-	Bcep18194_B2202	-	GntR family transcriptional regulator
2197	 63.70	0	2522768..2524318	-	516	78063050	-	Bcep18194_B2203	-	phospholipase D/transphosphatidylase
66.93	MEAN

3.60	STD DEV
