IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

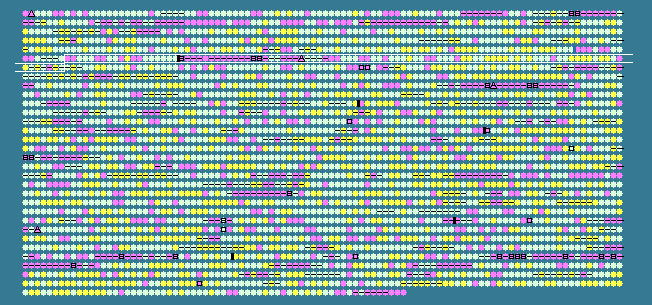

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
508	 59.39	-1	503211..503375	+	54	126457115	-	BURPS1106A_A0514	-	hypothetical protein
509	 63.79	0	503473..503958	-	161	126456307	-	BURPS1106A_A0515	-	hypothetical protein
510	 69.11	0	503988..504110	+	40	126458522	-	BURPS1106A_A0517	-	hypothetical protein
511	 68.04	0	504077..504949	-	290	126455701	-	BURPS1106A_A0516	-	pirin domain-containing protein
512	 66.47	0	505051..506043	+	330	126457092	-	BURPS1106A_A0518	-	LysR family transcriptional regulator
513	 62.75	0	506145..506399	-	84	126456675	-	BURPS1106A_A0519	-	hypothetical protein
514	 63.17	0	506426..506854	-	142	126456172	-	BURPS1106A_A0520	-	ExbD/TolR family transport energizing protein
515	 66.12	0	506868..507596	-	242	126455682	-	BURPS1106A_A0521	-	MotA/TolQ/ExbB proton channel family protein
516	 71.08	0	507633..508379	-	248	126456636	-	BURPS1106A_A0522	-	TonB domain-containing protein
517	 63.33	0	508604..508843	-	79	126456977	-	BURPS1106A_A0523	-	putative bacterioferritin-associated ferredoxin
518	 72.62	0	508975..509847	-	290	126458024	murI	BURPS1106A_A0524	-	glutamate racemase
519	 53.46	-2	509894..510370	-	158	126457841	bfr	BURPS1106A_A0525	-	bacterioferritin
520	 55.28	-2	510389..510511	+	40	126456712	-	BURPS1106A_A0526	-	hypothetical protein
521	 65.89	0	510525..512060	-	511	126456280	-	BURPS1106A_A0527	-	fumarate hydratase, class I
522	 64.53	0	512100..512708	-	202	126458542	-	BURPS1106A_A0528	-	hypothetical protein
523	 67.56	0	512941..513840	-	299	126457452	-	BURPS1106A_A0529	-	hypothetical protein
524	 68.28	0	514130..516112	+	660	126456272	acsA	BURPS1106A_A0530	-	acetyl-CoA synthetase
525	 71.03	0	516270..516590	+	106	126456008	-	BURPS1106A_A0531	-	hypothetical protein
526	 67.56	0	516584..518599	+	671	126457709	-	BURPS1106A_A0532	-	solute/sodium symporter (SSS) family protein
527	 61.08	-1	518895..520094	-	399	126456206	-	BURPS1106A_A0534	-	bacteriophage/transposase fusion protein
528	 57.33	-1	520091..520240	-	49	126456949	-	BURPS1106A_A0535	-	gp49
529	 57.41	-1	520715..520876	-	53	126458552	-	BURPS1106A_A0536	-	hypothetical protein
530	 52.14	-2	520964..521080	+	38	126457721	-	BURPS1106A_A0537	-	bacteriophage protein
531	 61.33	-1	521232..521381	+	49	126456356	-	BURPS1106A_A0538	-	hypothetical protein
532	 61.26	-1	521521..521964	-	147	126455542	-	BURPS1106A_A0539	-	hypothetical protein
533	 61.84	-1	522353..522580	-	75	126458180	-	BURPS1106A_A0540	-	gp57
534	 61.90	0	522982..523149	+	55	126457422	-	BURPS1106A_A0541	-	hypothetical protein
535	 58.56	-1	523248..523469	+	73	126458365	-	BURPS1106A_A0542	-	hypothetical protein
536	 62.11	0	523453..523737	+	94	126457429	-	BURPS1106A_A0543	-	hypothetical protein
537	 60.74	-1	523908..524042	+	44	126456368	-	BURPS1106A_A0544	-	hypothetical protein
538	 63.33	0	524155..524394	+	79	126455499	-	BURPS1106A_A0545	-	gp82
539	 58.13	-1	524288..524767	+	159	126458209	-	BURPS1106A_A0546	-	bacteriophage/transposase fusion protein
540	 58.15	-1	524748..525158	+	136	126457289	-	BURPS1106A_A0547	-	transposase
541	 55.56	-2	525349..525501	-	50	126457586	-	BURPS1106A_A0548	-	hypothetical protein
542	 68.31	0	525767..527227	+	486	126456621	-	BURPS1106A_A0549	-	Ser/Thr protein phosphatase family protein
543	 70.82	0	527278..528648	+	456	126456121	-	BURPS1106A_A0550	-	di-haem cytochrome c peroxidase
544	 39.32	-2	528617..528733	+	38	126458385	-	BURPS1106A_A0551	-	hypothetical protein
545	 52.38	-2	529256..529402	-	48	126456699	-	BURPS1106A_A0552	-	hypothetical protein
546	 62.88	0	529956..530087	+	43	126457718	-	BURPS1106A_A0553	-	hypothetical protein
547	 62.70	0	530315..530869	+	184	126455623	-	BURPS1106A_A0554	-	integrase core subunit
548	 67.76	0	530901..531635	-	244	126456314	-	BURPS1106A_A0555	-	hypothetical protein
549	 65.71	0	531626..543991	-	4121	126457557	-	BURPS1106A_A0556	-	LysM domain-containing protein
550	 64.85	0	544005..547583	-	1192	126455692	-	BURPS1106A_A0557	-	hypothetical protein
551	 59.88	-1	547701..548393	-	230	126456610	-	BURPS1106A_A0558	-	hypothetical protein
552	 61.58	-1	548510..549256	-	248	126457061	-	BURPS1106A_A0559	-	hypothetical protein
553	 59.56	-1	549470..549877	+	135	126457428	-	BURPS1106A_A0560	-	hypothetical protein
554	 66.56	0	549885..551828	+	647	126458081	-	BURPS1106A_A0561	-	acetolactate synthase large subunit
555	 68.91	0	551988..554975	-	995	126457912	-	BURPS1106A_A0562	-	putative lipoprotein
556	 67.13	0	554977..555621	-	214	126455593	-	BURPS1106A_A0563	-	putative lipoprotein
557	 51.61	-2	556270..556548	+	92	126458011	-	BURPS1106A_A0564	-	hypothetical protein
558	 58.20	-1	556913..557101	-	62	126456995	-	BURPS1106A_A0565	-	hypothetical protein
559	 69.50	0	557090..559492	+	800	126456078	-	BURPS1106A_A0566	-	capsular polysaccharide biosynthesis/export protein
560	 68.56	0	559497..560714	+	405	126458405	-	BURPS1106A_A0567	-	chain length determinant protein
561	 62.68	0	560711..561487	+	258	126457460	rfbF	BURPS1106A_A0568	-	glucose-1-phosphate cytidylyltransferase
562	 69.24	0	561478..562563	+	361	126456612	rfbG	BURPS1106A_A0569	-	CDP-glucose 4,6-dehydratase
563	 66.89	0	562571..563923	+	450	126455766	rfbH	BURPS1106A_A0570	-	lipopolysaccharide biosynthesis protein rfbH
564	 66.55	0	563949..565709	+	586	126456516	-	BURPS1106A_A0571	-	aminotransferase
565	 80.19	+2	565755..565961	+	68	126456118	-	BURPS1106A_A0572	-	hypothetical protein
566	 68.95	0	565958..567313	+	451	126458507	-	BURPS1106A_A0573	-	hypothetical protein
567	 66.76	0	567328..568371	+	347	126457617	-	BURPS1106A_A0574	-	glycosyl transferase, group 2 family protein
568	 39.88	-2	568387..568554	+	55	126456352	-	BURPS1106A_A0575	-	hypothetical protein
569	 60.86	-1	568544..569800	+	418	126455474	-	BURPS1106A_A0576	-	heptosyltransferase
570	 65.03	0	569664..570761	+	365	126458147	-	BURPS1106A_A0577	-	heptosyltransferase family protein
571	 69.65	0	570754..571323	+	189	126456832	-	BURPS1106A_A0578	-	putative acetyltransferase
572	 67.53	0	571335..572381	+	348	126456781	-	BURPS1106A_A0579	-	glycosyl transferase, group 2 family protein
573	 64.38	0	572385..573434	+	349	126455903	-	BURPS1106A_A0580	-	hypothetical protein
574	 74.24	+1	573431..573562	+	43	126458220	-	BURPS1106A_A0581	-	hypothetical protein
575	 71.79	0	573630..573980	+	116	126456703	-	BURPS1106A_A0582	-	hypothetical protein
576	 70.00	0	574367..575266	-	299	126457173	-	BURPS1106A_A0583	-	LysR family transcriptional regulator
577	 67.91	0	575396..576121	+	241	126455934	-	BURPS1106A_A0585	-	cupin domain-containing protein
578	 75.24	+1	576102..576311	-	69	126456263	-	BURPS1106A_A0584	-	hypothetical protein
579	 71.66	0	576396..577076	+	226	126458479	-	BURPS1106A_A0586	-	hypothetical protein
580	 71.74	0	577106..578386	-	426	126458314	-	BURPS1106A_A0587	-	cyclic nucleotide regulated pyridine nucleotide-disulphide oxidoreductase, putative
581	 71.74	0	578494..579420	+	308	126457530	-	BURPS1106A_A0588	-	AraC family transcriptional regulator
582	 70.43	0	579479..580381	-	300	126455861	-	BURPS1106A_A0589	-	AraC family transcriptional regulator
583	 74.51	+1	580378..580734	-	118	126457963	-	BURPS1106A_A0590	-	hypothetical protein
584	 70.41	0	580731..581933	-	400	126457001	-	BURPS1106A_A0591	-	major facilitator family transporter
585	 73.60	0	581930..582232	-	100	126455772	-	BURPS1106A_A0592	-	hypothetical protein
586	 70.61	0	582339..583250	+	303	126456200	-	BURPS1106A_A0593	-	LysR family transcriptional regulator
587	 64.63	0	583525..584211	-	228	126456939	-	BURPS1106A_A0594	-	isochorismatase superfamily hydrolase
588	 67.82	0	584477..584650	+	57	126455963	-	BURPS1106A_A0596	-	hypothetical protein
589	 59.72	-1	584601..584744	-	47	126455708	-	BURPS1106A_A0595	-	hypothetical protein
590	 71.11	0	584743..585057	+	104	126457127	-	BURPS1106A_A0597	-	hypothetical protein
591	 69.40	0	585050..586948	+	632	126456603	-	BURPS1106A_A0598	-	amidohydrolase family protein
592	 74.16	+1	586945..587331	+	128	126456904	-	BURPS1106A_A0599	-	hypothetical protein
593	 72.06	0	587475..588401	+	308	126456224	-	BURPS1106A_A0600	-	hypothetical protein
594	 71.53	0	588398..590083	+	561	126458202	-	BURPS1106A_A0601	-	hypothetical protein
595	 78.27	+1	590157..590561	-	134	126455651	-	BURPS1106A_A0602	-	hypothetical protein
596	 68.86	0	590649..591470	+	273	126455749	cpoF	BURPS1106A_A0603	-	non-heme chloroperoxidase
597	 71.52	0	591535..592029	+	164	126458015	-	BURPS1106A_A0604	-	LysR family regulatory protein
598	 73.17	0	592347..592976	+	209	126457118	-	BURPS1106A_A0605	-	hypothetical protein
599	 67.16	0	593646..594251	+	201	126456324	-	BURPS1106A_A0606	-	flavin reductase family protein
600	 53.44	-2	594388..594765	-	125	126458524	-	BURPS1106A_A0607	-	hypothetical protein
601	 72.79	0	595086..596522	-	478	126457845	-	BURPS1106A_A0608	-	GntR family transcriptional regulator
602	 69.58	0	596509..597126	+	205	126456704	-	BURPS1106A_A0609	-	DJ-1/PfpI family protein
603	 78.74	+1	597322..597495	+	57	126456363	-	BURPS1106A_A0611	-	glycosyltransferase
604	 66.10	0	597482..598534	-	350	126456044	-	BURPS1106A_A0610	-	D-alanyl-D-alanine carboxypeptidase family protein
605	 35.96	-2	598602..598715	+	37	126455876	-	BURPS1106A_A0612	-	hypothetical protein
606	 72.96	0	598751..599020	-	89	126456531	-	BURPS1106A_A0613	-	hypothetical protein
607	 68.85	0	599023..599205	-	60	126457216	-	BURPS1106A_A0614	-	hypothetical protein
67.97	MEAN

6.10	STD DEV
