IslandPath Analysis: Burkholderia pseudomallei 1106a

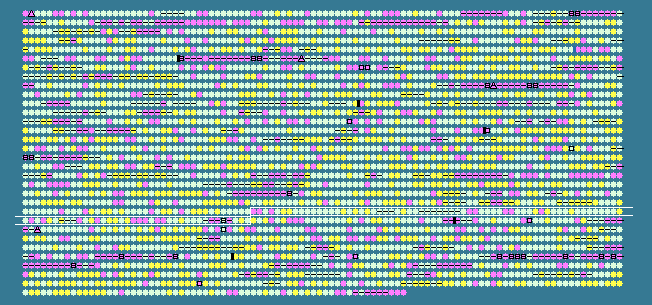

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2239	 60.77	-1	2232881..2233372	+	163	126457331	-	BURPS1106A_A2249	-	hypothetical protein
2240	 58.77	-1	2233570..2233683	-	37	126456859	-	BURPS1106A_A2250	-	hypothetical protein
2241	 66.67	0	2233678..2233800	+	40	126455980	-	BURPS1106A_A2251	-	hypothetical protein
2242	 57.64	-1	2234359..2234646	+	95	126457137	-	BURPS1106A_A2252	-	hypothetical protein
2243	 67.48	0	2234724..2234846	-	40	126456497	-	BURPS1106A_A2253	-	hypothetical protein
2244	 73.06	0	2235226..2237181	-	651	126455898	selB	BURPS1106A_A2254	-	translation elongation factor, selenocysteine-specific
2245	 74.01	0	2237148..2238590	-	480	126456799	selA	BURPS1106A_A2255	-	selenocysteine synthase
2246	 70.59	0	2238587..2239555	-	322	126455922	fdhE	BURPS1106A_A2256	-	formate dehydrogenase accessory protein FdhE
2247	 64.59	0	2239730..2240356	-	208	126456793	fdoI	BURPS1106A_A2257	-	formate dehydrogenase, gamma subunit
2248	 66.23	0	2240353..2241267	-	304	126457799	fdoH	BURPS1106A_A2258	-	formate dehydrogenase, beta subunit
2249	 65.21	0	2241278..2243746	-	822	126457881	-	BURPS1106A_A2259	-	formate dehydrogenase-O, major subunit, selenocysteine-containing
2250	 67.01	0	2243759..2244349	-	196	126455564	-	BURPS1106A_A2260	-	formate dehydrogenase-O, major subunit
2251	 64.91	0	2244419..2244532	-	37	126456553	-	BURPS1106A_A2261	-	hypothetical protein
2252	 65.28	0	2244799..2244942	+	47	126458299	-	BURPS1106A_A2262	-	hypothetical protein
2253	 70.31	0	2245403..2246170	-	255	126458095	-	BURPS1106A_A2263	-	hypothetical protein
2254	 73.72	0	2246423..2247358	-	311	126456888	-	BURPS1106A_A2264	-	cystine-binding periplasmic protein FliY
2255	 71.22	0	2247904..2249814	-	636	126457623	-	BURPS1106A_A2265	-	ABC-type polar amino acid transport system, ATPase component
2256	 73.98	0	2249811..2249933	-	40	126458322	-	BURPS1106A_A2266	-	hypothetical protein
2257	 69.77	0	2249930..2251252	-	440	126455722	-	BURPS1106A_A2267	-	flavin-dependent oxidoreductase
2258	 74.03	0	2251308..2252516	-	402	126456515	-	BURPS1106A_A2268	-	luciferase
2259	 69.10	0	2252513..2253499	-	328	126455577	-	BURPS1106A_A2269	-	cystine-binding periplasmic protein FliY
2260	 70.29	0	2253552..2254103	-	183	126456262	-	BURPS1106A_A2270	-	acetyltransferase
2261	 69.35	0	2254102..2254362	+	86	126458136	-	BURPS1106A_A2271	-	hypothetical protein
2262	 67.86	0	2254623..2254790	-	55	126456068	-	BURPS1106A_A2272	-	hypothetical protein
2263	 69.88	0	2255055..2256266	-	403	126456982	-	BURPS1106A_A2273	-	succinylglutamate desuccinylase/aspartoacylase family protein
2264	 78.32	+1	2256265..2256633	+	122	126457987	-	BURPS1106A_A2274	-	hypothetical protein
2265	 64.53	0	2256873..2257106	+	77	126456107	-	BURPS1106A_A2275	-	hypothetical protein
2266	 69.81	0	2257366..2258289	+	307	126456974	-	BURPS1106A_A2276	-	putative ribonuclease BN
2267	 65.71	0	2258748..2259902	+	384	126457511	-	BURPS1106A_A2277	-	outer membrane porin
2268	 68.12	0	2260040..2260177	+	45	126458412	-	BURPS1106A_A2278	-	hypothetical protein
2269	 67.25	0	2260630..2260971	-	113	126456213	-	BURPS1106A_A2279	-	hypothetical protein
2270	 66.27	0	2261048..2261302	+	84	126456959	-	BURPS1106A_A2280	-	hypothetical protein
2271	 65.96	0	2261728..2262150	-	140	126457545	bph2	BURPS1106A_A2281	-	putative histone H1
2272	 66.96	0	2262188..2263573	+	461	126458413	-	BURPS1106A_A2282	-	putative acyltransferase
2273	 64.86	0	2264125..2265012	-	295	126456586	galU	BURPS1106A_A2283	-	UTP-glucose-1-phosphate uridylyltransferase
2274	 65.33	0	2265028..2265177	+	49	126456934	-	BURPS1106A_A2284	-	hypothetical protein
2275	 59.03	-1	2265288..2265431	-	47	126458068	-	BURPS1106A_A2285	-	hypothetical protein
2276	 42.28	-2	2265420..2265542	+	40	126456042	-	BURPS1106A_A2286	-	hypothetical protein
2277	 67.00	0	2265617..2266822	+	401	126456287	-	BURPS1106A_A2287	-	putative acyltransferase
2278	 70.56	0	2266936..2269398	-	820	126457354	-	BURPS1106A_A2288	-	glycosyl transferase group 1 family protein
2279	 68.25	0	2269395..2270849	-	484	126455658	-	BURPS1106A_A2289	-	polysaccharide biosynthesis protein
2280	 70.56	0	2270910..2273066	-	718	126456302	-	BURPS1106A_A2290	-	hypothetical protein
2281	 43.86	-2	2273209..2273322	-	37	126457025	-	BURPS1106A_A2291	-	hypothetical protein
2282	 48.55	-2	2273456..2273593	+	45	126457811	-	BURPS1106A_A2293	-	acyltransferase 3
2283	 67.38	0	2273557..2273697	-	46	126457751	-	BURPS1106A_A2292	-	hypothetical protein
2284	 70.16	0	2273651..2274709	+	352	126458565	-	BURPS1106A_A2294	-	putative acyltransferase
2285	 65.33	0	2274745..2275788	+	347	126456667	gmd	BURPS1106A_A2295	-	GDP-mannose 4,6-dehydratase
2286	 71.93	0	2275775..2276743	+	322	126458537	-	BURPS1106A_A2297	-	NAD-dependent epimerase/dehydratase family protein
2287	 63.25	0	2276728..2277108	-	126	126456608	-	BURPS1106A_A2296	-	cupin domain-containing protein
2288	 72.22	0	2277057..2277416	-	119	126457702	-	BURPS1106A_A2298	-	hypothetical protein
2289	 67.06	0	2277461..2278732	-	423	126456415	metZ	BURPS1106A_A2299	-	O-succinylhomoserine sulfhydrylase
2290	 65.69	0	2278907..2280442	-	511	126455530	purF	BURPS1106A_A2300	-	amidophosphoribosyltransferase
2291	 67.07	0	2280495..2280989	-	164	126458235	-	BURPS1106A_A2301	-	CvpA family protein
2292	 74.10	+1	2280996..2281721	-	241	126457292	-	BURPS1106A_A2302	-	sporulation and cell division repeat-containing protein
2293	 67.84	0	2281841..2283208	-	455	126456914	folC	BURPS1106A_A2303	-	FolC bifunctional protein
2294	 66.21	0	2283266..2284138	-	290	126456033	accD	BURPS1106A_A2304	-	acetyl-CoA carboxylase subunit beta
2295	 70.47	0	2284218..2285033	-	271	126457657	trpA	BURPS1106A_A2305	-	tryptophan synthase subunit alpha
2296	 66.55	0	2285078..2285926	-	282	126458257	rsrIM	BURPS1106A_A2306	-	DNA modification methylase RsrI
2297	 66.83	0	2285936..2287129	-	397	126458101	trpB	BURPS1106A_A2307	-	tryptophan synthase subunit beta
2298	 71.10	0	2287201..2287989	-	262	126455630	hscA	BURPS1106A_A2308	-	N-(5'-phosphoribosyl)anthranilate isomerase
2299	 68.14	0	2287962..2288774	-	270	126456028	truA	BURPS1106A_A2309	-	tRNA pseudouridine synthase A
2300	 76.80	+1	2288774..2291419	-	881	126458326	-	BURPS1106A_A2310	-	hypothetical protein
2301	 65.51	0	2291555..2292676	-	373	126456576	asd	BURPS1106A_A2311	-	aspartate-semialdehyde dehydrogenase
2302	 61.73	-1	2292675..2292836	+	53	126456034	-	BURPS1106A_A2312	-	hypothetical protein
2303	 67.60	0	2293018..2294085	-	355	126455689	leuB	BURPS1106A_A2313	-	3-isopropylmalate dehydrogenase
2304	 63.59	0	2294134..2294784	-	216	126457106	leuD	BURPS1106A_A2314	-	isopropylmalate isomerase small subunit
2305	 74.67	+1	2294862..2295011	-	49	126455539	-	BURPS1106A_A2315	-	hypothetical protein
2306	 67.59	0	2295008..2296417	-	469	126456163	leuC	BURPS1106A_A2316	-	isopropylmalate isomerase large subunit
2307	 75.00	+1	2296580..2296735	+	51	126458532	-	BURPS1106A_A2317	-	hypothetical protein
2308	 67.28	0	2296809..2298104	-	431	126457618	ssuD	BURPS1106A_A2318	-	nitrilotriacetate monooxygenase component A
2309	 69.41	0	2298097..2299044	-	315	126457956	-	BURPS1106A_A2319	-	hypothetical protein
2310	 56.10	-1	2299045..2299167	-	40	126455637	-	BURPS1106A_A2320	-	hypothetical protein
2311	 68.15	0	2299146..2299280	-	44	126456532	-	BURPS1106A_A2321	-	hypothetical protein
2312	 76.07	+1	2299535..2299768	-	77	126458246	-	BURPS1106A_A2322	-	hypothetical protein
2313	 62.73	0	2299765..2300373	-	202	126455873	-	BURPS1106A_A2323	-	AsnC family transcriptional regulator
2314	 70.19	0	2300453..2303176	+	907	126455853	-	BURPS1106A_A2324	-	2-oxoacid dehydrogenase subunit E1
2315	 71.65	0	2303428..2304672	-	414	126456390	-	BURPS1106A_A2325	-	hypothetical protein
2316	 76.14	+1	2304986..2305249	-	87	126457293	-	BURPS1106A_A2326	-	hypothetical protein
2317	 69.49	0	2305530..2305919	-	129	126456130	-	BURPS1106A_A2327	-	hypothetical protein
2318	 73.54	0	2305995..2306969	+	324	126457027	-	BURPS1106A_A2328	-	AraC family transcriptional regulator
2319	 62.60	0	2307066..2308367	-	433	126457508	gltA	BURPS1106A_A2329	-	type II citrate synthase
2320	 64.10	0	2308420..2308692	-	90	126458444	-	BURPS1106A_A2330	-	TPR repeat-containing protein
2321	 63.39	0	2308694..2309395	-	233	126455690	sdhB	BURPS1106A_A2331	-	succinate dehydrogenase iron-sulfur subunit
2322	 66.10	0	2309417..2311192	-	591	126456585	sdhA	BURPS1106A_A2332	-	succinate dehydrogenase flavoprotein subunit
2323	 61.79	-1	2311197..2311565	-	122	126458135	sdhD	BURPS1106A_A2333	-	succinate dehydrogenase, hydrophobic membrane anchor subunit
2324	 58.27	-1	2311570..2311986	-	138	126456729	sdhC	BURPS1106A_A2334	-	succinate dehydrogenase, cytochrome b556 subunit
2325	 68.04	0	2312186..2312986	-	266	126455987	-	BURPS1106A_A2335	-	GntR family transcriptional regulator
2326	 66.87	0	2313285..2314268	+	327	126458088	-	BURPS1106A_A2336	-	malate dehydrogenase
2327	 73.43	0	2314466..2315485	+	339	126457117	-	BURPS1106A_A2337	-	putative lyase
2328	 67.84	0	2315642..2316151	+	169	126458500	-	BURPS1106A_A2338	-	hypothetical protein
2329	 67.98	0	2316228..2317679	+	483	126457788	prpD	BURPS1106A_A2339	-	2-methylcitrate dehydratase
2330	 64.68	0	2317727..2320444	+	905	126456668	acnA	BURPS1106A_A2340	-	aconitate hydratase
2331	 68.29	0	2320691..2323396	-	901	126455972	-	BURPS1106A_A2341	-	hemagglutinin-like protein
2332	 55.56	-2	2323371..2323532	+	53	126457774	-	BURPS1106A_A2343	-	hypothetical protein
2333	 64.10	0	2323518..2325194	-	558	126455760	-	BURPS1106A_A2342	-	HlyB family hemolysin activator protein
2334	 68.86	0	2325206..2325478	-	90	126457924	-	BURPS1106A_A2344	-	transposase, truncated
2335	 61.40	-1	2325507..2325620	-	37	126457184	-	BURPS1106A_A2345	-	hypothetical protein
2336	 66.99	0	2325924..2326229	+	101	126456874	-	BURPS1106A_A2346	-	hypothetical protein
2337	 72.12	0	2326325..2326489	-	54	126456178	-	BURPS1106A_A2347	-	hypothetical protein
2338	 69.26	0	2326486..2328570	-	694	126458258	-	BURPS1106A_A2348	-	cytochrome c family protein
67.97	MEAN

6.10	STD DEV
