IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

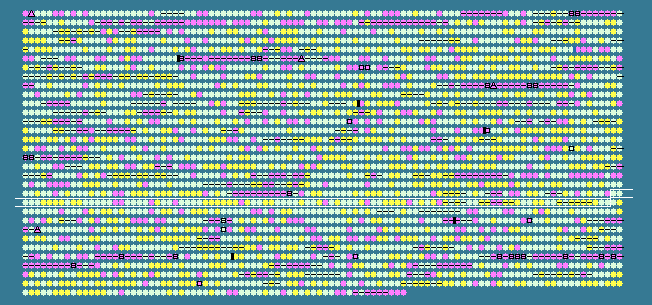

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2099	 66.59	0	2066355..2067674	+	439	126456142	-	BURPS1106A_A2109	-	MFS transporter, metabolite:H+ symporter (MHS) family protein
2100	 67.27	0	2067719..2067883	+	54	126457962	-	BURPS1106A_A2110	-	hypothetical protein
2101	 69.82	0	2068036..2068923	-	295	126457505	-	BURPS1106A_A2111	-	LysR family transcriptional regulator
2102	 69.27	0	2068904..2070247	+	447	126456971	-	BURPS1106A_A2112	-	FMN-dependent family dehydrogenase
2103	 66.19	0	2070371..2072035	-	554	126457803	-	BURPS1106A_A2113	-	serine carboxypeptidase family protein
2104	 74.17	+1	2072079..2072198	-	39	126457674	-	BURPS1106A_A2114	-	hypothetical protein
2105	 76.88	+1	2072203..2072760	-	185	126458195	-	BURPS1106A_A2115	-	hypothetical protein
2106	 71.95	0	2072783..2074372	-	529	126457317	-	BURPS1106A_A2116	-	kumamolisin
2107	 72.89	0	2074803..2075429	-	208	126456348	-	BURPS1106A_A2117	-	LysE family protein
2108	 66.88	0	2075563..2076027	+	154	126455643	-	BURPS1106A_A2118	-	AsnC family transcriptional regulator
2109	 72.10	0	2076362..2076766	+	134	126456091	-	BURPS1106A_A2119	-	hypothetical protein
2110	 72.62	0	2076782..2077033	+	83	126458029	-	BURPS1106A_A2120	-	hypothetical protein
2111	 69.50	0	2077142..2078728	+	528	126457500	-	BURPS1106A_A2121	-	phosphate transporter family protein
2112	 69.73	0	2078878..2079660	+	260	126457023	-	BURPS1106A_A2122	-	hypothetical protein
2113	 68.01	0	2079657..2080178	+	173	126458367	-	BURPS1106A_A2123	-	hypothetical protein
2114	 69.96	0	2080243..2081850	+	535	126455926	-	BURPS1106A_A2124	-	AMP-binding domain-containing protein
2115	 66.09	0	2081950..2082123	+	57	126456049	-	BURPS1106A_A2125	-	hypothetical protein
2116	 48.96	-2	2082175..2082366	-	63	126456918	-	BURPS1106A_A2126	-	hypothetical protein
2117	 42.48	-2	2082367..2082519	+	50	126457828	-	BURPS1106A_A2127	-	hypothetical protein
2118	 64.94	0	2082618..2083310	+	230	126457976	bmpR	BURPS1106A_A2128	-	autoinducer-binding transcriptional regulator BmpR
2119	 69.95	0	2083633..2084241	+	202	126456405	bpmI	BURPS1106A_A2129	-	autoinducer synthetase BpmI
2120	 67.31	0	2084214..2084369	+	51	126457260	-	BURPS1106A_A2130	-	hypothetical protein
2121	 68.33	0	2084583..2085908	+	441	126458159	-	BURPS1106A_A2131	-	oxidoreductase, FAD/FMN-binding
2122	 62.28	0	2086060..2086173	-	37	126458293	-	BURPS1106A_A2132	-	hypothetical protein
2123	 71.48	0	2086254..2087105	-	283	126458607	tauC	BURPS1106A_A2133	-	taurine ABC transporter, permease protein
2124	 70.24	0	2087108..2087890	-	260	126456823	tauB	BURPS1106A_A2134	-	taurine ABC transporter, ATP-binding protein
2125	 70.13	0	2087911..2088921	-	336	126457537	tauA	BURPS1106A_A2135	-	taurine ABC transporter, periplasmic taurine-binding protein
2126	 58.65	-1	2088920..2089156	+	78	126455837	-	BURPS1106A_A2136	-	hypothetical protein
2127	 68.82	0	2089224..2090057	+	277	126456525	tauD	BURPS1106A_A2137	-	taurine dioxygenase
2128	 71.43	0	2090298..2090486	-	62	126457382	-	BURPS1106A_A2138	-	hypothetical protein
2129	 69.49	0	2090483..2092039	-	518	126457868	-	BURPS1106A_A2139	-	hypothetical protein
2130	 71.30	0	2092073..2094619	-	848	126456135	celA	BURPS1106A_A2140	-	cellulose synthase, catalytic subunit (UDP-forming)
2131	 75.69	+1	2094616..2095479	-	287	126457032	-	BURPS1106A_A2141	-	hypothetical protein
2132	 72.30	0	2095476..2095688	-	70	126457806	-	BURPS1106A_A2142	-	hypothetical protein
2133	 76.18	+1	2095685..2097943	-	752	126458419	-	BURPS1106A_A2143	-	hypothetical protein
2134	 76.15	+1	2097954..2102678	-	1574	126457527	-	BURPS1106A_A2144	-	putative cellulose synthase operon protein C
2135	 76.58	+1	2102657..2104219	-	520	126455862	-	BURPS1106A_A2145	-	endo-1,4-D-glucanase
2136	 72.47	0	2104224..2106671	-	815	126456989	-	BURPS1106A_A2146	-	cellulose synthase regulator protein
2137	 63.69	0	2106684..2106851	+	55	126457082	-	BURPS1106A_A2147	-	hypothetical protein
2138	 73.24	0	2106892..2107104	+	70	126458434	-	BURPS1106A_A2148	-	hypothetical protein
2139	 65.15	0	2107086..2107349	+	87	126456134	-	BURPS1106A_A2149	-	hypothetical protein
2140	 69.57	0	2107428..2107565	-	45	126457394	-	BURPS1106A_A2150	-	hypothetical protein
2141	 73.48	0	2107687..2108097	+	136	126457499	-	BURPS1106A_A2151	-	putative transcriptionl regulator HipB
2142	 72.14	0	2108094..2109446	+	450	126455544	-	BURPS1106A_A2152	-	putative regulatory protein HipA
2143	 69.98	0	2109603..2110055	-	150	126456423	-	BURPS1106A_A2153	-	hypothetical protein
2144	 65.99	0	2110156..2110302	-	48	126457989	-	BURPS1106A_A2154	-	hypothetical protein
2145	 70.60	0	2110479..2111393	-	304	126457088	-	BURPS1106A_A2155	-	LysR family transcriptional regulator
2146	 71.38	0	2111560..2112513	+	317	126455740	speB	BURPS1106A_A2157	-	agmatinase
2147	 73.47	0	2112468..2112908	-	146	126456627	-	BURPS1106A_A2156	-	hypothetical protein
2148	 68.52	0	2112907..2113122	+	71	126457261	-	BURPS1106A_A2158	-	hypothetical protein
2149	 68.24	0	2113119..2114519	+	466	126457555	-	BURPS1106A_A2159	-	hypothetical protein
2150	 75.33	+1	2114535..2114834	+	99	126456663	-	BURPS1106A_A2160	-	hypothetical protein
2151	 64.04	0	2115580..2115921	-	113	126456156	-	BURPS1106A_A2161	-	hypothetical protein
2152	 68.66	0	2116001..2116801	+	266	126457823	-	BURPS1106A_A2162	-	hypothetical protein
2153	 72.15	0	2116795..2117286	+	163	126456912	-	BURPS1106A_A2163	-	hypothetical protein
2154	 70.17	0	2117437..2118321	+	294	126455600	-	BURPS1106A_A2164	-	hypothetical protein
2155	 69.06	0	2118389..2120188	-	599	126457187	-	BURPS1106A_A2165	-	YscC/HrcC family type III secretion outer membrane protein
2156	 69.40	0	2120305..2121987	-	560	126458207	-	BURPS1106A_A2166	-	putative type IV pilus protein
2157	 76.46	+1	2121987..2122466	-	159	126455726	-	BURPS1106A_A2167	-	putative type IV pilus protein
2158	 64.47	0	2122506..2123096	-	196	126456000	-	BURPS1106A_A2168	-	putative type IV pilus protein
2159	 69.17	0	2123093..2124169	-	358	126457659	-	BURPS1106A_A2169	-	type IV pilus biogenesis protein
2160	 71.26	0	2124159..2125769	-	536	126458355	-	BURPS1106A_A2170	-	type IV pilus protein PilQ
2161	 76.85	+1	2125766..2126266	-	166	126456196	-	BURPS1106A_A2171	-	putative type IV pilus biogenesis protein PilP
2162	 71.98	0	2126280..2127578	-	432	126456277	-	BURPS1106A_A2172	-	putative type IV pilus biogenesis protein
2163	 71.63	0	2127590..2129362	-	590	126457943	-	BURPS1106A_A2173	-	type IVB pilus formation outer membrane protein
2164	 74.04	0	2129362..2129931	-	189	126457488	-	BURPS1106A_A2174	-	PilL domain-containing protein
2165	 48.25	-2	2130114..2130227	-	37	126457110	-	BURPS1106A_A2175	-	hypothetical protein
2166	 66.49	0	2130248..2131354	+	368	126456645	pilT	BURPS1106A_A2176	-	twitching motility protein PilT
2167	 78.95	+1	2131597..2133387	-	596	126457995	-	BURPS1106A_A2177	-	type II/III secretion system family protein
2168	 68.31	0	2133384..2134175	-	263	126457148	-	BURPS1106A_A2178	-	DNA-binding response regulator
2169	 73.06	0	2134184..2135263	-	359	126457002	-	BURPS1106A_A2179	-	putative sensor histidine kinase
2170	 64.10	0	2135397..2136020	-	207	126456103	-	BURPS1106A_A2180	-	hypothetical protein
2171	 80.95	+2	2136044..2136211	-	55	126457798	-	BURPS1106A_A2181	-	hypothetical protein
2172	 70.55	0	2136250..2136738	+	162	126456871	-	BURPS1106A_A2182	-	putative hrp protein
2173	 73.67	0	2136966..2137265	-	99	126456377	-	BURPS1106A_A2183	-	hypothetical protein
2174	 70.46	0	2137262..2138026	-	254	126457070	-	BURPS1106A_A2184	-	hypothetical protein
2175	 70.99	0	2138133..2138780	+	215	126458454	-	BURPS1106A_A2185	-	hypothetical protein
2176	 68.82	0	2138788..2138973	+	61	126455759	-	BURPS1106A_A2186	-	hypothetical protein
2177	 74.28	+1	2139007..2139282	-	91	126456872	-	BURPS1106A_A2187	-	hypothetical protein
2178	 72.96	0	2139336..2140781	-	481	126457775	-	BURPS1106A_A2188	-	regulatory protein HrpB
2179	 62.50	0	2140993..2141448	-	151	126455588	-	BURPS1106A_A2189	-	hypothetical protein
2180	 60.11	-1	2141541..2141723	-	60	126456459	-	BURPS1106A_A2190	-	hypothetical protein
2181	 73.81	0	2141893..2142144	-	83	126456999	-	BURPS1106A_A2191	-	hypothetical protein
2182	 74.80	+1	2142172..2143155	-	327	126457869	-	BURPS1106A_A2192	-	putative type III secretion apparatus protein
2183	 76.21	+1	2143351..2144220	-	289	126456104	-	BURPS1106A_A2193	-	hypothetical protein
2184	 66.29	0	2144217..2144480	-	87	126456673	-	BURPS1106A_A2194	-	HrpO family type III secretion protein
2185	 64.67	0	2144521..2145171	-	216	126457083	yscR	BURPS1106A_A2195	-	type III secretion system protein
2186	 76.35	+1	2145158..2146468	-	436	126458111	-	BURPS1106A_A2196	-	type III secretion system apparatus protein YscQ/HrcQ
2187	 75.98	+1	2146498..2147109	-	203	126456828	-	BURPS1106A_A2197	-	type III secretion protein HpaP
2188	 69.08	0	2147106..2149178	-	690	126456562	-	BURPS1106A_A2198	-	HrcV family type III secretion protein
2189	 70.63	0	2149175..2150437	-	420	126458610	-	BURPS1106A_A2199	-	type III secretion system protein HrcU
2190	 73.02	0	2150493..2151074	+	193	126455911	-	BURPS1106A_A2200	-	HrpB1/HrpK family type III secretion protein
2191	 67.87	0	2151088..2151504	+	138	126456357	-	BURPS1106A_A2201	-	type III secretion protein HrpB2
2192	 72.40	0	2151501..2152355	+	284	126457668	-	BURPS1106A_A2202	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
2193	 77.29	+1	2152352..2153029	+	225	126458104	-	BURPS1106A_A2203	-	type III secretion protein HrpB4
2194	 74.55	+1	2153008..2153730	+	240	126458283	-	BURPS1106A_A2204	-	type III secretion system protein HrpB
2195	 71.86	0	2153727..2155055	+	442	126457565	-	BURPS1106A_A2205	-	type III secretion system ATPase
2196	 77.08	+1	2155052..2155579	+	175	126458279	-	BURPS1106A_A2206	-	type III secretion protein HrpB7
2197	 66.05	0	2155576..2156544	+	322	126455595	-	BURPS1106A_A2208	-	type III secretion protein SpaR/YscT/HrcT
2198	 71.43	0	2156528..2156905	-	125	126458229	-	BURPS1106A_A2207	-	hypothetical protein
67.97	MEAN

6.10	STD DEV
