IslandPath Analysis: Burkholderia pseudomallei 1106a

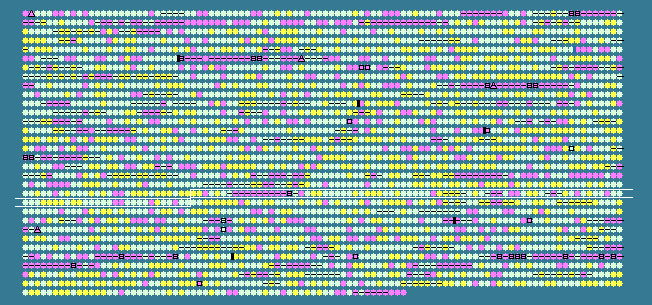

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2029	 72.52	0	2012152..2012817	+	221	126457277	-	BURPS1106A_A2039	-	hypothetical protein
2030	 74.76	+1	2012829..2016833	+	1334	126458165	-	BURPS1106A_A2040	-	hypothetical protein
2031	 58.67	-1	2016849..2016998	+	49	126456234	-	BURPS1106A_A2041	-	hypothetical protein
2032	 64.52	0	2017002..2017187	-	61	126456758	-	BURPS1106A_A2042	-	hypothetical protein
2033	 74.27	+1	2017683..2017853	-	56	126457716	-	BURPS1106A_A2043	-	hypothetical protein
2034	 64.68	0	2017927..2018781	+	284	126457393	-	BURPS1106A_A2045	-	hypothetical protein
2035	 66.67	0	2018741..2018986	-	81	126458368	-	BURPS1106A_A2044	-	hypothetical protein
2036	 55.83	-1	2018999..2019118	-	39	126456345	-	BURPS1106A_A2046	-	hypothetical protein
2037	 51.96	-2	2019189..2019392	-	67	126455574	-	BURPS1106A_A2047	-	hypothetical protein
2038	 52.85	-2	2019454..2019576	+	40	126458458	-	BURPS1106A_A2048	-	hypothetical protein
2039	 54.80	-2	2019480..2019875	+	131	126455897	-	BURPS1106A_A2050	-	putative GTP cyclohydrolase I
2040	 51.45	-2	2019865..2020002	-	45	126456930	-	BURPS1106A_A2049	-	hypothetical protein
2041	 62.15	0	2020025..2020312	+	95	126458380	-	BURPS1106A_A2051	-	ChnZ
2042	 52.88	-2	2020936..2022480	-	514	126458061	-	BURPS1106A_A2052	-	hypothetical protein
2043	 48.53	-2	2022497..2022700	-	67	126456952	-	BURPS1106A_A2053	-	hypothetical protein
2044	 49.24	-2	2022815..2022946	+	43	126457801	-	BURPS1106A_A2054	-	hypothetical protein
2045	 64.05	0	2023025..2023177	-	50	126456208	-	BURPS1106A_A2055	-	transposase
2046	 66.01	0	2023129..2023281	-	50	126458504	-	BURPS1106A_A2056	-	hypothetical protein
2047	 61.36	-1	2024131..2024262	-	43	126456490	-	BURPS1106A_A2057	-	hypothetical protein
2048	 71.10	0	2024297..2025289	-	330	126455829	-	BURPS1106A_A2058	-	AraC family transcriptional regulator
2049	 73.58	0	2025548..2025706	-	52	126455842	-	BURPS1106A_A2059	-	hypothetical protein
2050	 82.10	+2	2025752..2025913	+	53	126457234	-	BURPS1106A_A2061	-	hypothetical protein
2051	 65.77	0	2025885..2026328	-	147	126457879	-	BURPS1106A_A2060	-	hypothetical protein
2052	 69.77	0	2026566..2027210	-	214	126456927	-	BURPS1106A_A2062	-	LuxR family DNA-binding response regulator
2053	 66.89	0	2027473..2027928	-	151	126457281	-	BURPS1106A_A2063	-	CesT family type III secretion chaperone
2054	 64.55	0	2027917..2028105	+	62	126456461	-	BURPS1106A_A2065	-	hypothetical protein
2055	 67.84	0	2028080..2029618	-	512	126456466	icsB	BURPS1106A_A2064	-	virulence protein IcsB
2056	 73.29	0	2029683..2030150	+	155	126457193	-	BURPS1106A_A2066	-	hypothetical protein
2057	 68.83	0	2030244..2031029	+	261	126457906	-	BURPS1106A_A2067	-	putative guanine nucleotide exchange factor sopE
2058	 71.63	0	2031544..2032107	-	187	126456238	bapC	BURPS1106A_A2068	-	BapC protein
2059	 72.70	0	2032104..2032385	-	93	126456223	acpP	BURPS1106A_A2069	-	acyl carrier protein
2060	 74.99	+1	2032382..2035036	-	884	126456769	-	BURPS1106A_A2070	-	hypothetical protein
2061	 64.74	0	2035136..2036068	-	310	126457493	-	BURPS1106A_A2071	-	type III effector protein IpaD/SipD/SspD
2062	 67.01	0	2036130..2036420	-	96	126458379	-	BURPS1106A_A2072	-	H-NS histone family protein
2063	 71.56	0	2036554..2037819	-	421	126456098	-	BURPS1106A_A2073	-	IpaC/SipC family type III secretion target protein
2064	 69.78	0	2037855..2039717	-	620	126458255	bipB	BURPS1106A_A2074	-	BipB protein
2065	 65.31	0	2039736..2040251	-	171	126458467	-	BURPS1106A_A2075	-	type III secretion, low calcium response chaperone LcrH/SycD
2066	 68.61	0	2040377..2041612	-	411	126455636	-	BURPS1106A_A2076	-	surface presentation of antigens protein SpaS
2067	 68.82	0	2041616..2042359	-	247	126456666	-	BURPS1106A_A2077	-	type III secretion protein SpaR/YscT/HrcT
2068	 65.88	0	2042405..2042659	-	84	126457838	-	BURPS1106A_A2078	-	HrpO family type III secretion protein
2069	 62.56	0	2042695..2043375	-	226	126458099	spaP	BURPS1106A_A2079	-	surface presentation of antigens protein SpaP
2070	 74.28	+1	2043365..2044336	-	323	126458287	-	BURPS1106A_A2080	-	type III secretion system apparatus protein YscQ/HrcQ
2071	 78.12	+1	2044333..2045598	-	421	126456346	bsaU	BURPS1106A_A2081	-	BsaU protein
2072	 74.41	+1	2045576..2046040	-	154	126457418	bsaT	BURPS1106A_A2082	-	BsaT protein
2073	 72.78	0	2046037..2047344	-	435	126457578	-	BURPS1106A_A2083	-	ATP synthase SpaL
2074	 66.91	0	2047341..2047748	-	135	126457257	-	BURPS1106A_A2084	-	type III secretion system protein
2075	 66.38	0	2047760..2049832	-	690	126456217	-	BURPS1106A_A2085	-	HrcV family type III secretion protein
2076	 74.42	+1	2049868..2050989	-	373	126455484	-	BURPS1106A_A2086	-	type III secretion regulator YopN/LcrE/InvE/MxiC
2077	 70.39	0	2050986..2052863	-	625	126457615	-	BURPS1106A_A2087	-	YscC/HrcC family type III secretion outer membrane protein
2078	 66.37	0	2052875..2053540	-	221	126458488	-	BURPS1106A_A2088	-	AraC family transcriptional regulator
2079	 48.48	-2	2053617..2053748	+	43	126455678	-	BURPS1106A_A2089	-	hypothetical protein
2080	 57.84	-1	2053827..2054030	+	67	126456508	-	BURPS1106A_A2090	-	hypothetical protein
2081	 69.85	0	2054027..2055313	+	428	126457081	-	BURPS1106A_A2091	-	type III secretion system protein PrgH/EprH
2082	 58.89	-1	2055310..2055579	+	89	126457966	yscF	BURPS1106A_A2092	-	type III secretion system needle protein
2083	 64.36	0	2055639..2055941	+	100	126455755	-	BURPS1106A_A2093	-	putative type III secretion system protein
2084	 71.20	0	2055946..2056893	+	315	126456880	-	BURPS1106A_A2094	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
2085	 72.80	0	2056875..2057477	+	200	126455910	-	BURPS1106A_A2095	-	type III secretion apparatus protein OrgA/MxiK
2086	 74.20	+1	2057446..2058228	+	260	126458324	-	BURPS1106A_A2096	-	HrpE/YscL family type III secretion apparatus protein
2087	 65.67	0	2058191..2058391	+	66	126457729	-	BURPS1106A_A2097	-	hypothetical protein
2088	 66.91	0	2058546..2058950	+	134	126455604	-	BURPS1106A_A2098	-	hypothetical protein
2089	 64.40	0	2059229..2060200	+	323	126457904	-	BURPS1106A_A2099	-	putative transcriptional regulator
2090	 65.53	0	2060215..2060652	+	145	126457357	-	BURPS1106A_A2100	-	hypothetical protein
2091	 75.19	+1	2060634..2060762	+	42	126456864	-	BURPS1106A_A2101	-	hypothetical protein
2092	 70.57	0	2060795..2061076	-	93	126456149	-	BURPS1106A_A2102	-	hypothetical protein
2093	 60.68	-1	2061042..2061425	+	127	126458080	-	BURPS1106A_A2103	-	hypothetical protein
2094	 67.92	0	2061636..2063393	+	585	126457464	-	BURPS1106A_A2104	-	thermolysin metallopeptidase
2095	 74.14	+1	2063882..2064403	-	173	126458401	-	BURPS1106A_A2105	-	hypothetical protein
2096	 70.58	0	2064515..2065153	-	212	126457479	-	BURPS1106A_A2106	-	MarR family transcriptional regulator
2097	 66.67	0	2065330..2065788	+	152	126457384	-	BURPS1106A_A2107	-	glyoxalase family protein
2098	 60.87	-1	2066115..2066390	-	91	126456572	-	BURPS1106A_A2108	-	hypothetical protein
2099	 66.59	0	2066355..2067674	+	439	126456142	-	BURPS1106A_A2109	-	MFS transporter, metabolite:H+ symporter (MHS) family protein
2100	 67.27	0	2067719..2067883	+	54	126457962	-	BURPS1106A_A2110	-	hypothetical protein
2101	 69.82	0	2068036..2068923	-	295	126457505	-	BURPS1106A_A2111	-	LysR family transcriptional regulator
2102	 69.27	0	2068904..2070247	+	447	126456971	-	BURPS1106A_A2112	-	FMN-dependent family dehydrogenase
2103	 66.19	0	2070371..2072035	-	554	126457803	-	BURPS1106A_A2113	-	serine carboxypeptidase family protein
2104	 74.17	+1	2072079..2072198	-	39	126457674	-	BURPS1106A_A2114	-	hypothetical protein
2105	 76.88	+1	2072203..2072760	-	185	126458195	-	BURPS1106A_A2115	-	hypothetical protein
2106	 71.95	0	2072783..2074372	-	529	126457317	-	BURPS1106A_A2116	-	kumamolisin
2107	 72.89	0	2074803..2075429	-	208	126456348	-	BURPS1106A_A2117	-	LysE family protein
2108	 66.88	0	2075563..2076027	+	154	126455643	-	BURPS1106A_A2118	-	AsnC family transcriptional regulator
2109	 72.10	0	2076362..2076766	+	134	126456091	-	BURPS1106A_A2119	-	hypothetical protein
2110	 72.62	0	2076782..2077033	+	83	126458029	-	BURPS1106A_A2120	-	hypothetical protein
2111	 69.50	0	2077142..2078728	+	528	126457500	-	BURPS1106A_A2121	-	phosphate transporter family protein
2112	 69.73	0	2078878..2079660	+	260	126457023	-	BURPS1106A_A2122	-	hypothetical protein
2113	 68.01	0	2079657..2080178	+	173	126458367	-	BURPS1106A_A2123	-	hypothetical protein
2114	 69.96	0	2080243..2081850	+	535	126455926	-	BURPS1106A_A2124	-	AMP-binding domain-containing protein
2115	 66.09	0	2081950..2082123	+	57	126456049	-	BURPS1106A_A2125	-	hypothetical protein
2116	 48.96	-2	2082175..2082366	-	63	126456918	-	BURPS1106A_A2126	-	hypothetical protein
2117	 42.48	-2	2082367..2082519	+	50	126457828	-	BURPS1106A_A2127	-	hypothetical protein
2118	 64.94	0	2082618..2083310	+	230	126457976	bmpR	BURPS1106A_A2128	-	autoinducer-binding transcriptional regulator BmpR
2119	 69.95	0	2083633..2084241	+	202	126456405	bpmI	BURPS1106A_A2129	-	autoinducer synthetase BpmI
2120	 67.31	0	2084214..2084369	+	51	126457260	-	BURPS1106A_A2130	-	hypothetical protein
2121	 68.33	0	2084583..2085908	+	441	126458159	-	BURPS1106A_A2131	-	oxidoreductase, FAD/FMN-binding
2122	 62.28	0	2086060..2086173	-	37	126458293	-	BURPS1106A_A2132	-	hypothetical protein
2123	 71.48	0	2086254..2087105	-	283	126458607	tauC	BURPS1106A_A2133	-	taurine ABC transporter, permease protein
2124	 70.24	0	2087108..2087890	-	260	126456823	tauB	BURPS1106A_A2134	-	taurine ABC transporter, ATP-binding protein
2125	 70.13	0	2087911..2088921	-	336	126457537	tauA	BURPS1106A_A2135	-	taurine ABC transporter, periplasmic taurine-binding protein
2126	 58.65	-1	2088920..2089156	+	78	126455837	-	BURPS1106A_A2136	-	hypothetical protein
2127	 68.82	0	2089224..2090057	+	277	126456525	tauD	BURPS1106A_A2137	-	taurine dioxygenase
2128	 71.43	0	2090298..2090486	-	62	126457382	-	BURPS1106A_A2138	-	hypothetical protein
67.97	MEAN

6.10	STD DEV
