IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

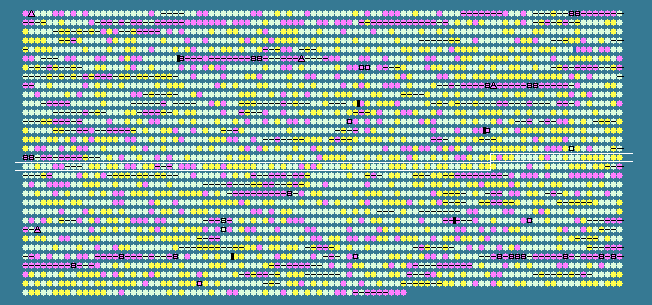

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1679	 75.33	+1	1655610..1657028	-	472	126457469	-	BURPS1106A_A1688	-	CAIB/BAIF family CoA transferase
1680	 62.25	0	1657185..1657433	+	82	126458392	-	BURPS1106A_A1689	-	hypothetical protein
1681	 73.21	0	1657448..1657615	-	55	126458047	-	BURPS1106A_A1690	-	putative oxidoreductase
1682	 73.87	0	1657768..1658142	+	124	126456409	-	BURPS1106A_A1692	-	hypothetical protein
1683	 69.85	0	1658139..1659176	-	345	126455791	-	BURPS1106A_A1691	-	zinc-binding dehydrogenase family oxidoreductase
1684	 70.36	0	1659241..1660863	-	540	126457198	-	BURPS1106A_A1693	-	alcohol dehydrogenase, iron-containing
1685	 69.14	0	1660827..1660988	-	53	126457437	-	BURPS1106A_A1694	-	hypothetical protein
1686	 68.71	0	1661379..1661525	-	48	126458289	-	BURPS1106A_A1695	-	hypothetical protein
1687	 73.48	0	1661565..1661843	+	92	126456968	-	BURPS1106A_A1697	-	hypothetical protein
1688	 50.88	-2	1661840..1661953	-	37	126456097	-	BURPS1106A_A1696	-	hypothetical protein
1689	 69.28	0	1662067..1664130	+	687	126457953	-	BURPS1106A_A1698	-	hypothetical protein
1690	 70.27	0	1664393..1664725	-	110	126455687	-	BURPS1106A_A1699	-	hypothetical protein
1691	 72.70	0	1664800..1665777	+	325	126456614	-	BURPS1106A_A1700	-	hypothetical protein
1692	 69.61	0	1665788..1668604	+	938	126457515	-	BURPS1106A_A1701	-	hypothetical protein
1693	 68.52	0	1668601..1669248	+	215	126458362	-	BURPS1106A_A1702	-	hypothetical protein
1694	 71.81	0	1669241..1670056	+	271	126456077	-	BURPS1106A_A1703	-	hypothetical protein
1695	 79.56	+1	1670150..1670374	+	74	126456577	-	BURPS1106A_A1705	-	hypothetical protein
1696	 72.95	0	1670341..1673589	-	1082	126456228	-	BURPS1106A_A1704	-	non-ribosomal peptide synthase
1697	 72.87	0	1673553..1673681	-	42	126457056	-	BURPS1106A_A1706	-	hypothetical protein
1698	 70.05	0	1673636..1673842	-	68	126455757	mbtH	BURPS1106A_A1707	-	MbtH protein
1699	 73.57	0	1673861..1675150	-	429	126456633	-	BURPS1106A_A1708	-	multidrug resistance protein
1700	 72.39	0	1675155..1687952	-	4265	126456950	-	BURPS1106A_A1709	-	non-ribosomal peptide synthase
1701	 64.64	0	1688002..1688889	-	295	126457484	-	BURPS1106A_A1710	-	hypothetical protein
1702	 67.35	0	1689307..1689597	-	96	126455531	-	BURPS1106A_A1711	-	phosphopantetheine attachment site domain-containing protein
1703	 72.85	0	1689608..1691401	-	597	126457986	-	BURPS1106A_A1712	-	acyl-CoA dehydrogenase domain-containing protein
1704	 70.02	0	1691398..1693158	-	586	126456941	-	BURPS1106A_A1713	-	acyl-CoA dehydrogenase domain-containing protein
1705	 69.29	0	1693155..1694987	-	610	126458087	-	BURPS1106A_A1714	-	AMP-binding domain-containing protein
1706	 50.29	-2	1694973..1695143	+	56	126458509	-	BURPS1106A_A1715	-	hypothetical protein
1707	 62.34	0	1695324..1695554	+	76	126457481	-	BURPS1106A_A1716	-	hypothetical protein
1708	 65.82	0	1695638..1696108	+	156	126456084	-	BURPS1106A_A1718	-	ECF subfamily RNA polymerase sigma factor
1709	 64.52	0	1695641..1695826	-	61	126456303	-	BURPS1106A_A1717	-	hypothetical protein
1710	 67.62	0	1696209..1696523	+	104	126458137	-	BURPS1106A_A1719	-	hypothetical protein
1711	 70.90	0	1696884..1697474	+	196	126457080	-	BURPS1106A_A1720	-	hypothetical protein
1712	 73.39	0	1697610..1698680	+	356	126456411	-	BURPS1106A_A1721	-	putative transporter
1713	 74.67	+1	1698825..1699049	-	74	126455554	-	BURPS1106A_A1722	-	manganese transporter NRAMP
1714	 70.83	0	1699134..1699445	-	103	126458198	-	BURPS1106A_A1723	-	hypothetical protein
1715	 75.44	+1	1699442..1700740	-	432	126456759	-	BURPS1106A_A1724	-	putative oxidoreductase
1716	 74.20	+1	1700819..1701535	+	238	126457179	-	BURPS1106A_A1726	-	transcriptional regulator, TetR family protein
1717	 68.84	0	1701514..1703121	-	535	126457891	ilvA	BURPS1106A_A1725	-	threonine dehydratase
1718	 64.47	0	1703212..1703529	-	105	126457240	-	BURPS1106A_A1727	-	hypothetical protein
1719	 63.57	0	1703531..1703788	+	85	126456909	-	BURPS1106A_A1728	-	hypothetical protein
1720	 65.26	0	1703875..1704801	-	308	126456161	-	BURPS1106A_A1729	-	putative transcriptional regulator
1721	 73.78	0	1704758..1705207	-	149	126458273	-	BURPS1106A_A1730	-	polyphosphate kinase 2 family protein
1722	 72.28	0	1705255..1706751	-	498	126458285	-	BURPS1106A_A1731	-	OmpW family outer membrane protein
1723	 63.58	0	1706765..1708060	-	431	126456523	-	BURPS1106A_A1732	-	putative secretion protein
1724	 68.62	0	1708073..1709095	-	340	126455677	-	BURPS1106A_A1733	-	hypothetical protein
1725	 64.45	0	1709092..1711215	-	707	126457759	-	BURPS1106A_A1734	-	ABC transporter, permease/ATP-binding protein
1726	 67.52	0	1711196..1711312	-	38	126457049	-	BURPS1106A_A1735	-	hypothetical protein
1727	 62.10	0	1711352..1711570	-	72	126456382	-	BURPS1106A_A1736	-	hypothetical protein
1728	 63.22	0	1711784..1711957	-	57	126456657	-	BURPS1106A_A1737	-	hypothetical protein
1729	 63.86	0	1712101..1713666	+	521	126455930	-	BURPS1106A_A1738	-	putative outer membrane protein TolC
1730	 66.67	0	1713869..1715590	-	573	126458442	ggt	BURPS1106A_A1739	-	gamma-glutamyltransferase
1731	 75.15	+1	1716113..1716277	+	54	126457760	-	BURPS1106A_A1740	-	hypothetical protein
1732	 74.76	+1	1716529..1717047	+	172	126456157	-	BURPS1106A_A1741	-	hypothetical protein
1733	 71.50	0	1717109..1717894	+	261	126455576	-	BURPS1106A_A1742	-	hypothetical protein
1734	 58.77	-1	1717978..1718091	-	37	126458079	-	BURPS1106A_A1743	-	hypothetical protein
1735	 75.00	+1	1718430..1723229	+	1599	126457551	-	BURPS1106A_A1744	-	putative ATP-dependent helicase lhr
1736	 76.81	+1	1723351..1723488	+	45	126455608	-	BURPS1106A_A1745	-	hypothetical protein
1737	 73.22	0	1723485..1723667	+	60	126456089	-	BURPS1106A_A1746	-	hypothetical protein
1738	 78.23	+1	1723742..1723888	-	48	126457396	-	BURPS1106A_A1747	-	hypothetical protein
1739	 75.08	+1	1723847..1725142	+	431	126457882	-	BURPS1106A_A1748	-	amino acid permease
1740	 70.77	0	1725396..1726151	+	251	126455942	-	BURPS1106A_A1749	-	hypothetical protein
1741	 65.30	0	1726275..1726712	-	145	126456455	-	BURPS1106A_A1750	-	DGPF domain-containing protein
1742	 76.95	+1	1726729..1726971	+	80	126457896	-	BURPS1106A_A1751	-	hypothetical protein
1743	 70.69	0	1727005..1728123	+	372	126457196	aroG	BURPS1106A_A1752	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1744	 71.74	0	1728203..1728340	+	45	126456836	-	BURPS1106A_A1753	-	hypothetical protein
1745	 71.15	0	1728621..1729289	-	222	126455468	-	BURPS1106A_A1754	-	O-methyltransferase family protein
1746	 70.40	0	1729950..1731449	-	499	126456805	-	BURPS1106A_A1755	-	diguanylate cyclase
1747	 61.98	0	1731423..1731785	+	120	126457351	-	BURPS1106A_A1756	-	HAD-superfamily hydrolase
1748	 75.36	+1	1731967..1732104	-	45	126457768	-	BURPS1106A_A1757	-	hypothetical protein
1749	 63.99	0	1732132..1732803	+	223	126458446	-	BURPS1106A_A1758	-	hypothetical protein
1750	 73.93	0	1733534..1734538	-	334	126456316	pcaQ	BURPS1106A_A1759	-	Pca operon transcriptional activator PcaQ
1751	 67.35	0	1734616..1735350	+	244	126457006	pcaH	BURPS1106A_A1760	-	protocatechuate 3,4-dioxygenase, beta subunit
1752	 68.86	0	1735353..1735946	+	197	126457507	pcaG	BURPS1106A_A1761	-	protocatechuate 3,4-dioxygenase, alpha subunit
1753	 65.19	0	1736191..1736325	-	44	126458225	-	BURPS1106A_A1762	-	hypothetical protein
1754	 71.96	0	1736396..1737226	-	276	126456113	-	BURPS1106A_A1763	-	putative dipeptide transport protein
1755	 75.96	+1	1737223..1738578	-	451	126458057	-	BURPS1106A_A1764	-	aminopeptidase DmpA
1756	 69.97	0	1738578..1739486	-	302	126457454	-	BURPS1106A_A1765	-	putative glutathione ABC transporter, permease protein
1757	 68.30	0	1739494..1740414	-	306	126456160	-	BURPS1106A_A1766	-	putative glutathione ABC transporter, permease protein
1758	 76.87	+1	1740408..1740554	-	48	126458612	-	BURPS1106A_A1767	-	hypothetical protein
1759	 65.90	0	1740551..1742113	-	520	126456602	-	BURPS1106A_A1768	-	putative glutathione ABC transporter, periplasmic glutathione-binding protein
1760	 68.99	0	1742099..1742356	+	85	126455811	-	BURPS1106A_A1770	-	hypothetical protein
1761	 71.20	0	1742317..1744347	-	676	126455670	-	BURPS1106A_A1769	-	putative glutathione ABC transporter, ATP-binding protein
1762	 74.01	0	1744388..1745422	-	344	126457918	-	BURPS1106A_A1771	-	asparaginase
1763	 75.03	+1	1745419..1746363	-	314	126457268	-	BURPS1106A_A1772	-	RpiR family transcriptional regulator
1764	 73.08	0	1746579..1746734	-	51	126456740	-	BURPS1106A_A1773	-	hypothetical protein
1765	 70.06	0	1746715..1748745	+	676	126457740	-	BURPS1106A_A1774	-	BCCT family transporter
1766	 74.58	+1	1749280..1750479	-	399	126458563	-	BURPS1106A_A1775	-	putative esterase
1767	 68.33	0	1750483..1750602	+	39	126456782	-	BURPS1106A_A1776	-	hypothetical protein
1768	 79.76	+1	1750674..1751009	+	111	126458239	-	BURPS1106A_A1777	-	hypothetical protein
1769	 68.79	0	1751088..1752548	+	486	126455551	-	BURPS1106A_A1778	-	phosphoesterase family protein
1770	 73.05	0	1752737..1752877	-	46	126456408	-	BURPS1106A_A1779	-	hypothetical protein
1771	 72.27	0	1753028..1753669	+	213	126456425	-	BURPS1106A_A1780	-	hypothetical protein
1772	 69.52	0	1753716..1754066	-	116	126457922	-	BURPS1106A_A1781	-	hypothetical protein
1773	 64.58	0	1754067..1754210	+	47	126455826	-	BURPS1106A_A1782	-	hypothetical protein
1774	 71.90	0	1754596..1757517	-	973	126456514	ileS	BURPS1106A_A1783	-	isoleucyl-tRNA synthetase
1775	 71.67	0	1757601..1758539	-	312	126457150	-	BURPS1106A_A1784	-	hypothetical protein
1776	 69.31	0	1758536..1759255	-	239	126458214	-	BURPS1106A_A1785	-	threonyl/alanyl tRNA synthetase domain-containing protein
1777	 76.46	+1	1759304..1759732	-	142	126455568	-	BURPS1106A_A1786	-	hypothetical protein
1778	 72.09	0	1759824..1761317	-	497	126456090	-	BURPS1106A_A1787	-	putative glycolate oxidase, subunit GlcD
67.97	MEAN

6.10	STD DEV
