IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

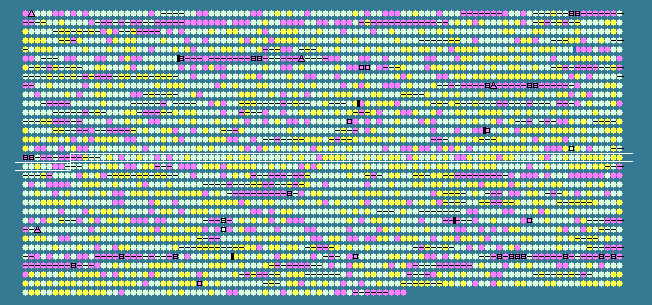

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1609	 56.89	-1	1589251..1589751	+	166	126458145	-	BURPS1106A_A1618	-	putative thiamine-phosphate pyrophosphorylase
1610	 53.59	-2	1590061..1590213	+	50	126455656	-	BURPS1106A_A1619	-	hypothetical protein
1611	 75.50	+1	1591025..1591624	+	199	126456325	-	BURPS1106A_A1620	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1612	 71.33	0	1591737..1591886	+	49	126455874	-	BURPS1106A_A1621	-	hypothetical protein
1613	 65.04	0	1592155..1592277	+	40	126456991	-	BURPS1106A_A1622	-	hypothetical protein
1614	 68.08	0	1592561..1594114	+	517	126457543	-	BURPS1106A_A1623	-	methyl-accepting chemotaxis protein
1615	 72.17	0	1594119..1594445	-	108	126458616	-	BURPS1106A_A1624	-	hypothetical protein
1616	 68.18	0	1594713..1596497	+	594	126455948	-	BURPS1106A_A1625	-	penicillin-binding protein
1617	 62.46	0	1596628..1596936	-	102	126456796	-	BURPS1106A_A1626	-	hypothetical protein
1618	 69.86	0	1596916..1597917	+	333	126457278	araF	BURPS1106A_A1627	-	L-arabinose ABC transporter, periplasmic L-arabinose-binding protein
1619	 70.83	0	1597982..1598749	+	255	126458197	-	BURPS1106A_A1628	-	short chain dehydrogenase
1620	 71.58	0	1599158..1599340	-	60	126457182	-	BURPS1106A_A1629	-	hypothetical protein
1621	 67.22	0	1599550..1599729	+	59	126458194	-	BURPS1106A_A1630	-	hypothetical protein
1622	 65.38	0	1600478..1601254	+	258	126457031	-	BURPS1106A_A1631	-	hypothetical protein
1623	 62.50	0	1601379..1602722	+	447	126456259	-	BURPS1106A_A1632	-	hypothetical protein
1624	 66.25	0	1602921..1603889	+	322	126458601	-	BURPS1106A_A1633	-	geranyltranstransferase
1625	 62.71	0	1603999..1605111	+	370	126457746	-	BURPS1106A_A1634	-	terpene synthase family protein
1626	 70.26	0	1605474..1607225	-	583	126456822	-	BURPS1106A_A1635	-	transporter, monovalent cation:proton antiporter-2 (CPA2) family protein
1627	 69.72	0	1607215..1607574	-	119	126455884	-	BURPS1106A_A1636	-	hypothetical protein
1628	 75.50	+1	1607571..1607921	-	116	126456700	-	BURPS1106A_A1637	-	hypothetical protein
1629	 67.55	0	1608455..1609357	+	300	126458222	-	BURPS1106A_A1638	-	hypothetical protein
1630	 68.59	0	1609458..1611431	+	657	126457323	-	BURPS1106A_A1639	-	hypothetical protein
1631	 69.75	0	1611445..1611801	+	118	126456427	-	BURPS1106A_A1640	-	hypothetical protein
1632	 71.33	0	1612030..1612308	+	92	126458028	-	BURPS1106A_A1641	-	hypothetical protein
1633	 68.02	0	1612466..1613128	-	220	126457282	-	BURPS1106A_A1642	-	3-demethylubiquinone-9 3-methyltransferase family protein
1634	 67.55	0	1613095..1614117	-	340	126456565	-	BURPS1106A_A1643	-	Mg2+/Co2+ transporter
1635	 72.89	0	1614196..1614420	+	74	126455579	-	BURPS1106A_A1644	-	hypothetical protein
1636	 67.42	0	1614417..1614548	+	43	126456260	-	BURPS1106A_A1645	-	hypothetical protein
1637	 72.24	0	1614589..1615413	+	274	126455573	-	BURPS1106A_A1646	-	DeoR family transcriptional regulator
1638	 73.26	0	1615447..1616583	+	378	126457667	-	BURPS1106A_A1647	-	major facilitator family transporter
1639	 67.47	0	1616613..1616861	+	82	126456953	-	BURPS1106A_A1648	-	hypothetical protein
1640	 68.79	0	1616992..1617462	-	156	126455931	-	BURPS1106A_A1649	-	hypothetical protein
1641	 68.93	0	1618254..1619534	+	426	126458388	-	BURPS1106A_A1650	-	putative sugar ABC transporter, periplasmic sugar-binding protein
1642	 66.10	0	1619677..1620555	+	292	126457124	-	BURPS1106A_A1651	-	putative sugar ABC transporter, permease protein
1643	 69.00	0	1620543..1621355	+	270	126456644	-	BURPS1106A_A1652	-	putative sugar ABC transporter, permease protein
1644	 70.43	0	1621377..1622411	+	344	126457208	-	BURPS1106A_A1653	-	putative D-xylulose reductase
1645	 72.28	0	1622415..1623608	+	397	126457522	-	BURPS1106A_A1654	-	putative sugar ABC transporter, ATP-binding protein
1646	 69.42	0	1623605..1624657	+	350	126458411	-	BURPS1106A_A1655	-	AraC family transcriptional regulator
1647	 73.58	0	1624654..1626114	+	486	126455796	xylB	BURPS1106A_A1656	-	xylulokinase
1648	 69.91	0	1626222..1626437	-	71	126456273	-	BURPS1106A_A1657	-	hypothetical protein
1649	 65.91	0	1626443..1626574	-	43	126457163	-	BURPS1106A_A1658	-	hypothetical protein
1650	 55.56	-2	1626556..1626708	-	50	126456059	-	BURPS1106A_A1659	-	hypothetical protein
1651	 72.26	0	1626731..1627732	+	333	126456879	-	BURPS1106A_A1660	-	D-alanyl-D-alanine carboxypeptidase family protein
1652	 74.08	+1	1628087..1629799	+	570	126457512	-	BURPS1106A_A1661	-	penicillin-binding protein
1653	 81.28	+2	1630193..1630411	-	72	126458409	-	BURPS1106A_A1662	-	hypothetical protein
1654	 72.07	0	1630392..1634648	-	1418	126455724	-	BURPS1106A_A1663	-	nitrate reductase, putative
1655	 69.23	0	1634692..1635042	-	116	126455543	nirD	BURPS1106A_A1664	-	nitrite reductase [NAD(P)H], small subunit
1656	 69.72	0	1635080..1637635	-	851	126458608	nirB	BURPS1106A_A1665	-	nitrite reductase [NAD(P)H], large subunit
1657	 71.19	0	1637679..1639004	-	441	126457719	-	BURPS1106A_A1666	-	putative nitrite transporter
1658	 75.06	+1	1639015..1639800	-	261	126455736	-	BURPS1106A_A1667	-	hypothetical protein
1659	 71.05	0	1639847..1639960	+	37	126455891	-	BURPS1106A_A1668	-	hypothetical protein
1660	 74.39	+1	1639966..1640781	+	271	126457102	cobA	BURPS1106A_A1669	-	uroporphyrin-III C-methyltransferase
1661	 70.85	0	1640883..1641479	+	198	126456634	-	BURPS1106A_A1670	-	response regulator/ANTAR domain-containing protein
1662	 71.85	0	1641497..1642558	+	353	126456840	-	BURPS1106A_A1672	-	putative regulatory protein
1663	 76.49	+1	1642513..1642797	-	94	126456581	-	BURPS1106A_A1671	-	hypothetical protein
1664	 67.30	0	1642828..1643460	-	210	126457985	-	BURPS1106A_A1673	-	GTP cyclohydrolase I
1665	 60.61	-1	1643754..1643984	+	76	126458627	-	BURPS1106A_A1674	-	hypothetical protein
1666	 72.65	0	1643981..1644448	+	155	126455919	-	BURPS1106A_A1675	-	hypothetical protein
1667	 65.08	0	1644445..1644570	+	41	126456747	-	BURPS1106A_A1676	-	hypothetical protein
1668	 69.75	0	1644718..1647249	+	843	126457294	-	BURPS1106A_A1677	-	putative lipoprotein
1669	 75.51	+1	1647302..1647697	+	131	126458186	-	BURPS1106A_A1678	-	hypothetical protein
1670	 70.38	0	1647784..1648806	-	340	126455635	-	BURPS1106A_A1679	-	putative acetylpolyamine aminohydrolase
1671	 74.06	0	1648837..1650216	-	459	126456433	amaB-2	BURPS1106A_A1680	-	allantoate amidohydrolase
1672	 69.70	0	1650241..1651560	-	439	126456601	-	BURPS1106A_A1681	-	major facilitator transporter
1673	 46.81	-2	1651547..1651687	+	46	126457473	-	BURPS1106A_A1682	-	hypothetical protein
1674	 63.89	0	1651731..1652702	+	323	126457916	-	BURPS1106A_A1683	-	LysR family transcriptional regulator
1675	 74.41	+1	1652751..1653047	-	98	126457140	-	BURPS1106A_A1684	-	hypothetical protein
1676	 69.70	0	1653040..1653369	+	109	126456125	-	BURPS1106A_A1686	-	hypothetical protein
1677	 72.82	0	1653346..1654353	-	335	126457975	-	BURPS1106A_A1685	-	LysR family transcriptional regulator
1678	 72.58	0	1654477..1655220	+	247	126456958	-	BURPS1106A_A1687	-	short chain dehydrogenase/reductase family oxidoreductase
1679	 75.33	+1	1655610..1657028	-	472	126457469	-	BURPS1106A_A1688	-	CAIB/BAIF family CoA transferase
1680	 62.25	0	1657185..1657433	+	82	126458392	-	BURPS1106A_A1689	-	hypothetical protein
1681	 73.21	0	1657448..1657615	-	55	126458047	-	BURPS1106A_A1690	-	putative oxidoreductase
1682	 73.87	0	1657768..1658142	+	124	126456409	-	BURPS1106A_A1692	-	hypothetical protein
1683	 69.85	0	1658139..1659176	-	345	126455791	-	BURPS1106A_A1691	-	zinc-binding dehydrogenase family oxidoreductase
1684	 70.36	0	1659241..1660863	-	540	126457198	-	BURPS1106A_A1693	-	alcohol dehydrogenase, iron-containing
1685	 69.14	0	1660827..1660988	-	53	126457437	-	BURPS1106A_A1694	-	hypothetical protein
1686	 68.71	0	1661379..1661525	-	48	126458289	-	BURPS1106A_A1695	-	hypothetical protein
1687	 73.48	0	1661565..1661843	+	92	126456968	-	BURPS1106A_A1697	-	hypothetical protein
1688	 50.88	-2	1661840..1661953	-	37	126456097	-	BURPS1106A_A1696	-	hypothetical protein
1689	 69.28	0	1662067..1664130	+	687	126457953	-	BURPS1106A_A1698	-	hypothetical protein
1690	 70.27	0	1664393..1664725	-	110	126455687	-	BURPS1106A_A1699	-	hypothetical protein
1691	 72.70	0	1664800..1665777	+	325	126456614	-	BURPS1106A_A1700	-	hypothetical protein
1692	 69.61	0	1665788..1668604	+	938	126457515	-	BURPS1106A_A1701	-	hypothetical protein
1693	 68.52	0	1668601..1669248	+	215	126458362	-	BURPS1106A_A1702	-	hypothetical protein
1694	 71.81	0	1669241..1670056	+	271	126456077	-	BURPS1106A_A1703	-	hypothetical protein
1695	 79.56	+1	1670150..1670374	+	74	126456577	-	BURPS1106A_A1705	-	hypothetical protein
1696	 72.95	0	1670341..1673589	-	1082	126456228	-	BURPS1106A_A1704	-	non-ribosomal peptide synthase
1697	 72.87	0	1673553..1673681	-	42	126457056	-	BURPS1106A_A1706	-	hypothetical protein
1698	 70.05	0	1673636..1673842	-	68	126455757	mbtH	BURPS1106A_A1707	-	MbtH protein
1699	 73.57	0	1673861..1675150	-	429	126456633	-	BURPS1106A_A1708	-	multidrug resistance protein
1700	 72.39	0	1675155..1687952	-	4265	126456950	-	BURPS1106A_A1709	-	non-ribosomal peptide synthase
1701	 64.64	0	1688002..1688889	-	295	126457484	-	BURPS1106A_A1710	-	hypothetical protein
1702	 67.35	0	1689307..1689597	-	96	126455531	-	BURPS1106A_A1711	-	phosphopantetheine attachment site domain-containing protein
1703	 72.85	0	1689608..1691401	-	597	126457986	-	BURPS1106A_A1712	-	acyl-CoA dehydrogenase domain-containing protein
1704	 70.02	0	1691398..1693158	-	586	126456941	-	BURPS1106A_A1713	-	acyl-CoA dehydrogenase domain-containing protein
1705	 69.29	0	1693155..1694987	-	610	126458087	-	BURPS1106A_A1714	-	AMP-binding domain-containing protein
1706	 50.29	-2	1694973..1695143	+	56	126458509	-	BURPS1106A_A1715	-	hypothetical protein
1707	 62.34	0	1695324..1695554	+	76	126457481	-	BURPS1106A_A1716	-	hypothetical protein
1708	 65.82	0	1695638..1696108	+	156	126456084	-	BURPS1106A_A1718	-	ECF subfamily RNA polymerase sigma factor
67.97	MEAN

6.10	STD DEV
