IslandPath Analysis: Burkholderia pseudomallei 1106a

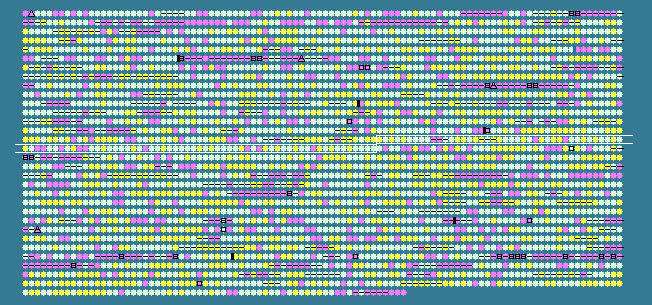

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1460	 77.34	+1	1426839..1427222	+	127	126455674	-	BURPS1106A_A1469	-	hypothetical protein
1461	 69.75	0	1427307..1428602	+	431	126458291	-	BURPS1106A_A1471	-	putative methyltransferase
1462	 80.14	+1	1428579..1428860	-	93	126455966	-	BURPS1106A_A1470	-	hypothetical protein
1463	 69.74	0	1428857..1430386	-	509	126457723	-	BURPS1106A_A1472	-	putative thiaminase I
1464	 72.50	0	1430377..1431387	-	336	126456062	thiD	BURPS1106A_A1473	-	phosphomethylpyrimidine kinase
1465	 70.72	0	1431405..1432145	-	246	126457125	-	BURPS1106A_A1474	-	UbiE/COQ5 family methlytransferase
1466	 67.88	0	1432161..1433150	-	329	126456897	-	BURPS1106A_A1475	-	putative thymidylate synthase
1467	 65.13	0	1433152..1433607	-	151	126456446	-	BURPS1106A_A1476	-	putative nucleoside 2-deoxyribosyltransferase
1468	 71.28	0	1433604..1434080	-	158	126458331	nudF	BURPS1106A_A1477	-	ADP-ribose pyrophosphatase
1469	 57.22	-1	1434073..1434252	-	59	126457636	-	BURPS1106A_A1478	-	hypothetical protein
1470	 63.10	0	1434481..1434648	-	55	126457656	-	BURPS1106A_A1479	-	hypothetical protein
1471	 68.09	0	1434687..1435460	+	257	126456549	-	BURPS1106A_A1480	-	cyclopropane-fatty-acyl-phospholipid synthase
1472	 68.76	0	1435517..1436665	+	382	126455863	-	BURPS1106A_A1481	-	putative gamma-butyrobetaine,2-oxoglutarate dioxygenase
1473	 74.55	+1	1436862..1437698	-	278	126457945	-	BURPS1106A_A1482	-	hypothetical protein
1474	 73.75	0	1437865..1438386	+	173	126457886	-	BURPS1106A_A1483	-	amino acid permease
1475	 69.35	0	1438418..1439908	+	496	126456544	-	BURPS1106A_A1484	-	basic amino acid/polyamine antiporter (APA) family protein
1476	 72.54	0	1440043..1440825	+	260	126456442	-	BURPS1106A_A1485	-	S54 family peptidase
1477	 79.17	+1	1440833..1441000	-	55	126455478	-	BURPS1106A_A1486	-	hypothetical protein
1478	 70.31	0	1441006..1443006	-	666	126458626	ftsH	BURPS1106A_A1487	-	ATP-dependent metalloprotease FtsH
1479	 73.88	0	1443060..1443572	-	170	126457132	-	BURPS1106A_A1488	-	hypothetical protein
1480	 76.54	+1	1443672..1444127	-	151	126456773	-	BURPS1106A_A1489	-	hypothetical protein
1481	 65.28	0	1444119..1444262	+	47	126456111	-	BURPS1106A_A1490	-	hypothetical protein
1482	 67.54	0	1444277..1444390	+	37	126457360	-	BURPS1106A_A1491	-	hypothetical protein
1483	 70.94	0	1444387..1446141	+	584	126456656	-	BURPS1106A_A1493	-	hypothetical protein
1484	 82.61	+2	1446138..1446275	-	45	126457472	-	BURPS1106A_A1492	-	hypothetical protein
1485	 70.24	0	1446272..1446943	-	223	126456207	-	BURPS1106A_A1494	-	hypothetical protein
1486	 42.31	-2	1446925..1447080	+	51	126458059	-	BURPS1106A_A1495	-	hypothetical protein
1487	 72.59	0	1447094..1448191	+	365	126457232	-	BURPS1106A_A1496	-	RND family efflux transporter MFP subunit
1488	 68.66	0	1448188..1451298	+	1036	126456706	-	BURPS1106A_A1497	-	RND  HAE1/HME family protein
1489	 80.70	+2	1451327..1451440	-	37	126455822	-	BURPS1106A_A1498	-	hypothetical protein
1490	 71.86	0	1451433..1452971	+	512	126457707	oprB	BURPS1106A_A1499	-	outer membrane efflux protein OprB
1491	 56.57	-1	1452986..1453282	+	98	126456788	-	BURPS1106A_A1500	-	hypothetical protein
1492	 66.50	0	1453358..1453945	+	195	126456335	ribA	BURPS1106A_A1501	-	GTP cyclohydrolase II
1493	 70.26	0	1453942..1455639	+	565	126458593	-	BURPS1106A_A1502	-	WD domain-containing protein
1494	 72.15	0	1455636..1456346	+	236	126455924	-	BURPS1106A_A1503	-	hypothetical protein
1495	 71.34	0	1456343..1457326	+	327	126456628	-	BURPS1106A_A1504	-	hypothetical protein
1496	 76.94	+1	1457465..1458652	+	395	126457369	ribD	BURPS1106A_A1505	-	riboflavin biosynthesis protein RibD
1497	 67.24	0	1458712..1459764	+	350	126458033	-	BURPS1106A_A1506	-	O-methyltransferase
1498	 70.49	0	1459767..1460630	+	287	126456122	-	BURPS1106A_A1507	-	glyoxalase family protein
1499	 73.08	0	1460662..1462065	+	467	126457017	-	BURPS1106A_A1508	-	major facilitator transporter
1500	 70.33	0	1462139..1462630	+	163	126456082	-	BURPS1106A_A1509	-	hypothetical protein
1501	 74.47	+1	1462649..1464058	+	469	126456969	-	BURPS1106A_A1510	-	hypothetical protein
1502	 70.67	0	1464075..1464224	+	49	126457483	-	BURPS1106A_A1511	-	hypothetical protein
1503	 62.85	0	1464273..1465031	-	252	126458443	-	BURPS1106A_A1512	-	LuxR family transcriptional regulator
1504	 59.11	-1	1465168..1465392	+	74	126457433	-	BURPS1106A_A1513	-	hypothetical protein
1505	 66.21	0	1465458..1465898	-	146	126458556	-	BURPS1106A_A1514	-	hypothetical protein
1506	 69.34	0	1465995..1468016	-	673	126455849	-	BURPS1106A_A1515	-	FAD/FMN-binding/pyridine nucleotide-disulphide oxidoreductase family protein
1507	 52.85	-2	1467933..1468055	+	40	126456752	-	BURPS1106A_A1516	-	hypothetical protein
1508	 68.36	0	1468132..1468722	+	196	126457210	-	BURPS1106A_A1517	-	PadR family transcriptional regulator
1509	 74.22	+1	1468750..1469808	+	352	126458169	-	BURPS1106A_A1518	-	hydroxyethylthiazole kinase, putative
1510	 58.33	-1	1469842..1470057	-	71	126457175	-	BURPS1106A_A1519	-	hypothetical protein
1511	 46.03	-2	1470056..1470244	+	62	126457884	-	BURPS1106A_A1520	-	hypothetical protein
1512	 66.31	0	1470354..1471190	+	278	126458623	-	BURPS1106A_A1521	-	taurine catabolism dioxygenase TauD
1513	 68.47	0	1471305..1472192	+	295	126455866	-	BURPS1106A_A1522	-	auxin efflux carrier (AEC) family protein
1514	 72.97	0	1472452..1473165	-	237	126456750	-	BURPS1106A_A1523	-	hypothetical protein
1515	 65.12	0	1473229..1473486	-	85	126455664	-	BURPS1106A_A1524	-	hypothetical protein
1516	 69.51	0	1473884..1474831	+	315	126456282	-	BURPS1106A_A1525	-	universal stress family protein
1517	 69.06	0	1475050..1475466	-	138	126455586	-	BURPS1106A_A1526	-	hypothetical protein
1518	 70.91	0	1475897..1476415	-	172	126457616	-	BURPS1106A_A1527	-	putative hydrogenase subunit
1519	 72.81	0	1476415..1478139	-	574	126456901	-	BURPS1106A_A1528	-	putative hydrogenase subunit
1520	 67.83	0	1478143..1479603	-	486	126455834	-	BURPS1106A_A1529	-	hydrogenase 4 subunit F
1521	 64.24	0	1479596..1480255	-	219	126458319	-	BURPS1106A_A1530	-	putative hydrogenase, membrane subunit
1522	 69.72	0	1480256..1481206	-	316	126457558	-	BURPS1106A_A1531	-	putative hydrogenase, membrane subunit
1523	 69.71	0	1481200..1483206	-	668	126456695	-	BURPS1106A_A1532	-	hydrogenase 4 subunit B
1524	 73.47	0	1483260..1483406	+	48	126457014	-	BURPS1106A_A1533	-	hypothetical protein
1525	 68.73	0	1483565..1484338	+	257	126457673	-	BURPS1106A_A1534	-	hypothetical protein
1526	 68.90	0	1484616..1485062	+	148	126458571	-	BURPS1106A_A1535	-	hypothetical protein
1527	 69.35	0	1485120..1485380	+	86	126457662	-	BURPS1106A_A1536	-	putative phosphocarrier protein HPr
1528	 71.11	0	1485422..1486231	+	269	126456714	-	BURPS1106A_A1537	-	spermine/spermidine synthase family protein
1529	 66.67	0	1486338..1486556	+	72	126458238	-	BURPS1106A_A1538	-	hypothetical protein
1530	 74.92	+1	1486597..1486923	+	108	126457341	-	BURPS1106A_A1539	-	hypothetical protein
1531	 68.71	0	1486928..1488202	-	424	126456609	-	BURPS1106A_A1540	-	major facilitator family transporter
1532	 72.68	0	1488227..1489024	-	265	126456222	-	BURPS1106A_A1541	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
1533	 66.37	0	1489044..1489727	-	227	126457993	narI	BURPS1106A_A1542	-	respiratory nitrate reductase, gamma subunit
1534	 71.16	0	1489935..1490624	-	229	126458270	narJ	BURPS1106A_A1543	-	nitrate reductase molybdenum cofactor assembly chaperone
1535	 65.36	0	1490621..1492150	-	509	126458481	narH	BURPS1106A_A1544	-	nitrate reductase, beta subunit
1536	 68.32	0	1492147..1495950	-	1267	126458494	narG	BURPS1106A_A1545	-	nitrate reductase, alpha subunit
1537	 74.54	+1	1495990..1496205	-	71	126457758	-	BURPS1106A_A1546	-	hypothetical protein
1538	 55.80	-1	1496211..1496348	-	45	126456817	-	BURPS1106A_A1547	-	hypothetical protein
1539	 70.07	0	1496340..1496486	+	48	126458146	-	BURPS1106A_A1548	-	hypothetical protein
1540	 58.00	-1	1496490..1496639	+	49	126456639	-	BURPS1106A_A1549	-	hypothetical protein
1541	 71.51	0	1496650..1498692	+	680	126455525	-	BURPS1106A_A1550	-	sensory box histidine kinase
1542	 66.51	0	1498689..1499336	+	215	126458472	-	BURPS1106A_A1551	-	LuxR family DNA-binding response regulator
1543	 79.71	+1	1499591..1499728	-	45	126457776	-	BURPS1106A_A1552	-	hypothetical protein
1544	 68.86	0	1499898..1500308	+	136	126457791	-	BURPS1106A_A1553	-	response regulator
1545	 65.90	0	1500321..1501100	+	259	126457602	-	BURPS1106A_A1554	-	Crp/FNR family transcriptional regulator
1546	 74.07	+1	1501313..1501474	-	53	126455981	-	BURPS1106A_A1555	-	hypothetical protein
1547	 67.77	0	1501485..1503203	-	572	126458493	-	BURPS1106A_A1556	-	CocE/NonD family hydrolase
1548	 66.67	0	1503317..1503634	-	105	126457804	-	BURPS1106A_A1557	-	hypothetical protein
1549	 57.83	-1	1503697..1504680	+	327	126455633	-	BURPS1106A_A1559	-	TauD/TfdA family dioxygenase
1550	 72.11	0	1504674..1504820	-	48	126457169	-	BURPS1106A_A1558	-	hypothetical protein
1551	 69.06	0	1504931..1506181	-	416	126458126	-	BURPS1106A_A1560	-	major facilitator family transporter
1552	 72.72	0	1506237..1507112	-	291	126457363	-	BURPS1106A_A1561	-	thioesterase domain-containing protein
1553	 71.04	0	1507093..1507938	-	281	126456715	-	BURPS1106A_A1562	-	acetyltransferase
1554	 67.73	0	1507943..1509535	-	530	126458315	-	BURPS1106A_A1563	-	metallo-beta-lactamase family protein
1555	 73.15	0	1509548..1512016	-	822	126455725	-	BURPS1106A_A1564	-	polyketide synthase, type I
1556	 70.20	0	1511997..1515473	-	1158	126457705	-	BURPS1106A_A1565	-	putative non-ribosomal peptide synthase/polyketide synthase
1557	 69.47	0	1515513..1519502	-	1329	126457141	glcF	BURPS1106A_A1566	-	polyketide synthase, type I
1558	 71.11	0	1519495..1524087	-	1530	126455887	glcE	BURPS1106A_A1567	-	polyketide synthase, type I
1559	 69.30	0	1524095..1528687	-	1530	126456931	-	BURPS1106A_A1568	-	putative siderophore non-ribosomal peptide synthetase MbaF
67.97	MEAN

6.10	STD DEV
