IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

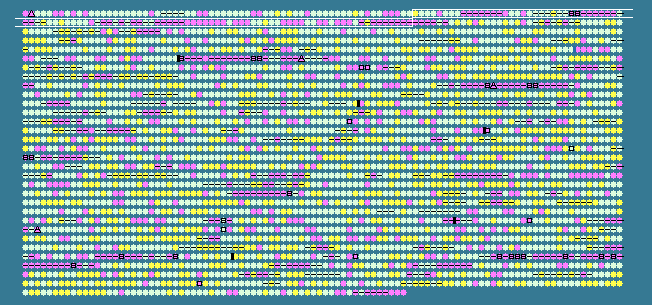

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
66	 73.54	0	53665..53853	-	62	126456522	-	BURPS1106A_A0066	-	hypothetical protein
67	 67.25	0	53838..55028	-	396	126458298	chrA	BURPS1106A_A0067	-	chromate ion transporter protein ChrA
68	 69.41	0	55025..55936	-	303	126458120	chrB	BURPS1106A_A0068	-	chrB protein
69	 69.95	0	56224..56649	-	141	126455609	-	BURPS1106A_A0069	-	hypothetical protein
70	 62.78	0	56947..57486	+	179	126456266	-	BURPS1106A_A0070	-	hypothetical protein
71	 66.67	0	57539..57838	+	99	126457832	-	BURPS1106A_A0071	-	plastocyanin/azurin family copper binding protein
72	 67.10	0	57847..58542	+	231	126458510	-	BURPS1106A_A0072	-	RNA polymerase sigma factor
73	 70.15	0	59019..65012	+	1997	126457810	uvrA	BURPS1106A_A0073	-	excinuclease ABC, A subunit
74	 57.19	-1	65434..65739	+	101	126458381	-	BURPS1106A_A0074	-	hypothetical protein
75	 60.54	-1	65894..66187	-	97	126455970	-	BURPS1106A_A0075	-	KluA
76	 62.85	0	66296..66793	-	165	126456734	-	BURPS1106A_A0076	-	hypothetical protein
77	 58.61	-1	66805..67077	+	90	126455856	-	BURPS1106A_A0077	-	hypothetical protein
78	 53.03	-2	67084..67215	-	43	126458204	-	BURPS1106A_A0078	-	hypothetical protein
79	 59.63	-1	67360..67686	-	108	126457332	-	BURPS1106A_A0079	-	H-NS histone family protein
80	 55.95	-1	67692..67859	-	55	126457643	-	BURPS1106A_A0080	-	hypothetical protein
81	 63.27	0	68210..69562	+	450	126456720	-	BURPS1106A_A0081	-	alpha-ketoglutarate permease
82	 67.03	0	69615..71546	+	643	126456247	-	BURPS1106A_A0082	-	C4-dicarboxylate transport sensor kinase
83	 66.74	0	71530..72876	+	448	126457972	-	BURPS1106A_A0083	-	C4-dicarboxylate transport transcriptional regulatory protein
84	 43.33	-2	74006..74155	+	49	126457236	-	BURPS1106A_A0084	-	hypothetical protein
85	 70.07	0	74338..74895	-	185	126457977	-	BURPS1106A_A0085	-	hypothetical protein
86	 64.53	0	74954..75187	-	77	126457400	-	BURPS1106A_A0086	-	hypothetical protein
87	 68.06	0	75164..77107	+	647	126458415	-	BURPS1106A_A0087	-	hypothetical protein
88	 69.20	0	77359..77871	+	170	126458150	-	BURPS1106A_A0088	-	AraC family transcription regulator
89	 75.44	+1	77905..78018	-	37	126456190	-	BURPS1106A_A0089	-	hypothetical protein
90	 66.67	0	78093..78209	-	38	126456875	-	BURPS1106A_A0090	-	hypothetical protein
91	 67.49	0	78243..80438	+	731	126457597	-	BURPS1106A_A0091	-	non-hemolytic phospholipase C
92	 63.09	0	80843..81205	-	120	126458296	-	BURPS1106A_A0092	-	transposase
93	 62.30	0	81301..81666	-	121	126457653	-	BURPS1106A_A0093	-	putative transposase for insertion sequence
94	 50.47	-2	82340..82975	-	211	126458337	-	BURPS1106A_A0094	-	regulatory protein
95	 51.59	-2	83684..83809	+	41	126458157	-	BURPS1106A_A0095	-	hypothetical protein
96	 57.06	-1	84481..85209	+	242	126455675	-	BURPS1106A_A0096	-	putrescine transport system permease protein PotH
97	 54.67	-2	85469..85618	-	49	126457873	-	BURPS1106A_A0097	-	hypothetical protein
98	 53.68	-2	86047..87078	+	343	126456143	-	BURPS1106A_A0098	-	ABC transport system, exported substrate-binding protein
99	 61.44	-1	87721..88026	+	101	126457035	-	BURPS1106A_A0099	-	H-NS histone family protein
100	 68.68	0	88347..91127	+	926	126457812	-	BURPS1106A_A0100	-	Rhs element Vgr protein
101	 63.68	0	91141..93381	+	746	126457559	-	BURPS1106A_A0101	-	Type V secretory pathway, adhesin AidA
102	 58.89	-1	93400..95058	+	552	126458256	-	BURPS1106A_A0102	-	hypothetical protein
103	 67.42	0	95068..95331	+	87	126456320	-	BURPS1106A_A0103	-	PAAR motif-containing protein
104	 72.63	0	95482..95766	+	94	126456243	-	BURPS1106A_A0105	-	hypothetical protein
105	 64.76	0	95746..96165	-	139	126457448	-	BURPS1106A_A0104	-	hypothetical protein
106	 67.89	0	96185..96511	-	108	126456861	-	BURPS1106A_A0106	-	thioredoxin
107	 72.22	0	96597..96812	-	71	126458274	-	BURPS1106A_A0107	-	hypothetical protein
108	 67.10	0	96983..97675	+	230	126456153	-	BURPS1106A_A0108	-	putative lipoprotein
109	 70.16	0	97714..98028	+	104	126457792	-	BURPS1106A_A0109	-	hypothetical protein
110	 64.55	0	98068..98256	-	62	126458470	-	BURPS1106A_A0110	-	hypothetical protein
111	 68.55	0	98261..99004	-	247	126458432	-	BURPS1106A_A0111	-	hypothetical protein
112	 63.24	0	99001..100575	-	524	126456528	ctaD	BURPS1106A_A0112	-	cytochrome c oxidase, subunit I
113	 68.40	0	100546..100833	+	95	126458121	-	BURPS1106A_A0113	-	hypothetical protein
114	 61.57	-1	100861..101115	-	84	126456011	-	BURPS1106A_A0114	-	hypothetical protein
115	 60.74	-1	101118..101252	-	44	126457024	-	BURPS1106A_A0115	-	hypothetical protein
116	 65.15	0	101746..102999	-	417	126457526	-	BURPS1106A_A0116	-	hypothetical protein
117	 54.81	-2	103082..103351	-	89	126455610	-	BURPS1106A_A0117	-	hypothetical protein
118	 64.55	0	103363..103551	-	62	126458117	-	BURPS1106A_A0118	-	hypothetical protein
119	 44.64	-2	104196..104363	-	55	126457116	-	BURPS1106A_A0119	-	hypothetical protein
120	 50.00	-2	104491..104616	+	41	126457003	-	BURPS1106A_A0120	-	hypothetical protein
121	 66.80	0	104775..107015	+	746	126456852	-	BURPS1106A_A0121	-	hypothetical protein
122	 66.67	0	106790..107197	+	135	126456087	-	BURPS1106A_A0122	-	haemagluttinin family protein
123	 62.33	0	107264..108715	-	483	126458397	pqaA	BURPS1106A_A0123	-	PqaA protein
124	 62.04	0	108787..109002	+	71	126457476	-	BURPS1106A_A0124	-	hypothetical protein
125	 60.90	-1	109013..109567	-	184	126457651	yfaZ	BURPS1106A_A0125	-	outer membrane protein
126	 58.43	-1	110188..110697	+	169	126457347	-	BURPS1106A_A0126	-	fimbrial protein
127	 59.89	-1	110762..111499	+	245	126456489	-	BURPS1106A_A0127	-	fimbrial assembly chaperone protein
128	 64.12	0	111612..114356	+	914	126457629	-	BURPS1106A_A0128	-	fimbrial usher protein
129	 62.30	0	114349..114921	+	190	126458042	-	BURPS1106A_A0129	-	major fimbrial subunit protein
130	 59.71	-1	114953..115642	+	229	126455750	-	BURPS1106A_A0130	-	hypothetical protein
131	 62.74	0	115693..117321	+	542	126456220	-	BURPS1106A_A0131	-	OmpA family protein
132	 64.04	0	117284..117397	+	37	126456929	-	BURPS1106A_A0132	-	hypothetical protein
133	 58.33	-1	117711..118250	+	179	126457308	-	BURPS1106A_A0133	-	hypothetical protein
134	 60.20	-1	118284..119783	+	499	126457919	-	BURPS1106A_A0134	-	hypothetical protein
135	 70.59	0	119787..119939	+	50	126455880	-	BURPS1106A_A0135	-	hypothetical protein
136	 60.04	-1	119983..120465	+	160	126456784	sciM	BURPS1106A_A0136	-	SciM protein
137	 61.14	-1	120593..121135	+	180	126456559	sciN	BURPS1106A_A0137	-	SciN protein
138	 62.03	0	121132..122490	+	452	126456681	-	BURPS1106A_A0138	-	hypothetical protein
139	 65.90	0	122487..123788	+	433	126457603	-	BURPS1106A_A0139	-	hypothetical protein
140	 67.28	0	123803..127711	+	1302	126457982	-	BURPS1106A_A0140	-	ImcF/SciS family protein
141	 80.49	+2	127742..127864	+	40	126456250	-	BURPS1106A_A0141	-	hypothetical protein
142	 66.67	0	127901..128470	+	189	126456361	-	BURPS1106A_A0142	-	hypothetical protein
143	 66.26	0	128568..131258	+	896	126457271	-	BURPS1106A_A0143	-	Rhs element Vgr protein
144	 64.13	0	131327..131602	+	91	126458070	-	BURPS1106A_A0144	-	PAAR motif-containing protein
145	 63.05	0	131615..135067	+	1150	126455803	-	BURPS1106A_A0145	-	YD repeat-/RHS repeat-containing protein
146	 59.32	-1	135974..136150	+	58	126456464	-	BURPS1106A_A0146	-	hypothetical protein
147	 58.31	-1	136351..137379	-	342	126455537	-	BURPS1106A_A0147	-	hypothetical protein
148	 67.04	0	137434..138504	-	356	126456359	-	BURPS1106A_A0148	-	ImpA-related N-terminal family protein
149	 66.95	0	138523..139572	-	349	126458527	-	BURPS1106A_A0149	-	hypothetical protein
150	 64.17	0	139569..141449	-	626	126456197	-	BURPS1106A_A0150	-	hypothetical protein
151	 63.58	0	141451..141969	-	172	126456785	-	BURPS1106A_A0151	-	hypothetical protein
152	 66.42	0	141956..142762	-	268	126457335	-	BURPS1106A_A0152	-	ImpE/SciE family protein
153	 64.30	0	142794..143849	-	351	126458215	-	BURPS1106A_A0153	-	hypothetical protein
154	 50.39	-2	143908..144036	-	42	126455511	-	BURPS1106A_A0154	-	hypothetical protein
155	 52.85	-2	144139..144261	-	40	126458525	-	BURPS1106A_A0155	-	hypothetical protein
156	 66.07	0	144237..146924	+	895	126457862	clpB	BURPS1106A_A0156	-	chaperone clpB
157	 63.04	0	146998..147135	-	45	126457183	-	BURPS1106A_A0157	-	hypothetical protein
158	 72.50	0	147187..147306	+	39	126456486	-	BURPS1106A_A0158	-	hypothetical protein
159	 63.44	0	147315..150413	-	1032	126455824	-	BURPS1106A_A0159	-	response regulator/sensor histidine kinase
160	 58.12	-1	151144..151260	-	38	126457506	-	BURPS1106A_A0160	-	hypothetical protein
161	 51.28	-2	151961..152623	-	220	126457628	-	BURPS1106A_A0161	-	LuxR family DNA-binding response regulator
162	 40.74	-2	152735..152896	-	53	126456924	-	BURPS1106A_A0162	-	hypothetical protein
163	 60.59	-1	153172..155541	-	789	126455641	-	BURPS1106A_A0163	-	fimbrial usher family protein
164	 55.51	-2	155917..156615	-	232	126457931	-	BURPS1106A_A0164	-	putative periplasmic chaperone protein
165	 40.17	-2	156831..156947	+	38	126458119	-	BURPS1106A_A0165	-	hypothetical protein
67.97	MEAN

6.10	STD DEV
