IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

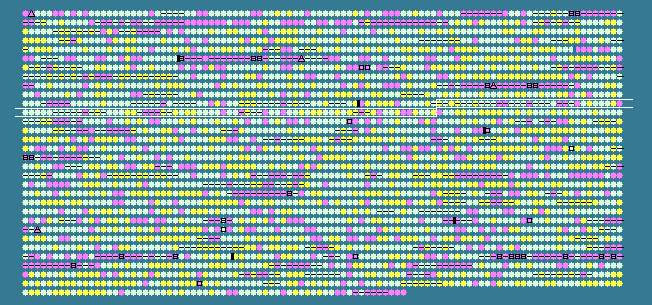

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.97 STD DEV: 6.10
Burkholderia pseudomallei 1106a chromosome II, complete sequence - 1..3100794
3164 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1070	 71.65	0	1037465..1037785	+	106	126456101	-	BURPS1106A_A1078	-	D-galactarate dehydratase/altronate hydrolase
1071	 70.07	0	1037820..1039142	+	440	126457038	-	BURPS1106A_A1079	-	D-galactarate dehydratase/altronate hydrolase
1072	 73.45	0	1039414..1040253	+	279	126457121	-	BURPS1106A_A1080	-	hydrolase
1073	 74.80	+1	1040250..1040372	+	40	126457999	-	BURPS1106A_A1081	-	hypothetical protein
1074	 70.56	0	1040393..1041136	+	247	126455738	-	BURPS1106A_A1082	-	short chain dehydrogenase/reductase family oxidoreductase
1075	 69.16	0	1041212..1042054	+	280	126456513	-	BURPS1106A_A1083	-	fumarylacetoacetate hydrolase family protein
1076	 75.47	+1	1042051..1042209	+	52	126455820	-	BURPS1106A_A1084	-	hypothetical protein
1077	 67.95	0	1042206..1042982	+	258	126457923	-	BURPS1106A_A1085	-	short chain dehydrogenase
1078	 65.42	0	1043036..1043356	+	106	126457229	-	BURPS1106A_A1086	-	hypothetical protein
1079	 67.51	0	1043768..1044004	-	78	126457877	-	BURPS1106A_A1087	-	hypothetical protein
1080	 52.63	-2	1044183..1044353	+	56	126457186	-	BURPS1106A_A1088	-	hypothetical protein
1081	 52.97	-2	1044927..1045145	-	72	126456942	-	BURPS1106A_A1089	-	hypothetical protein
1082	 67.88	0	1045325..1050334	+	1669	126456236	-	BURPS1106A_A1090	-	haemagluttinin motif-containing protein
1083	 68.89	0	1050339..1050473	+	44	126455801	-	BURPS1106A_A1091	-	hypothetical protein
1084	 66.24	0	1050832..1051068	-	78	126457638	-	BURPS1106A_A1092	-	hypothetical protein
1085	 64.33	0	1051227..1051568	-	113	126455727	-	BURPS1106A_A1093	-	H-NS histone family protein
1086	 69.40	0	1051565..1051747	-	60	126457860	-	BURPS1106A_A1094	-	hypothetical protein
1087	 67.61	0	1051759..1052499	-	246	126456468	-	BURPS1106A_A1095	-	IclR family transcriptional regulator
1088	 69.68	0	1052614..1053078	-	154	126455735	-	BURPS1106A_A1096	-	hypothetical protein
1089	 67.16	0	1053094..1054314	-	406	126458311	-	BURPS1106A_A1097	-	cyclic diguanylate phosphodiesterase
1090	 41.88	-2	1054280..1054396	-	38	126457474	-	BURPS1106A_A1098	-	hypothetical protein
1091	 47.37	-2	1054692..1054862	-	56	126457964	-	BURPS1106A_A1099	-	hypothetical protein
1092	 67.97	0	1055191..1055805	-	204	126457050	-	BURPS1106A_A1100	-	TetR family transcriptional regulator
1093	 64.16	0	1055920..1056357	+	145	126456595	-	BURPS1106A_A1101	-	hypothetical protein
1094	 65.44	0	1056506..1057648	+	380	126455747	-	BURPS1106A_A1102	-	putative amino acid ABC transporter, periplasmic amino acid-binding protein
1095	 75.10	+1	1057752..1058012	-	86	126457513	-	BURPS1106A_A1103	-	hypothetical protein
1096	 66.99	0	1058137..1058757	+	206	126458423	hlyIII	BURPS1106A_A1104	-	hemolysin III
1097	 69.69	0	1058815..1059642	-	275	126456108	-	BURPS1106A_A1105	-	hypothetical protein
1098	 68.36	0	1059838..1061904	-	688	126456988	-	BURPS1106A_A1106	-	diguanylate cyclase/cyclic diguanylate phosphodiesterase
1099	 76.81	+1	1062053..1062259	+	68	126456095	-	BURPS1106A_A1108	-	hypothetical protein
1100	 62.83	0	1062231..1062725	-	164	126458014	-	BURPS1106A_A1107	-	AsnC family transcriptional regulator
1101	 69.39	0	1062823..1062969	-	48	126456326	-	BURPS1106A_A1109	-	hypothetical protein
1102	 65.15	0	1063031..1064416	+	461	126457440	aroP	BURPS1106A_A1110	-	aromatic amino acid transport protein AroP
1103	 67.66	0	1064448..1065650	+	400	126457359	tyrB	BURPS1106A_A1111	-	aromatic amino acid aminotransferase
1104	 67.95	0	1065982..1066371	+	129	126458240	-	BURPS1106A_A1112	-	hypothetical protein
1105	 69.64	0	1066459..1066626	-	55	126455718	-	BURPS1106A_A1113	-	hypothetical protein
1106	 69.84	0	1067177..1067428	+	83	126456830	-	BURPS1106A_A1114	-	hypothetical protein
1107	 69.71	0	1067488..1068111	+	207	126457022	-	BURPS1106A_A1115	-	acetyltransferase
1108	 64.63	0	1068276..1069010	-	244	126457708	-	BURPS1106A_A1116	-	2OG-Fe(II) oxygenase family oxidoreductase
1109	 65.34	0	1069038..1070471	-	477	126457188	-	BURPS1106A_A1117	-	hypothetical protein
1110	 65.36	0	1070485..1070637	-	50	126457907	-	BURPS1106A_A1118	-	hypothetical protein
1111	 49.52	-2	1070709..1070918	-	69	126456300	-	BURPS1106A_A1119	-	hypothetical protein
1112	 65.76	0	1070880..1071320	+	146	126456385	-	BURPS1106A_A1120	-	hypothetical protein
1113	 76.30	+1	1071466..1071735	+	89	126458492	-	BURPS1106A_A1121	-	hypothetical protein
1114	 71.33	0	1071909..1072058	-	49	126455925	-	BURPS1106A_A1122	-	hypothetical protein
1115	 67.58	0	1072095..1073510	+	471	126457407	-	BURPS1106A_A1123	-	sensor histidine kinase
1116	 65.04	0	1073521..1073889	+	122	126458123	-	BURPS1106A_A1124	-	response regulator
1117	 68.30	0	1073882..1074493	+	203	126455648	-	BURPS1106A_A1125	-	CheC family phosphatase
1118	 74.69	+1	1074528..1077269	-	913	126456271	pbpC	BURPS1106A_A1126	-	penicillin-binding protein 1C
1119	 73.22	0	1077286..1083438	-	2050	126458471	-	BURPS1106A_A1127	-	alpha-2-macroglobulin family protein
1120	 66.67	0	1083435..1083722	-	95	126455756	-	BURPS1106A_A1128	-	hypothetical protein
1121	 51.85	-2	1083757..1083891	+	44	126457478	-	BURPS1106A_A1129	-	hypothetical protein
1122	 57.04	-1	1083975..1084514	+	179	126457965	-	BURPS1106A_A1131	-	hypothetical protein
1123	 57.94	-1	1084487..1084612	-	41	126458394	-	BURPS1106A_A1130	-	hypothetical protein
1124	 73.40	0	1084892..1085530	+	212	126455709	-	BURPS1106A_A1132	-	hypothetical protein
1125	 68.37	0	1085670..1086140	+	156	126458369	-	BURPS1106A_A1133	-	hypothetical protein
1126	 73.42	0	1086137..1088341	+	734	126456148	-	BURPS1106A_A1134	-	putative leucyl-tRNA synthetase
1127	 71.01	0	1088338..1089258	+	306	126455927	-	BURPS1106A_A1135	-	hypothetical protein
1128	 73.93	0	1089255..1090163	+	302	126456807	-	BURPS1106A_A1136	-	hypothetical protein
1129	 73.11	0	1090160..1091773	+	537	126457276	-	BURPS1106A_A1137	-	hypothetical protein
1130	 71.25	0	1091766..1092659	+	297	126457952	-	BURPS1106A_A1139	-	TauD/TfdA family dioxygenase
1131	 69.26	0	1092623..1093354	-	243	126458179	-	BURPS1106A_A1138	-	hypothetical protein
1132	 67.01	0	1093342..1094499	+	385	126458625	cefD	BURPS1106A_A1140	-	isopenicillin N epimerase
1133	 70.11	0	1095164..1095337	+	57	126456606	-	BURPS1106A_A1141	-	hypothetical protein
1134	 63.89	0	1095475..1097418	+	647	126455591	colA	BURPS1106A_A1142	-	collagenase
1135	 68.83	0	1097710..1098033	-	107	126457307	-	BURPS1106A_A1143	-	hypothetical protein
1136	 68.21	0	1098701..1099867	-	388	126458163	-	BURPS1106A_A1144	-	putative monooxygenase
1137	 62.44	0	1099994..1100206	-	70	126455959	-	BURPS1106A_A1145	-	hypothetical protein
1138	 78.40	+1	1100353..1100514	+	53	126457755	-	BURPS1106A_A1147	-	hypothetical protein
1139	 67.88	0	1100465..1101208	-	247	126456679	-	BURPS1106A_A1146	-	DNA-binding protein
1140	 71.26	0	1101230..1101643	+	137	126455660	-	BURPS1106A_A1148	-	hypothetical protein
1141	 64.02	0	1101580..1101768	+	62	126456371	-	BURPS1106A_A1149	-	hypothetical protein
1142	 69.84	0	1101845..1101970	+	41	126457451	-	BURPS1106A_A1150	-	hypothetical protein
1143	 70.04	0	1102035..1102598	-	187	126456622	-	BURPS1106A_A1151	-	hypothetical protein
1144	 62.54	0	1102713..1103003	+	96	126457139	-	BURPS1106A_A1152	-	hypothetical protein
1145	 64.56	0	1103072..1103308	+	78	126458508	-	BURPS1106A_A1153	-	hypothetical protein
1146	 66.67	0	1103387..1104034	-	215	126457808	-	BURPS1106A_A1154	-	LuxR family DNA-binding response regulator
1147	 77.06	+1	1104031..1104309	-	92	126458357	-	BURPS1106A_A1155	-	hypothetical protein
1148	 71.12	0	1104455..1105060	+	201	126456005	-	BURPS1106A_A1156	-	universal stress family protein
1149	 72.74	0	1105439..1106278	-	279	126455802	-	BURPS1106A_A1157	-	universal stress family protein
1150	 73.13	0	1106275..1106769	-	164	126458212	-	BURPS1106A_A1158	-	universal stress family protein
1151	 70.12	0	1106941..1107780	-	279	126457159	-	BURPS1106A_A1159	-	universal stress family protein
1152	 68.97	0	1108030..1109070	+	346	126456898	-	BURPS1106A_A1160	-	zinc-binding dehydrogenase family oxidoreductase
1153	 79.03	+1	1109180..1109446	-	88	126456252	-	BURPS1106A_A1161	-	hypothetical protein
1154	 70.43	0	1109440..1110528	+	362	126458308	-	BURPS1106A_A1162	-	hypothetical protein
1155	 72.18	0	1110583..1111923	+	446	126457457	-	BURPS1106A_A1163	-	major facilitator family transporter
1156	 73.77	0	1111884..1112249	+	121	126458371	-	BURPS1106A_A1164	-	hypothetical protein
1157	 53.33	-2	1112321..1112440	-	39	126456221	-	BURPS1106A_A1165	-	hypothetical protein
1158	 74.80	+1	1112434..1113195	+	253	126456315	-	BURPS1106A_A1166	-	short chain dehydrogenase/reductase family oxidoreductase
1159	 71.61	0	1113211..1114080	+	289	126458192	-	BURPS1106A_A1167	-	hypothetical protein
1160	 63.64	0	1114400..1114531	+	43	126455705	-	BURPS1106A_A1168	-	hypothetical protein
1161	 67.61	0	1114540..1114857	-	105	126457658	-	BURPS1106A_A1169	-	hypothetical protein
1162	 66.19	0	1114971..1116428	+	485	126458350	-	BURPS1106A_A1170	-	amino acid permease
1163	 74.01	0	1116554..1116730	+	58	126458451	-	BURPS1106A_A1171	-	hypothetical protein
1164	 63.74	0	1116869..1117039	+	56	126456128	-	BURPS1106A_A1172	-	hypothetical protein
1165	 63.49	0	1117351..1117665	+	104	126456737	-	BURPS1106A_A1174	-	H-NS histone family protein
1166	 74.73	+1	1117662..1117847	-	61	126456007	-	BURPS1106A_A1173	-	hypothetical protein
1167	 71.15	0	1118059..1119375	-	438	126457836	-	BURPS1106A_A1175	-	acyl-CoA dehydrogenase domain-containing protein
1168	 67.07	0	1119797..1120294	-	165	126457244	-	BURPS1106A_A1176	-	hypothetical protein
1169	 76.52	+1	1120293..1120424	+	43	126456604	-	BURPS1106A_A1178	-	hypothetical protein
67.97	MEAN

6.10	STD DEV
