IslandPath Analysis: Burkholderia pseudomallei 1106a

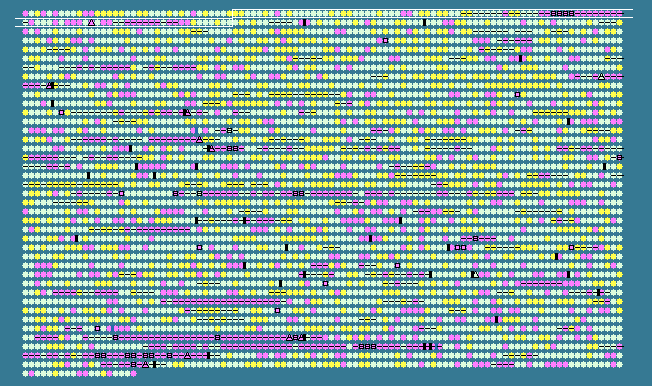

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
36	 72.26	0	33748..34623	+	291	126453010	-	BURPS1106A_0036	-	putative methyltransferase
37	 76.63	+1	34616..35137	+	173	126454837	-	BURPS1106A_0037	-	hypothetical protein
38	 66.67	0	35295..36308	+	337	126455050	-	BURPS1106A_0038	-	hypothetical protein
39	 66.04	0	36392..37189	+	265	126452146	-	BURPS1106A_0039	-	ABC transporter, ATP-binding protein
40	 67.84	0	37217..38065	+	282	126453348	-	BURPS1106A_0040	-	ABC transporter, permease protein
41	 71.38	0	38143..39522	+	459	126454126	-	BURPS1106A_0041	-	sensor histidine kinase
42	 67.40	0	39533..40210	+	225	126451555	-	BURPS1106A_0042	-	DNA-binding response regulator
43	 61.90	-1	40377..40544	-	55	126452167	-	BURPS1106A_0043	-	hypothetical protein
44	 65.20	0	40500..41660	+	386	126454428	-	BURPS1106A_0044	-	putative porin
45	 73.22	+1	41696..41878	+	60	126453561	-	BURPS1106A_0045	-	hypothetical protein
46	 68.29	0	42115..44148	+	677	126452068	-	BURPS1106A_0046	-	type III DNA modification methyltransferase
47	 68.18	0	44189..47218	+	1009	126453237	-	BURPS1106A_0047	-	Type III restriction enzyme, res subunit
48	 69.28	0	47459..47611	+	50	126451908	-	BURPS1106A_0048	-	hypothetical protein
49	 66.21	0	47756..48856	+	366	126454786	-	BURPS1106A_0049	-	putative porin
50	 66.56	0	49256..50215	+	319	126454299	-	BURPS1106A_0050	-	putative transcriptional regulator
51	 71.04	0	50338..51069	-	243	126454494	-	BURPS1106A_0051	-	ABC transporter, ATP-binding protein
52	 77.19	+1	51054..51452	-	132	126452361	-	BURPS1106A_0052	-	hypothetical protein
53	 70.68	0	51442..52164	-	240	126454078	-	BURPS1106A_0053	-	ABC transporter, ATP-binding protein
54	 73.43	+1	52161..53210	-	349	126455437	-	BURPS1106A_0054	-	ABC transporter, permease protein
55	 72.92	0	53207..54085	-	292	126452864	-	BURPS1106A_0055	-	ABC transporter, permease protein
56	 67.70	0	54090..55349	-	419	126452961	-	BURPS1106A_0056	-	putative ABC transporter, substrate-binding protein
57	 70.52	0	55566..57071	-	501	126453750	-	BURPS1106A_0057	-	putative phenylacetaldehyde dehydrogenase
58	 67.43	0	57126..57518	-	130	126454852	-	BURPS1106A_0058	-	hypothetical protein
59	 67.65	0	57529..58338	-	269	126451520	-	BURPS1106A_0059	-	hypothetical protein
60	 73.31	+1	58384..59181	-	265	126452583	-	BURPS1106A_0060	-	short chain dehydrogenase/reductase family oxidoreductase
61	 69.96	0	59266..60936	-	556	126453283	-	BURPS1106A_0061	-	GMC oxidoreductase
62	 64.62	0	61663..62004	+	113	126452383	-	BURPS1106A_0062	-	PadR family transcriptional regulator
63	 69.95	0	62001..63188	+	395	126451988	-	BURPS1106A_0063	-	hypothetical protein
64	 59.17	-1	63268..63387	+	39	126455307	-	BURPS1106A_0064	-	hypothetical protein
65	 60.13	-1	63532..63837	-	101	126453760	-	BURPS1106A_0065	-	hypothetical protein
66	 70.11	0	63861..64847	-	328	126452876	-	BURPS1106A_0066	-	fatty acid desaturase family protein
67	 72.28	0	64877..65713	-	278	126452984	-	BURPS1106A_0067	-	hypothetical protein
68	 72.11	0	66153..67382	-	409	126453968	-	BURPS1106A_0068	-	AraC family transcriptional regulator
69	 66.93	0	67381..68517	+	378	126455128	-	BURPS1106A_0069	-	acyl-CoA dehydrogenase
70	 78.22	+1	68565..68789	-	74	126452204	-	BURPS1106A_0070	-	hypothetical protein
71	 74.83	+1	68772..68918	+	48	126453086	-	BURPS1106A_0071	-	hypothetical protein
72	 70.98	0	69172..70377	+	401	126454300	-	BURPS1106A_0072	-	acetyl-CoA acetyltransferase
73	 70.86	0	70390..72513	+	707	126454240	-	BURPS1106A_0073	-	putative 3-hydroxyacyl-CoA dehydrogenase
74	 72.22	0	72510..72653	+	47	126455425	-	BURPS1106A_0074	-	hypothetical protein
75	 71.96	0	72919..74052	+	377	126451519	-	BURPS1106A_0075	-	CAIB/BAIF family protein
76	 67.90	0	74129..74695	-	188	126452654	-	BURPS1106A_0076	-	putative lipoprotein
77	 64.74	0	74801..74956	-	51	126452680	-	BURPS1106A_0077	-	hypothetical protein
78	 68.11	0	75043..75528	-	161	126453765	-	BURPS1106A_0078	-	hypothetical protein
79	 67.49	0	75535..76503	+	322	126452333	-	BURPS1106A_0079	-	hypothetical protein
80	 68.83	0	76490..76858	+	122	126453223	-	BURPS1106A_0080	-	putative lipoprotein
81	 58.64	-1	77081..77242	+	53	126451666	-	BURPS1106A_0082	-	hypothetical protein
82	 74.19	+1	77239..77517	-	92	126455423	-	BURPS1106A_0081	-	hypothetical protein
83	 74.70	+1	77544..78302	-	252	126451600	prtR	BURPS1106A_0083	-	transmembrane regulator PrtR
84	 68.41	0	78299..78814	-	171	126452547	-	BURPS1106A_0084	-	sigma-70 family RNA polymerase sigma factor
85	 70.63	0	78975..80060	+	361	126453938	-	BURPS1106A_0085	-	putative catalase
86	 64.77	0	80057..80584	+	175	126454920	-	BURPS1106A_0086	-	putative [Ni] hydrogenase, b-type cytochrome subunit
87	 51.22	-2	81137..82036	+	299	126454298	-	BURPS1106A_0087	-	methionine sulfoxide reductase A
88	 55.56	-2	82233..82385	+	50	126455421	-	BURPS1106A_0088	-	hypothetical protein
89	 56.44	-2	82644..82907	+	87	126451486	-	BURPS1106A_0089	-	transposase subfamily protein
90	 61.11	-1	82931..83092	+	53	126452608	-	BURPS1106A_0090	-	A, transposase OrfB
91	 56.70	-2	83097..83387	+	96	126452362	-	BURPS1106A_0091	-	transposase A
92	 62.46	0	83381..84235	+	284	126451517	-	BURPS1106A_0092	-	transposase B
93	 55.08	-2	84389..85225	-	278	126453892	-	BURPS1106A_0093	-	hypothetical protein
94	 60.66	-1	85693..86940	-	415	126452777	-	BURPS1106A_0094	-	hypothetical protein
95	 59.26	-1	87362..87685	+	107	126452186	-	BURPS1106A_0095	-	XRE family transcriptional regulator
96	 58.62	-1	87678..88547	+	289	126455121	-	BURPS1106A_0096	-	hypothetical protein
97	 58.36	-1	88777..91245	+	822	126453526	-	BURPS1106A_0097	-	type I restriction-modification system M subunit
98	 52.85	-2	91595..92542	+	315	126452645	-	BURPS1106A_0098	-	restriction endonuclease S subunits
99	 59.66	-1	92566..95835	+	1089	126453319	-	BURPS1106A_0099	-	type I site-specific deoxyribonuclease HsdR
100	 59.78	-1	95976..96527	+	183	126452415	-	BURPS1106A_0100	-	hypothetical protein
101	 64.16	0	97271..99739	-	822	126452573	gyrB	BURPS1106A_0101	-	DNA gyrase subunit B
102	 63.59	0	99928..101031	-	367	126451494	dnaN	BURPS1106A_0102	-	DNA polymerase III subunit beta
103	 65.73	0	101194..102795	-	533	126451895	dnaA	BURPS1106A_0103	-	chromosomal replication initiation protein
104	 65.93	0	103241..103375	+	44	126454640	rpmH	BURPS1106A_0104	-	50S ribosomal protein L34
105	 68.37	0	103449..103859	+	136	126452960	rnpA	BURPS1106A_0105	-	ribonuclease P protein component
106	 64.07	0	103939..104208	+	89	126452931	-	BURPS1106A_0106	-	hypothetical protein
107	 64.16	0	104217..105893	+	558	126453447	oxaA	BURPS1106A_0107	-	putative inner membrane protein translocase component YidC
108	 61.19	-1	106050..106469	-	139	126452589	-	BURPS1106A_0108	-	hypothetical protein
109	 53.23	-2	106341..106526	+	61	126452170	-	BURPS1106A_0109	-	hypothetical protein
110	 45.19	-2	106648..106782	-	44	126455321	-	BURPS1106A_0110	-	hypothetical protein
111	 69.02	0	106807..108210	+	467	126454342	trmE	BURPS1106A_0111	-	tRNA modification GTPase TrmE
112	 59.76	-1	108379..109608	+	409	126455326	-	BURPS1106A_0112	-	phage integrase family site specific recombinase
113	 66.88	0	110256..113108	-	950	126452256	-	BURPS1106A_0113	-	hypothetical protein
114	 63.74	0	113248..113589	-	113	126453425	-	BURPS1106A_0114	-	hypothetical protein
115	 61.63	-1	113586..113843	-	85	126452503	-	BURPS1106A_0115	-	hypothetical protein
116	 69.49	0	113836..114012	-	58	126453645	-	BURPS1106A_0116	-	hypothetical protein
117	 67.50	0	114380..114859	-	159	126454816	-	BURPS1106A_0117	-	hypothetical protein
118	 63.74	0	114859..115029	-	56	126451970	-	BURPS1106A_0118	-	hypothetical protein
119	 54.98	-2	115252..115773	-	173	126453007	-	BURPS1106A_0119	-	hypothetical protein
120	 60.72	-1	116181..117122	-	313	126454170	-	BURPS1106A_0120	-	hypothetical protein
121	 61.63	-1	118452..119285	-	277	126452875	-	BURPS1106A_0121	-	TnpB
122	 56.82	-2	119309..119572	-	87	126453029	-	BURPS1106A_0122	-	hypothetical protein
123	 57.41	-1	119871..120605	-	244	126452129	-	BURPS1106A_0123	-	hypothetical protein
124	 65.89	0	121171..122328	+	385	126455245	-	BURPS1106A_0124	-	putative lipoprotein
125	 60.23	-1	122894..123064	-	56	126454316	-	BURPS1106A_0125	-	hypothetical protein
126	 57.58	-1	123226..123786	+	186	126452458	speG	BURPS1106A_0126	-	diamine N-acetyltransferase
127	 50.00	-2	123859..123978	+	39	126451558	-	BURPS1106A_0127	-	hypothetical protein
128	 59.77	-1	124272..124619	+	115	126455131	-	BURPS1106A_0129	-	hypothetical protein
129	 74.40	+1	124609..124776	-	55	126454913	-	BURPS1106A_0128	-	hypothetical protein
130	 67.57	0	124839..125393	+	184	126455405	-	BURPS1106A_0130	-	hypothetical protein
131	 67.15	0	125590..126006	-	138	126453537	-	BURPS1106A_0131	-	glyoxalase family protein
132	 69.95	0	126408..127502	+	364	126454639	ada	BURPS1106A_0132	-	ADA regulatory protein
133	 74.64	+1	127526..128440	+	304	126452165	alkA	BURPS1106A_0133	-	DNA-3-methyladenine glycosylase 2
134	 67.72	0	128599..130212	+	537	126453055	gshA	BURPS1106A_0134	-	glutamate--cysteine ligase
135	 70.39	0	130226..131674	-	482	126453822	rpoD	BURPS1106A_0135	-	RNA polymerase sigma factor RpoD
67.62	MEAN

5.36	STD DEV
