IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

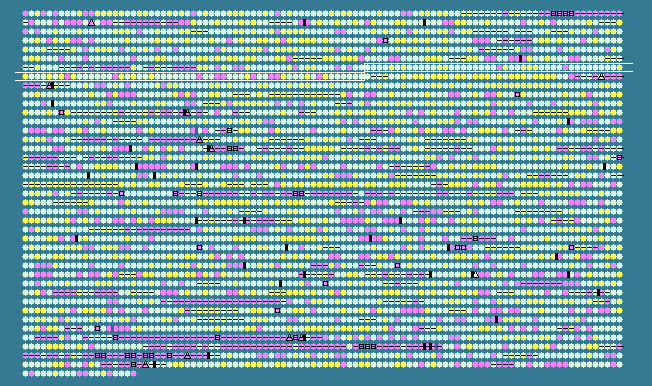

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
658	 68.91	0	635995..637284	+	429	126455396	-	BURPS1106A_0661	-	capsular polysaccharide biosynthesis/export protein
659	 68.76	0	637465..638709	+	414	126454245	-	BURPS1106A_0662	-	glycosyl transferase, group 1 family protein
660	 69.60	0	638738..639760	-	340	126452659	-	BURPS1106A_0663	-	hypothetical protein
661	 68.22	0	639782..640102	-	106	126452980	-	BURPS1106A_0664	-	hypothetical protein
662	 72.68	0	640178..640360	+	60	126454954	-	BURPS1106A_0665	-	hypothetical protein
663	 69.43	0	640354..640788	+	144	126454099	-	BURPS1106A_0666	-	CHRD domain-containing protein
664	 74.02	+1	640880..641845	+	321	126452468	-	BURPS1106A_0668	-	putative acetyl-hydrolase
665	 70.27	0	641815..642729	-	304	126453734	-	BURPS1106A_0667	-	hypothetical protein
666	 69.49	0	642836..644431	+	531	126454616	-	BURPS1106A_0669	-	putative multidrug transporter
667	 70.11	0	644480..644914	+	144	126453518	-	BURPS1106A_0670	-	MarR family transcriptional regulator
668	 67.18	0	645032..645613	-	193	126453380	-	BURPS1106A_0671	-	PfpI family intracellular peptidase
669	 69.32	0	645763..647043	-	426	126452258	-	BURPS1106A_0672	-	hypothetical protein
670	 71.92	0	647181..648074	+	297	126454355	-	BURPS1106A_0673	-	RpiR family transcriptional regulator
671	 72.00	0	648076..649557	+	493	126454470	-	BURPS1106A_0674	-	N-acyl-D-aspartate deacylase
672	 66.07	0	649568..650068	+	166	126453160	-	BURPS1106A_0675	-	putative endoribonuclease L-PSP
673	 67.27	0	650408..651232	-	274	126454281	queF	BURPS1106A_0676	-	7-cyano-7-deazaguanine reductase
674	 68.18	0	651252..652775	-	507	126454881	ilvA	BURPS1106A_0677	-	threonine dehydratase
675	 66.67	0	652764..652913	+	49	126452016	-	BURPS1106A_0678	-	hypothetical protein
676	 66.24	0	653050..653283	-	77	126452563	-	BURPS1106A_0679	-	hypothetical protein
677	 66.99	0	653282..657310	+	1342	126453798	-	BURPS1106A_0680	-	oxidoreductase, FAD-binding
678	 66.45	0	657330..657788	+	152	126452343	-	BURPS1106A_0681	-	HIT domain-containing protein
679	 69.32	0	657785..658198	+	137	126451504	-	BURPS1106A_0682	-	hypothetical protein
680	 60.25	-1	658246..658977	+	243	126454075	ubiE	BURPS1106A_0683	-	ubiquinone/menaquinone biosynthesis methyltransferase
681	 73.97	+1	659067..660038	+	323	126454670	-	BURPS1106A_0684	-	Tim44-like domain-containing protein
682	 69.75	0	660146..660793	+	215	126455337	-	BURPS1106A_0685	-	hypothetical protein
683	 66.03	0	660806..662383	+	525	126451540	ubiB	BURPS1106A_0686	-	putative ubiquinone biosynthesis protein UbiB
684	 72.62	0	662380..662547	+	55	126453187	-	BURPS1106A_0687	-	hypothetical protein
685	 71.95	0	662554..663348	+	264	126454217	-	BURPS1106A_0688	-	putative thiopurine S-methyltransferase
686	 72.51	0	663449..663790	+	113	126454052	-	BURPS1106A_0689	-	hypothetical protein
687	 65.43	0	663861..664508	+	215	126455087	-	BURPS1106A_0690	-	hypothetical protein
688	 66.33	0	664565..666367	+	600	126452649	aspS	BURPS1106A_0691	-	aspartyl-tRNA synthetase
689	 67.71	0	666577..667053	+	158	126453806	ntpA	BURPS1106A_0692	-	dATP pyrophosphohydrolase
690	 69.73	0	667050..668324	+	424	126454347	ybhO	BURPS1106A_0693	-	cardiolipin synthetase ybhO
691	 62.83	0	668514..669113	+	199	126453041	-	BURPS1106A_0694	-	TetR family transcriptional regulator
692	 64.54	0	669171..670958	+	595	126452094	-	BURPS1106A_0695	-	acyl-CoA dehydrogenase domain-containing protein
693	 67.41	0	671116..673551	+	811	126455250	-	BURPS1106A_0696	-	3-hydroxyacyl-CoA dehydrogenase/enoyl-CoA hydratase/isomerase family protein
694	 67.58	0	673731..674930	+	399	126454517	-	BURPS1106A_0697	-	acetyl-CoA acetyltransferase
695	 67.50	0	674947..675789	+	280	126453598	-	BURPS1106A_0698	-	enoyl-CoA hydratase
696	 70.91	0	675903..676727	-	274	126452579	fdhD	BURPS1106A_0699	-	formate dehydrogenase accessory protein FdhD
697	 64.49	0	676883..677341	+	152	126451820	-	BURPS1106A_0700	-	hypothetical protein
698	 66.42	0	677386..677784	-	132	126454934	-	BURPS1106A_0701	-	thioesterase family protein
699	 66.13	0	678106..679977	+	623	126454032	-	BURPS1106A_0702	-	heavy metal ABC transporter permease/ATP-binding protein
700	 73.02	+1	679989..680177	+	62	126453233	-	BURPS1106A_0703	-	hypothetical protein
701	 73.06	+1	680470..681189	-	239	126454695	-	BURPS1106A_0704	-	nucleotidyl transferase family protein
702	 69.66	0	681193..682227	-	344	126452318	-	BURPS1106A_0705	-	phosphotransferase family protein
703	 66.58	0	682440..684803	+	787	126452995	-	BURPS1106A_0706	-	organic solvent tolerance protein
704	 68.52	0	684870..686216	+	448	126454177	-	BURPS1106A_0707	-	putative survival protein SurA
705	 72.38	0	686238..687287	+	349	126451816	pdxA	BURPS1106A_0708	-	4-hydroxythreonine-4-phosphate dehydrogenase
706	 67.75	0	687319..688146	+	275	126452897	ksgA	BURPS1106A_0709	-	dimethyladenosine transferase
707	 71.46	0	688448..689386	-	312	126453632	-	BURPS1106A_0710	-	hypothetical protein
708	 61.79	-1	689764..690153	+	129	126452193	gloA	BURPS1106A_0712	-	lactoylglutathione lyase
709	 77.78	+1	690147..690281	-	44	126455236	-	BURPS1106A_0711	-	hypothetical protein
710	 69.06	0	690371..691249	-	292	126453427	-	BURPS1106A_0713	-	hypothetical protein
711	 67.69	0	691297..692076	-	259	126453701	-	BURPS1106A_0714	-	acyltransferase family protein
712	 67.55	0	692119..692682	-	187	126454414	-	BURPS1106A_0715	-	D,D-heptose 1,7-bisphosphate phosphatase
713	 69.90	0	692700..694799	-	699	126451572	glyS	BURPS1106A_0716	-	glycyl-tRNA synthetase subunit beta
714	 65.97	0	694816..695823	-	335	126451946	glyQ	BURPS1106A_0717	-	glycyl-tRNA synthetase subunit alpha
715	 70.65	0	696079..697785	-	568	126453100	lnt	BURPS1106A_0718	-	apolipoprotein N-acyltransferase
716	 64.08	0	697828..698715	-	295	126454637	corC	BURPS1106A_0719	-	magnesium and cobalt efflux protein CorC
717	 73.93	+1	699235..699867	-	210	126451861	-	BURPS1106A_0720	-	ChaC family protein
718	 67.65	0	699888..700703	-	271	126452368	-	BURPS1106A_0721	-	putative metalloprotease
719	 79.08	+2	700716..701021	+	101	126452599	-	BURPS1106A_0722	-	hypothetical protein
720	 69.58	0	701412..702476	-	354	126454094	-	BURPS1106A_0723	-	PhoH family protein
721	 65.28	0	702500..703873	-	457	126453332	miaB	BURPS1106A_0724	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
722	 74.66	+1	703914..704351	-	145	126451897	-	BURPS1106A_0725	-	hypothetical protein
723	 69.13	0	704348..705280	-	310	126454951	-	BURPS1106A_0726	-	LysR family transcriptional regulator
724	 70.84	0	705426..706598	+	390	126453727	-	BURPS1106A_0727	-	major facilitator transporter
725	 70.10	0	706732..707400	+	222	126452578	-	BURPS1106A_0728	-	DNA-binding protein
726	 70.12	0	707824..708546	+	240	126454336	ribB	BURPS1106A_0729	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
727	 68.56	0	708614..709300	-	228	126453162	-	BURPS1106A_0730	-	haloacid dehalogenase, IA family protein
728	 68.05	0	709430..710296	-	288	126451821	-	BURPS1106A_0731	-	hypothetical protein
729	 70.02	0	710373..711593	-	406	126454945	-	BURPS1106A_0732	-	hypothetical protein
730	 64.06	0	711637..713169	-	510	126453540	-	BURPS1106A_0733	-	putative asparagine synthase (glutamine-hydrolyzing)
731	 66.96	0	713213..714568	-	451	126453471	aroA	BURPS1106A_0734	-	3-phosphoshikimate 1-carboxyvinyltransferase
732	 69.88	0	714607..715914	-	435	126453347	aroA	BURPS1106A_0735	-	3-phosphoshikimate 1-carboxyvinyltransferase
733	 60.49	-1	715936..716550	-	204	126451993	-	BURPS1106A_0736	-	putative endoribonuclease L-PSP
734	 33.33	-2	716894..717040	+	48	126452225	-	BURPS1106A_0737	-	hypothetical protein
735	 67.09	0	717274..717990	-	238	126455034	glpF	BURPS1106A_0738	-	glycerol uptake facilitator protein
736	 67.24	0	718103..719659	-	518	126454003	glpK	BURPS1106A_0739	-	glycerol kinase
737	 70.19	0	719711..721243	-	510	126453105	glpD	BURPS1106A_0740	-	glycerol-3-phosphate dehydrogenase
738	 72.31	0	721411..721782	+	123	126454740	-	BURPS1106A_0741	-	putative lipoprotein
739	 60.61	-1	721849..722046	-	65	126453839	-	BURPS1106A_0742	-	hypothetical protein
740	 65.77	0	722365..723144	-	259	126452652	glpR	BURPS1106A_0743	-	glycerol-3-phosphate regulon repressor
741	 71.09	0	723372..725045	+	557	126452986	-	BURPS1106A_0744	-	putative gamma-glutamyltransferase
742	 44.44	-2	725072..725197	+	41	126454959	-	BURPS1106A_0745	-	hypothetical protein
743	 61.99	-1	725348..726181	+	277	126452358	-	BURPS1106A_0746	-	hypothetical protein
744	 74.05	+1	726251..726751	+	166	126453230	-	BURPS1106A_0747	-	hypothetical protein
745	 69.48	0	726887..728344	-	485	126454229	-	BURPS1106A_0748	-	putative ATP-dependent RNA helicase rhlE
746	 66.05	0	728472..729770	-	432	126454256	-	BURPS1106A_0749	-	cytochrome c family protein
747	 70.67	0	729790..730539	-	249	126455417	-	BURPS1106A_0750	-	putative cytochrome
748	 74.87	+1	730976..731902	+	308	126452805	-	BURPS1106A_0751	-	copper resistance family protein
749	 67.28	0	732434..733582	-	382	126453639	-	BURPS1106A_0752	-	mandelate racemase/muconate lactonizing enzyme
750	 61.78	-1	734039..734386	+	115	126453708	-	BURPS1106A_0753	-	hypothetical protein
751	 73.15	+1	734518..734964	-	148	126451549	-	BURPS1106A_0754	-	hypothetical protein
752	 70.77	0	735260..736942	+	560	126454112	-	BURPS1106A_0756	-	Ser/Thr protein phosphatase family protein
753	 69.85	0	736920..738803	-	627	126454746	-	BURPS1106A_0755	-	sensor histidine kinase
754	 67.63	0	738853..740298	-	481	126452409	-	BURPS1106A_0757	-	response regulator/HD domain-containing protein
755	 65.59	0	740321..740506	-	61	126455323	-	BURPS1106A_0758	-	hypothetical protein
756	 69.93	0	740960..741541	+	193	126452655	-	BURPS1106A_0759	-	hypothetical protein
757	 69.35	0	741709..743460	-	583	126451491	aer	BURPS1106A_0760	-	aerotaxis sensor receptor
67.62	MEAN

5.36	STD DEV
