IslandPath Analysis: Burkholderia pseudomallei 1106a

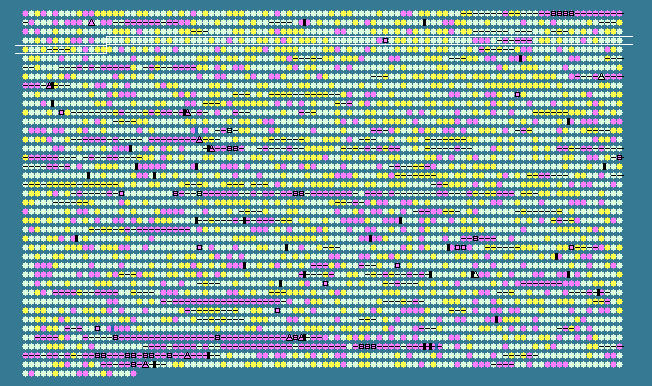

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
315	 69.97	0	291333..292694	+	453	126455173	gor	BURPS1106A_0317	-	glutathione-disulfide reductase
316	 70.48	0	293008..293217	-	69	126452546	-	BURPS1106A_0318	-	hypothetical protein
317	 64.88	0	293287..294627	+	446	126453241	argG	BURPS1106A_0319	-	argininosuccinate synthase
318	 71.88	0	294753..295424	+	223	126451920	-	BURPS1106A_0320	-	hypothetical protein
319	 70.57	0	295421..296239	+	272	126452779	-	BURPS1106A_0321	-	hypothetical protein
320	 64.58	0	296474..296809	+	111	126454189	-	BURPS1106A_0322	-	heavy metal-binding domain-containing protein
321	 68.78	0	297155..297343	+	62	126455456	-	BURPS1106A_0323	-	hypothetical protein
322	 69.95	0	297415..299943	-	842	126455144	-	BURPS1106A_0324	-	copper-translocating P-type ATPase
323	 72.43	0	299950..300192	+	80	126452252	-	BURPS1106A_0325	-	hypothetical protein
324	 65.48	0	300492..301166	+	224	126453852	-	BURPS1106A_0326	-	hypothetical protein
325	 72.20	0	301163..302011	+	282	126454023	-	BURPS1106A_0327	-	putative lipoprotein
326	 68.27	0	302011..302508	+	165	126451716	-	BURPS1106A_0328	-	hypothetical protein
327	 67.31	0	302542..303009	+	155	126452841	-	BURPS1106A_0329	-	putative lipoprotein
328	 73.58	+1	303108..304409	+	433	126455001	-	BURPS1106A_0330	-	outer membrane efflux protein
329	 70.80	0	304420..305991	+	523	126452324	-	BURPS1106A_0331	-	RND family efflux transporter MFP subunit
330	 69.09	0	305988..309200	+	1070	126452286	-	BURPS1106A_0332	-	CzcA family heavy metal RND efflux protein
331	 68.71	0	309197..309538	+	113	126452203	-	BURPS1106A_0333	-	hypothetical protein
332	 77.59	+1	309542..309715	+	57	126454617	-	BURPS1106A_0334	-	hypothetical protein
333	 65.03	0	309829..310194	+	121	126453453	-	BURPS1106A_0335	-	putative streptavidin
334	 67.70	0	310269..312101	-	610	126452867	glmS	BURPS1106A_0336	-	D-fructose-6-phosphate amidotransferase
335	 56.06	-2	312064..312195	+	43	126452013	-	BURPS1106A_0338	-	hypothetical protein
336	 70.34	0	312165..313526	-	453	126451738	glmU	BURPS1106A_0337	-	UDP-N-acetylglucosamine pyrophosphorylase
337	 81.82	+2	313565..313861	-	98	126455010	-	BURPS1106A_0339	-	hypothetical protein
338	 65.76	0	314104..315099	-	331	126452389	-	BURPS1106A_0340	-	PP-loop family protein
339	 65.19	0	315096..315500	-	134	126453589	folB	BURPS1106A_0341	-	dihydroneopterin aldolase
340	 80.39	+2	315582..316463	-	293	126452432	-	BURPS1106A_0342	-	hypothetical protein
341	 71.45	0	316531..317721	+	396	126451987	-	BURPS1106A_0343	-	hypothetical protein
342	 65.64	0	317739..317933	+	64	126453080	-	BURPS1106A_0344	-	hypothetical protein
343	 77.36	+1	317930..318088	+	52	126453785	-	BURPS1106A_0345	-	hypothetical protein
344	 63.56	0	318222..318446	-	74	126454946	-	BURPS1106A_0346	-	hypothetical protein
345	 72.61	0	318758..319666	-	302	126451533	-	BURPS1106A_0347	-	putative fructokinase
346	 70.95	0	319663..321132	-	489	126451481	-	BURPS1106A_0348	-	N-acylglucosamine 2-epimerase family protein
347	 72.06	0	321129..322148	-	339	126454864	-	BURPS1106A_0349	-	LacI family transcription regulator
348	 73.65	+1	322319..323878	-	519	126454253	-	BURPS1106A_0350	-	methyl-accepting chemotaxis protein
349	 71.54	0	323941..324432	-	163	126452594	-	BURPS1106A_0351	-	hypothetical protein
350	 70.70	0	324489..325529	-	346	126452084	-	BURPS1106A_0352	-	sodium/bile acid symporter family protein
351	 77.36	+1	325912..326388	+	158	126451615	-	BURPS1106A_0354	-	hypothetical protein
352	 64.85	0	326349..326513	-	54	126455273	-	BURPS1106A_0353	-	hypothetical protein
353	 65.46	0	326796..327872	+	358	126452502	-	BURPS1106A_0355	-	outer membrane porin
354	 67.31	0	327906..328994	+	362	126453831	-	BURPS1106A_0356	-	LysR family transcriptional regulator
355	 67.50	0	329440..330399	-	319	126454748	-	BURPS1106A_0357	-	2-nitropropane dioxygenase family oxidoreductase
356	 64.85	0	330436..330600	+	54	126451505	-	BURPS1106A_0358	-	hypothetical protein
357	 69.57	0	330695..331588	+	297	126452596	-	BURPS1106A_0359	-	putative epoxide hydrolase
358	 68.10	0	331670..332158	-	162	126453876	-	BURPS1106A_0360	-	AsnC family transcriptional regulator
359	 67.15	0	332153..333184	+	343	126454784	-	BURPS1106A_0361	-	hypothetical protein
360	 48.72	-2	333359..333475	+	38	126452948	-	BURPS1106A_0362	-	hypothetical protein
361	 62.27	0	333572..334732	+	386	126454201	-	BURPS1106A_0363	-	ISBma1, transposase
362	 70.44	0	334783..334941	-	52	126455181	-	BURPS1106A_0364	-	hypothetical protein
363	 75.49	+1	334955..335158	+	67	126451508	-	BURPS1106A_0366	-	hypothetical protein
364	 71.20	0	335112..335618	-	168	126451961	-	BURPS1106A_0365	-	YbaK/prolyl-tRNA synthetase associated domain-containing protein
365	 70.30	0	335674..336609	-	311	126452627	-	BURPS1106A_0367	-	hydroxymethylglutaryl-CoA lyase
366	 73.25	+1	336695..337636	-	313	126451938	ghrA	BURPS1106A_0368	-	glyoxylate reductase
367	 67.12	0	337641..338078	-	145	126452726	-	BURPS1106A_0369	-	glyoxalase family protein
368	 72.54	0	338228..338857	+	209	126455166	-	BURPS1106A_0370	-	putative hydrolase
369	 71.05	0	338886..339296	-	136	126452008	nudF	BURPS1106A_0371	-	ADP-ribose pyrophosphatase
370	 68.08	0	339434..341551	-	705	126453428	plcN	BURPS1106A_0372	-	non-hemolytic phospholipase C (precursor)
371	 77.78	+1	341598..341894	-	98	126452314	-	BURPS1106A_0373	-	putative lipoprotein
372	 65.14	0	342132..342590	-	152	126452326	-	BURPS1106A_0374	-	leucine-responsive regulatory protein
373	 69.82	0	342715..343443	+	242	126453316	-	BURPS1106A_0375	-	AzlC family protein
374	 65.02	0	343440..343742	+	100	126453849	-	BURPS1106A_0376	-	AzlD family protein
375	 70.62	0	343739..344572	+	277	126454653	-	BURPS1106A_0377	-	alpha/beta fold family hydrolase
376	 61.45	-1	344936..345529	-	197	126453244	-	BURPS1106A_0378	-	SCO1/SenC family protein
377	 62.97	0	345557..348400	-	947	126452313	-	BURPS1106A_0379	-	kelch domain-containing protein
378	 62.56	0	348774..348992	+	72	126454565	-	BURPS1106A_0380	-	hypothetical protein
379	 67.07	0	349049..349294	+	81	126453472	-	BURPS1106A_0381	-	hypothetical protein
380	 69.79	0	349355..350251	-	298	126451728	dapA	BURPS1106A_0382	-	dihydrodipicolinate synthase
381	 61.75	-1	350382..350564	-	60	126453666	-	BURPS1106A_0383	-	sensor histidine kinase
382	 70.83	0	350591..350710	+	39	126451646	-	BURPS1106A_0384	-	hypothetical protein
383	 58.55	-1	351426..351992	-	188	126452291	-	BURPS1106A_0385	-	hypothetical protein
384	 57.53	-1	352345..352902	+	185	126454984	-	BURPS1106A_0386	-	hypothetical protein
385	 63.70	0	353142..353276	-	44	126454199	-	BURPS1106A_0387	-	hypothetical protein
386	 66.67	0	353370..353711	+	113	126452776	-	BURPS1106A_0388	-	Fis family regulatory protein
387	 71.43	0	353851..354081	+	76	126451926	-	BURPS1106A_0389	-	transcriptional regulator, Fis family protein
388	 77.96	+1	354078..354263	+	61	126454465	-	BURPS1106A_0390	-	hypothetical protein
389	 65.38	0	354498..355511	+	337	126453603	-	BURPS1106A_0392	-	sulfate/thiosulfate ABC transporter, periplasmic sulfate-binding protein
390	 75.89	+1	355492..355632	-	46	126453620	-	BURPS1106A_0391	-	hypothetical protein
391	 68.26	0	356014..357705	+	563	126451557	-	BURPS1106A_0393	-	serine carboxypeptidase family protein
392	 70.37	0	357777..358181	+	134	126452607	-	BURPS1106A_0394	-	hypothetical protein
393	 67.76	0	358295..359296	+	333	126453918	-	BURPS1106A_0395	-	inward rectifier potassium channel
394	 50.83	-2	359380..359499	-	39	126452056	-	BURPS1106A_0396	-	hypothetical protein
395	 69.69	0	359513..363088	+	1191	126454069	-	BURPS1106A_0398	-	2-oxoacid ferredoxin oxidoreductase
396	 71.43	0	363053..363283	-	76	126453161	-	BURPS1106A_0397	-	Atu, putative
397	 69.96	0	363348..365015	-	555	126455176	-	BURPS1106A_0399	-	Na+/H+ antiporter
398	 68.89	0	365222..366616	+	464	126452749	-	BURPS1106A_0400	-	cyclic diguanylate phosphodiesterase
399	 68.06	0	366931..367074	+	47	126453774	-	BURPS1106A_0401	-	hypothetical protein
400	 64.30	0	367071..367451	+	126	126451852	-	BURPS1106A_0403	-	hypothetical protein
401	 77.08	+1	367432..367575	-	47	126454668	-	BURPS1106A_0402	-	hypothetical protein
402	 69.25	0	367756..369186	+	476	126454088	-	BURPS1106A_0404	-	alkaline phosphatase family protein
403	 68.66	0	369219..370622	+	467	126453494	-	BURPS1106A_0405	-	alkaline phosphatase family protein
404	 73.31	+1	370628..371485	+	285	126452050	-	BURPS1106A_0406	-	hypothetical protein
405	 69.41	0	371585..371803	+	72	126453137	-	BURPS1106A_0407	-	hypothetical protein
406	 73.11	+1	371864..372577	+	237	126454354	-	BURPS1106A_0408	-	cutC family protein
407	 67.06	0	372704..373714	-	336	126455331	bioB	BURPS1106A_0409	-	biotin synthase
408	 74.14	+1	373787..374509	-	240	126452118	bioD	BURPS1106A_0410	-	dithiobiotin synthetase
409	 73.42	+1	374506..375690	-	394	126453003	bioF	BURPS1106A_0411	-	8-amino-7-oxononanoate synthase
410	 69.78	0	375687..377033	-	448	126453838	bioA	BURPS1106A_0412	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
411	 60.14	-1	377022..377159	+	45	126452635	-	BURPS1106A_0413	-	hypothetical protein
412	 70.96	0	377597..378925	-	442	126451752	-	BURPS1106A_0414	-	hypothetical protein
413	 73.29	+1	379109..379561	-	150	126454895	-	BURPS1106A_0415	-	hypothetical protein
414	 73.16	+1	379593..380270	-	225	126453017	-	BURPS1106A_0416	-	short chain dehydrogenase
67.62	MEAN

5.36	STD DEV
