IslandPath Analysis: Burkholderia pseudomallei 1106a

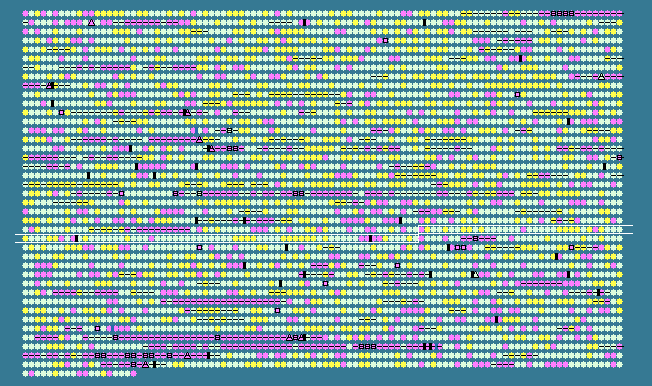

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2467	 62.08	-1	2445412..2446152	-	246	126454332	rpsB	BURPS1106A_2493	-	30S ribosomal protein S2
2468	 75.82	+1	2446436..2446588	+	50	126453102	-	BURPS1106A_2494	-	hypothetical protein
2469	 64.95	0	2446632..2447447	+	271	126454210	map	BURPS1106A_2495	-	methionine aminopeptidase
2470	 68.41	0	2447618..2450194	+	858	126455366	glnD	BURPS1106A_2496	-	PII uridylyl-transferase
2471	 74.71	+1	2450209..2451924	+	571	126451482	-	BURPS1106A_2497	-	RNA pseudouridine synthase family protein
2472	 66.85	0	2452119..2452652	-	177	126452569	def-2	BURPS1106A_2498	-	peptide deformylase
2473	 68.40	0	2452649..2454724	-	691	126453906	ligA	BURPS1106A_2499	-	DNA ligase, NAD-dependent
2474	 74.24	+1	2454763..2455092	-	109	126452604	-	BURPS1106A_2500	-	hypothetical protein
2475	 72.25	0	2455161..2456432	-	423	126452787	-	BURPS1106A_2501	-	hypothetical protein
2476	 69.91	0	2456514..2460026	-	1170	126451882	smc	BURPS1106A_2502	-	chromosome segregation protein SMC
2477	 72.05	0	2460175..2461122	-	315	126454972	-	BURPS1106A_2503	-	integral membrane protein
2478	 70.32	0	2461387..2462619	+	410	126454437	-	BURPS1106A_2504	-	hypothetical protein
2479	 65.82	0	2462676..2463503	+	275	126454271	dapD	BURPS1106A_2505	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
2480	 69.33	0	2463503..2463877	+	124	126453365	-	BURPS1106A_2506	-	ArsC family protein
2481	 69.12	0	2463951..2465090	+	379	126454487	dapE	BURPS1106A_2507	-	succinyl-diaminopimelate desuccinylase
2482	 69.48	0	2465104..2466027	+	307	126453622	-	BURPS1106A_2508	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
2483	 68.82	0	2466270..2467709	+	479	126453036	cls	BURPS1106A_2509	-	cardiolipin synthetase
2484	 61.25	-1	2467813..2468292	-	159	126453862	bsaA	BURPS1106A_2510	-	glutathione peroxidase
2485	 68.52	0	2468438..2470378	+	646	126454765	-	BURPS1106A_2511	-	ABC transporter, ATP-binding protein
2486	 68.52	0	2470466..2470735	-	89	126453282	-	BURPS1106A_2512	-	hypothetical protein
2487	 68.48	0	2470896..2472272	-	458	126454994	radA	BURPS1106A_2513	-	DNA repair protein RadA
2488	 70.68	0	2472283..2473353	-	356	126454140	alr	BURPS1106A_2514	-	alanine racemase
2489	 65.56	0	2473517..2474872	+	451	126453215	-	BURPS1106A_2515	-	hypothetical protein
2490	 72.10	0	2474983..2475792	+	269	126452411	thiD	BURPS1106A_2516	-	phosphomethylpyrimidine kinase
2491	 71.69	0	2476036..2476254	-	72	126454538	-	BURPS1106A_2517	-	hypothetical protein
2492	 73.39	+1	2476218..2477198	-	326	126453736	-	BURPS1106A_2518	-	hypothetical protein
2493	 74.63	+1	2477195..2478562	-	455	126454213	-	BURPS1106A_2519	-	uracil-DNA glycosylase
2494	 66.67	0	2478549..2479046	-	165	126455441	rimI	BURPS1106A_2520	-	ribosomal-protein-alanine acetyltransferase
2495	 77.20	+1	2479043..2479792	-	249	126451539	-	BURPS1106A_2521	-	glycoprotease family protein
2496	 62.22	-1	2479974..2480243	+	89	126452636	-	BURPS1106A_2522	-	acyl-CoA-binding protein
2497	 72.24	0	2480689..2482230	+	513	126453899	-	BURPS1106A_2523	-	DEAD/DEAH box helicase
2498	 64.91	0	2482622..2483929	+	435	126453955	aceA	BURPS1106A_2524	-	isocitrate lyase
2499	 66.90	0	2484189..2484623	-	144	126455163	-	BURPS1106A_2525	-	universal stress family protein
2500	 70.10	0	2484903..2485805	-	300	126452276	-	BURPS1106A_2526	-	LysR family transcriptional regulator
2501	 73.26	+1	2485944..2486747	+	267	126453426	dehII	BURPS1106A_2527	-	haloacid dehalogenase, type II
2502	 65.73	0	2486800..2488392	+	530	126453591	aceB	BURPS1106A_2528	-	malate synthase
2503	 70.00	0	2488754..2488873	-	39	126452715	-	BURPS1106A_2529	-	hypothetical protein
2504	 68.97	0	2489037..2489471	-	144	126452507	-	BURPS1106A_2530	-	hypothetical protein
2505	 71.89	0	2489492..2489989	-	165	126451685	rraA	BURPS1106A_2531	-	ribonuclease activity regulator protein RraA
2506	 72.11	0	2490119..2490982	+	287	126454131	-	BURPS1106A_2532	-	AraC family transcriptional regulator
2507	 63.69	0	2490979..2491146	+	55	126453382	-	BURPS1106A_2533	-	hypothetical protein
2508	 64.53	0	2491586..2492053	-	155	126454860	-	BURPS1106A_2534	-	acetyltransferase
2509	 62.67	0	2492052..2492201	+	49	126453951	-	BURPS1106A_2535	-	hypothetical protein
2510	 67.00	0	2493139..2494653	-	504	126451684	gltX	BURPS1106A_2541	-	glutamyl-tRNA synthetase
2511	 71.26	0	2495005..2496048	+	347	126455403	-	BURPS1106A_2542	-	patatin family phospholipase
2512	 65.14	0	2496221..2496877	-	218	126452477	-	BURPS1106A_2543	-	NlpC/P60 domain-containing protein
2513	 70.12	0	2497061..2498710	-	549	126452152	-	BURPS1106A_2544	-	peptide/opine/nickel uptake ABC transporter ATP-binding protein
2514	 67.76	0	2498707..2499804	-	365	126455223	-	BURPS1106A_2545	-	ABC transporter, permease protein
2515	 65.42	0	2499806..2500846	-	346	126454916	-	BURPS1106A_2546	-	ABC transporter, permease protein
2516	 70.51	0	2501035..2502987	-	650	126453009	-	BURPS1106A_2547	-	ABC transporter, periplasmic substrate-binding protein
2517	 66.04	0	2503108..2503899	+	263	126452540	fabI	BURPS1106A_2548	-	enoyl-(acyl carrier protein) reductase
2518	 72.60	0	2504152..2504505	-	117	126451656	-	BURPS1106A_2549	-	hypothetical protein
2519	 66.67	0	2504794..2504910	-	38	126452482	-	BURPS1106A_2550	-	hypothetical protein
2520	 68.25	0	2505214..2507547	-	777	126451671	-	BURPS1106A_2551	-	molybdopterin oxidoreductase
2521	 67.05	0	2507605..2507865	+	86	126455109	-	BURPS1106A_2552	-	hypothetical protein
2522	 63.82	0	2508040..2508813	-	257	126451722	fpr	BURPS1106A_2553	-	ferredoxin--NADP reductase
2523	 69.83	0	2508699..2509742	-	347	126451739	-	BURPS1106A_2554	-	hypothetical protein
2524	 64.90	0	2509915..2510253	-	112	126454614	-	BURPS1106A_2555	-	putative ferredoxin
2525	 65.25	0	2510384..2511298	+	304	126453521	-	BURPS1106A_2556	-	TetR family transcriptional regulator
2526	 69.60	0	2511372..2512190	-	272	126452369	map	BURPS1106A_2557	-	methionine aminopeptidase, type I
2527	 64.89	0	2512190..2512414	-	74	126452198	-	BURPS1106A_2558	-	hypothetical protein
2528	 69.12	0	2512405..2512689	-	94	126455329	-	BURPS1106A_2559	-	pseudouridine synthase, Rsu
2529	 70.87	0	2512698..2515412	-	904	126454134	-	BURPS1106A_2560	-	argininosuccinate lyase
2530	 68.54	0	2515492..2516556	-	354	126452722	-	BURPS1106A_2561	-	cysteine synthase/cystathionine beta-synthase family protein
2531	 68.75	0	2516561..2517760	-	399	126452895	-	BURPS1106A_2562	-	GHMP kinase domain-containing protein
2532	 68.63	0	2517783..2518748	-	321	126452905	cysD	BURPS1106A_2563	-	sulfate adenylyltransferase subunit 2
2533	 66.79	0	2518904..2519722	-	272	126453005	-	BURPS1106A_2564	-	glycosyl transferase, group 2 family protein
2534	 67.31	0	2519813..2520907	-	364	126452158	serC-2	BURPS1106A_2565	-	phosphoserine aminotransferase
2535	 65.78	0	2520948..2522075	-	375	126454148	-	BURPS1106A_2566	-	acyltransferase family protein
2536	 73.26	+1	2522127..2523278	-	383	126453216	-	BURPS1106A_2567	-	hypothetical protein
2537	 71.93	0	2523275..2524186	-	303	126452363	-	BURPS1106A_2568	-	transketolase domain-containing protein
2538	 71.39	0	2524183..2525007	-	274	126454534	-	BURPS1106A_2569	-	transketolase domain-containing protein
2539	 74.01	+1	2525027..2526115	-	362	126454284	-	BURPS1106A_2570	-	hypothetical protein
2540	 66.28	0	2526109..2526888	-	259	126453378	-	BURPS1106A_2571	-	hypothetical protein
2541	 67.61	0	2526908..2527756	-	282	126451545	-	BURPS1106A_2572	-	hypothetical protein
2542	 69.40	0	2527826..2528704	-	292	126451902	-	BURPS1106A_2573	-	dioxygenase, TauD/TfdA
2543	 68.17	0	2528709..2529506	-	265	126453344	-	BURPS1106A_2574	-	hypothetical protein
2544	 72.10	0	2529503..2538442	-	2979	126453674	-	BURPS1106A_2575	-	non-ribosomal peptide synthase
2545	 72.38	0	2538526..2539926	-	466	126455089	-	BURPS1106A_2576	-	hypothetical protein
2546	 72.09	0	2540160..2540288	-	42	126452187	-	BURPS1106A_2577	-	hypothetical protein
2547	 72.20	0	2540285..2541586	-	433	126455052	-	BURPS1106A_2578	-	major facilitator family transporter
2548	 73.08	+1	2541654..2543492	-	612	126452346	-	BURPS1106A_2579	-	amino acid adenylation domain-containing protein
2549	 73.06	+1	2543543..2545012	-	489	126451714	cysC	BURPS1106A_2580	-	adenylylsulfate kinase
2550	 68.49	0	2545597..2545815	+	72	126454105	-	BURPS1106A_2581	-	hypothetical protein
2551	 73.66	+1	2546148..2546390	+	80	126454297	-	BURPS1106A_2582	-	hypothetical protein
2552	 70.79	0	2546484..2547719	+	411	126451497	-	BURPS1106A_2583	-	RND family efflux transporter MFP subunit
2553	 67.68	0	2547716..2550862	+	1048	126454028	-	BURPS1106A_2584	-	AcrB/AcrD/AcrF family protein
2554	 70.68	0	2550940..2552160	+	406	126455190	-	BURPS1106A_2585	-	hypothetical protein
2555	 68.69	0	2552199..2554031	-	610	126454868	-	BURPS1106A_2586	-	GDSL-like lipase/acylhydrolase domain/outer membrane autotransporter barrel domain-containing protein
2556	 70.87	0	2554225..2555271	-	348	126451949	-	BURPS1106A_2587	-	hypothetical protein
2557	 53.09	-2	2555273..2555434	-	53	126452516	-	BURPS1106A_2588	-	hypothetical protein
2558	 50.79	-2	2555610..2555735	-	41	126453677	-	BURPS1106A_2589	-	hypothetical protein
2559	 62.83	0	2556557..2557807	-	416	126451837	-	BURPS1106A_2591	-	aspartate kinase
2560	 63.79	0	2557790..2558032	+	80	126454573	-	BURPS1106A_2592	-	hypothetical protein
2561	 73.09	+1	2558148..2559626	-	492	126454111	tilS	BURPS1106A_2593	-	tRNA(Ile)-lysidine synthetase
2562	 65.33	0	2559670..2560641	-	323	126454581	accA	BURPS1106A_2594	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
2563	 69.22	0	2560745..2561683	-	312	126455439	-	BURPS1106A_2595	-	base excision DNA repair protein
2564	 65.31	0	2561731..2563128	-	465	126452065	cysS	BURPS1106A_2596	-	cysteinyl-tRNA synthetase
2565	 71.78	0	2563360..2564082	+	240	126453018	-	BURPS1106A_2597	-	TPR repeat-containing protein
2566	 64.58	0	2564139..2564714	+	191	126453901	-	BURPS1106A_2598	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
67.62	MEAN

5.36	STD DEV
