IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

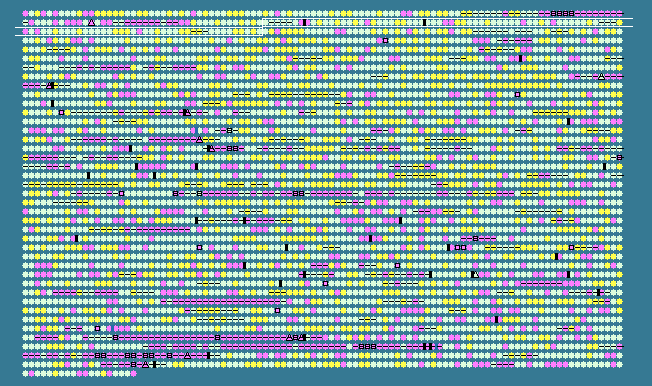

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
141	 70.17	0	135959..137071	+	370	126452138	-	BURPS1106A_0141	-	histone deacetylase family protein
142	 67.47	0	137082..137957	+	291	126453061	-	BURPS1106A_0142	-	carbon-nitrogen family hydrolase
143	 69.89	0	138094..138558	-	154	126453853	-	BURPS1106A_0143	-	hypothetical protein
144	 64.95	0	138530..139111	-	193	126454811	-	BURPS1106A_0144	-	hypothetical protein
145	 65.29	0	139035..140048	+	337	126451629	-	BURPS1106A_0145	-	PBSX family phage portal protein
146	 64.99	0	140092..140448	-	118	126452496	-	BURPS1106A_0146	-	addiction module antidote protein
147	 57.70	-1	141073..141897	-	274	126453891	-	BURPS1106A_0147	-	hypothetical protein
148	 62.47	0	142499..142903	+	134	126454726	-	BURPS1106A_0149	-	thioesterase family protein
149	 69.66	0	142941..143810	+	289	126451606	-	BURPS1106A_0150	-	patatin family phospholipase
150	 82.11	+2	143834..143956	+	40	126454609	-	BURPS1106A_0152	-	hypothetical protein
151	 66.86	0	143931..144947	-	338	126452528	gyaR	BURPS1106A_0151	-	glyoxylate reductase
152	 67.23	0	145386..146441	+	351	126451470	-	BURPS1106A_0153	-	LysR family transcriptional regulator
153	 78.63	+2	146553..146669	-	38	126452814	-	BURPS1106A_0154	-	hypothetical protein
154	 64.46	0	146666..149386	-	906	126453699	topB	BURPS1106A_0155	-	DNA topoisomerase III
155	 65.32	0	149486..149857	-	123	126454243	-	BURPS1106A_0156	-	hypothetical protein
156	 72.95	0	149917..151221	-	434	126455418	dprA	BURPS1106A_0157	-	DNA protecting protein DprA
157	 67.50	0	151218..151337	-	39	126452019	-	BURPS1106A_0158	-	hypothetical protein
158	 61.48	-1	151300..151839	+	179	126453149	def	BURPS1106A_0159	-	polypeptide deformylase
159	 72.76	0	151871..152854	+	327	126454119	fmt	BURPS1106A_0160	-	methionyl-tRNA formyltransferase
160	 67.48	0	152870..152992	-	40	126455012	-	BURPS1106A_0161	-	hypothetical protein
161	 66.82	0	152975..153610	+	211	126451862	-	BURPS1106A_0162	-	LysE family translocator protein
162	 65.15	0	153720..154577	+	285	126452704	-	BURPS1106A_0163	-	heat shock protein HtpX
163	 71.70	0	154758..155174	+	138	126454661	-	BURPS1106A_0164	-	acetate permease
164	 72.48	0	155171..156580	+	469	126451630	sun	BURPS1106A_0165	-	ribosomal RNA small subunit methyltransferase B
165	 64.30	0	156577..157167	+	196	126452437	-	BURPS1106A_0166	-	hypothetical protein
166	 66.75	0	157169..159577	+	802	126453271	-	BURPS1106A_0167	-	sensor histidine kinase
167	 69.01	0	159578..160261	+	227	126453538	-	BURPS1106A_0168	-	Fis family DNA-binding response regulator
168	 68.47	0	160528..160749	+	73	126454381	-	BURPS1106A_0170	-	hypothetical protein
169	 66.39	0	160730..161464	+	244	126455276	-	BURPS1106A_0171	-	exsB protein
170	 66.35	0	161558..162190	+	210	126452181	-	BURPS1106A_0172	-	hypothetical protein
171	 62.69	0	162210..162662	+	150	126452633	-	BURPS1106A_0173	-	putative 6-pyruvoyl tetrahydropterin synthase
172	 63.83	0	162709..162849	+	46	126451563	-	BURPS1106A_0174	-	hypothetical protein
173	 73.16	+1	163087..163872	+	261	126454865	-	BURPS1106A_0175	-	HpcH/HpaI aldolase/citrate lyase family protein
174	 74.13	+1	163869..164645	+	258	126453702	-	BURPS1106A_0176	-	hypothetical protein
175	 65.36	0	165022..166170	-	382	126453176	rodA	BURPS1106A_0177	-	rod shape-determining protein RodA
176	 68.93	0	166182..168611	-	809	126454848	-	BURPS1106A_0178	-	putative penicillin-binding protein
177	 68.23	0	168795..169307	-	170	126455244	mreD	BURPS1106A_0179	-	rod shape-determining protein MreD
178	 71.23	0	169304..170377	-	357	126454150	mreC	BURPS1106A_0180	-	rod shape-determining protein MreC
179	 64.94	0	170497..171540	-	347	126452347	mreB	BURPS1106A_0181	-	rod shape-determining protein MreB
180	 67.33	0	171906..172205	+	99	126455226	gatC	BURPS1106A_0182	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
181	 70.22	0	172318..173808	+	496	126455152	gatA	BURPS1106A_0183	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
182	 65.65	0	173811..175283	+	490	126453954	gatB	BURPS1106A_0184	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
183	 65.95	0	175410..176249	+	279	126453377	-	BURPS1106A_0185	-	polyphosphate kinase
184	 62.39	0	176281..177051	+	256	126452249	xth	BURPS1106A_0186	-	exodeoxyribonuclease III
185	 65.92	0	177346..178410	-	354	126453715	-	BURPS1106A_0187	-	zinc-binding dehydrogenase family oxidoreductase
186	 70.26	0	178620..179564	+	314	126452647	-	BURPS1106A_0188	-	AraC family transcriptional regulator
187	 73.31	+1	179938..180990	-	350	126452125	-	BURPS1106A_0189	-	hypothetical protein
188	 66.97	0	180980..182293	-	437	126454886	-	BURPS1106A_0190	-	major facilitator transporter
189	 63.58	0	182305..182919	-	204	126454422	metW	BURPS1106A_0191	-	methionine biosynthesis protein MetW
190	 66.58	0	182916..184061	-	381	126453127	metX	BURPS1106A_0192	-	homoserine O-acetyltransferase
191	 68.41	0	184414..185103	-	229	126454066	slmA	BURPS1106A_0193	-	nucleoid occlusion protein
192	 70.15	0	185070..185873	-	267	126453385	-	BURPS1106A_0194	-	HAD-superfamily hydrolase
193	 64.22	0	185870..186769	-	299	126452255	argB	BURPS1106A_0195	-	acetylglutamate kinase
194	 65.85	0	186946..187068	-	40	126451498	-	BURPS1106A_0196	-	hypothetical protein
195	 78.17	+1	187094..187345	+	83	126454885	-	BURPS1106A_0197	-	hypothetical protein
196	 69.01	0	187363..188643	+	426	126453480	-	BURPS1106A_0198	-	sensor histidine kinase
197	 66.30	0	188663..189205	+	180	126452974	-	BURPS1106A_0199	-	Fis family DNA-binding response regulator
198	 64.29	0	189632..190975	-	447	126452107	hslU	BURPS1106A_0200	-	ATP-dependent protease ATP-binding subunit
199	 68.87	0	190985..191620	-	211	126451912	hslV	BURPS1106A_0201	-	ATP-dependent protease peptidase subunit
200	 73.50	+1	191626..191742	-	38	126452750	-	BURPS1106A_0202	-	hypothetical protein
201	 60.67	-1	191783..192199	-	138	126455040	dksA	BURPS1106A_0203	-	RNA polymerase-binding protein DksA
202	 66.38	0	192254..192598	-	114	126452341	-	BURPS1106A_0204	-	hypothetical protein
203	 62.12	-1	192760..193836	-	358	126453239	-	BURPS1106A_0205	-	CobW/P47K family protein
204	 70.50	0	194014..195291	-	425	126454780	-	BURPS1106A_0206	-	hypothetical protein
205	 69.67	0	195380..196312	-	310	126451479	xerC	BURPS1106A_0207	-	site-specific tyrosine recombinase XerC
206	 71.14	0	196357..197094	-	245	126452571	-	BURPS1106A_0208	-	hypothetical protein
207	 70.57	0	197118..197987	-	289	126453808	dapF	BURPS1106A_0209	-	diaminopimelate epimerase
208	 66.33	0	198028..198912	-	294	126454911	htrB	BURPS1106A_0210	-	lipid A biosynthesis lauroyl acyltransferase
209	 67.09	0	199179..200366	+	395	126451461	metK	BURPS1106A_0211	-	S-adenosylmethionine synthetase
210	 73.45	+1	200534..200887	-	117	126452679	-	BURPS1106A_0212	-	hypothetical protein
211	 66.22	0	201131..202024	+	297	126454571	-	BURPS1106A_0213	-	phytanoyl-CoA dioxygenase (PhyH) family protein
212	 69.40	0	202108..202290	-	60	126451701	-	BURPS1106A_0214	-	hypothetical protein
213	 64.73	0	202307..202513	-	68	126452493	-	BURPS1106A_0215	-	hypothetical protein
214	 65.61	0	202592..203731	+	379	126454356	-	BURPS1106A_0216	-	aldo/keto reductase family oxidoreductase
215	 68.28	0	203818..204003	-	61	126454634	-	BURPS1106A_0217	-	hypothetical protein
216	 71.14	0	204271..205209	-	312	126451814	-	BURPS1106A_0218	-	hypothetical protein
217	 73.00	+1	205256..205492	-	78	126453971	-	BURPS1106A_0219	-	hypothetical protein
218	 71.86	0	205489..206778	-	429	126455134	-	BURPS1106A_0220	-	major facilitator family transporter
219	 65.59	0	206841..207026	-	61	126453988	-	BURPS1106A_0221	-	hypothetical protein
220	 56.82	-2	207002..207133	-	43	126455185	-	BURPS1106A_0222	-	hypothetical protein
221	 65.26	0	207132..207344	+	70	126453733	-	BURPS1106A_0223	-	hypothetical protein
222	 69.09	0	207385..208416	+	343	126454046	-	BURPS1106A_0224	-	serine/threonine protein kinase
223	 74.40	+1	208693..209028	-	111	126452557	-	BURPS1106A_0225	-	hypothetical protein
224	 68.50	0	209085..210503	-	472	126452218	-	BURPS1106A_0226	-	putative coniferyl aldehyde dehydrogenase
225	 69.82	0	210538..212217	-	559	126454819	-	BURPS1106A_0227	-	acyl-CoA dehydrogenase domain-containing protein
226	 69.16	0	212451..214094	+	547	126453931	-	BURPS1106A_0228	-	GMC family oxidoreductase
227	 76.62	+1	214134..215510	-	458	126454663	fliK	BURPS1106A_0229	-	flagellar hook-length control protein FliK
228	 71.52	0	215567..216019	-	150	126453479	fliJ	BURPS1106A_0230	-	flagellar export protein FliJ
229	 72.52	0	216025..217596	-	523	126453967	fliI	BURPS1106A_0231	-	flagellar protein export ATPase FliI
230	 73.86	+1	217590..218270	-	226	126453050	fliH	BURPS1106A_0232	-	flagellar assembly protein H
231	 64.66	0	218263..219258	-	331	126452132	fliG	BURPS1106A_0233	-	flagellar motor switch protein G
232	 69.78	0	219248..221044	-	598	126453288	fliF	BURPS1106A_0234	-	flagellar MS-ring protein
233	 65.50	0	221293..221634	+	113	126453483	fliE	BURPS1106A_0235	-	flagellar hook-basal body complex protein FliE
234	 66.67	0	221756..222190	+	144	126454587	fliS	BURPS1106A_0236	-	flagellar protein FliS
235	 69.11	0	222187..222513	+	108	126454593	-	BURPS1106A_0237	-	hypothetical protein
236	 78.51	+2	222623..224125	+	500	126451708	-	BURPS1106A_0238	-	hypothetical protein
237	 72.33	0	224122..224439	+	105	126452833	-	BURPS1106A_0239	-	putative flagellar biosynthesis protein
238	 70.69	0	224659..225378	+	239	126455053	-	BURPS1106A_0240	-	hypothetical protein
239	 71.35	0	225466..226491	-	341	126452863	-	BURPS1106A_0241	-	putative xanthine dehydrogenase accessory factor
240	 67.81	0	226690..228093	-	467	126452851	-	BURPS1106A_0242	-	amino acid permease
67.62	MEAN

5.36	STD DEV
