IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

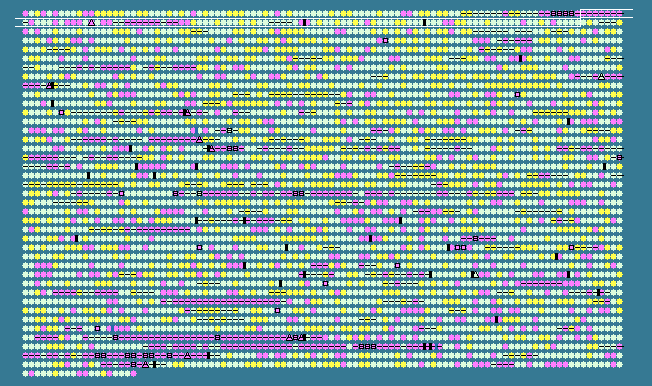

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
94	 60.66	-1	85693..86940	-	415	126452777	-	BURPS1106A_0094	-	hypothetical protein
95	 59.26	-1	87362..87685	+	107	126452186	-	BURPS1106A_0095	-	XRE family transcriptional regulator
96	 58.62	-1	87678..88547	+	289	126455121	-	BURPS1106A_0096	-	hypothetical protein
97	 58.36	-1	88777..91245	+	822	126453526	-	BURPS1106A_0097	-	type I restriction-modification system M subunit
98	 52.85	-2	91595..92542	+	315	126452645	-	BURPS1106A_0098	-	restriction endonuclease S subunits
99	 59.66	-1	92566..95835	+	1089	126453319	-	BURPS1106A_0099	-	type I site-specific deoxyribonuclease HsdR
100	 59.78	-1	95976..96527	+	183	126452415	-	BURPS1106A_0100	-	hypothetical protein
101	 64.16	0	97271..99739	-	822	126452573	gyrB	BURPS1106A_0101	-	DNA gyrase subunit B
102	 63.59	0	99928..101031	-	367	126451494	dnaN	BURPS1106A_0102	-	DNA polymerase III subunit beta
103	 65.73	0	101194..102795	-	533	126451895	dnaA	BURPS1106A_0103	-	chromosomal replication initiation protein
104	 65.93	0	103241..103375	+	44	126454640	rpmH	BURPS1106A_0104	-	50S ribosomal protein L34
105	 68.37	0	103449..103859	+	136	126452960	rnpA	BURPS1106A_0105	-	ribonuclease P protein component
106	 64.07	0	103939..104208	+	89	126452931	-	BURPS1106A_0106	-	hypothetical protein
107	 64.16	0	104217..105893	+	558	126453447	oxaA	BURPS1106A_0107	-	putative inner membrane protein translocase component YidC
108	 61.19	-1	106050..106469	-	139	126452589	-	BURPS1106A_0108	-	hypothetical protein
109	 53.23	-2	106341..106526	+	61	126452170	-	BURPS1106A_0109	-	hypothetical protein
110	 45.19	-2	106648..106782	-	44	126455321	-	BURPS1106A_0110	-	hypothetical protein
111	 69.02	0	106807..108210	+	467	126454342	trmE	BURPS1106A_0111	-	tRNA modification GTPase TrmE
112	 59.76	-1	108379..109608	+	409	126455326	-	BURPS1106A_0112	-	phage integrase family site specific recombinase
113	 66.88	0	110256..113108	-	950	126452256	-	BURPS1106A_0113	-	hypothetical protein
114	 63.74	0	113248..113589	-	113	126453425	-	BURPS1106A_0114	-	hypothetical protein
115	 61.63	-1	113586..113843	-	85	126452503	-	BURPS1106A_0115	-	hypothetical protein
116	 69.49	0	113836..114012	-	58	126453645	-	BURPS1106A_0116	-	hypothetical protein
117	 67.50	0	114380..114859	-	159	126454816	-	BURPS1106A_0117	-	hypothetical protein
118	 63.74	0	114859..115029	-	56	126451970	-	BURPS1106A_0118	-	hypothetical protein
119	 54.98	-2	115252..115773	-	173	126453007	-	BURPS1106A_0119	-	hypothetical protein
120	 60.72	-1	116181..117122	-	313	126454170	-	BURPS1106A_0120	-	hypothetical protein
121	 61.63	-1	118452..119285	-	277	126452875	-	BURPS1106A_0121	-	TnpB
122	 56.82	-2	119309..119572	-	87	126453029	-	BURPS1106A_0122	-	hypothetical protein
123	 57.41	-1	119871..120605	-	244	126452129	-	BURPS1106A_0123	-	hypothetical protein
124	 65.89	0	121171..122328	+	385	126455245	-	BURPS1106A_0124	-	putative lipoprotein
125	 60.23	-1	122894..123064	-	56	126454316	-	BURPS1106A_0125	-	hypothetical protein
126	 57.58	-1	123226..123786	+	186	126452458	speG	BURPS1106A_0126	-	diamine N-acetyltransferase
127	 50.00	-2	123859..123978	+	39	126451558	-	BURPS1106A_0127	-	hypothetical protein
128	 59.77	-1	124272..124619	+	115	126455131	-	BURPS1106A_0129	-	hypothetical protein
129	 74.40	+1	124609..124776	-	55	126454913	-	BURPS1106A_0128	-	hypothetical protein
130	 67.57	0	124839..125393	+	184	126455405	-	BURPS1106A_0130	-	hypothetical protein
131	 67.15	0	125590..126006	-	138	126453537	-	BURPS1106A_0131	-	glyoxalase family protein
132	 69.95	0	126408..127502	+	364	126454639	ada	BURPS1106A_0132	-	ADA regulatory protein
133	 74.64	+1	127526..128440	+	304	126452165	alkA	BURPS1106A_0133	-	DNA-3-methyladenine glycosylase 2
134	 67.72	0	128599..130212	+	537	126453055	gshA	BURPS1106A_0134	-	glutamate--cysteine ligase
135	 70.39	0	130226..131674	-	482	126453822	rpoD	BURPS1106A_0135	-	RNA polymerase sigma factor RpoD
136	 69.76	0	131937..132485	-	182	126454804	-	BURPS1106A_0136	-	hypothetical protein
137	 74.64	+1	132736..132873	+	45	126454673	-	BURPS1106A_0137	-	hypothetical protein
138	 66.49	0	133053..133622	-	189	126451523	-	BURPS1106A_0138	-	hypothetical protein
139	 71.31	0	133725..134693	-	322	126454337	-	BURPS1106A_0139	-	LysR family transcriptional regulator
140	 65.02	0	134836..135930	+	364	126455252	-	BURPS1106A_0140	-	extracellular solute-binding protein
141	 70.17	0	135959..137071	+	370	126452138	-	BURPS1106A_0141	-	histone deacetylase family protein
142	 67.47	0	137082..137957	+	291	126453061	-	BURPS1106A_0142	-	carbon-nitrogen family hydrolase
143	 69.89	0	138094..138558	-	154	126453853	-	BURPS1106A_0143	-	hypothetical protein
144	 64.95	0	138530..139111	-	193	126454811	-	BURPS1106A_0144	-	hypothetical protein
145	 65.29	0	139035..140048	+	337	126451629	-	BURPS1106A_0145	-	PBSX family phage portal protein
146	 64.99	0	140092..140448	-	118	126452496	-	BURPS1106A_0146	-	addiction module antidote protein
147	 57.70	-1	141073..141897	-	274	126453891	-	BURPS1106A_0147	-	hypothetical protein
148	 62.47	0	142499..142903	+	134	126454726	-	BURPS1106A_0149	-	thioesterase family protein
149	 69.66	0	142941..143810	+	289	126451606	-	BURPS1106A_0150	-	patatin family phospholipase
150	 82.11	+2	143834..143956	+	40	126454609	-	BURPS1106A_0152	-	hypothetical protein
151	 66.86	0	143931..144947	-	338	126452528	gyaR	BURPS1106A_0151	-	glyoxylate reductase
152	 67.23	0	145386..146441	+	351	126451470	-	BURPS1106A_0153	-	LysR family transcriptional regulator
153	 78.63	+2	146553..146669	-	38	126452814	-	BURPS1106A_0154	-	hypothetical protein
154	 64.46	0	146666..149386	-	906	126453699	topB	BURPS1106A_0155	-	DNA topoisomerase III
155	 65.32	0	149486..149857	-	123	126454243	-	BURPS1106A_0156	-	hypothetical protein
156	 72.95	0	149917..151221	-	434	126455418	dprA	BURPS1106A_0157	-	DNA protecting protein DprA
157	 67.50	0	151218..151337	-	39	126452019	-	BURPS1106A_0158	-	hypothetical protein
158	 61.48	-1	151300..151839	+	179	126453149	def	BURPS1106A_0159	-	polypeptide deformylase
159	 72.76	0	151871..152854	+	327	126454119	fmt	BURPS1106A_0160	-	methionyl-tRNA formyltransferase
160	 67.48	0	152870..152992	-	40	126455012	-	BURPS1106A_0161	-	hypothetical protein
161	 66.82	0	152975..153610	+	211	126451862	-	BURPS1106A_0162	-	LysE family translocator protein
162	 65.15	0	153720..154577	+	285	126452704	-	BURPS1106A_0163	-	heat shock protein HtpX
163	 71.70	0	154758..155174	+	138	126454661	-	BURPS1106A_0164	-	acetate permease
164	 72.48	0	155171..156580	+	469	126451630	sun	BURPS1106A_0165	-	ribosomal RNA small subunit methyltransferase B
165	 64.30	0	156577..157167	+	196	126452437	-	BURPS1106A_0166	-	hypothetical protein
166	 66.75	0	157169..159577	+	802	126453271	-	BURPS1106A_0167	-	sensor histidine kinase
167	 69.01	0	159578..160261	+	227	126453538	-	BURPS1106A_0168	-	Fis family DNA-binding response regulator
168	 68.47	0	160528..160749	+	73	126454381	-	BURPS1106A_0170	-	hypothetical protein
169	 66.39	0	160730..161464	+	244	126455276	-	BURPS1106A_0171	-	exsB protein
170	 66.35	0	161558..162190	+	210	126452181	-	BURPS1106A_0172	-	hypothetical protein
171	 62.69	0	162210..162662	+	150	126452633	-	BURPS1106A_0173	-	putative 6-pyruvoyl tetrahydropterin synthase
172	 63.83	0	162709..162849	+	46	126451563	-	BURPS1106A_0174	-	hypothetical protein
173	 73.16	+1	163087..163872	+	261	126454865	-	BURPS1106A_0175	-	HpcH/HpaI aldolase/citrate lyase family protein
174	 74.13	+1	163869..164645	+	258	126453702	-	BURPS1106A_0176	-	hypothetical protein
175	 65.36	0	165022..166170	-	382	126453176	rodA	BURPS1106A_0177	-	rod shape-determining protein RodA
176	 68.93	0	166182..168611	-	809	126454848	-	BURPS1106A_0178	-	putative penicillin-binding protein
177	 68.23	0	168795..169307	-	170	126455244	mreD	BURPS1106A_0179	-	rod shape-determining protein MreD
178	 71.23	0	169304..170377	-	357	126454150	mreC	BURPS1106A_0180	-	rod shape-determining protein MreC
179	 64.94	0	170497..171540	-	347	126452347	mreB	BURPS1106A_0181	-	rod shape-determining protein MreB
180	 67.33	0	171906..172205	+	99	126455226	gatC	BURPS1106A_0182	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
181	 70.22	0	172318..173808	+	496	126455152	gatA	BURPS1106A_0183	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
182	 65.65	0	173811..175283	+	490	126453954	gatB	BURPS1106A_0184	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
183	 65.95	0	175410..176249	+	279	126453377	-	BURPS1106A_0185	-	polyphosphate kinase
184	 62.39	0	176281..177051	+	256	126452249	xth	BURPS1106A_0186	-	exodeoxyribonuclease III
185	 65.92	0	177346..178410	-	354	126453715	-	BURPS1106A_0187	-	zinc-binding dehydrogenase family oxidoreductase
186	 70.26	0	178620..179564	+	314	126452647	-	BURPS1106A_0188	-	AraC family transcriptional regulator
187	 73.31	+1	179938..180990	-	350	126452125	-	BURPS1106A_0189	-	hypothetical protein
188	 66.97	0	180980..182293	-	437	126454886	-	BURPS1106A_0190	-	major facilitator transporter
189	 63.58	0	182305..182919	-	204	126454422	metW	BURPS1106A_0191	-	methionine biosynthesis protein MetW
190	 66.58	0	182916..184061	-	381	126453127	metX	BURPS1106A_0192	-	homoserine O-acetyltransferase
191	 68.41	0	184414..185103	-	229	126454066	slmA	BURPS1106A_0193	-	nucleoid occlusion protein
192	 70.15	0	185070..185873	-	267	126453385	-	BURPS1106A_0194	-	HAD-superfamily hydrolase
193	 64.22	0	185870..186769	-	299	126452255	argB	BURPS1106A_0195	-	acetylglutamate kinase
67.62	MEAN

5.36	STD DEV
