IslandPath Analysis: Burkholderia pseudomallei 1106a

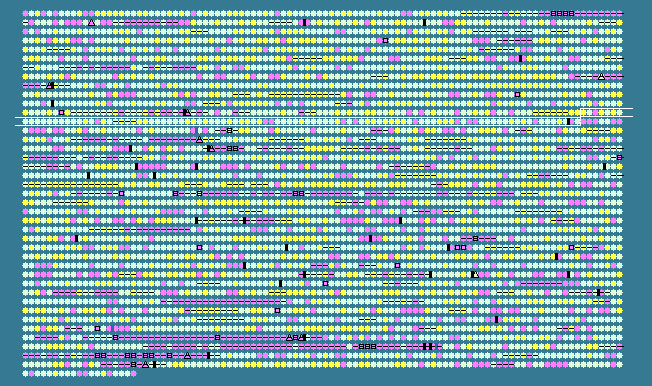

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1194	 74.53	+1	1180294..1180611	+	105	126454546	-	BURPS1106A_1200	-	hypothetical protein
1195	 68.94	0	1180625..1182073	+	482	126454058	-	BURPS1106A_1201	-	DEAD/DEAH box helicase
1196	 62.67	0	1182400..1182549	-	49	126451765	-	BURPS1106A_1202	-	hypothetical protein
1197	 74.16	+1	1182573..1183466	-	297	126455073	gluQ	BURPS1106A_1203	-	glutamyl-Q tRNA(Asp) synthetase
1198	 67.44	0	1183510..1184409	-	299	126454203	-	BURPS1106A_1204	-	hypothetical protein
1199	 78.95	+2	1184578..1184862	+	94	126454089	-	BURPS1106A_1205	-	Fis family transcriptional regulator
1200	 66.87	0	1185049..1188573	+	1174	126453191	dnaE	BURPS1106A_1206	-	DNA polymerase III subunit alpha
1201	 65.22	0	1188679..1190403	+	574	126454551	msbA	BURPS1106A_1207	-	lipid A export ATP-binding/permease protein MsbA
1202	 68.98	0	1190457..1191539	+	360	126453690	lgtG	BURPS1106A_1208	-	lipooligosaccharide glycosyl transferase G
1203	 69.81	0	1191821..1192966	+	381	126451848	-	BURPS1106A_1209	-	heptosyltransferase
1204	 67.44	0	1192963..1194261	+	432	126455061	-	BURPS1106A_1210	-	hypothetical protein
1205	 70.31	0	1194258..1195520	+	420	126454176	-	BURPS1106A_1211	-	glycosyl transferase, group 1 family protein
1206	 68.88	0	1195607..1196779	+	390	126452914	-	BURPS1106A_1212	-	putative lipopolysaccharide heptosyltransferase III
1207	 65.49	0	1197046..1197810	-	254	126454929	-	BURPS1106A_1213	-	glycosyl transferase, group 2 family protein
1208	 70.34	0	1198268..1198648	+	126	126453775	-	BURPS1106A_1214	-	hypothetical protein
1209	 67.00	0	1198929..1199522	-	197	126452639	-	BURPS1106A_1215	-	hypothetical protein
1210	 71.10	0	1199772..1201034	-	420	126451518	-	BURPS1106A_1216	-	major facilitator transporter
1211	 75.23	+1	1201031..1202011	-	326	126451841	-	BURPS1106A_1217	-	putative lipoprotein
1212	 66.67	0	1202345..1202461	-	38	126452982	-	BURPS1106A_1218	-	hypothetical protein
1213	 64.02	0	1202715..1203167	-	150	126454095	-	BURPS1106A_1219	-	carboxymuconolactone decarboxylase family protein
1214	 75.62	+1	1203213..1203659	-	148	126455220	-	BURPS1106A_1220	-	hypothetical protein
1215	 69.13	0	1203656..1204588	-	310	126455217	-	BURPS1106A_1221	-	RNA polymerase sigma-70 factor
1216	 67.36	0	1204727..1205161	-	144	126453916	-	BURPS1106A_1222	-	hypothetical protein
1217	 72.65	0	1205187..1205303	+	38	126455186	-	BURPS1106A_1224	-	hypothetical protein
1218	 64.97	0	1205297..1205590	-	97	126452009	-	BURPS1106A_1223	-	hypothetical protein
1219	 73.46	+1	1206007..1206315	-	102	126455339	-	BURPS1106A_1225	-	hypothetical protein
1220	 71.56	0	1206314..1206640	+	108	126454423	-	BURPS1106A_1226	-	hypothetical protein
1221	 76.00	+1	1206719..1206868	-	49	126452812	-	BURPS1106A_1227	-	hypothetical protein
1222	 69.77	0	1206990..1207118	-	42	126452180	-	BURPS1106A_1228	-	hypothetical protein
1223	 70.01	0	1207789..1208505	+	238	126451452	-	BURPS1106A_1229	-	putative phospholipase C accessory protein
1224	 65.51	0	1208579..1209964	+	461	126454856	-	BURPS1106A_1230	-	hypothetical protein
1225	 69.11	0	1209992..1211380	-	462	126453470	yicE	BURPS1106A_1231	-	xanthine permease
1226	 69.42	0	1211345..1211635	+	96	126453267	-	BURPS1106A_1232	-	hypothetical protein
1227	 65.71	0	1211698..1213164	-	488	126451783	-	BURPS1106A_1233	-	ribonuclease
1228	 73.97	+1	1213173..1213802	-	209	126455201	maf	BURPS1106A_1234	-	Maf-like protein
1229	 71.13	0	1213855..1214325	-	156	126453487	-	BURPS1106A_1235	-	SPOUT methyltransferase superfamily protein
1230	 69.46	0	1214382..1214846	-	154	126452827	-	BURPS1106A_1236	-	iojap domain-containing protein
1231	 75.17	+1	1214851..1215603	-	250	126453400	nadD	BURPS1106A_1237	-	nicotinic acid mononucleotide adenylyltransferase
1232	 69.26	0	1215600..1216523	-	307	126454604	hemF	BURPS1106A_1238	-	coproporphyrinogen III oxidase
1233	 68.23	0	1216654..1217931	-	425	126455187	purD	BURPS1106A_1239	-	phosphoribosylamine--glycine ligase
1234	 64.47	0	1218042..1218770	-	242	126454071	-	BURPS1106A_1240	-	hypothetical protein
1235	 76.91	+1	1218733..1219269	-	178	126452798	-	BURPS1106A_1241	-	hypothetical protein
1236	 66.67	0	1219308..1219958	-	216	126455154	upp	BURPS1106A_1242	-	uracil phosphoribosyltransferase
1237	 72.82	0	1220216..1220995	+	259	126452270	-	BURPS1106A_1243	-	short chain dehydrogenase/reductase family oxidoreductase
1238	 71.25	0	1221234..1221626	+	130	126453334	mgsA	BURPS1106A_1244	-	methylglyoxal synthase
1239	 69.03	0	1222592..1223566	+	324	126452470	-	BURPS1106A_1245	-	zinc-binding dehydrogenase family oxidoreductase
1240	 80.07	+2	1223572..1223862	+	96	126453780	-	BURPS1106A_1246	-	hypothetical protein
1241	 53.17	-2	1223885..1224010	-	41	126454910	-	BURPS1106A_1247	-	hypothetical protein
1242	 61.36	-1	1223992..1224123	+	43	126452063	kdpF	BURPS1106A_1248	-	potassium-transporting ATPase, KdpF subunit
1243	 68.16	0	1224120..1225928	+	602	126453034	kdpA	BURPS1106A_1249	-	potassium-transporting ATPase subunit A
1244	 67.72	0	1225997..1228084	+	695	126454417	kdpB	BURPS1106A_1250	-	K+-transporting ATPase, B subunit
1245	 70.62	0	1228097..1228678	+	193	126453575	kdpC	BURPS1106A_1251	-	K+-transporting ATPase, C subunit
1246	 70.00	0	1228787..1228966	+	59	126452683	-	BURPS1106A_1252	-	hypothetical protein
1247	 72.20	0	1228963..1231944	+	993	126453510	kdpD	BURPS1106A_1253	-	sensor histidine kinase KdpD
1248	 69.50	0	1231931..1232635	+	234	126455264	kdpE	BURPS1106A_1254	-	KDP operon transcriptional regulatory protein KdpE
1249	 70.83	0	1232837..1233004	-	55	126452110	-	BURPS1106A_1255	-	hypothetical protein
1250	 67.34	0	1233025..1233321	+	98	126453138	-	BURPS1106A_1256	-	hypothetical protein
1251	 68.54	0	1233537..1233857	+	106	126454766	-	BURPS1106A_1257	-	SMR family multidrug efflux pump
1252	 69.90	0	1234049..1234666	+	205	126451843	-	BURPS1106A_1258	-	hypothetical protein
1253	 74.16	+1	1234663..1237305	+	880	126452428	-	BURPS1106A_1259	-	efflux ABC transporter, permease protein
1254	 58.54	-1	1237302..1237424	+	40	126454344	-	BURPS1106A_1260	-	hypothetical protein
1255	 68.61	0	1237405..1237815	+	136	126455269	-	BURPS1106A_1261	-	hypothetical protein
1256	 63.57	0	1237837..1237965	+	42	126455116	-	BURPS1106A_1262	-	hypothetical protein
1257	 70.63	0	1237926..1238657	+	243	126452703	-	BURPS1106A_1263	-	threonyl/alanyl tRNA synthetase domain-containing protein
1258	 73.36	+1	1238654..1239295	+	213	126453306	-	BURPS1106A_1264	-	hypothetical protein
1259	 73.48	+1	1239639..1241033	+	464	126454185	-	BURPS1106A_1265	-	amidase
1260	 71.09	0	1241290..1242579	+	429	126454498	-	BURPS1106A_1266	-	major facilitator family transporter
1261	 73.20	+1	1242780..1242932	+	50	126452881	-	BURPS1106A_1268	-	hypothetical protein
1262	 71.29	0	1242890..1244707	-	605	126452353	-	BURPS1106A_1267	-	hypothetical protein
1263	 82.46	+2	1244613..1244726	+	37	126453809	-	BURPS1106A_1269	-	hypothetical protein
1264	 74.18	+1	1245333..1246091	-	252	126454110	-	BURPS1106A_1270	-	glucose-1-dehydrogenase
1265	 67.01	0	1246509..1247096	-	195	126454985	-	BURPS1106A_1271	-	decarboxylase family protein
1266	 59.72	-1	1247093..1247812	-	239	126451830	-	BURPS1106A_1272	-	TetR family transcriptional regulator
1267	 70.33	0	1248049..1248594	-	181	126452688	dgkA	BURPS1106A_1273	-	diacylglycerol kinase
1268	 69.28	0	1248603..1249637	-	344	126454366	-	BURPS1106A_1274	-	glycosyl transferase, group 1 family protein
1269	 65.50	0	1249659..1250597	-	312	126455178	-	BURPS1106A_1275	-	Ser/Thr protein phosphatase family protein
1270	 75.88	+1	1250688..1251197	-	169	126454694	-	BURPS1106A_1276	-	RDD family protein
1271	 71.16	0	1251204..1251959	-	251	126451579	-	BURPS1106A_1277	-	hypothetical protein
1272	 73.76	+1	1251990..1252412	-	140	126454392	-	BURPS1106A_1278	-	hypothetical protein
1273	 62.39	0	1252409..1252969	-	186	126455327	-	BURPS1106A_1279	-	RNA polymerase factor sigma-70
1274	 68.79	0	1253097..1253237	+	46	126455107	-	BURPS1106A_1280	-	hypothetical protein
1275	 63.66	0	1253365..1255128	+	587	126452197	ilvB	BURPS1106A_1281	-	acetolactate synthase 3 catalytic subunit
1276	 60.77	-1	1255240..1255731	+	163	126454468	ilvH	BURPS1106A_1282	-	acetolactate synthase 3 regulatory subunit
1277	 65.39	0	1255814..1256830	+	338	126453783	ilvC	BURPS1106A_1283	-	ketol-acid reductoisomerase
1278	 66.36	0	1256952..1257602	+	216	126453211	psd	BURPS1106A_1284	-	phosphatidylserine decarboxylase
1279	 69.19	0	1257619..1258491	+	290	126452290	pssA	BURPS1106A_1285	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1280	 64.79	0	1258850..1260397	+	515	126455016	leuA	BURPS1106A_1286	-	2-isopropylmalate synthase
1281	 68.67	0	1260532..1262079	-	515	126454102	-	BURPS1106A_1287	-	sulfate permease family inorganic anion transporter
1282	 71.70	0	1262136..1262771	-	211	126451942	-	BURPS1106A_1288	-	putative carbonic anhydrase
1283	 64.47	0	1263215..1263715	-	166	126454526	-	BURPS1106A_1289	-	putative lipoprotein
1284	 71.56	0	1263714..1264142	+	142	126453638	-	BURPS1106A_1290	-	hypothetical protein
1285	 70.11	0	1264094..1265371	+	425	126453238	-	BURPS1106A_1291	-	putative amino acid-binding protein
1286	 62.59	0	1265477..1265746	+	89	126451731	rpsO	BURPS1106A_1292	-	30S ribosomal protein S15
1287	 64.29	0	1265888..1266097	-	69	126455209	-	BURPS1106A_1293	-	hypothetical protein
1288	 66.01	0	1266050..1268191	+	713	126454918	pnp	BURPS1106A_1294	-	polynucleotide phosphorylase/polyadenylase
1289	 69.53	0	1268244..1269326	+	360	126453705	-	BURPS1106A_1295	-	zinc-binding dehydrogenase family oxidoreductase
1290	 71.54	0	1269386..1270186	+	266	126452700	tpiA	BURPS1106A_1296	-	triosephosphate isomerase
1291	 67.46	0	1270266..1270643	+	125	126451944	secG	BURPS1106A_1297	-	preprotein translocase subunit SecG
1292	 56.39	-2	1270992..1271351	+	119	126452694	nuoA	BURPS1106A_1299	-	NADH dehydrogenase subunit A
1293	 65.83	0	1271414..1271893	+	159	126451839	nuoB	BURPS1106A_1300	-	NADH dehydrogenase subunit B
67.62	MEAN

5.36	STD DEV
