IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1106a

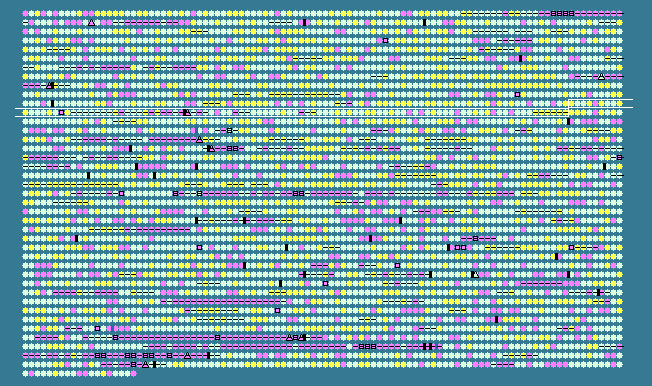

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.62 STD DEV: 5.36
Burkholderia pseudomallei 1106a chromosome I, complete sequence - 1..3988455
4019 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1092	 72.43	0	1078734..1079444	+	236	126453627	-	BURPS1106A_1097	-	cupin domain-containing protein
1093	 67.77	0	1079792..1080337	-	181	126455318	-	BURPS1106A_1098	-	hypothetical protein
1094	 69.42	0	1080579..1081304	+	241	126452418	-	BURPS1106A_1099	-	DNA-binding response regulator
1095	 72.83	0	1081288..1082601	+	437	126453072	-	BURPS1106A_1100	-	sensor histidine kinase
1096	 58.80	-1	1082675..1082941	-	88	126451840	-	BURPS1106A_1101	-	hypothetical protein
1097	 71.74	0	1083068..1083205	-	45	126453175	-	BURPS1106A_1102	-	hypothetical protein
1098	 66.04	0	1083438..1085195	+	585	126453617	-	BURPS1106A_1103	-	ABC transporter, permease protein
1099	 68.83	0	1085249..1086589	+	446	126454734	-	BURPS1106A_1104	-	ABC transporter, ATP-binding protein
1100	 75.31	+1	1086756..1086917	-	53	126455376	-	BURPS1106A_1105	-	hypothetical protein
1101	 73.57	+1	1086974..1087480	-	168	126452446	-	BURPS1106A_1106	-	putative lipoprotein
1102	 69.66	0	1087477..1088145	-	222	126453212	-	BURPS1106A_1107	-	hypothetical protein
1103	 70.71	0	1088317..1088514	+	65	126454138	-	BURPS1106A_1108	-	hypothetical protein
1104	 67.44	0	1088647..1090065	+	472	126453612	otsA	BURPS1106A_1109	-	alpha,alpha-trehalose-phosphate synthase (UDP-forming)
1105	 72.31	0	1090058..1090660	+	200	126454137	-	BURPS1106A_1110	-	hypothetical protein
1106	 71.08	0	1090833..1091444	-	203	126454424	-	BURPS1106A_1111	-	hypothetical protein
1107	 62.50	0	1092277..1093380	-	367	126455313	-	BURPS1106A_1112	-	transposase, IS4
1108	 71.47	0	1093530..1094903	-	457	126452483	-	BURPS1106A_1113	-	EmrB/QacA family drug resistance transporter
1109	 66.47	0	1095027..1095539	-	170	126454401	-	BURPS1106A_1114	-	phosphatidylethanolamine-binding protein
1110	 69.29	0	1096114..1096494	-	126	126454736	-	BURPS1106A_1115	-	hypothetical protein
1111	 69.26	0	1096652..1096921	+	89	126451462	-	BURPS1106A_1116	-	hypothetical protein
1112	 66.67	0	1096918..1097052	+	44	126455375	-	BURPS1106A_1117	-	hypothetical protein
1113	 69.55	0	1097073..1097315	+	80	126451512	-	BURPS1106A_1118	-	hypothetical protein
1114	 70.37	0	1097312..1097446	+	44	126454255	-	BURPS1106A_1120	-	hypothetical protein
1115	 65.28	0	1097416..1097559	-	47	126453096	-	BURPS1106A_1119	-	hypothetical protein
1116	 72.18	0	1097528..1097908	-	126	126453260	-	BURPS1106A_1121	-	putative lipoprotein
1117	 54.81	-2	1097950..1098084	+	44	126453647	-	BURPS1106A_1122	-	hypothetical protein
1118	 66.85	0	1098081..1098620	+	179	126454622	eco	BURPS1106A_1123	-	ecotin precursor
1119	 69.83	0	1098718..1099854	-	378	126451732	-	BURPS1106A_1124	-	D-alanyl-D-alanine carboxypeptidase family protein
1120	 65.33	0	1100095..1100319	-	74	126455391	-	BURPS1106A_1125	-	hypothetical protein
1121	 71.54	0	1100336..1100458	-	40	126451964	-	BURPS1106A_1126	-	hypothetical protein
1122	 63.73	0	1100776..1101252	+	158	126453123	-	BURPS1106A_1127	-	hypothetical protein
1123	 74.24	+1	1101265..1101396	+	43	126453732	-	BURPS1106A_1128	-	hypothetical protein
1124	 61.49	-1	1102888..1112313	+	3141	126454898	-	BURPS1106A_1129	-	cell surface protein
1125	 43.33	-2	1112436..1112675	+	79	126451625	-	BURPS1106A_1130	-	hypothetical protein
1126	 65.79	0	1112960..1113301	-	113	126455074	-	BURPS1106A_1131	-	hypothetical protein
1127	 61.98	-1	1112987..1114693	+	568	126451960	-	BURPS1106A_1132	-	hemolysin activation/secretion protein
1128	 59.89	-1	1115629..1115982	-	117	126455029	-	BURPS1106A_1134	-	integrase catalytic subunit
1129	 67.38	0	1116069..1116209	+	46	126452240	-	BURPS1106A_1135	-	hypothetical protein
1130	 63.86	0	1116424..1116708	+	94	126452637	-	BURPS1106A_1136	-	hypothetical protein
1131	 64.36	0	1116719..1117021	+	100	126453564	-	BURPS1106A_1137	-	hypothetical protein
1132	 64.35	0	1117021..1117236	+	71	126454943	-	BURPS1106A_1138	-	hypothetical protein
1133	 58.80	-1	1117750..1118016	+	88	126451819	infA	BURPS1106A_1139	-	translation initiation factor IF-1
1134	 64.94	0	1118477..1119403	-	308	126452097	-	BURPS1106A_1140	-	alpha/beta fold family hydrolase
1135	 65.85	0	1119424..1121010	-	528	126452959	-	BURPS1106A_1141	-	hypothetical protein
1136	 58.33	-1	1121456..1121659	-	67	126454515	-	BURPS1106A_1142	-	rubredoxin
1137	 66.67	0	1122032..1122439	+	135	126453665	-	BURPS1106A_1143	-	hypothetical protein
1138	 68.94	0	1122571..1124553	+	660	126452112	-	BURPS1106A_1144	-	ABC transporter, ATP-binding protein
1139	 66.87	0	1124759..1126741	+	660	126455235	parE	BURPS1106A_1145	-	DNA topoisomerase IV subunit B
1140	 68.87	0	1126800..1129118	+	772	126454891	parC	BURPS1106A_1146	-	DNA topoisomerase IV subunit A
1141	 70.77	0	1129224..1129418	+	64	126452600	-	BURPS1106A_1148	-	hypothetical protein
1142	 68.12	0	1129390..1129665	-	91	126453985	-	BURPS1106A_1147	-	hypothetical protein
1143	 67.97	0	1129811..1130269	+	152	126451884	-	BURPS1106A_1149	-	hypothetical protein
1144	 71.19	0	1130431..1131315	-	294	126453249	-	BURPS1106A_1150	-	LysR family transcriptional regulator
1145	 67.11	0	1131421..1131876	+	151	126452360	-	BURPS1106A_1151	-	hypothetical protein
1146	 66.67	0	1132085..1133047	-	320	126451850	-	BURPS1106A_1152	-	LysR family transcriptional regulator
1147	 61.62	-1	1133080..1133277	-	65	126454580	-	BURPS1106A_1153	-	200 kDa antigen p200, putative
1148	 70.47	0	1133263..1134576	+	437	126453000	-	BURPS1106A_1154	-	major facilitator transporter
1149	 73.56	+1	1134578..1135840	+	420	126452829	amaB	BURPS1106A_1155	-	allantoate amidohydrolase
1150	 64.86	0	1135854..1136129	+	91	126455263	-	BURPS1106A_1156	-	hypothetical protein
1151	 69.01	0	1136172..1137197	+	341	126454260	aphA	BURPS1106A_1157	-	acetylpolyamine aminohydrolase
1152	 69.58	0	1137217..1137456	-	79	126455380	-	BURPS1106A_1158	-	hypothetical protein
1153	 71.19	0	1137585..1138778	-	397	126454264	-	BURPS1106A_1159	-	chromate transporter
1154	 66.45	0	1138925..1141243	-	772	126452559	-	BURPS1106A_1160	-	diguanylate cyclase/cyclic diguanylate phosphodiesterase
1155	 75.44	+1	1141505..1142404	-	299	126452320	-	BURPS1106A_1161	-	PhzF family phenazine biosynthesis protein
1156	 65.36	0	1142409..1142867	-	152	126454512	-	BURPS1106A_1162	-	putative endoribonuclease L-PSP
1157	 69.04	0	1142932..1144113	-	393	126455457	-	BURPS1106A_1163	-	aminotransferase, class I/II
1158	 73.49	+1	1144174..1145082	-	302	126452292	-	BURPS1106A_1164	-	integral membrane protein
1159	 73.68	+1	1145176..1145859	-	227	126453174	-	BURPS1106A_1165	-	hypothetical protein
1160	 69.90	0	1146010..1147464	+	484	126455072	-	BURPS1106A_1166	-	GntR family transcriptional regulator
1161	 64.35	0	1147600..1149498	+	632	126451945	hsp90	BURPS1106A_1167	-	heat shock protein 90
1162	 75.79	+1	1149498..1150100	+	200	126452801	ubiC	BURPS1106A_1168	-	chorismate--pyruvate lyase
1163	 68.13	0	1150100..1150576	+	158	126453694	-	BURPS1106A_1169	-	hypothetical protein
1164	 68.42	0	1150573..1151769	+	398	126451669	-	BURPS1106A_1170	-	hypothetical protein
1165	 61.25	-1	1151961..1152200	+	79	126452521	-	BURPS1106A_1171	-	hypothetical protein
1166	 65.96	0	1152197..1153747	+	516	126453342	-	BURPS1106A_1172	-	solute/sodium symporter (SSS) family protein
1167	 62.76	0	1153875..1154309	-	144	126452221	-	BURPS1106A_1173	-	VOC metalloenzyme family protein
1168	 64.78	0	1154675..1155628	-	317	126454015	tal	BURPS1106A_1174	-	transaldolase B
1169	 74.60	+1	1155739..1155990	-	83	126451857	-	BURPS1106A_1175	-	hypothetical protein
1170	 71.02	0	1156030..1157247	-	405	126454753	-	BURPS1106A_1176	-	benzoate transporter
1171	 65.39	0	1157331..1158506	-	391	126453530	-	BURPS1106A_1177	-	hypothetical protein
1172	 64.65	0	1158691..1159533	-	280	126453485	-	BURPS1106A_1178	-	AAA family ATPase
1173	 62.78	0	1159767..1160126	+	119	126453232	-	BURPS1106A_1179	-	cytochrome c family protein
1174	 65.04	0	1160167..1160535	+	122	126452108	-	BURPS1106A_1180	-	cytochrome c family protein
1175	 67.21	0	1161024..1161575	-	183	126454962	-	BURPS1106A_1181	-	hypothetical protein
1176	 74.04	+1	1161997..1163067	+	356	126455027	-	BURPS1106A_1182	-	hypothetical protein
1177	 65.43	0	1163200..1163844	-	214	126451469	nth	BURPS1106A_1183	-	endonuclease III
1178	 73.42	+1	1163849..1164721	-	290	126453295	-	BURPS1106A_1184	-	ferredoxin
1179	 62.09	-1	1164979..1165611	+	210	126451522	-	BURPS1106A_1185	-	TetR family transcriptional regulator
1180	 66.26	0	1165754..1167220	-	488	126452644	phaZ	BURPS1106A_1186	-	intracellular poly[D(-)-3-hydroxybutyrate] (PHB) depolymerase
1181	 65.87	0	1167158..1167283	+	41	126453609	-	BURPS1106A_1187	-	hypothetical protein
1182	 57.02	-1	1167285..1167398	-	37	126454902	-	BURPS1106A_1188	-	hypothetical protein
1183	 70.10	0	1167440..1169272	-	610	126455215	-	BURPS1106A_1189	-	glycosy hydrolase family protein
1184	 66.67	0	1169259..1169375	+	38	126451613	-	BURPS1106A_1190	-	hypothetical protein
1185	 69.05	0	1169509..1170684	+	391	126453030	-	BURPS1106A_1191	-	hypothetical protein
1186	 74.07	+1	1170707..1170841	+	44	126453781	-	BURPS1106A_1192	-	hypothetical protein
1187	 74.39	+1	1170987..1176542	-	1851	126453240	ftsK	BURPS1106A_1193	-	DNA translocase FtsK
1188	 71.40	0	1176714..1177262	-	182	126454278	-	BURPS1106A_1194	-	hypothetical protein
1189	 73.33	+1	1177461..1177730	+	89	126454939	-	BURPS1106A_1195	-	hypothetical protein
1190	 71.93	0	1177996..1179210	+	404	126452032	purT	BURPS1106A_1196	-	phosphoribosylglycinamide formyltransferase 2
1191	 71.52	0	1179370..1179534	+	54	126451713	-	BURPS1106A_1197	-	putative lipoprotein
67.62	MEAN

5.36	STD DEV
