IslandPath Analysis: Burkholderia pseudomallei 1710b

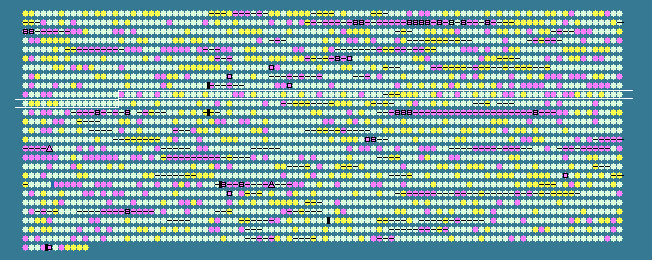

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
917	 64.06	-1	1178236..1179618	-	460	76819029	wcaJ	BURPS1710b_A0918	-	colanic biosynthesis UDP-glucose lipid carrier transferase
918	 66.60	0	1180047..1181567	+	506	76819791	-	BURPS1710b_A0919	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
919	 69.25	0	1181640..1182761	-	373	76817624	-	BURPS1710b_A0920	-	hypothetical protein
920	 63.57	-1	1183221..1183802	-	193	76818343	-	BURPS1710b_A0921	-	hypothetical protein
921	 68.68	0	1183828..1185165	-	445	76818097	glpC	BURPS1710b_A0922	-	putative ferredoxin
922	 68.85	0	1183915..1185747	+	610	76819203	-	BURPS1710b_A0923	-	hypothetical protein
923	 63.36	-1	1185277..1185699	-	140	76818888	-	BURPS1710b_A0924	-	rubrerythrin
924	 69.52	0	1185844..1185948	-	34	76817399	-	BURPS1710b_A0925	-	hypothetical protein
925	 67.18	0	1185970..1187334	-	454	76817278	ampD	BURPS1710b_A0926	-	N-acetylmuramoyl-L-alanine amidase domain-containing protein
926	 72.83	0	1187577..1188842	-	421	76817971	sig43	BURPS1710b_A0927	-	ECF subfamily RNA polymerase sigma factor
927	 72.22	0	1188842..1189381	-	179	76819190	-	BURPS1710b_A0928	-	hypothetical protein
928	 69.38	0	1189025..1190353	+	442	76818967	-	BURPS1710b_A0930	-	hypothetical protein
929	 67.15	0	1189403..1189816	-	137	76817490	-	BURPS1710b_A0929	-	DGPF domain-containing protein
930	 67.80	0	1189982..1190335	-	117	76818172	-	BURPS1710b_A0931	-	DGPF domain-containing protein
931	 74.07	+1	1190423..1190584	+	53	76819506	-	BURPS1710b_A0932	-	hypothetical protein
932	 70.45	0	1190668..1190799	-	43	76817812	-	BURPS1710b_A0933	-	hypothetical protein
933	 69.32	0	1191035..1192579	+	514	76818418	-	BURPS1710b_A0934	-	extracellular nuclease
934	 71.65	0	1193368..1193748	+	126	76819282	elaB	BURPS1710b_A0935	-	transmembrane protein
935	 68.21	0	1193797..1194381	+	194	76817247	-	BURPS1710b_A0936	-	putative lipoprotein
936	 64.62	0	1194543..1195667	+	374	76818196	-	BURPS1710b_A0937	-	PerM family permease
937	 64.30	0	1195883..1196347	-	154	76818379	-	BURPS1710b_A0938	-	hypothetical protein
938	 70.74	0	1196484..1198739	-	751	76817621	-	BURPS1710b_A0939	-	TonB-dependent receptor
939	 74.38	+1	1199047..1200252	+	401	76819626	-	BURPS1710b_A0940	-	major facilitator family transporter
940	 70.28	0	1200278..1203403	+	1041	76817338	-	BURPS1710b_A0942	-	hypothetical protein
941	 70.43	0	1200929..1202149	-	406	76819382	-	BURPS1710b_A0941	-	oxidoreductase, zinc-binding dehydrogenase family protein
942	 70.80	0	1202216..1203013	-	265	76818584	linX	BURPS1710b_A0943	-	short chain dehydrogenase
943	 67.57	0	1203237..1204007	-	256	76817891	-	BURPS1710b_A0944	-	short chain dehydrogenase
944	 76.23	+1	1204041..1204730	-	229	76819806	-	BURPS1710b_A0945	-	phosphoglycerate mutase family protein
945	 69.48	0	1204727..1207357	-	876	76818868	-	BURPS1710b_A0946	-	phosphotransferase enzyme family protein
946	 71.78	0	1205800..1207032	-	410	76818516	-	BURPS1710b_A0947	-	acyl-CoA dehydrogenase domain-containing protein
947	 72.28	0	1207368..1208294	+	308	76819206	-	BURPS1710b_A0948	-	LysR family transcriptional regulator
948	 70.40	0	1208386..1208787	+	133	76818749	-	BURPS1710b_A0949	-	hydrolase
949	 68.58	0	1208927..1210129	-	400	76819565	-	BURPS1710b_A0950	-	hypothetical protein
950	 64.17	0	1210340..1210819	+	159	76819370	-	BURPS1710b_A0951	-	hypothetical protein
951	 70.04	0	1211006..1212250	-	414	76818386	-	BURPS1710b_A0952	-	dyp-type peroxidase family protein
952	 70.75	0	1212569..1214578	+	669	76817857	-	BURPS1710b_A0953	-	ABC transporter, permease protein/ATP-binding protein
953	 71.44	0	1214913..1216988	-	691	76817334	-	BURPS1710b_A0954	-	DJ-1/PfpI family protein
954	 73.24	+1	1215651..1216760	+	369	76819703	darR	BURPS1710b_A0955	-	DarR
955	 68.40	0	1217256..1218296	+	346	76818779	trpS	BURPS1710b_A0956	-	tryptophanyl-tRNA synthetase II
956	 68.80	0	1218760..1219416	+	218	76818449	slyB	BURPS1710b_A0957	-	SlyB protein
957	 65.12	0	1219398..1219526	-	42	76818198	-	BURPS1710b_A0958	-	hypothetical protein
958	 70.77	0	1219523..1219936	-	137	76817840	-	BURPS1710b_A0959	-	AraC/XylS family transcription factor
959	 70.56	0	1220085..1221215	+	376	76819455	-	BURPS1710b_A0960	-	CAAX amino terminal protease family protein
960	 71.71	0	1221428..1222735	-	435	76818704	fjo18	BURPS1710b_A0961	-	voltage-gated chloride channel
961	 71.61	0	1223109..1224059	-	316	76818958	dehII	BURPS1710b_A0962	-	haloacid dehalogenase, type II
962	 72.30	0	1224206..1225234	-	342	76817548	cheB	BURPS1710b_A0963	-	chemotaxis-specific methylesterase
963	 72.10	0	1225241..1228480	-	1079	76817829	-	BURPS1710b_A0964	-	chemotaxis histidine kinase
964	 72.77	0	1227832..1228437	-	201	76819667	-	BURPS1710b_A0965	-	chemotaxis protein cheW
965	 74.50	+1	1228547..1230601	-	684	76817806	-	BURPS1710b_A0966	-	CheR methyltransferase SAM binding/TPR domain-containing protein
966	 74.37	+1	1230598..1231116	-	172	76819538	-	BURPS1710b_A0967	-	cheW domain-containing protein
967	 68.57	0	1231151..1232827	-	558	76819537	wspA	BURPS1710b_A0968	-	methyl-accepting chemotaxis transducer
968	 68.68	0	1232998..1234092	-	364	76818981	-	BURPS1710b_A0969	-	sensor histidine kinase/response regulator
969	 73.33	+1	1234466..1234765	-	99	76818940	-	BURPS1710b_A0970	-	protamine P1
970	 64.97	0	1234911..1235264	+	117	76818531	-	BURPS1710b_A0971	-	MaoC family protein
971	 66.67	0	1235228..1235377	+	49	76817343	-	BURPS1710b_A0972	-	hypothetical protein
972	 67.99	0	1235544..1236977	-	477	76819211	-	BURPS1710b_A0973	-	aldehyde dehydrogenase
973	 64.96	0	1237069..1238709	-	546	76818088	-	BURPS1710b_A0974	-	acetolactate synthase
974	 70.52	0	1239016..1240596	-	526	76817513	-	BURPS1710b_A0975	-	Na+/H+ antiporter
975	 68.22	0	1240756..1242042	-	428	76819155	-	BURPS1710b_A0976	-	hypothetical protein
976	 78.04	+2	1242115..1242615	-	166	76818307	-	BURPS1710b_A0977	-	putative acetyltransferase
977	 70.41	0	1242651..1244438	+	595	76818434	-	BURPS1710b_A0978	-	phospholipase D, putative
978	 67.15	0	1244505..1244921	-	138	76817848	hit	BURPS1710b_A0979	-	HIT family protein
979	 75.20	+1	1245124..1246365	-	413	76819572	-	BURPS1710b_A0980	-	ferredoxin reductase
980	 67.88	0	1246352..1246681	-	109	76818962	-	BURPS1710b_A0981	-	Rieske family iron-sulfur cluster-binding protein
981	 64.26	0	1246703..1247200	-	165	76819650	-	BURPS1710b_A0982	-	ortho-halobenzoate 1,2-dioxygenase beta-ISP protein OhbA
982	 64.40	0	1247215..1248492	-	425	76818885	-	BURPS1710b_A0983	-	ortho-halobenzoate 1,2-dioxygenase alpha-ISP protein OhbB
983	 70.20	0	1248494..1249711	+	405	76818500	andR	BURPS1710b_A0984	-	AndR
984	 72.18	0	1249782..1250669	-	295	76819336	catR	BURPS1710b_A0985	-	transcriptional regulator CatR
985	 71.69	0	1250759..1251892	+	377	76819331	catB	BURPS1710b_A0986	-	muconate cycloisomerase
986	 68.33	0	1251927..1252829	+	300	76818492	catA	BURPS1710b_A0987	-	catechol 1,2-dioxygenase
987	 66.24	0	1252762..1253691	-	309	76818591	-	BURPS1710b_A0989	-	hypothetical protein
988	 63.92	-1	1252867..1253157	+	96	76818872	catC	BURPS1710b_A0988	-	muconolactone delta-isomerase
989	 63.36	-1	1253277..1253609	-	110	76817781	cyoD-2	BURPS1710b_A0990	-	ubiquinol oxidase, subunit IV
990	 67.65	0	1253610..1254218	-	202	76818220	cyoC	BURPS1710b_A0991	-	ubiquinol oxidase, subunit III
991	 63.38	-1	1254218..1256224	-	668	76819267	cyoB	BURPS1710b_A0992	-	ubiquinol oxidase, subunit I
992	 64.23	0	1256228..1257130	-	300	76819690	cyoA-2	BURPS1710b_A0993	-	ubiquinol oxidase, subunit II
993	 76.23	+1	1257367..1257753	-	128	76817369	-	BURPS1710b_A0994	-	hypothetical protein
994	 68.88	0	1257857..1259890	-	677	76817961	fadH	BURPS1710b_A0995	-	2,4-dienoyl-CoA reductase
995	 72.93	0	1260040..1261092	+	350	76819551	-	BURPS1710b_A0996	-	AraC family transcriptional regulator
996	 72.05	0	1261046..1261993	-	315	76818848	-	BURPS1710b_A0997	-	LysR family transcriptional regulator
997	 74.05	+1	1262088..1263089	+	333	76818281	-	BURPS1710b_A0998	-	NAD-dependent epimerase/dehydratase family protein
998	 65.90	0	1263268..1264182	-	304	76817689	catR	BURPS1710b_A0999	-	transcriptional regulator CatR
999	 65.38	0	1264168..1266261	+	697	76818735	benB	BURPS1710b_A1000	-	benzoate 1,2-dioxygenase beta subunit
1000	 71.37	0	1266305..1267324	+	339	76818275	benC	BURPS1710b_A1001	-	benzoate 1,2-dioxygenase ferredoxin reductase subunit
1001	 72.08	0	1267321..1268115	+	264	76817354	benD	BURPS1710b_A1002	-	1,6-dihydroxycyclohexa-2,4-diene-1-carboxylate dehydrogenase
1002	 72.56	0	1268159..1269397	-	412	76819306	-	BURPS1710b_A1003	-	carboxylesterase family protein
1003	 73.25	+1	1269450..1269935	+	161	76819332	-	BURPS1710b_A1004	-	MarR family transcriptional regulator
1004	 69.98	0	1269932..1270504	+	190	76818798	-	BURPS1710b_A1005	-	isochorismatase family protein
1005	 74.83	+1	1270527..1271579	+	350	76817285	-	BURPS1710b_A1006	-	hypothetical protein
1006	 72.65	0	1271539..1271772	-	77	76819142	-	BURPS1710b_A1007	-	hypothetical protein
1007	 68.05	0	1271939..1275469	+	1176	76819702	-	BURPS1710b_A1009	-	hypothetical protein
1008	 68.26	0	1272240..1273679	+	479	76817907	-	BURPS1710b_A1008	-	BNR/Asp-box repeat-containing protein
1009	 66.09	0	1273934..1275496	-	520	76819064	lysP	BURPS1710b_A1010	-	lysine-specific permease
1010	 67.49	0	1275674..1275916	+	80	76817616	-	BURPS1710b_A1011	-	hypothetical protein
1011	 65.15	0	1276136..1276990	-	284	76818844	-	BURPS1710b_A1012	-	hypothetical protein
1012	 69.48	0	1277308..1279119	+	603	76819393	-	BURPS1710b_A1013	-	metallo-beta-lactamase family protein
1013	 65.19	0	1279712..1280458	-	248	76817363	phbB-2	BURPS1710b_A1014	-	acetoacetyl-CoA reductase
1014	 68.42	0	1280553..1280666	+	37	76817925	-	BURPS1710b_A1015	-	hypothetical protein
1015	 66.28	0	1281123..1281905	+	260	76817368	fnrL	BURPS1710b_A1016	-	Crp/FNR family transcriptional regulator
1016	 72.09	0	1281961..1283196	+	411	76817319	-	BURPS1710b_A1017	-	hypothetical protein
68.61	MEAN

4.48	STD DEV
