IslandPath Analysis: Burkholderia pseudomallei 1710b

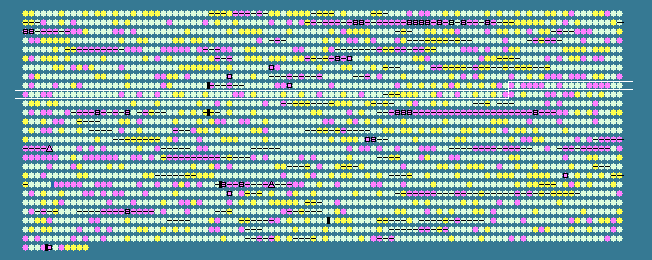

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
882	 55.86	-2	1144995..1145105	+	36	76819350	-	BURPS1710b_A0883	-	hypothetical protein
883	 67.40	0	1145186..1145596	+	136	76818561	-	BURPS1710b_A0884	-	transposon protein
884	 60.94	-1	1145838..1146431	-	197	76817719	-	BURPS1710b_A0885	-	amino acid transporter LysE
885	 63.72	-1	1146431..1147381	+	316	76817453	-	BURPS1710b_A0886	-	AraC family transcriptional regulator
886	 58.43	-2	1148121..1149152	+	343	76819775	-	BURPS1710b_A0887	-	hypothetical protein
887	 65.10	0	1149219..1149794	-	191	76818887	-	BURPS1710b_A0888	-	hypothetical protein
888	 66.08	0	1149859..1150368	-	169	76817378	-	BURPS1710b_A0889	-	hypothetical protein
889	 67.43	0	1150319..1151362	-	347	76818067	mhpE	BURPS1710b_A0890	-	4-hydroxy-2-ketovalerate aldolase
890	 63.53	-1	1151359..1152252	-	297	76819183	mhpF	BURPS1710b_A0891	-	acetaldehyde dehydrogenase
891	 69.16	0	1152249..1153091	-	280	76819252	barC	BURPS1710b_A0892	-	BarC
892	 65.32	0	1153088..1154050	-	320	76817807	ilvE	BURPS1710b_A0893	-	branched-chain amino acid aminotransferase
893	 68.27	0	1154047..1154730	-	227	76818448	menG	BURPS1710b_A0894	-	putative transferase
894	 67.82	0	1154738..1155520	-	260	76818214	barC	BURPS1710b_A0895	-	BarC
895	 63.31	-1	1154906..1156933	+	675	76818036	-	BURPS1710b_A0896	-	hypothetical protein
896	 62.58	-1	1155539..1156444	-	301	76818602	barB2	BURPS1710b_A0897	-	BarB2
897	 59.39	-2	1156541..1156801	-	86	76818879	-	BURPS1710b_A0898	-	phosphopantetheine attachment site domain-containing protein
898	 64.84	0	1156798..1158606	-	602	76817276	barD	BURPS1710b_A0899	-	BarD
899	 71.31	0	1159622..1159987	-	121	76818721	-	BURPS1710b_A0900	-	putative regulatory protein
900	 65.15	0	1159971..1160432	-	153	76819439	-	BURPS1710b_A0901	-	hypothetical protein
901	 64.22	0	1160549..1161202	-	217	76819808	-	BURPS1710b_A0902	-	hypothetical protein
902	 71.29	0	1161324..1162058	+	244	76817986	pphA	BURPS1710b_A0903	-	phosphoprotein phosphatase
903	 67.94	0	1162159..1162866	-	235	76818708	-	BURPS1710b_A0904	-	hypothetical protein
904	 62.33	-1	1162857..1163525	-	222	76819498	-	BURPS1710b_A0905	-	hypothetical protein
905	 63.59	-1	1164007..1164915	-	302	76819476	-	BURPS1710b_A0906	-	hypothetical protein
906	 66.08	0	1165419..1165760	+	113	76817652	-	BURPS1710b_A0907	-	peptidyl-prolyl cis-trans isomerase
907	 71.74	0	1165823..1166590	+	255	76819391	-	BURPS1710b_A0908	-	hypothetical protein
908	 71.21	0	1166879..1168045	-	388	76818835	hepB	BURPS1710b_A0909	-	HepB protein
909	 67.93	0	1168045..1169229	-	394	76818132	-	BURPS1710b_A0910	-	putative glycosyltransferase
910	 66.60	0	1169226..1170701	-	491	76817480	-	BURPS1710b_A0911	-	hypothetical protein
911	 69.82	0	1170713..1171852	-	379	76817707	-	BURPS1710b_A0912	-	putative glycosyltransferase group 1 protein
912	 69.01	0	1171896..1175096	-	1066	76819588	-	BURPS1710b_A0913	-	putative glycosyltransferase
913	 67.79	0	1172873..1175092	-	739	76819162	epsB	BURPS1710b_A0914	-	EpsB
914	 66.41	0	1175143..1176333	-	396	76818460	wza	BURPS1710b_A0915	-	capsular polysaccharide biosynthesis/export periplasmic protein
915	 66.44	0	1176312..1176746	-	144	76817418	-	BURPS1710b_A0916	-	hypothetical protein
916	 69.13	0	1176769..1178190	-	473	76819281	udg2	BURPS1710b_A0917	-	UDP-glucose 6-dehydrogenase 2
917	 64.06	-1	1178236..1179618	-	460	76819029	wcaJ	BURPS1710b_A0918	-	colanic biosynthesis UDP-glucose lipid carrier transferase
918	 66.60	0	1180047..1181567	+	506	76819791	-	BURPS1710b_A0919	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
919	 69.25	0	1181640..1182761	-	373	76817624	-	BURPS1710b_A0920	-	hypothetical protein
920	 63.57	-1	1183221..1183802	-	193	76818343	-	BURPS1710b_A0921	-	hypothetical protein
921	 68.68	0	1183828..1185165	-	445	76818097	glpC	BURPS1710b_A0922	-	putative ferredoxin
922	 68.85	0	1183915..1185747	+	610	76819203	-	BURPS1710b_A0923	-	hypothetical protein
923	 63.36	-1	1185277..1185699	-	140	76818888	-	BURPS1710b_A0924	-	rubrerythrin
924	 69.52	0	1185844..1185948	-	34	76817399	-	BURPS1710b_A0925	-	hypothetical protein
925	 67.18	0	1185970..1187334	-	454	76817278	ampD	BURPS1710b_A0926	-	N-acetylmuramoyl-L-alanine amidase domain-containing protein
926	 72.83	0	1187577..1188842	-	421	76817971	sig43	BURPS1710b_A0927	-	ECF subfamily RNA polymerase sigma factor
927	 72.22	0	1188842..1189381	-	179	76819190	-	BURPS1710b_A0928	-	hypothetical protein
928	 69.38	0	1189025..1190353	+	442	76818967	-	BURPS1710b_A0930	-	hypothetical protein
929	 67.15	0	1189403..1189816	-	137	76817490	-	BURPS1710b_A0929	-	DGPF domain-containing protein
930	 67.80	0	1189982..1190335	-	117	76818172	-	BURPS1710b_A0931	-	DGPF domain-containing protein
931	 74.07	+1	1190423..1190584	+	53	76819506	-	BURPS1710b_A0932	-	hypothetical protein
932	 70.45	0	1190668..1190799	-	43	76817812	-	BURPS1710b_A0933	-	hypothetical protein
933	 69.32	0	1191035..1192579	+	514	76818418	-	BURPS1710b_A0934	-	extracellular nuclease
934	 71.65	0	1193368..1193748	+	126	76819282	elaB	BURPS1710b_A0935	-	transmembrane protein
935	 68.21	0	1193797..1194381	+	194	76817247	-	BURPS1710b_A0936	-	putative lipoprotein
936	 64.62	0	1194543..1195667	+	374	76818196	-	BURPS1710b_A0937	-	PerM family permease
937	 64.30	0	1195883..1196347	-	154	76818379	-	BURPS1710b_A0938	-	hypothetical protein
938	 70.74	0	1196484..1198739	-	751	76817621	-	BURPS1710b_A0939	-	TonB-dependent receptor
939	 74.38	+1	1199047..1200252	+	401	76819626	-	BURPS1710b_A0940	-	major facilitator family transporter
940	 70.28	0	1200278..1203403	+	1041	76817338	-	BURPS1710b_A0942	-	hypothetical protein
941	 70.43	0	1200929..1202149	-	406	76819382	-	BURPS1710b_A0941	-	oxidoreductase, zinc-binding dehydrogenase family protein
942	 70.80	0	1202216..1203013	-	265	76818584	linX	BURPS1710b_A0943	-	short chain dehydrogenase
943	 67.57	0	1203237..1204007	-	256	76817891	-	BURPS1710b_A0944	-	short chain dehydrogenase
944	 76.23	+1	1204041..1204730	-	229	76819806	-	BURPS1710b_A0945	-	phosphoglycerate mutase family protein
945	 69.48	0	1204727..1207357	-	876	76818868	-	BURPS1710b_A0946	-	phosphotransferase enzyme family protein
946	 71.78	0	1205800..1207032	-	410	76818516	-	BURPS1710b_A0947	-	acyl-CoA dehydrogenase domain-containing protein
947	 72.28	0	1207368..1208294	+	308	76819206	-	BURPS1710b_A0948	-	LysR family transcriptional regulator
948	 70.40	0	1208386..1208787	+	133	76818749	-	BURPS1710b_A0949	-	hydrolase
949	 68.58	0	1208927..1210129	-	400	76819565	-	BURPS1710b_A0950	-	hypothetical protein
950	 64.17	0	1210340..1210819	+	159	76819370	-	BURPS1710b_A0951	-	hypothetical protein
951	 70.04	0	1211006..1212250	-	414	76818386	-	BURPS1710b_A0952	-	dyp-type peroxidase family protein
952	 70.75	0	1212569..1214578	+	669	76817857	-	BURPS1710b_A0953	-	ABC transporter, permease protein/ATP-binding protein
953	 71.44	0	1214913..1216988	-	691	76817334	-	BURPS1710b_A0954	-	DJ-1/PfpI family protein
954	 73.24	+1	1215651..1216760	+	369	76819703	darR	BURPS1710b_A0955	-	DarR
955	 68.40	0	1217256..1218296	+	346	76818779	trpS	BURPS1710b_A0956	-	tryptophanyl-tRNA synthetase II
956	 68.80	0	1218760..1219416	+	218	76818449	slyB	BURPS1710b_A0957	-	SlyB protein
957	 65.12	0	1219398..1219526	-	42	76818198	-	BURPS1710b_A0958	-	hypothetical protein
958	 70.77	0	1219523..1219936	-	137	76817840	-	BURPS1710b_A0959	-	AraC/XylS family transcription factor
959	 70.56	0	1220085..1221215	+	376	76819455	-	BURPS1710b_A0960	-	CAAX amino terminal protease family protein
960	 71.71	0	1221428..1222735	-	435	76818704	fjo18	BURPS1710b_A0961	-	voltage-gated chloride channel
961	 71.61	0	1223109..1224059	-	316	76818958	dehII	BURPS1710b_A0962	-	haloacid dehalogenase, type II
962	 72.30	0	1224206..1225234	-	342	76817548	cheB	BURPS1710b_A0963	-	chemotaxis-specific methylesterase
963	 72.10	0	1225241..1228480	-	1079	76817829	-	BURPS1710b_A0964	-	chemotaxis histidine kinase
964	 72.77	0	1227832..1228437	-	201	76819667	-	BURPS1710b_A0965	-	chemotaxis protein cheW
965	 74.50	+1	1228547..1230601	-	684	76817806	-	BURPS1710b_A0966	-	CheR methyltransferase SAM binding/TPR domain-containing protein
966	 74.37	+1	1230598..1231116	-	172	76819538	-	BURPS1710b_A0967	-	cheW domain-containing protein
967	 68.57	0	1231151..1232827	-	558	76819537	wspA	BURPS1710b_A0968	-	methyl-accepting chemotaxis transducer
968	 68.68	0	1232998..1234092	-	364	76818981	-	BURPS1710b_A0969	-	sensor histidine kinase/response regulator
969	 73.33	+1	1234466..1234765	-	99	76818940	-	BURPS1710b_A0970	-	protamine P1
970	 64.97	0	1234911..1235264	+	117	76818531	-	BURPS1710b_A0971	-	MaoC family protein
971	 66.67	0	1235228..1235377	+	49	76817343	-	BURPS1710b_A0972	-	hypothetical protein
972	 67.99	0	1235544..1236977	-	477	76819211	-	BURPS1710b_A0973	-	aldehyde dehydrogenase
973	 64.96	0	1237069..1238709	-	546	76818088	-	BURPS1710b_A0974	-	acetolactate synthase
974	 70.52	0	1239016..1240596	-	526	76817513	-	BURPS1710b_A0975	-	Na+/H+ antiporter
975	 68.22	0	1240756..1242042	-	428	76819155	-	BURPS1710b_A0976	-	hypothetical protein
976	 78.04	+2	1242115..1242615	-	166	76818307	-	BURPS1710b_A0977	-	putative acetyltransferase
977	 70.41	0	1242651..1244438	+	595	76818434	-	BURPS1710b_A0978	-	phospholipase D, putative
978	 67.15	0	1244505..1244921	-	138	76817848	hit	BURPS1710b_A0979	-	HIT family protein
979	 75.20	+1	1245124..1246365	-	413	76819572	-	BURPS1710b_A0980	-	ferredoxin reductase
980	 67.88	0	1246352..1246681	-	109	76818962	-	BURPS1710b_A0981	-	Rieske family iron-sulfur cluster-binding protein
981	 64.26	0	1246703..1247200	-	165	76819650	-	BURPS1710b_A0982	-	ortho-halobenzoate 1,2-dioxygenase beta-ISP protein OhbA
68.61	MEAN

4.48	STD DEV
