IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

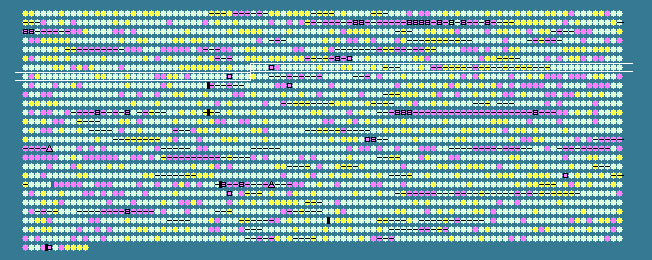

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
639	 71.17	0	838763..839716	+	317	76818193	-	BURPS1710b_A0639	-	agmatinase, putative
640	 70.38	0	839541..841883	-	780	76818210	-	BURPS1710b_A0640	-	hypothetical protein
641	 69.06	0	839802..841727	+	641	76817467	-	BURPS1710b_A0641	-	hypothetical protein
642	 63.50	-1	842833..844095	+	420	76819201	-	BURPS1710b_A0642	-	transposase
643	 64.04	-1	844134..844475	-	113	76818529	-	BURPS1710b_A0643	-	hypothetical protein
644	 69.12	0	844479..846026	+	515	76819354	-	BURPS1710b_A0645	-	hypothetical protein
645	 68.66	0	844555..845355	+	266	76818538	-	BURPS1710b_A0644	-	hypothetical protein
646	 70.34	0	845431..845838	+	135	76817796	-	BURPS1710b_A0646	-	hypothetical protein
647	 70.17	0	845989..846873	+	294	76819013	-	BURPS1710b_A0647	-	hypothetical protein
648	 68.99	0	846941..848746	-	601	76819172	-	BURPS1710b_A0648	-	YscC/HrcC family type III secretion outer membrane protein
649	 69.46	0	848863..850545	-	560	76819845	pilV	BURPS1710b_A0649	-	type IV prepilin
650	 76.25	+1	850545..851024	-	159	76818091	pilM	BURPS1710b_A0650	-	hypothetical protein
651	 65.59	0	851064..851618	-	184	76818636	pilS	BURPS1710b_A0651	-	putative major pilin subunit
652	 69.08	0	851651..852727	-	358	76818877	pilR	BURPS1710b_A0652	-	BfpE
653	 71.01	0	852717..854327	-	536	76819396	pilQ	BURPS1710b_A0653	-	type II/IV secretion system protein
654	 75.43	+1	854324..854848	-	174	76817750	-	BURPS1710b_A0654	-	hypothetical protein
655	 73.92	+1	854442..855833	+	463	76818429	-	BURPS1710b_A0655	-	hypothetical protein
656	 71.98	0	854838..856136	-	432	76818266	pilO	BURPS1710b_A0656	-	putative type IV pilus biosynthesis protein
657	 70.15	0	856148..858814	-	888	76819723	pilN	BURPS1710b_A0657	-	hypothetical protein
658	 66.18	0	858878..859909	+	343	76819140	pilT	BURPS1710b_A0658	-	twitching motility protein
659	 78.95	+2	860130..861920	-	596	76817874	hrcC	BURPS1710b_A0659	-	type II/III secretion system family protein
660	 69.73	0	861917..862666	-	249	76817317	phoB	BURPS1710b_A0660	-	DNA-binding response regulator
661	 72.68	0	862717..863913	-	398	76819371	-	BURPS1710b_A0661	-	sensor histidine kinase
662	 67.94	0	863930..864715	-	261	76818791	-	BURPS1710b_A0662	-	hypothetical protein
663	 70.55	0	864789..865277	+	162	76818691	hrpB1	BURPS1710b_A0663	-	hypothetical protein
664	 71.70	0	865582..867390	-	602	76817954	-	BURPS1710b_A0665	-	hypothetical protein
665	 70.33	0	865878..866642	-	254	76817587	-	BURPS1710b_A0664	-	hypothetical protein
666	 70.99	0	866749..867396	+	215	76819444	-	BURPS1710b_A0666	-	hypothetical protein
667	 72.75	0	867945..869390	-	481	76819237	hrpB	BURPS1710b_A0667	-	AraC family transcription regulator
668	 66.92	0	869587..870774	+	395	76819563	-	BURPS1710b_A0669	-	hypothetical protein
669	 62.50	-1	869602..870057	-	151	76818385	hpaB	BURPS1710b_A0668	-	HpaB
670	 60.11	-1	870150..870332	-	60	76818394	-	BURPS1710b_A0670	-	hypothetical protein
671	 73.81	+1	870502..870753	-	83	76817992	-	BURPS1710b_A0671	-	putative type III secretion protein
672	 74.80	+1	870781..871764	-	327	76819338	sctD	BURPS1710b_A0672	-	secretion-associated protein
673	 72.95	0	871732..873036	+	434	76818865	-	BURPS1710b_A0674	-	hypothetical protein
674	 77.95	+2	871960..872553	-	197	76817466	-	BURPS1710b_A0673	-	putative type III secretion protein
675	 66.29	0	872826..873089	-	87	76818200	sctS	BURPS1710b_A0675	-	type III secretion inner membrane protein SctS
676	 64.67	0	873130..873780	-	216	76819625	yscR	BURPS1710b_A0676	-	type III secretion system protein
677	 76.53	+1	873767..875053	-	428	76818024	sctQ	BURPS1710b_A0677	-	type III secretion inner membrane protein SctQ
678	 76.14	+1	875083..875694	-	203	76817287	-	BURPS1710b_A0678	-	type III secretion protein HpaP
679	 70.11	0	875691..879674	-	1327	76817842	sctV	BURPS1710b_A0679	-	type III secretion inner membrane protein SctV
680	 69.92	0	877760..878959	-	399	76819722	sctU	BURPS1710b_A0680	-	type III secretion system protein HrcU
681	 72.68	0	879078..879659	+	193	76818670	-	BURPS1710b_A0681	-	type III secretion protein HrpB1/HrpK
682	 67.63	0	879673..880089	+	138	76818444	-	BURPS1710b_A0682	-	type III secretion protein HrpB2
683	 72.56	0	880092..880940	+	282	76819642	sctJ	BURPS1710b_A0683	-	lipoprotein transmembrane protein
684	 77.43	+1	880937..881614	+	225	76818090	-	BURPS1710b_A0684	-	type III secretion protein HrpB4
685	 74.20	+1	881599..882315	+	238	162210110	-	BURPS1710b_A0685	-	type III secretion system protein HrpB
686	 71.78	0	882312..883640	+	442	76817792	-	BURPS1710b_A0686	-	type III secretion system ATPase
687	 70.36	0	883561..885156	+	531	76818606	sctT	BURPS1710b_A0688	-	SctT
688	 77.27	+1	883637..884164	+	175	76819021	-	BURPS1710b_A0687	-	type III secretion protein HrpB7
689	 69.38	0	885140..885544	-	134	76818310	-	BURPS1710b_A0689	-	hypothetical protein
690	 71.63	0	885463..887538	+	691	76817412	-	BURPS1710b_A0691	-	hypothetical protein
691	 71.08	0	885524..887290	+	588	76818144	-	BURPS1710b_A0690	-	hypothetical protein
692	 69.08	0	887535..888488	-	317	76819628	-	BURPS1710b_A0692	-	SyrP-like protein
693	 68.97	0	888556..906774	-	6072	76818871	sypC	BURPS1710b_A0693	-	hypothetical protein
694	 66.19	0	906771..920489	-	4572	76817510	sypC	BURPS1710b_A0694	-	hypothetical protein
695	 65.67	0	920090..929965	-	3291	76819220	syrE	BURPS1710b_A0695	-	non-ribosomal peptide synthetase
696	 66.69	0	923942..927619	+	1225	76818663	-	BURPS1710b_A0696	-	hypothetical protein
697	 67.28	0	930267..933050	-	927	76817241	-	BURPS1710b_A0697	-	diaminobutyrate--2-oxoglutarate aminotransferase
698	 65.61	0	933257..933727	+	156	76818124	-	BURPS1710b_A0698	-	hypothetical protein
699	 67.77	0	934598..939214	+	1538	76819177	-	BURPS1710b_A0700	-	hypothetical protein
700	 68.41	0	934790..936508	-	572	76819173	poxB	BURPS1710b_A0699	-	pyruvate dehydrogenase
701	 65.54	0	936521..937852	-	443	76819305	cat2	BURPS1710b_A0701	-	acetyl-CoA hydrolase/transferase family protein
702	 61.55	-1	937877..938404	-	175	76817715	-	BURPS1710b_A0702	-	MoaC domain-containing protein
703	 72.34	0	938441..939322	-	293	76818478	-	BURPS1710b_A0703	-	citrate lyase, beta subunit, putative
704	 67.65	0	939427..940338	-	303	76819717	-	BURPS1710b_A0704	-	LysR family transcriptional regulator
705	 71.60	0	940643..940804	+	53	76819363	-	BURPS1710b_A0705	-	hypothetical protein
706	 68.51	0	940900..941820	-	306	76818306	-	BURPS1710b_A0706	-	LysR family transcriptional regulator
707	 70.16	0	941832..943721	+	629	76817309	-	BURPS1710b_A0708	-	hypothetical protein
708	 71.82	0	941911..943326	+	471	76818025	-	BURPS1710b_A0707	-	EmrB/QacA family drug resistance transporter
709	 65.92	0	943884..944960	-	358	76819114	-	BURPS1710b_A0709	-	sensory box sensor histidine kinase
710	 68.57	0	945046..946200	-	384	76818227	-	BURPS1710b_A0710	-	hypothetical protein
711	 67.69	0	946297..947853	-	518	76817459	-	BURPS1710b_A0711	-	response regulator
712	 66.91	0	948111..950531	+	806	76819472	-	BURPS1710b_A0712	-	lectin repeat-containing protein
713	 72.22	0	950534..951019	+	161	76818809	-	BURPS1710b_A0713	-	hypothetical protein
714	 72.36	0	951006..951620	+	204	76818016	-	BURPS1710b_A0714	-	hypothetical protein
715	 65.87	0	951719..952717	-	332	76819751	-	BURPS1710b_A0715	-	patatin-like phospholipase
716	 71.94	0	953490..953906	-	138	76819157	pcaK	BURPS1710b_A0716	-	4-hydroxybenzoate transporter
717	 69.98	0	953974..956328	-	784	76817419	rhf	BURPS1710b_A0717	-	cytochrome P450
718	 73.76	+1	956606..956746	+	46	76819639	-	BURPS1710b_A0718	-	hypothetical protein
719	 70.80	0	956818..958074	+	418	76819121	-	BURPS1710b_A0719	-	hypothetical protein
720	 67.03	0	958252..961020	+	922	76818251	-	BURPS1710b_A0720	-	beta-glucosidase
721	 65.79	0	961924..962037	-	37	76817697	-	BURPS1710b_A0721	-	hypothetical protein
722	 65.28	0	962137..962424	+	95	76819222	gatA	BURPS1710b_A0722	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
723	 62.71	-1	962194..962370	-	58	76817448	-	BURPS1710b_A0723	-	hypothetical protein
724	 57.84	-2	962863..963270	+	135	76818787	-	BURPS1710b_A0724	-	hypothetical protein
725	 72.90	0	963850..965775	-	641	76818051	selB	BURPS1710b_A0725	-	selenocysteine-specific translation elongation factor
726	 74.15	+1	965772..967214	-	480	76817681	selA	BURPS1710b_A0726	-	selenocysteine synthase
727	 70.69	0	967211..968179	-	322	76817465	fdhE	BURPS1710b_A0727	-	formate dehydrogenase accessory protein FdhE
728	 64.59	0	968354..968980	-	208	76818182	-	BURPS1710b_A0728	-	formate dehydrogenase, gamma subunit
729	 66.12	0	968977..969891	-	304	76819106	-	BURPS1710b_A0729	-	formate dehydrogenase, beta subunit
730	 65.49	0	969851..972910	+	1019	76818398	-	BURPS1710b_A0731	-	hypothetical protein
731	 65.29	0	969902..972370	-	822	76819520	-	BURPS1710b_A0730	-	formate dehydrogenase, alpha subunit
732	 67.01	0	972383..972973	-	196	76817802	fdoG	BURPS1710b_A0732	-	formate dehydrogenase-O, major subunit
733	 70.31	0	973906..974673	-	255	76818145	-	BURPS1710b_A0733	-	hypothetical protein
734	 69.78	0	974925..976145	-	406	76818564	-	BURPS1710b_A0734	-	cystine-binding periplasmic protein FliY
735	 63.50	-1	976465..977727	+	420	76819617	-	BURPS1710b_A0735	-	transposase
736	 71.17	0	977893..979803	-	636	76817435	-	BURPS1710b_A0737	-	amino acid ABC transporter, ATP-binding/permease protein
737	 67.32	0	977990..978448	+	152	76818909	-	BURPS1710b_A0736	-	hypothetical protein
738	 69.69	0	979919..981241	-	440	76819662	ntaA	BURPS1710b_A0738	-	nitrilotriacetate monooxygenase component A
68.61	MEAN

4.48	STD DEV
