IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

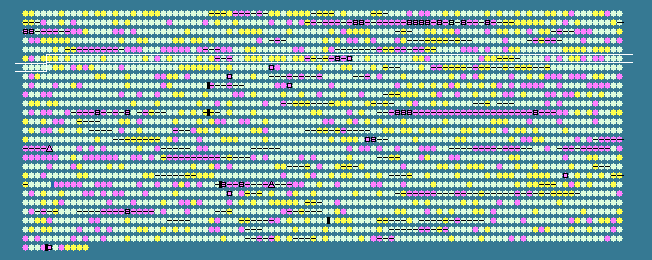

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
505	 73.04	0	691183..692406	-	407	76818666	-	BURPS1710b_A0505	-	DeoR family transcriptional regulator
506	 72.46	0	692152..695154	+	1000	76819672	-	BURPS1710b_A0507	-	RNA binding protein, putative
507	 69.50	0	692560..693900	-	446	76818410	-	BURPS1710b_A0506	-	membrane transport protein
508	 72.95	0	694219..695715	-	498	76817420	-	BURPS1710b_A0508	-	mannitol dehydrogenase family protein
509	 69.40	0	695821..696588	+	255	76818707	-	BURPS1710b_A0509	-	GntR family transcriptional regulator
510	 69.29	0	696148..698970	-	940	76819478	-	BURPS1710b_A0511	-	hypothetical protein
511	 68.49	0	696610..697818	+	402	76818053	rspA	BURPS1710b_A0510	-	starvation sensing protein RspA
512	 69.67	0	697867..698898	+	343	76817562	rspB	BURPS1710b_A0512	-	putative dehydrogenase
513	 66.13	0	699834..700019	+	61	76818049	-	BURPS1710b_A0513	-	hypothetical protein
514	 74.28	+1	700105..701010	+	301	76817493	-	BURPS1710b_A0514	-	hypothetical protein
515	 70.29	0	701603..702457	+	284	76819159	nadE	BURPS1710b_A0515	-	NAD synthetase
516	 71.86	0	702712..703848	-	378	76818482	acrR6	BURPS1710b_A0516	-	TetR family transcriptional regulator
517	 70.11	0	703849..705066	+	405	76819317	-	BURPS1710b_A0517	-	hypothetical protein
518	 67.97	0	705069..705911	+	280	76819069	-	BURPS1710b_A0518	-	hypothetical protein
519	 66.44	0	705957..706397	+	146	76818515	-	BURPS1710b_A0519	-	hypothetical protein
520	 68.97	0	706804..708366	+	520	76817610	-	BURPS1710b_A0520	-	putative anaerobically induced outer membrane protein
521	 72.16	0	708391..709227	+	278	76817669	-	BURPS1710b_A0521	-	hypothetical protein
522	 69.27	0	709224..709838	+	204	76818813	mnxC	BURPS1710b_A0522	-	SCO1/SenC family protein
523	 62.15	-1	710622..710798	-	58	76817884	-	BURPS1710b_A0523	-	hypothetical protein
524	 69.49	0	710900..711925	+	341	76817355	-	BURPS1710b_A0524	-	N-acetylmuramoyl-L-alanine amidase domain-containing protein
525	 77.19	+1	711922..712035	-	37	76817398	-	BURPS1710b_A0525	-	hypothetical protein
526	 68.45	0	712053..713453	+	466	76819374	tibC	BURPS1710b_A0526	-	hypothetical protein
527	 68.15	0	712227..713705	-	492	76819735	-	BURPS1710b_A0527	-	hypothetical protein
528	 69.57	0	713890..715026	+	378	76818786	-	BURPS1710b_A0528	-	Hep_Hag family protein
529	 70.37	0	715106..715483	+	125	76818668	-	BURPS1710b_A0529	-	hypothetical protein
530	 72.19	0	715726..717609	-	627	76818412	-	BURPS1710b_A0530	-	ImpA-like N-terminal family protein
531	 66.26	0	717606..718343	-	245	76817810	virG	BURPS1710b_A0531	-	DNA-binding response regulator
532	 72.79	0	718340..720169	-	609	76819512	-	BURPS1710b_A0532	-	sensor histidine kinase
533	 63.78	-1	720164..722446	+	760	76817580	-	BURPS1710b_A0534	-	hypothetical protein
534	 65.25	0	720429..720923	+	164	76818313	-	BURPS1710b_A0533	-	hypothetical protein
535	 56.27	-2	722666..723175	+	169	76819388	-	BURPS1710b_A0535	-	hypothetical protein
536	 69.38	0	723102..723653	-	183	76817532	-	BURPS1710b_A0536	-	hypothetical protein
537	 70.56	0	723168..723629	+	153	76817808	-	BURPS1710b_A0537	-	hypothetical protein
538	 72.69	0	723666..725408	+	580	76818402	-	BURPS1710b_A0538	-	hypothetical protein
539	 73.22	+1	725396..726418	+	340	76818774	-	BURPS1710b_A0539	-	hypothetical protein
540	 72.74	0	726405..729533	+	1042	76819348	-	BURPS1710b_A0540	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
541	 69.21	0	729560..732583	+	1007	76819027	-	BURPS1710b_A0541	-	Rhs element Vgr protein
542	 75.56	+1	732609..735251	+	880	76819579	-	BURPS1710b_A0542	-	hypothetical protein
543	 72.86	0	735269..736333	+	354	76817838	-	BURPS1710b_A0543	-	hypothetical protein
544	 78.21	+2	736312..737082	+	256	76818346	-	BURPS1710b_A0544	-	hypothetical protein
545	 71.82	0	737140..739740	+	866	76817929	-	BURPS1710b_A0545	-	hypothetical protein
546	 72.52	0	739737..740402	+	221	76819179	-	BURPS1710b_A0546	-	hypothetical protein
547	 74.74	+1	740509..744408	+	1299	76818261	-	BURPS1710b_A0549	-	hypothetical protein
548	 53.51	-2	742130..742243	+	37	76819403	-	BURPS1710b_A0547	-	hypothetical protein
549	 80.30	+2	742256..742453	+	65	76818689	-	BURPS1710b_A0548	-	hypothetical protein
550	 67.23	0	744424..746364	+	646	76819789	-	BURPS1710b_A0550	-	hypothetical protein
551	 73.89	+1	745242..745670	-	142	76817554	-	BURPS1710b_A0551	-	hypothetical protein
552	 55.41	-2	746775..747458	+	227	76819007	folE	BURPS1710b_A0552	-	GTP cyclohydrolase I
553	 62.96	-1	747572..747895	+	107	76819810	-	BURPS1710b_A0553	-	putative transposase
554	 53.07	-2	748519..750048	-	509	76819070	-	BURPS1710b_A0554	-	hypothetical protein
555	 63.85	-1	751157..751795	+	212	76818771	tnpA	BURPS1710b_A0555	-	ISJP4 transposase
556	 70.23	0	751879..753000	-	373	76818043	-	BURPS1710b_A0556	-	AraC family transcriptional regulator
557	 70.77	0	753013..755058	+	681	76818381	-	BURPS1710b_A0559	-	hypothetical protein
558	 81.20	+2	753129..753362	+	77	76817346	-	BURPS1710b_A0557	-	hypothetical protein
559	 65.99	0	753334..753777	-	147	76818173	-	BURPS1710b_A0558	-	hypothetical protein
560	 68.60	0	754033..754704	-	223	76819257	citB1	BURPS1710b_A0560	-	DNA-binding response regulator
561	 66.45	0	754948..755403	-	151	76819160	bicP	BURPS1710b_A0561	-	putative chaperone
562	 67.77	0	755544..757082	-	512	76817646	bopA	BURPS1710b_A0562	-	BopA protein
563	 71.01	0	757201..757614	+	137	76819587	-	BURPS1710b_A0563	-	hypothetical protein
564	 68.96	0	757715..758500	+	261	76819430	bopE	BURPS1710b_A0564	-	type III secretion target BopE
565	 71.63	0	758925..759488	-	187	76817598	bapC	BURPS1710b_A0565	-	BapC protein
566	 72.70	0	759485..759766	-	93	76819559	bapB	BURPS1710b_A0566	-	acyl carrier protein
567	 74.54	+1	759763..762504	-	913	76817384	-	BURPS1710b_A0567	-	hypothetical protein
568	 64.14	0	762562..763392	-	276	76817926	-	BURPS1710b_A0568	-	type III effector protein IpaD/SipD/SspD
569	 66.67	0	763556..763858	-	100	76817328	bprA	BURPS1710b_A0569	-	HNS-like transcription regulator protein
570	 71.51	0	763980..765239	-	419	76817906	bipC	BURPS1710b_A0570	-	putative cell invasion protein
571	 69.78	0	765281..767143	-	620	76818804	bipB	BURPS1710b_A0571	-	BipB protein
572	 67.26	0	767137..769824	+	895	76819691	-	BURPS1710b_A0574	-	200 kDa antigen p200, putative
573	 65.47	0	767162..767662	-	166	76819392	-	BURPS1710b_A0572	-	type III secretion low calcium response chaperone LcrH/SycD
574	 68.69	0	767803..769038	-	411	76818361	bsaZ	BURPS1710b_A0573	-	surface presentation of antigens protein SpaS
575	 68.52	0	769042..769797	-	251	76819134	-	BURPS1710b_A0575	-	type III secretion protein SpaR/YscT/HrcT
576	 65.88	0	769831..770085	-	84	76817353	bsaX	BURPS1710b_A0576	-	type III secretion system protein BsaX
577	 63.14	-1	770123..770803	-	226	76819720	spaP	BURPS1710b_A0577	-	surface presentation of antigens protein SpaP
578	 74.27	+1	770793..771752	-	319	76818002	-	BURPS1710b_A0578	-	type III secretion system apparatus protein YscQ/HrcQ
579	 78.17	+2	771154..772788	-	544	76818274	-	BURPS1710b_A0579	-	hypothetical protein
580	 77.52	+1	771749..773038	-	429	76819089	bsaU	BURPS1710b_A0580	-	BsaU protein
581	 74.41	+1	773016..773480	-	154	76818949	bsaT	BURPS1710b_A0581	-	surface presentation of antigens protein
582	 72.78	0	773477..774784	-	435	76818421	bsaS	BURPS1710b_A0582	-	ATP synthase SpaL
583	 66.91	0	774781..775188	-	135	76819493	bsaR	BURPS1710b_A0583	-	surface presentation of antigens protein
584	 66.38	0	775200..777272	-	690	76819578	bsaQ	BURPS1710b_A0584	-	type III secretion system protein BsaQ
585	 71.86	0	777308..780289	-	993	76817937	bsaO	BURPS1710b_A0585	-	Type III secretion system protein
586	 68.53	0	778426..779445	-	339	76817430	-	BURPS1710b_A0586	-	YscC/HrcC family type III secretion outer membrane protein
587	 66.83	0	780303..780929	-	208	76819330	bsaN	BURPS1710b_A0587	-	type III secretion system transcriptional regulator BsaN
588	 53.11	-2	780904..781176	+	90	76818781	-	BURPS1710b_A0588	-	hypothetical protein
589	 69.93	0	781455..782741	+	428	76818491	-	BURPS1710b_A0589	-	type III secretion system protein PrgH/EprH
590	 63.64	-1	782776..783369	+	197	76817887	bsaK	BURPS1710b_A0590	-	Type III secretion system protein
591	 71.31	0	783374..784321	+	315	76819532	basJ	BURPS1710b_A0591	-	Type III secretion system protein
592	 72.45	0	784318..784905	+	195	76818944	-	BURPS1710b_A0592	-	type III secretion apparatus protein OrgA/MxiK
593	 73.96	+1	784874..785668	+	264	76817633	-	BURPS1710b_A0593	-	Type III secretion system protein
594	 59.80	-1	785730..785831	+	33	76819776	-	BURPS1710b_A0594	-	hypothetical protein
595	 67.16	0	785986..786390	+	134	76818768	-	BURPS1710b_A0595	-	hypothetical protein
596	 64.61	0	786669..787640	+	323	76818316	-	BURPS1710b_A0596	-	hypothetical protein
597	 65.03	0	787727..788092	+	121	76818262	-	BURPS1710b_A0597	-	hypothetical protein
598	 70.57	0	788235..788516	-	93	76817672	-	BURPS1710b_A0598	-	hypothetical protein
599	 68.96	0	789136..790833	+	565	76819684	zmpA	BURPS1710b_A0599	-	thermolysin metallopeptidase
600	 71.05	0	791955..792593	-	212	76817336	emrR	BURPS1710b_A0600	-	MarR family transcriptional regulator
601	 66.88	0	792770..793228	+	152	76819490	-	BURPS1710b_A0601	-	putative glyoxalase
602	 66.59	0	793795..795114	+	439	76818830	kgtP	BURPS1710b_A0602	-	alpha-ketoglutarate permease
603	 69.71	0	795492..796379	-	295	76818224	-	BURPS1710b_A0603	-	LysR family transcriptional regulator
604	 69.23	0	796378..797703	+	441	76817657	mdlB	BURPS1710b_A0604	-	putative L(+)-mandelate dehydrogenase
68.61	MEAN

4.48	STD DEV
