IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

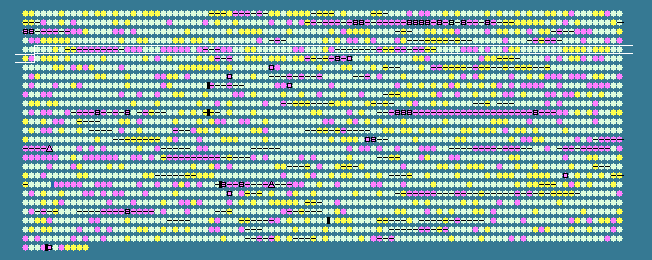

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
403	 69.54	0	562726..563736	-	336	76818017	cydB	BURPS1710b_A0403	-	cytochrome d ubiquinol oxidase, subunit II
404	 71.67	0	563726..565444	-	572	76819466	cioA	BURPS1710b_A0405	-	ubiquinol oxidase subunit I, cyanide insensitive
405	 67.71	0	564145..564720	-	191	76819676	cioA	BURPS1710b_A0404	-	ubiquinol oxidase subunit I, cyanide insensitive
406	 72.77	0	564955..565380	-	141	76817341	-	BURPS1710b_A0406	-	hypothetical protein
407	 70.86	0	565392..566297	+	301	76818268	mgtC	BURPS1710b_A0407	-	MgtC family membrane protein
408	 74.29	+1	566436..569897	+	1153	76818411	-	BURPS1710b_A0408	-	putative endonuclease/exonuclease/phosphatase family protein
409	 74.42	+1	569684..570367	-	227	76818759	-	BURPS1710b_A0409	-	hypothetical protein
410	 55.10	-2	570543..571277	-	244	76819072	-	BURPS1710b_A0410	-	putative rotamase
411	 61.24	-1	571438..572892	-	484	76819496	-	BURPS1710b_A0411	-	hypothetical protein
412	 58.29	-2	575655..579485	-	1276	76817617	-	BURPS1710b_A0413	-	hypothetical protein
413	 62.37	-1	577457..577549	-	30	76817408	-	BURPS1710b_A0412	-	hypothetical protein
414	 62.02	-1	579497..581431	+	644	76819254	-	BURPS1710b_A0415	-	hypothetical protein
415	 59.67	-1	579566..580051	-	161	76818130	-	BURPS1710b_A0414	-	gp68
416	 63.41	-1	580076..581734	-	552	76819830	-	BURPS1710b_A0416	-	hypothetical protein
417	 66.45	0	582162..583547	-	461	76818928	-	BURPS1710b_A0417	-	hypothetical protein
418	 61.65	-1	583962..585854	-	630	76817445	-	BURPS1710b_A0418	-	YscC/HrcC family type III secretion outer membrane protein
419	 61.41	-1	585770..587197	-	475	76819581	hrpB	BURPS1710b_A0419	-	hypothetical protein
420	 61.90	-1	587396..588214	-	272	76819022	-	BURPS1710b_A0420	-	type III secretion protein SpaR/YscT/HrcT
421	 65.34	0	588211..588738	-	175	76818950	-	BURPS1710b_A0421	-	type III secretion protein HrpB7
422	 66.37	0	588738..590087	-	449	76818377	-	BURPS1710b_A0422	-	type III secretion system ATPase
423	 65.63	0	590084..590953	-	289	76819258	sctL	BURPS1710b_A0423	-	type III secretion system protein HrpB
424	 62.99	-1	591720..592508	-	262	76818699	sctJ	BURPS1710b_A0424	-	lipoprotein transmembrane protein
425	 61.68	-1	592582..592962	-	126	76817501	-	BURPS1710b_A0425	-	type III secretion protein HrpB2
426	 62.63	-1	593005..593574	-	189	76819574	-	BURPS1710b_A0426	-	type III secretion protein HrpB1/HrpK
427	 63.08	-1	593861..594919	+	352	76819009	sctU	BURPS1710b_A0427	-	type III secretion system protein HrcU
428	 64.02	-1	594935..597052	+	705	76818195	sctV	BURPS1710b_A0428	-	SctV
429	 65.14	0	597729..599036	+	435	76819487	sctQ	BURPS1710b_A0429	-	SctQ
430	 57.14	-2	599020..599670	+	216	76818756	yscR	BURPS1710b_A0430	-	type III secretion system protein
431	 61.74	-1	599693..599956	+	87	76818013	sctS	BURPS1710b_A0431	-	type III secretion inner membrane protein SctS
432	 65.14	0	600862..602106	+	414	76817282	sctD	BURPS1710b_A0432	-	secretion-associated protein
433	 57.48	-2	602807..603394	+	195	76817495	hpaB	BURPS1710b_A0433	-	HpaB
434	 64.25	0	603731..604846	+	371	76818236	sepC	BURPS1710b_A0434	-	hypothetical protein
435	 63.35	-1	605273..605755	-	160	76818953	-	BURPS1710b_A0435	-	cupin domain-containing protein
436	 68.40	0	605850..606656	-	268	76819681	-	BURPS1710b_A0436	-	HAD-superfamily hydrolase
437	 70.07	0	606655..607359	+	234	76819678	-	BURPS1710b_A0437	-	GntR family transcriptional regulator
438	 72.96	0	607519..608328	+	269	76818839	-	BURPS1710b_A0438	-	6-phosphogluconate dehydrogenase
439	 72.30	0	608351..609718	+	455	76817602	-	BURPS1710b_A0439	-	type III effector Hop protein
440	 71.50	0	609715..610356	+	213	76819657	-	BURPS1710b_A0440	-	putative aldolase
441	 65.15	0	610460..611782	+	440	76819755	-	BURPS1710b_A0441	-	major facilitator family transporter
442	 69.79	0	611837..614044	-	735	76819169	-	BURPS1710b_A0443	-	hypothetical protein
443	 68.21	0	611864..612640	+	258	76818127	hyi	BURPS1710b_A0442	-	hydroxypyruvate isomerase
444	 71.91	0	612668..613639	+	323	76817720	-	BURPS1710b_A0444	-	NAD-dependent epimerase/dehydratase family protein
445	 70.24	0	614274..615281	+	335	76817245	-	BURPS1710b_A0445	-	asparaginyl beta-hydroxylase
446	 65.00	0	616175..617074	-	299	76819435	-	BURPS1710b_A0446	-	hypothetical protein
447	 64.35	0	617456..618406	-	316	76818565	-	BURPS1710b_A0447	-	glycine betaine/L-proline ABC transporter, periplasmic glycine betaine/L-proline-binding protein
448	 70.97	0	618507..619505	-	332	76818430	-	BURPS1710b_A0448	-	AraC family transcriptional regulator
449	 67.66	0	619627..620529	-	300	76817460	-	BURPS1710b_A0449	-	glycine betaine/L-proline ABC transporter, permease protein
450	 67.18	0	620522..621691	-	389	76819666	proV	BURPS1710b_A0450	-	glycine betaine/L-proline transport ATP binding subunit
451	 73.60	+1	622471..623133	+	220	76818137	-	BURPS1710b_A0451	-	NADPH-dependent FMN reductase family protein
452	 61.67	-1	623642..623941	+	99	76818523	-	BURPS1710b_A0452	-	hypothetical protein
453	 68.07	0	624082..624939	+	285	76819287	-	BURPS1710b_A0453	-	hypothetical protein
454	 67.35	0	625003..625737	+	244	76819658	arsR	BURPS1710b_A0454	-	arsenical resistance transcriptional regulator
455	 70.83	0	625734..626213	+	159	76818938	-	BURPS1710b_A0455	-	glyoxalase family protein family
456	 68.08	0	626248..626742	+	164	76818118	arsC	BURPS1710b_A0456	-	arsenate reductase
457	 66.11	0	626805..627875	+	356	76819637	arsB	BURPS1710b_A0457	-	sodium bile acid symporter family protein
458	 65.76	0	628976..637249	+	2757	76817904	xadA	BURPS1710b_A0459	-	haemagluttinin family protein
459	 65.64	0	629572..632391	-	939	76817774	-	BURPS1710b_A0458	-	PEST motif-containing protein
460	 64.84	0	632404..636066	-	1220	76818472	-	BURPS1710b_A0460	-	hypothetical protein
461	 73.25	+1	637240..637725	+	161	76818758	-	BURPS1710b_A0461	-	putative lipoprotein
462	 73.22	+1	637908..640043	+	711	76819473	-	BURPS1710b_A0462	-	TPR domain-containing protein
463	 64.77	0	640898..645748	+	1616	76818271	emaA	BURPS1710b_A0463	-	putative membrane-anchored cell surface protein
464	 64.36	0	641455..645360	-	1301	76817640	-	BURPS1710b_A0464	-	gene 11-1 protein precursor, putative
465	 66.49	0	645745..646899	+	384	76819165	-	BURPS1710b_A0465	-	hypothetical protein
466	 64.66	0	646921..648069	+	382	76818625	-	BURPS1710b_A0466	-	hypothetical protein
467	 63.34	-1	648415..649557	-	380	76818040	-	BURPS1710b_A0467	-	hypothetical protein
468	 72.71	0	649698..651698	-	666	76818589	accA	BURPS1710b_A0468	-	biotin carboxylase subunit of acetyl-CoA carboxylase
469	 73.28	+1	651859..652644	-	261	76819707	-	BURPS1710b_A0469	-	enoyl-CoA hydratase
470	 68.97	0	652665..654272	-	535	76817675	accB	BURPS1710b_A0470	-	carboxyl transferase domain-containing protein
471	 67.09	0	654295..655476	-	393	76818344	-	BURPS1710b_A0471	-	isovaleryl-CoA dehydrogenase
472	 71.24	0	655684..656448	+	254	76819386	-	BURPS1710b_A0472	-	TetR family transcriptional regulator
473	 68.81	0	656568..656894	-	108	76817497	-	BURPS1710b_A0473	-	hypothetical protein
474	 64.38	0	657388..659439	+	683	76819110	norB	BURPS1710b_A0474	-	nitric oxide reductase
475	 60.68	-1	659060..659176	+	38	76817880	norB	BURPS1710b_A0475	-	nitric oxide reductase
476	 63.10	-1	659234..659710	+	158	76819711	norB	BURPS1710b_A0476	-	nitric oxide reductase
477	 68.10	0	659851..661314	+	487	76819613	aniA	BURPS1710b_A0477	-	mulitcopper oxidase domain-containing protein
478	 51.75	-2	661707..661820	+	37	76818056	-	BURPS1710b_A0478	-	hypothetical protein
479	 68.86	0	661934..665164	+	1076	76818456	nspC	BURPS1710b_A0479	-	Rieske family iron-sulfur cluster-binding protein /carboxynorspermidine decarboxylase
480	 69.23	0	665151..666515	+	454	76819014	-	BURPS1710b_A0480	-	hypothetical protein
481	 64.90	0	666517..667308	+	263	76817827	-	BURPS1710b_A0481	-	JmjC domain-containing protein
482	 76.96	+1	667301..667669	-	122	76819217	-	BURPS1710b_A0482	-	hypothetical protein
483	 74.88	+1	667684..668316	+	210	76818170	-	BURPS1710b_A0483	-	hypothetical protein
484	 70.41	0	668457..669470	+	337	76818963	-	BURPS1710b_A0484	-	hypothetical protein
485	 71.93	0	668820..670547	-	575	76818775	-	BURPS1710b_A0485	-	hypothetical protein
486	 68.36	0	669959..671377	-	472	76819525	-	BURPS1710b_A0486	-	major facilitator family transporter
487	 70.09	0	670665..672302	-	545	76817488	-	BURPS1710b_A0487	-	hypothetical protein
488	 70.11	0	671480..672262	-	260	76818044	-	BURPS1710b_A0488	-	acetyltransferase
489	 71.92	0	672876..675044	-	722	76819126	-	BURPS1710b_A0489	-	sensor histidine kinase
490	 68.33	0	674240..674899	-	219	76819653	-	BURPS1710b_A0490	-	two component response regulator
491	 72.52	0	675044..675487	+	147	76819340	-	BURPS1710b_A0491	-	hypothetical protein
492	 72.78	0	675915..676748	+	277	76817320	-	BURPS1710b_A0492	-	Tat pathway signal sequence domain-containing protein
493	 73.42	+1	676770..679109	+	779	76819144	-	BURPS1710b_A0493	-	sulfite reductase (NADPH) flavoprotein alpha-component
494	 73.67	+1	679090..680274	+	394	76819747	-	BURPS1710b_A0494	-	ApbE family protein
495	 69.15	0	680289..681896	-	535	76819606	-	BURPS1710b_A0495	-	piperideine-6-carboxylate dehydrogenase
496	 72.70	0	681827..684379	+	850	76818761	-	BURPS1710b_A0497	-	hypothetical protein
497	 74.08	+1	681968..683194	-	408	76817730	-	BURPS1710b_A0496	-	aminotransferase family protein
498	 72.89	0	683249..684196	-	315	76819200	-	BURPS1710b_A0498	-	hypothetical protein
499	 71.51	0	684443..685351	+	302	76818392	-	BURPS1710b_A0499	-	LysR family transcriptional regulator
500	 71.98	0	685412..685900	+	162	76817786	-	BURPS1710b_A0500	-	prevent-host-death family protein subfamily, putative
501	 73.12	+1	686142..687443	+	433	76819544	ordL3	BURPS1710b_A0501	-	oxidoreductase, FAD-binding
502	 62.67	-1	687520..688194	+	224	76818956	-	BURPS1710b_A0502	-	TetR family transcriptional regulator
68.61	MEAN

4.48	STD DEV
