IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

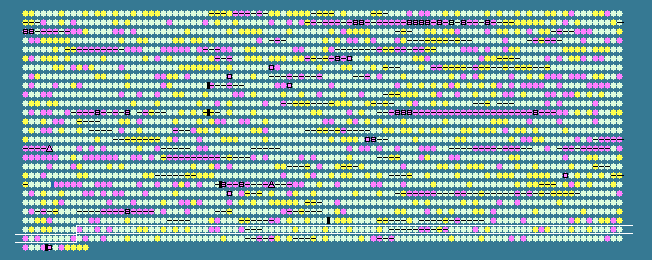

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2410	 64.01	-1	2935040..2936848	+	602	76818611	-	BURPS1710b_A2419	-	peptidase
2411	 67.55	0	2937137..2937475	-	112	76818624	-	BURPS1710b_A2420	-	hypothetical protein
2412	 68.21	0	2938128..2939294	-	388	162210113	-	BURPS1710b_A2421	-	putative monooxygenase
2413	 62.44	-1	2939421..2939633	-	70	76818682	-	BURPS1710b_A2422	-	hypothetical protein
2414	 67.61	0	2939892..2940635	-	247	76817641	-	BURPS1710b_A2423	-	DNA-binding protein
2415	 64.02	-1	2941007..2941195	+	62	76817559	-	BURPS1710b_A2424	-	hypothetical protein
2416	 68.55	0	2941412..2942422	+	336	76819732	-	BURPS1710b_A2426	-	hypothetical protein
2417	 69.70	0	2941454..2941981	-	175	76819184	-	BURPS1710b_A2425	-	hypothetical protein
2418	 69.38	0	2942806..2943654	-	282	76817367	vsrD	BURPS1710b_A2427	-	LuxR family DNA-binding response regulator
2419	 70.31	0	2943898..2944473	+	191	76817942	-	BURPS1710b_A2428	-	universal stress protein
2420	 72.76	0	2944843..2945679	-	278	76817329	-	BURPS1710b_A2429	-	universal stress protein family protein
2421	 73.33	+1	2945679..2946173	-	164	76819817	-	BURPS1710b_A2430	-	universal stress protein
2422	 70.24	0	2946355..2947194	-	279	76817965	-	BURPS1710b_A2431	-	universal stress protein family protein
2423	 69.07	0	2947444..2948484	+	346	76818698	-	BURPS1710b_A2432	-	alcohol dehydrogenase, zinc-containing
2424	 72.26	0	2948818..2951550	-	910	76819440	-	BURPS1710b_A2434	-	200 kDa antigen p200, putative
2425	 70.43	0	2948887..2949975	+	362	76817584	-	BURPS1710b_A2433	-	dedA family protein
2426	 72.18	0	2950030..2951370	+	446	76817454	-	BURPS1710b_A2435	-	major facilitator superfamily protein
2427	 71.79	0	2951692..2952570	+	292	76818921	-	BURPS1710b_A2436	-	short chain dehydrogenase/reductase family oxidoreductase
2428	 72.76	0	2951812..2953353	-	513	76819673	-	BURPS1710b_A2437	-	hypothetical protein
2429	 71.61	0	2952586..2953455	+	289	76818461	-	BURPS1710b_A2438	-	methyltransferase CmcJ
2430	 67.30	0	2953951..2954268	-	105	76818000	-	BURPS1710b_A2439	-	hypothetical protein
2431	 66.16	0	2954454..2955839	+	461	76818643	proY	BURPS1710b_A2440	-	amino acid permease
2432	 58.02	-2	2956393..2956635	-	80	76819198	-	BURPS1710b_A2441	-	DNA-binding protein
2433	 59.60	-2	2956681..2957076	+	131	76817520	bprA	BURPS1710b_A2442	-	H-NS histone family protein
2434	 71.07	0	2957470..2958786	-	438	76818122	-	BURPS1710b_A2443	-	acyl-CoA dehydrogenase domain-containing protein
2435	 68.21	0	2958779..2960524	+	581	76819193	-	BURPS1710b_A2445	-	hypothetical protein
2436	 68.57	0	2959208..2959786	-	192	76819008	-	BURPS1710b_A2444	-	hypothetical protein
2437	 63.28	-1	2959823..2960707	-	294	76818454	-	BURPS1710b_A2446	-	hypothetical protein
2438	 68.81	0	2961093..2961698	+	201	76817260	-	BURPS1710b_A2447	-	hypothetical protein
2439	 71.77	0	2961722..2963209	+	495	76818817	-	BURPS1710b_A2448	-	putative nitrilotriacetate monooxygenase component A
2440	 71.96	0	2961857..2963329	-	490	76818187	-	BURPS1710b_A2449	-	hypothetical protein
2441	 71.87	0	2963351..2964676	+	441	76817298	-	BURPS1710b_A2450	-	inosine-uridine preferring nucleoside hydrolase
2442	 69.18	0	2964700..2965734	-	344	76819264	rbsK	BURPS1710b_A2451	-	ribokinase
2443	 70.58	0	2965678..2966418	+	246	76817473	-	BURPS1710b_A2452	-	hypothetical protein
2444	 71.56	0	2966637..2968331	+	564	76818493	-	BURPS1710b_A2453	-	Uvs005
2445	 71.93	0	2968355..2970595	+	746	76819115	-	BURPS1710b_A2454	-	Uvs006
2446	 72.13	0	2970696..2971922	+	408	76819631	atcB	BURPS1710b_A2455	-	L-2-amino-thiazoline-4-carboxylic acid hydrolase
2447	 71.89	0	2971950..2972657	+	235	76817741	amaB	BURPS1710b_A2456	-	N-carbamoyl-L-cysteine amidohydrolase
2448	 66.67	0	2972697..2974220	+	507	76818743	fliD-2	BURPS1710b_A2457	-	flagellar hook-associated protein 2
2449	 71.33	0	2974617..2975516	-	299	76819501	-	BURPS1710b_A2458	-	LysR family transcriptional regulator
2450	 68.31	0	2975523..2976314	-	263	76818770	-	BURPS1710b_A2459	-	hypothetical protein
2451	 72.71	0	2975631..2976308	+	225	76817852	-	BURPS1710b_A2460	-	protein-disulfide isomerase
2452	 68.61	0	2976347..2977738	+	463	76819813	mocA	BURPS1710b_A2461	-	aldo/keto reductase family oxidoreductase
2453	 69.90	0	2977620..2978981	-	453	76817593	-	BURPS1710b_A2462	-	hypothetical protein
2454	 68.63	0	2978130..2978996	+	288	76818713	-	BURPS1710b_A2463	-	MoaF
2455	 75.90	+1	2978993..2979826	+	277	76818301	-	BURPS1710b_A2464	-	3-ketoacyl-(acyl-carrier-protein) reductase
2456	 71.05	0	2980218..2981039	+	273	76819404	-	BURPS1710b_A2465	-	LuxR family transcriptional regulator
2457	 70.99	0	2981296..2982798	+	500	76818826	feaB	BURPS1710b_A2466	-	phenylacetaldehyde dehydrogenase
2458	 67.63	0	2982836..2984185	+	449	76819109	-	BURPS1710b_A2467	-	hypothetical protein
2459	 69.01	0	2984394..2985884	+	496	76817397	-	BURPS1710b_A2468	-	amino acid permease
2460	 75.36	+1	2985881..2986501	+	206	76818457	-	BURPS1710b_A2469	-	hypothetical protein
2461	 69.12	0	2986579..2987517	+	312	76818378	-	BURPS1710b_A2470	-	AraC family transcription regulator
2462	 65.25	0	2987747..2988949	+	400	76818423	-	BURPS1710b_A2471	-	outer membrane porin
2463	 68.46	0	2989639..2990250	-	203	76818991	-	BURPS1710b_A2472	-	LysE family protein
2464	 69.18	0	2990305..2990901	+	198	76819557	-	BURPS1710b_A2473	-	acetyltransferase
2465	 70.43	0	2991042..2992103	-	353	76817422	nemA	BURPS1710b_A2474	-	N-ethylmaleimide reductase
2466	 66.67	0	2992153..2992458	-	101	76819759	-	BURPS1710b_A2475	-	ArsR family transcriptional regulator
2467	 62.67	-1	2993787..2994911	+	374	76817896	omp38	BURPS1710b_A2476	-	outer membrane porin precursor
2468	 60.65	-1	2995130..2995528	-	132	76817365	rnk	BURPS1710b_A2477	-	regulator of nucleoside diphosphate kinase
2469	 65.79	0	2996047..2996388	+	113	76819414	-	BURPS1710b_A2478	-	hypothetical protein
2470	 73.12	+1	2996267..2996359	-	30	76819419	-	BURPS1710b_A2479	-	hypothetical protein
2471	 59.14	-2	2996593..2997057	-	154	76818563	-	BURPS1710b_A2480	-	CBS domain-containing protein
2472	 65.32	0	2997222..2997887	+	221	76818001	ribA	BURPS1710b_A2481	-	GTP cyclohydrolase II
2473	 70.80	0	2997850..2998671	-	273	76817275	-	BURPS1710b_A2482	-	hypothetical protein
2474	 68.95	0	2998760..2999371	-	203	76818733	pmlI	BURPS1710b_A2483	-	N-acylhomoserine lactone synthase
2475	 67.12	0	2999596..3000039	-	147	76819431	-	BURPS1710b_A2484	-	hypothetical protein
2476	 64.03	-1	3000113..3000832	+	239	76818142	bpsR	BURPS1710b_A2485	-	BpsR
2477	 65.97	0	3000869..3001585	-	238	76818218	-	BURPS1710b_A2486	-	MgtC family protein
2478	 72.30	0	3002195..3003241	-	348	76818948	-	BURPS1710b_A2487	-	calcineurin-like phosphoesterase
2479	 65.81	0	3003463..3004047	-	194	76819847	-	BURPS1710b_A2488	-	hypothetical protein
2480	 71.45	0	3004180..3004806	+	208	76818376	-	BURPS1710b_A2489	-	2OG-Fe(II) oxygenase superfamily protein
2481	 69.72	0	3004893..3005843	+	316	76819186	-	BURPS1710b_A2490	-	IclR family transcriptional regulator
2482	 66.39	0	3006160..3007248	-	362	76817835	opcP1	BURPS1710b_A2491	-	outer membrane porin protein
2483	 66.35	0	3007683..3008000	+	105	76818431	hcaA12	BURPS1710b_A2492	-	Rieske (2Fe-2S) domain-containing protein
2484	 68.27	0	3008002..3008313	+	103	76818769	-	BURPS1710b_A2493	-	hypothetical protein
2485	 66.67	0	3008348..3009415	+	355	76819609	-	BURPS1710b_A2494	-	Rieske family iron-sulfur cluster-binding protein
2486	 73.15	+1	3009412..3010182	+	256	76817308	-	BURPS1710b_A2495	-	short chain dehydrogenase
2487	 64.96	0	3010221..3010748	+	175	76818211	-	BURPS1710b_A2496	-	hypothetical protein
2488	 74.83	+1	3010765..3011670	+	301	76818580	-	BURPS1710b_A2497	-	alpha/beta fold family hydrolase
2489	 68.07	0	3011667..3012521	+	284	76819046	-	BURPS1710b_A2498	-	IclR family transcriptional regulator
2490	 68.67	0	3012518..3013315	+	265	76819798	-	BURPS1710b_A2499	-	short chain dehydrogenase
2491	 70.55	0	3013308..3014981	+	557	76817613	-	BURPS1710b_A2500	-	hypothetical protein
2492	 72.18	0	3014974..3015789	+	271	76819815	-	BURPS1710b_A2501	-	L-aspartate dehydrogenase
2493	 70.69	0	3015815..3017305	+	496	76819004	-	BURPS1710b_A2502	-	aldehyde dehydrogenase family protein
2494	 69.25	0	3017322..3018287	+	321	76818110	-	BURPS1710b_A2503	-	glyoxalase/bleomycin resistance protein/dioxygenase superfamily protein
2495	 72.67	0	3018313..3019527	+	404	76819250	mopA	BURPS1710b_A2504	-	pyridine nucleotide-disulfide oxidoreductase, class I
2496	 68.23	0	3019562..3020968	+	468	76818845	-	BURPS1710b_A2505	-	major facilitator family transporter
2497	 70.11	0	3021493..3023988	+	831	76818882	-	BURPS1710b_A2506	-	haemagluttinin family protein
2498	 67.98	0	3024119..3024877	+	252	76818337	plp4	BURPS1710b_A2507	-	OmpA family protein
2499	 64.37	0	3025038..3025472	-	144	76818308	-	BURPS1710b_A2508	-	UspA family protein
2500	 69.90	0	3025865..3027505	+	546	76819364	-	BURPS1710b_A2509	-	amidase
2501	 61.08	-1	3027670..3028152	-	160	76818443	-	BURPS1710b_A2510	-	AsnC family transcriptional regulator
2502	 66.28	0	3028340..3029641	+	433	76817851	-	BURPS1710b_A2511	-	methionine gamma-lyase
2503	 60.44	-1	3029809..3030033	-	74	76819442	-	BURPS1710b_A2512	-	hypothetical protein
2504	 69.52	0	3030470..3031171	+	233	76818557	-	BURPS1710b_A2513	-	hypothetical protein
2505	 66.67	0	3031288..3032160	+	290	76817691	nhoA	BURPS1710b_A2514	-	N-hydroxyarylamine O-acetyltransferase
2506	 68.45	0	3031785..3033017	+	410	76817451	-	BURPS1710b_A2515	-	hypothetical protein
2507	 67.37	0	3033137..3034852	-	571	76819017	-	BURPS1710b_A2516	-	putative DNA-binding protein
2508	 69.85	0	3033728..3034639	+	303	76818489	-	BURPS1710b_A2517	-	pyridine nucleotide-disulphide oxidoreductase class-II
2509	 63.89	-1	3035431..3036366	-	311	76817742	-	BURPS1710b_A2518	-	LysR family regulatory protein
68.61	MEAN

4.48	STD DEV
