IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

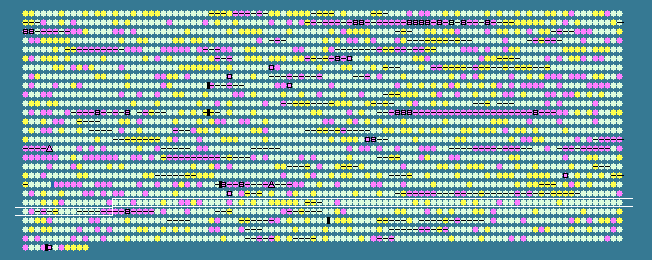

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2116	 66.91	0	2588158..2589384	-	408	76818582	apAC	BURPS1710b_A2124	-	aminopeptidase
2117	 67.90	0	2589502..2591205	-	567	76819324	-	BURPS1710b_A2125	-	metallopeptidase domain-containing protein
2118	 66.57	0	2591677..2592762	-	361	76818189	-	BURPS1710b_A2126	-	AraC family transcriptional regulator
2119	 64.04	-1	2592889..2593839	+	316	76819002	-	BURPS1710b_A2127	-	ABC transporter, periplasmic glycine/betaine-binding protein
2120	 69.11	0	2593661..2595709	-	682	76818604	-	BURPS1710b_A2129	-	hypothetical protein
2121	 69.78	0	2593922..2594851	+	309	76819607	-	BURPS1710b_A2128	-	hypothetical protein
2122	 67.97	0	2594936..2595931	+	331	76818886	-	BURPS1710b_A2130	-	3-hydroxybutyryl-CoA dehydrogenase
2123	 69.15	0	2595949..2596431	+	160	76817342	-	BURPS1710b_A2131	-	hypothetical protein
2124	 73.44	+1	2596467..2597426	+	319	76817727	-	BURPS1710b_A2132	-	lipase (esterase)
2125	 69.58	0	2597773..2598081	-	102	76819489	-	BURPS1710b_A2133	-	hypothetical protein
2126	 69.19	0	2598315..2599304	-	329	76818638	-	BURPS1710b_A2134	-	short chain dehydrogenase/reductase family oxidoreductase
2127	 65.05	0	2599523..2599894	-	123	76818368	-	BURPS1710b_A2135	-	hypothetical protein
2128	 64.71	0	2600090..2600344	+	84	76817492	-	BURPS1710b_A2136	-	hypothetical protein
2129	 74.59	+1	2600583..2602034	-	483	76819502	dadA	BURPS1710b_A2137	-	D-amino-acid dehydrogenase
2130	 64.34	0	2602717..2603832	+	371	76818760	braC	BURPS1710b_A2138	-	leucine-, isoleucine-, valine-, threonine-, and alanine-binding protein precursor
2131	 65.80	0	2604026..2604952	+	308	76818755	braD	BURPS1710b_A2139	-	high-affinity branched-chain amino acid transport system permease protein
2132	 67.85	0	2604961..2606232	+	423	76818367	livM	BURPS1710b_A2140	-	leucine/isoleucine/valine transporter permease subunit
2133	 67.44	0	2606229..2607002	+	257	76817634	livG	BURPS1710b_A2141	-	leucine/isoleucine/valine transporter ATP-binding subunit
2134	 67.33	0	2607031..2607783	-	250	76819793	-	BURPS1710b_A2142	-	hypothetical protein
2135	 58.27	-2	2607822..2608226	-	134	76817518	-	BURPS1710b_A2143	-	hypothetical protein
2136	 70.36	0	2608429..2609673	+	414	76819310	lasA	BURPS1710b_A2144	-	hypothetical protein
2137	 74.57	+1	2609995..2611449	-	484	76818581	pchA	BURPS1710b_A2145	-	salicylate biosynthesis isochorismate synthase
2138	 70.26	0	2611446..2611751	-	101	76818473	pchB	BURPS1710b_A2146	-	isochorismate-pyruvate lyase
2139	 72.22	0	2611748..2612521	-	257	76819767	pchC	BURPS1710b_A2147	-	pyochelin biosynthetic protein
2140	 71.22	0	2612518..2614581	-	687	76819057	pchD	BURPS1710b_A2148	-	salicyl-AMP ligase
2141	 68.62	0	2614783..2615754	+	323	76819146	pchR	BURPS1710b_A2149	-	AraC family transcription regulator
2142	 74.54	+1	2615881..2620416	+	1511	76818249	pchE	BURPS1710b_A2150	-	pyochelin synthetase
2143	 72.60	0	2620164..2626418	+	2084	76817327	pchF	BURPS1710b_A2151	-	pyochelin synthetase
2144	 75.19	+1	2626415..2627470	+	351	76819692	pchG	BURPS1710b_A2152	-	pyochelin biosynthetic protein
2145	 75.41	+1	2627467..2629194	+	575	76818819	pchH	BURPS1710b_A2153	-	putative ATP-binding component of ABC transporter
2146	 75.41	+1	2629191..2630975	+	594	76817900	pchI	BURPS1710b_A2154	-	ABC transporter
2147	 69.99	0	2631052..2633310	+	752	76819570	fptA	BURPS1710b_A2155	-	Fe(III)-pyochelin receptor precursor
2148	 74.07	+1	2633426..2633587	-	53	76819015	-	BURPS1710b_A2156	-	hypothetical protein
2149	 75.97	+1	2633578..2635092	+	504	76818358	-	BURPS1710b_A2157	-	putative iron-regulated membrane protein
2150	 71.78	0	2635109..2636380	+	423	76817581	-	BURPS1710b_A2158	-	hypothetical protein
2151	 67.01	0	2636755..2637045	-	96	76819147	-	BURPS1710b_A2159	-	2Fe-2S iron-sulfur
2152	 71.26	0	2637469..2639643	-	724	76819725	-	BURPS1710b_A2160	-	sigma-54 activated regulatory protein
2153	 64.62	0	2639679..2639873	+	64	76817432	-	BURPS1710b_A2161	-	hypothetical protein
2154	 65.62	0	2640556..2640843	+	95	76818248	-	BURPS1710b_A2162	-	hypothetical protein
2155	 68.31	0	2640973..2641338	+	121	76819761	-	BURPS1710b_A2163	-	hypothetical protein
2156	 66.44	0	2641825..2643126	-	433	76818695	xprA	BURPS1710b_A2164	-	permease
2157	 67.62	0	2643359..2643985	+	208	76818329	-	BURPS1710b_A2165	-	hypothetical protein
2158	 69.89	0	2645379..2645471	+	30	76817571	-	BURPS1710b_A2166	-	hypothetical protein
2159	 70.28	0	2645911..2646297	-	128	76819365	-	BURPS1710b_A2167	-	hypothetical protein
2160	 68.32	0	2647040..2647765	-	241	76818293	-	BURPS1710b_A2168	-	hypothetical protein
2161	 69.00	0	2647882..2648781	+	299	76819656	phnR	BURPS1710b_A2169	-	LysR family regulatory protein
2162	 68.21	0	2648811..2650364	-	517	76818904	-	BURPS1710b_A2170	-	aldehyde dehydrogenase family protein
2163	 66.21	0	2650322..2651200	-	292	76818159	-	BURPS1710b_A2171	-	TauD/TfdA family dioxygenase
2164	 65.37	0	2651136..2653301	-	721	76817404	fom2	BURPS1710b_A2172	-	thiamine pyrophosphate enzyme family protein
2165	 65.79	0	2653744..2654652	-	302	76819298	-	BURPS1710b_A2173	-	hypothetical protein
2166	 72.19	0	2654690..2656480	-	596	162210109	-	BURPS1710b_A2174	-	short chain dehydrogenase
2167	 65.37	0	2657929..2658702	-	257	76819076	-	BURPS1710b_A2175	-	SPFH domain-containing protein/band 7 family protein
2168	 76.29	+1	2658699..2660381	-	560	76818292	-	BURPS1710b_A2176	-	nodulation efficiency protein D
2169	 70.04	0	2660288..2661415	-	375	76819635	-	BURPS1710b_A2177	-	AraC family transcription regulator
2170	 68.34	0	2661515..2662648	+	377	76817780	acdA	BURPS1710b_A2178	-	acyl-CoA dehydrogenase
2171	 68.30	0	2662847..2666206	+	1119	76817249	mmsA	BURPS1710b_A2180	-	methylmalonate-semialdehyde dehydrogenase
2172	 69.07	0	2662905..2664608	+	567	76819758	acsA	BURPS1710b_A2179	-	AMP-binding enzyme
2173	 70.68	0	2666318..2667214	+	298	76817982	mmsB	BURPS1710b_A2181	-	3-hydroxyisobutyrate dehydrogenase
2174	 73.08	0	2667214..2668008	+	264	76818705	-	BURPS1710b_A2182	-	enoyl-CoA hydratase
2175	 70.93	0	2668005..2669153	+	382	76817911	-	BURPS1710b_A2183	-	enoyl-CoA hydratase/isomerase family protein
2176	 72.74	0	2669606..2670988	-	460	76818808	-	BURPS1710b_A2184	-	outer membrane efflux protein
2177	 68.50	0	2670998..2672959	-	653	76819453	macB	BURPS1710b_A2185	-	macrolide-specific ABC-type efflux carrier
2178	 67.60	0	2672962..2674248	-	428	76818349	macA	BURPS1710b_A2186	-	macrolide efflux protein MacA
2179	 67.29	0	2674310..2675587	+	425	76818931	-	BURPS1710b_A2187	-	luciferase-like monooxygenase
2180	 64.45	0	2675957..2676679	+	240	76819812	-	BURPS1710b_A2188	-	ribonuclease T2 family protein
2181	 66.78	0	2677154..2678068	-	304	76819322	glsA	BURPS1710b_A2189	-	glutaminase
2182	 69.77	0	2678068..2678421	+	117	76817302	-	BURPS1710b_A2190	-	hypothetical protein
2183	 65.04	0	2678517..2679254	+	245	76819124	-	BURPS1710b_A2191	-	DNA-binding response regulator
2184	 69.12	0	2679456..2680757	+	433	76819708	-	BURPS1710b_A2192	-	sensor histidine kinase
2185	 68.36	0	2681103..2684051	-	982	76819645	-	BURPS1710b_A2193	-	patatin-like phospholipase
2186	 71.37	0	2684078..2685226	+	382	76817754	-	BURPS1710b_A2194	-	cell shape determining protein MreB
2187	 68.68	0	2685278..2685625	-	115	76818205	cytC4	BURPS1710b_A2195	-	cytochrome c4 family protein
2188	 69.05	0	2685438..2685563	+	41	76818912	-	BURPS1710b_A2196	-	hypothetical protein
2189	 69.54	0	2685567..2686331	+	254	76819519	-	BURPS1710b_A2197	-	HD domain-containing protein
2190	 73.24	+1	2686432..2688744	+	770	76817674	-	BURPS1710b_A2198	-	amylo-alpha-1,6-glucosidase family
2191	 68.18	0	2688840..2689103	+	87	76817351	-	BURPS1710b_A2199	-	hypothetical protein
2192	 71.60	0	2689339..2689581	-	80	76817552	tpc2	BURPS1710b_A2200	-	putative terpene cyclase
2193	 71.98	0	2689581..2690390	-	269	76818058	tpc2	BURPS1710b_A2201	-	putative terpene cyclase
2194	 71.67	0	2690419..2690658	+	79	76819018	-	BURPS1710b_A2202	-	hypothetical protein
2195	 66.88	0	2690728..2691204	+	158	76819697	-	BURPS1710b_A2203	-	glyoxalase/bleomycin resistance protein/dioxygenase superfamily protein
2196	 69.09	0	2691497..2692156	+	219	76818688	gst10	BURPS1710b_A2204	-	glutathione S-transferase-like protein
2197	 70.32	0	2692197..2692907	+	236	76819259	-	BURPS1710b_A2205	-	hypothetical protein
2198	 65.66	0	2692957..2693253	+	98	76817867	-	BURPS1710b_A2206	-	hypothetical protein
2199	 70.66	0	2694781..2698062	-	1093	76818432	-	BURPS1710b_A2207	-	sensor kinase protein
2200	 70.44	0	2696157..2696819	-	220	76819632	-	BURPS1710b_A2208	-	response regulator protein
2201	 70.38	0	2696980..2697840	+	286	76817429	-	BURPS1710b_A2209	-	putative DNA-binding protein
2202	 62.22	-1	2698226..2698495	+	89	76819182	-	BURPS1710b_A2210	-	hypothetical protein
2203	 69.02	0	2698390..2698644	-	84	76818615	-	BURPS1710b_A2211	-	hypothetical protein
2204	 63.61	-1	2698722..2699048	-	108	76818311	-	BURPS1710b_A2212	-	hypothetical protein
2205	 69.44	0	2699138..2699605	-	155	76817696	-	BURPS1710b_A2213	-	rhodanese-like domain-containing protein
2206	 72.20	0	2699712..2700668	+	318	76819131	ftrA	BURPS1710b_A2214	-	transcriptional activator FtrA
2207	 70.27	0	2700018..2701487	-	489	76819700	-	BURPS1710b_A2215	-	hypothetical protein
2208	 69.79	0	2700870..2701157	+	95	76818229	-	BURPS1710b_A2216	-	hypothetical protein
2209	 68.54	0	2701242..2701721	+	159	76817711	-	BURPS1710b_A2217	-	hypothetical protein
2210	 70.18	0	2701785..2703236	+	483	76819456	dapE	BURPS1710b_A2218	-	M20/M25/M40 family peptidase
2211	 71.00	0	2703346..2703714	+	122	76818099	-	BURPS1710b_A2219	-	TfoX, N-terminal
2212	 68.65	0	2703970..2704824	+	284	76817392	-	BURPS1710b_A2220	-	hypothetical protein
2213	 69.29	0	2705101..2705367	+	88	76819380	-	BURPS1710b_A2221	-	insertion element hypothetical protein
2214	 61.58	-1	2706335..2708299	+	654	76819718	pepX	BURPS1710b_A2222	-	x-prolyl-dipeptidyl aminopeptidase
2215	 58.93	-2	2708460..2710217	+	585	76819158	-	BURPS1710b_A2223	-	serine-type carboxypeptidase family protein
68.61	MEAN

4.48	STD DEV
