IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

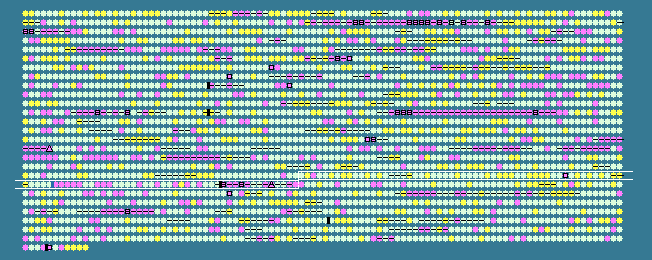

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1847	 71.28	0	2240558..2242423	-	621	76817592	-	BURPS1710b_A1849	-	AMP-binding domain-containing protein
1848	 72.78	0	2242440..2243339	-	299	76818342	fabD	BURPS1710b_A1850	-	malonyl CoA-acyl carrier protein transacylase
1849	 64.12	-1	2243340..2243771	-	143	76818197	-	BURPS1710b_A1851	-	hypothetical protein
1850	 69.87	0	2243839..2245620	-	593	76818608	fadD	BURPS1710b_A1852	-	fatty-acid-CoA ligase
1851	 71.56	0	2245728..2247116	-	462	76818637	-	BURPS1710b_A1853	-	diaminopimelate decarboxylase
1852	 75.44	+1	2246984..2248465	-	493	76819677	-	BURPS1710b_A1854	-	FkbH domain-containing protein
1853	 70.93	0	2248462..2249517	-	351	76817538	ilvC	BURPS1710b_A1855	-	ketol-acid reductoisomerase
1854	 73.04	0	2249523..2261894	-	4123	76818113	albI	BURPS1710b_A1856	-	polyketide non-ribosomal peptide synthase
1855	 72.47	0	2261953..2263365	-	470	162210114	-	BURPS1710b_A1857	-	gamma-aminobutyraldehyde dehydrogenase
1856	 69.34	0	2263359..2264780	-	473	76819020	-	BURPS1710b_A1858	-	hypothetical protein
1857	 71.73	0	2264789..2265814	-	341	76819513	syrP	BURPS1710b_A1859	-	putative peptide synthase regulatory protein
1858	 74.42	+1	2266074..2266202	-	42	76817878	-	BURPS1710b_A1860	-	hypothetical protein
1859	 66.67	0	2266848..2267366	-	172	76817854	-	BURPS1710b_A1861	-	hypothetical protein
1860	 74.13	+1	2267466..2275964	-	2832	76818692	mtaD	BURPS1710b_A1862	-	thiotemplate mechanism natural product synthetase
1861	 66.16	0	2276711..2277895	+	394	76819232	ppuR	BURPS1710b_A1863	-	ATP-dependent transcription regulator LuxR
1862	 65.33	0	2278318..2279064	+	248	76819218	metQ-1	BURPS1710b_A1864	-	D-methionine-binding lipoprotein MetQ
1863	 68.44	0	2278995..2280518	-	507	76817526	-	BURPS1710b_A1865	-	hypothetical protein
1864	 68.46	0	2279082..2280476	+	464	76818640	-	BURPS1710b_A1866	-	monoxygenase
1865	 74.45	+1	2280545..2281687	+	380	76819164	-	BURPS1710b_A1867	-	ABC transporter, ATP-binding protein
1866	 71.31	0	2281203..2282990	-	595	76817406	-	BURPS1710b_A1869	-	hypothetical protein
1867	 70.62	0	2281680..2282336	+	218	76818234	-	BURPS1710b_A1868	-	ABC transporter, permease protein
1868	 73.51	+1	2283037..2284308	+	423	76817357	-	BURPS1710b_A1870	-	monoxygenase
1869	 70.36	0	2284410..2285168	-	252	76819731	-	BURPS1710b_A1871	-	hypothetical protein
1870	 72.00	0	2286165..2287121	-	318	76819096	pdhR	BURPS1710b_A1872	-	GntR family transcriptional regulator
1871	 71.26	0	2287234..2288103	+	289	76817883	-	BURPS1710b_A1873	-	hypothetical protein
1872	 69.22	0	2288100..2289548	+	482	76819800	-	BURPS1710b_A1874	-	iron-sulfur cluster binding protein
1873	 73.97	+1	2289545..2290270	+	241	76818004	-	BURPS1710b_A1875	-	hypothetical protein
1874	 69.05	0	2290638..2292356	+	572	76817632	glcA	BURPS1710b_A1876	-	glycolate permease
1875	 67.12	0	2292658..2293095	+	145	76818327	-	BURPS1710b_A1877	-	hypothetical protein
1876	 71.06	0	2292851..2296654	-	1267	76819811	-	BURPS1710b_A1880	-	hypothetical protein
1877	 71.51	0	2293072..2293257	-	61	76818732	-	BURPS1710b_A1878	-	hypothetical protein
1878	 73.44	+1	2293291..2294826	-	511	76818057	mmr	BURPS1710b_A1879	-	major facilitator family transporter
1879	 68.31	0	2295094..2296491	-	465	76817504	-	BURPS1710b_A1881	-	major facilitator family transporter
1880	 73.10	+1	2296712..2297752	-	346	76817841	-	BURPS1710b_A1882	-	malate/L-lactate dehydrogenase family protein
1881	 72.28	0	2297617..2301108	-	1163	76819643	-	BURPS1710b_A1884	-	hypothetical protein
1882	 75.27	+1	2297745..2299337	-	530	76817299	-	BURPS1710b_A1883	-	aldehyde dehydrogenase family protein
1883	 71.03	0	2299413..2301407	-	664	76819033	-	BURPS1710b_A1885	-	amino acid permease
1884	 67.26	0	2301499..2302671	-	390	76819757	-	BURPS1710b_A1886	-	hypothetical protein
1885	 72.59	0	2302640..2303602	+	320	76817590	-	BURPS1710b_A1887	-	hypothetical protein
1886	 75.49	+1	2303599..2304732	+	377	76818287	-	BURPS1710b_A1888	-	oxidoreductase, FAD-binding family protein
1887	 72.22	0	2304729..2304962	+	77	76818986	-	BURPS1710b_A1889	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
1888	 77.65	+2	2304914..2306251	+	445	76819390	-	BURPS1710b_A1890	-	pyridine nucleotide-disulphide oxidoreductase
1889	 69.15	0	2306287..2307171	+	294	76817542	-	BURPS1710b_A1891	-	AraC family transcriptional regulator
1890	 67.78	0	2307369..2307638	-	89	76819765	-	BURPS1710b_A1892	-	hypothetical protein
1891	 64.38	0	2307854..2309206	-	450	76817630	-	BURPS1710b_A1893	-	transposase
1892	 70.56	0	2309219..2311273	-	684	76818027	-	BURPS1710b_A1894	-	putative amino acid dioxygenase
1893	 73.87	+1	2311292..2311402	+	36	76819087	-	BURPS1710b_A1895	-	hypothetical protein
1894	 65.64	0	2311407..2311988	+	193	76819549	aroQ2	BURPS1710b_A1896	-	3-dehydroquinate dehydratase
1895	 72.87	0	2311985..2312839	+	284	76817869	aroE	BURPS1710b_A1897	-	shikimate 5-dehydrogenase
1896	 69.12	0	2312887..2314233	+	448	76819006	gudP	BURPS1710b_A1898	-	major facilitator superfamily transporter phthalate permease
1897	 72.43	0	2314636..2315745	-	369	76819585	phnW	BURPS1710b_A1899	-	2-aminoethylphosphonate--pyruvate transaminase
1898	 66.20	0	2315983..2317065	+	360	76819199	phnS	BURPS1710b_A1900	-	ABC transporter, periplasmic substrate-binding protein
1899	 72.39	0	2317206..2318219	+	337	76817468	phnT	BURPS1710b_A1901	-	ABC transporter, ATP-binding protein
1900	 72.47	0	2318197..2319144	+	315	76818633	phnU	BURPS1710b_A1902	-	PhnU
1901	 76.02	+1	2319134..2319988	+	284	76819192	-	BURPS1710b_A1903	-	putative ABC transport system, membrane protein
1902	 70.45	0	2320062..2321303	+	413	76818160	phnA	BURPS1710b_A1904	-	phosphonoacetate hydrolase
1903	 68.52	0	2321300..2322754	+	484	76819260	-	BURPS1710b_A1905	-	aldehyde dehydrogenase family protein
1904	 67.93	0	2322717..2323271	-	184	76818968	-	BURPS1710b_A1906	-	hypothetical protein
1905	 69.02	0	2322759..2323310	+	183	76817547	-	BURPS1710b_A1907	-	hypothetical protein
1906	 58.77	-2	2329654..2330058	+	134	76819060	cueR	BURPS1710b_A1913	-	Cu(I)-responsive transcriptional regulator
1907	 54.42	-2	2330278..2330424	+	48	76818664	-	BURPS1710b_A1914	-	hypothetical protein
1908	 63.61	-1	2330578..2330904	+	108	76817658	-	BURPS1710b_A1915	-	hypothetical protein
1909	 60.15	-1	2330917..2331822	-	301	76818231	-	BURPS1710b_A1916	-	hypothetical protein
1910	 61.83	-1	2331911..2332882	-	323	76818794	-	BURPS1710b_A1917	-	aldo/keto reductase family oxidoreductase
1911	 66.03	0	2333070..2333858	+	262	76819604	bdhA-2	BURPS1710b_A1918	-	3-hydroxybutyrate dehydrogenase
1912	 66.58	0	2334084..2335283	-	399	76819373	tyrB	BURPS1710b_A1919	-	aromatic amino acid aminotransferase
1913	 64.60	0	2335538..2337661	+	707	76818802	uvrB	BURPS1710b_A1920	-	excinuclease ABC subunit B
1914	 63.59	-1	2337885..2338436	+	183	76817924	-	BURPS1710b_A1921	-	19 kDa periplasmic protein
1915	 64.85	0	2338493..2338822	+	109	76817359	-	BURPS1710b_A1922	-	hypothetical protein
1916	 65.95	0	2338882..2339724	+	280	76818952	-	BURPS1710b_A1923	-	FTR1 family iron permease
1917	 68.45	0	2339721..2341121	+	466	76818283	-	BURPS1710b_A1924	-	nitrogen fixation protein VnfA
1918	 69.83	0	2341181..2341591	+	136	76819483	glcG	BURPS1710b_A1925	-	glcG protein
1919	 65.53	0	2341894..2342157	-	87	76818751	-	BURPS1710b_A1926	-	hypothetical protein
1920	 63.55	-1	2342303..2342848	-	181	76817921	-	BURPS1710b_A1927	-	hypothetical protein
1921	 68.38	0	2342907..2343779	-	290	76819543	-	BURPS1710b_A1928	-	pirin family protein
1922	 66.98	0	2343902..2344873	+	323	76818985	lysR10	BURPS1710b_A1929	-	LysR family transcriptional regulator
1923	 63.40	-1	2345256..2345684	-	142	76818116	exbD1	BURPS1710b_A1930	-	biopolymer  ExbD/TolR family transporter
1924	 66.38	0	2345698..2346402	-	234	76817585	exbB1	BURPS1710b_A1931	-	MotA/TolQ/ExbB proton channel family protein
1925	 71.59	0	2346463..2347152	-	229	76819744	tonB	BURPS1710b_A1932	-	siderophore-mediated iron transport protein
1926	 63.33	-1	2347428..2347667	-	79	76819346	-	BURPS1710b_A1933	-	bacterioferritin-associated ferredoxin, putative
1927	 72.74	0	2347799..2348671	-	290	76818560	murI	BURPS1710b_A1934	-	glutamate racemase
1928	 53.67	-2	2348718..2349194	-	158	76818131	bfr	BURPS1710b_A1935	-	bacterioferritin
1929	 65.95	0	2349349..2350884	-	511	76817433	fumA	BURPS1710b_A1936	-	tartrate/fumarate family Fe-S type hydro-lyase
1930	 64.40	0	2350924..2351628	-	234	76819546	pipA	BURPS1710b_A1937	-	hypothetical protein
1931	 67.44	0	2351765..2352664	-	299	76817345	-	BURPS1710b_A1938	-	hypothetical protein
1932	 68.28	0	2352954..2354936	+	660	76817736	acsA	BURPS1710b_A1939	-	acetyl-CoA synthetase
1933	 67.90	0	2355000..2357423	+	807	76818533	-	BURPS1710b_A1940	-	sodium:solute symporter family protein
1934	 59.33	-2	2357719..2358222	-	167	76818930	-	BURPS1710b_A1942	-	bacteriophage/transposase fusion protein
1935	 61.75	-1	2358772..2359056	-	94	76819659	-	BURPS1710b_A1943	-	hypothetical protein
1936	 60.45	-1	2360458..2360988	+	176	76817487	-	BURPS1710b_A1944	-	hypothetical protein
1937	 59.97	-1	2362202..2363590	+	462	76818153	-	BURPS1710b_A1945	-	bacteriophage/transposase fusion protein
1938	 58.15	-2	2363571..2363981	+	136	76818573	-	BURPS1710b_A1946	-	rmpB-like protein
1939	 68.58	0	2364590..2366050	+	486	76819325	-	BURPS1710b_A1947	-	Ser/Thr protein phosphatase family protein
1940	 70.88	0	2366047..2367471	+	474	76819738	-	BURPS1710b_A1948	-	di-haem cytochrome c peroxidase family protein
1941	 52.09	-2	2367628..2368560	+	310	76818526	-	BURPS1710b_A1949	-	glycerophosphoryl diester phosphodiesterase family protein
1942	 61.88	-1	2369004..2369693	+	229	76818926	-	BURPS1710b_A1950	-	integrase core subunit
1943	 67.76	0	2369725..2370459	-	244	76819301	-	BURPS1710b_A1951	-	hypothetical protein
1944	 65.74	0	2370450..2382845	-	4131	76817755	-	BURPS1710b_A1952	-	LysM domain-containing protein
1945	 64.81	0	2382829..2386392	-	1187	76818115	-	BURPS1710b_A1953	-	hypothetical protein
1946	 60.03	-1	2386525..2387217	-	230	76818610	-	BURPS1710b_A1954	-	hypothetical protein
68.61	MEAN

4.48	STD DEV
