IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

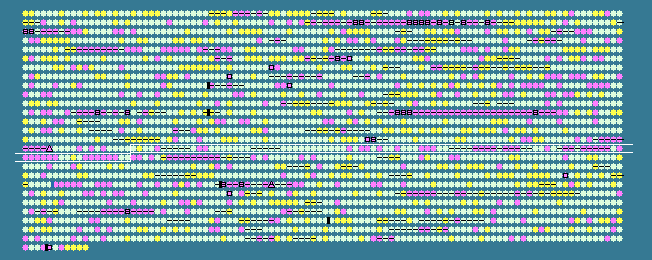

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1519	 65.54	0	1852463..1853086	+	207	76817800	-	BURPS1710b_A1521	-	glutathione S-transferase
1520	 72.55	0	1853521..1853928	-	135	76818055	-	BURPS1710b_A1522	-	hypothetical protein
1521	 66.10	0	1854065..1855303	-	412	76818752	-	BURPS1710b_A1523	-	patatin-like phospholipase
1522	 65.78	0	1855300..1856085	-	261	76817662	bdhA-1	BURPS1710b_A1524	-	3-hydroxybutyrate dehydrogenase
1523	 63.83	-1	1856132..1856872	-	246	76818235	-	BURPS1710b_A1525	-	acetoacetate decarboxylase
1524	 70.75	0	1857292..1857927	+	211	76819224	-	BURPS1710b_A1526	-	PAP2 family protein
1525	 66.67	0	1857950..1858243	-	97	76818655	-	BURPS1710b_A1527	-	hypothetical protein
1526	 68.39	0	1858802..1860544	+	580	76817659	-	BURPS1710b_A1529	-	hypothetical protein
1527	 68.24	0	1858952..1859779	-	275	76818450	mxcB	BURPS1710b_A1528	-	siderophore-interacting protein
1528	 68.65	0	1859819..1860523	-	234	76817865	-	BURPS1710b_A1530	-	PadR-like family regulatory protein
1529	 65.32	0	1860926..1862332	+	468	76817417	-	BURPS1710b_A1531	-	putative cytochrome monooxygenase related protein
1530	 55.22	-2	1862482..1862682	+	66	76819226	-	BURPS1710b_A1532	-	hypothetical protein
1531	 64.55	0	1862856..1863707	+	283	76818650	-	BURPS1710b_A1533	-	hypothetical protein
1532	 66.55	0	1863704..1864525	+	273	76818022	-	BURPS1710b_A1534	-	hypothetical protein
1533	 66.97	0	1864510..1866465	+	651	76817304	-	BURPS1710b_A1535	-	radical SAM domain/B12 binding domain-containing protein
1534	 68.79	0	1866479..1867468	+	329	76819062	-	BURPS1710b_A1536	-	hypothetical protein
1535	 67.95	0	1867640..1868260	-	206	76819729	-	BURPS1710b_A1537	-	LysE family protein
1536	 67.04	0	1868257..1870134	-	625	76817966	-	BURPS1710b_A1539	-	hypothetical protein
1537	 69.24	0	1868368..1869261	+	297	76818605	oriC	BURPS1710b_A1538	-	chromosome replication initiation inhibitor protein
1538	 65.56	0	1869336..1871228	-	630	76817898	fnrL	BURPS1710b_A1540	-	Crp/FNR family transcriptional regulator
1539	 71.01	0	1871734..1873713	+	659	76818785	-	BURPS1710b_A1541	-	aldehyde dehydrogenase (NADP) family protein
1540	 66.14	0	1873719..1874660	+	313	76819743	-	BURPS1710b_A1542	-	gluconolactonase precursor
1541	 70.29	0	1874596..1875396	-	266	76819045	-	BURPS1710b_A1544	-	hypothetical protein
1542	 68.38	0	1874927..1875043	+	38	76818339	-	BURPS1710b_A1543	-	hypothetical protein
1543	 71.14	0	1875153..1875353	-	66	76819081	-	BURPS1710b_A1545	-	hypothetical protein
1544	 71.10	0	1875393..1875911	-	172	76817990	-	BURPS1710b_A1546	-	hypothetical protein
1545	 66.28	0	1876337..1877359	+	340	76817528	cysE	BURPS1710b_A1547	-	serine O-acetyltransferase
1546	 67.16	0	1877646..1878449	-	267	76819454	-	BURPS1710b_A1548	-	pteridine reductase 1
1547	 67.01	0	1878450..1879328	-	292	76818716	folE	BURPS1710b_A1549	-	GTP cyclohydrolase I
1548	 68.40	0	1879316..1880239	-	307	76818136	ndsR	BURPS1710b_A1550	-	LysR family transcriptional regulator
1549	 69.12	0	1880356..1881579	+	407	76818936	pobA	BURPS1710b_A1551	-	4-hydroxybenzoate 3-monooxygenase
1550	 66.72	0	1881346..1883247	-	633	76817242	-	BURPS1710b_A1553	-	hypothetical protein
1551	 67.37	0	1881787..1882500	+	237	76818849	pcaI	BURPS1710b_A1552	-	3-oxoadipate CoA-transferase subunit A
1552	 65.75	0	1882519..1883175	+	218	76817759	pcaJ	BURPS1710b_A1554	-	3-oxoadipate CoA-succinyl transferase beta subunit
1553	 72.04	0	1883311..1884669	+	452	76819651	pcaB	BURPS1710b_A1555	-	3-carboxy-cis,cis-muconate cycloisomerase
1554	 67.68	0	1884682..1885467	+	261	76819655	pcaD	BURPS1710b_A1556	-	3-oxoadipate enol-lactonase
1555	 64.34	0	1885483..1885869	+	128	76819074	pcaC	BURPS1710b_A1557	-	4-carboxymuconolactone decarboxylase
1556	 69.10	0	1886048..1887403	+	451	76818192	pcaK	BURPS1710b_A1558	-	4-hydroxybenzoate transporter
1557	 62.97	-1	1887820..1889742	-	640	76817506	-	BURPS1710b_A1559	-	LysE family protein
1558	 63.20	-1	1889784..1890707	-	307	76819564	lpqO	BURPS1710b_A1560	-	LpqO-like protein
1559	 70.25	0	1890823..1892079	-	418	76818742	lrg6	BURPS1710b_A1561	-	light regulation of gametogenesis6 protein
1560	 64.56	0	1892066..1892683	-	205	76818157	-	BURPS1710b_A1562	-	hypothetical protein
1561	 67.25	0	1892896..1894086	-	396	76817258	chrA	BURPS1710b_A1563	-	chromate resistance transport protein
1562	 69.46	0	1894083..1894904	-	273	76819271	chrB	BURPS1710b_A1564	-	chromate resistance exported protein
1563	 62.48	-1	1896044..1896592	+	182	76818408	-	BURPS1710b_A1565	-	hypothetical protein
1564	 66.93	0	1896573..1896947	+	124	76818738	-	BURPS1710b_A1566	-	plastocyanin/azurin family copper binding protein
1565	 67.10	0	1896956..1897651	+	231	76818123	rpoE3	BURPS1710b_A1567	-	RNA polymerase sigma factor
1566	 70.28	0	1898128..1904043	+	1971	76817253	uvrA	BURPS1710b_A1568	-	excinuclease ABC, subunit A, form 2
1567	 60.35	-1	1905076..1905471	-	131	76819748	-	BURPS1710b_A1569	-	KluA
1568	 59.00	-2	1906550..1907071	-	173	76817530	bprA	BURPS1710b_A1570	-	H-NS histone family protein
1569	 61.89	-1	1906848..1908752	+	634	76819268	kgtP	BURPS1710b_A1571	-	alpha-ketoglutarate permease
1570	 67.13	0	1908805..1910736	+	643	76818694	dctB1	BURPS1710b_A1572	-	C4-dicarboxylate transport sensor protein
1571	 66.38	0	1910648..1912066	+	472	76819086	-	BURPS1710b_A1573	-	C4-dicarboxylate transport transcriptional response regulator
1572	 70.25	0	1913527..1914168	-	213	76818501	-	BURPS1710b_A1574	-	hypothetical protein
1573	 68.15	0	1914375..1916327	+	650	76817692	-	BURPS1710b_A1575	-	hypothetical protein
1574	 71.20	0	1916474..1917091	+	205	76818659	-	BURPS1710b_A1576	-	AraC family transcription regulator
1575	 67.42	0	1917409..1919658	+	749	76819491	plcN	BURPS1710b_A1577	-	phospholipase C
1576	 55.48	-2	1922595..1923014	-	139	76817636	-	BURPS1710b_A1578	-	acetyltransferase
1577	 56.21	-2	1923512..1924429	+	305	76818369	-	BURPS1710b_A1579	-	spermidine/putrescine ABC transporter, permease protein
1578	 56.26	-2	1924416..1925270	+	284	76817648	-	BURPS1710b_A1580	-	spermidine/putrescine ABC transporter, permease protein
1579	 53.94	-2	1924940..1926298	+	452	76818255	-	BURPS1710b_A1581	-	putative ABC transport system, exported substrate-binding protein
1580	 69.15	0	1927567..1930143	+	858	76819042	-	BURPS1710b_A1582	-	Rhs element Vgr protein
1581	 64.19	0	1930153..1932336	-	727	76819733	-	BURPS1710b_A1583	-	hypothetical protein
1582	 63.42	-1	1930276..1932462	+	728	76819188	-	BURPS1710b_A1584	-	hypothetical protein
1583	 60.29	-1	1932601..1934136	+	511	76817521	-	BURPS1710b_A1585	-	hypothetical protein
1584	 67.80	0	1934146..1934409	+	87	76817262	-	BURPS1710b_A1586	-	PAAR motif-containing protein
1585	 65.24	0	1934824..1935243	-	139	76818485	-	BURPS1710b_A1587	-	hypothetical protein
1586	 67.89	0	1935263..1935589	-	108	76818824	-	BURPS1710b_A1588	-	thioredoxin
1587	 67.39	0	1936061..1936753	+	230	76819421	-	BURPS1710b_A1589	-	hypothetical protein
1588	 65.08	0	1937146..1937334	-	62	76818718	opcP	BURPS1710b_A1590	-	outer membrane porin OpcP
1589	 68.05	0	1937339..1938133	-	264	76819432	-	BURPS1710b_A1592	-	hypothetical protein
1590	 68.44	0	1937345..1937569	+	74	76819772	-	BURPS1710b_A1591	-	hypothetical protein
1591	 63.10	-1	1938073..1939668	-	531	76817582	ctaD	BURPS1710b_A1593	-	cytochrome c oxidase polypeptide I
1592	 63.88	-1	1940818..1942398	-	526	76817973	-	BURPS1710b_A1594	-	hypothetical protein
1593	 67.42	0	1943828..1945681	+	617	76819030	-	BURPS1710b_A1595	-	Hep_Hag family protein
1594	 62.16	-1	1945748..1947235	-	495	76818382	-	BURPS1710b_A1596	-	hypothetical protein
1595	 61.08	-1	1947497..1948051	-	184	76817853	-	BURPS1710b_A1597	-	hypothetical protein
1596	 57.51	-2	1948636..1949181	+	181	76819245	fimA4	BURPS1710b_A1598	-	frimbrial protein
1597	 60.72	-1	1949261..1949983	+	240	76818373	staB	BURPS1710b_A1599	-	chaperone protein EcpD precursor
1598	 64.30	0	1950099..1952840	+	913	76818889	-	BURPS1710b_A1600	-	outer membrane usher protein
1599	 66.67	0	1952742..1952966	-	74	76817499	-	BURPS1710b_A1601	-	hypothetical protein
1600	 62.77	-1	1952842..1953405	+	187	76818341	-	BURPS1710b_A1602	-	major fimbrial subunit protein
1601	 60.03	-1	1953449..1954126	+	225	76817325	-	BURPS1710b_A1603	-	hypothetical protein
1602	 62.49	-1	1954129..1955805	+	558	76819194	ompA2	BURPS1710b_A1604	-	OmpA family protein
1603	 58.52	-2	1956195..1956734	+	179	76819078	-	BURPS1710b_A1605	-	hypothetical protein
1604	 60.20	-1	1956768..1958267	+	499	76817314	-	BURPS1710b_A1606	-	hypothetical protein
1605	 60.25	-1	1958467..1958949	+	160	76819763	-	BURPS1710b_A1607	-	hypothetical protein
1606	 61.26	-1	1959532..1960974	+	480	76818799	-	BURPS1710b_A1608	-	hypothetical protein
1607	 65.98	0	1960971..1962272	+	433	76818070	-	BURPS1710b_A1609	-	hypothetical protein
1608	 67.23	0	1962287..1966195	+	1302	76818330	sciS	BURPS1710b_A1610	-	SciS protein
1609	 81.30	+2	1966226..1966348	+	40	76817597	-	BURPS1710b_A1611	-	hypothetical protein
1610	 66.84	0	1966385..1966954	+	189	76818362	-	BURPS1710b_A1612	-	hypothetical protein
1611	 64.73	0	1967052..1969628	+	858	76817637	-	BURPS1710b_A1613	-	Rhs element Vgr protein
1612	 64.81	0	1969703..1969972	+	89	76819204	-	BURPS1710b_A1614	-	Rhs family protein
1613	 63.10	-1	1969985..1973437	+	1150	76818340	-	BURPS1710b_A1615	-	Rhs1 protein
1614	 61.00	-1	1973330..1974724	-	464	76819079	-	BURPS1710b_A1616	-	hypothetical protein
1615	 61.29	-1	1974527..1974619	+	30	76817816	-	BURPS1710b_A1617	-	hypothetical protein
1616	 58.21	-2	1974721..1975749	-	342	76819533	-	BURPS1710b_A1618	-	hypothetical protein
1617	 67.04	0	1975804..1976874	-	356	76818907	-	BURPS1710b_A1619	-	ImpA-like N-terminal family protein
1618	 67.14	0	1976893..1977942	-	349	76818593	-	BURPS1710b_A1620	-	hypothetical protein
68.61	MEAN

4.48	STD DEV
