IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei 1710b

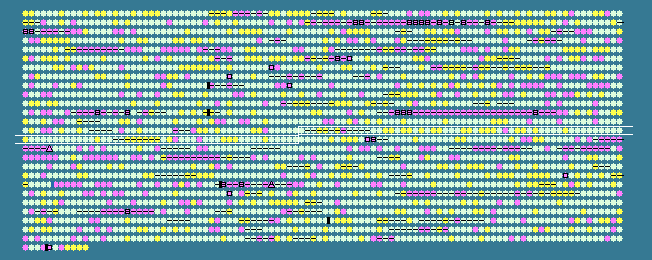

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.61 STD DEV: 4.48
Burkholderia pseudomallei 1710b chromosome II, complete sequence - 1..3181762
2611 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1347	 70.68	0	1660536..1661408	-	290	76817656	-	BURPS1710b_A1349	-	hypothetical protein
1348	 70.25	0	1661420..1661977	-	185	76819034	-	BURPS1710b_A1350	-	hypothetical protein
1349	 71.71	0	1662409..1665003	-	864	76819623	-	BURPS1710b_A1351	-	hypothetical protein
1350	 73.50	+1	1665132..1666667	+	511	76819411	-	BURPS1710b_A1353	-	hypothetical protein
1351	 77.49	+1	1665537..1665998	-	153	76817572	priA	BURPS1710b_A1352	-	hypothetical protein
1352	 71.80	0	1666089..1666964	-	291	76818812	-	BURPS1710b_A1354	-	hypothetical protein
1353	 74.36	+1	1666501..1666929	+	142	76818854	-	BURPS1710b_A1355	-	hypothetical protein
1354	 63.83	-1	1666995..1667135	+	46	76819818	-	BURPS1710b_A1356	-	hypothetical protein
1355	 70.51	0	1667529..1668491	+	320	76817332	-	BURPS1710b_A1358	-	hypothetical protein
1356	 69.92	0	1667664..1668308	-	214	76817881	-	BURPS1710b_A1357	-	hypothetical protein
1357	 68.78	0	1668499..1668687	-	62	76817909	-	BURPS1710b_A1359	-	hypothetical protein
1358	 66.67	0	1668896..1669327	+	143	76817462	-	BURPS1710b_A1360	-	CBS domain-containing protein
1359	 69.11	0	1669473..1669964	+	163	76819417	-	BURPS1710b_A1361	-	PRC-barrel domain-containing protein
1360	 71.78	0	1670180..1670629	-	149	76818783	-	BURPS1710b_A1362	-	CheY-like domain-containing protein
1361	 78.71	+2	1670738..1671094	+	118	76818215	-	BURPS1710b_A1363	-	hypothetical protein
1362	 74.89	+1	1671106..1671762	+	218	76817668	-	BURPS1710b_A1364	-	putative DNA glycosylase
1363	 70.15	0	1672165..1673313	+	382	76819792	-	BURPS1710b_A1365	-	putative transport related, membrane protein
1364	 73.80	+1	1673423..1674781	-	452	76818029	-	BURPS1710b_A1366	-	glutathione-dependent formaldehyde dehydrogenase
1365	 72.14	0	1675026..1676396	+	456	76819097	-	BURPS1710b_A1368	-	hypothetical protein
1366	 69.46	0	1675056..1675664	-	202	76817717	-	BURPS1710b_A1367	-	hypothetical protein
1367	 73.93	+1	1675785..1676390	-	201	76818289	-	BURPS1710b_A1369	-	hypothetical protein
1368	 69.58	0	1676428..1677285	-	285	76819701	-	BURPS1710b_A1370	-	short chain dehydrogenase/reductase family oxidoreductase
1369	 77.05	+1	1677300..1677482	-	60	76817994	-	BURPS1710b_A1371	-	hypothetical protein
1370	 73.72	+1	1677496..1678062	-	188	76819129	-	BURPS1710b_A1372	-	hypothetical protein
1371	 66.99	0	1678306..1678611	-	101	76819416	-	BURPS1710b_A1373	-	hypothetical protein
1372	 71.39	0	1678608..1680701	-	697	76817393	-	BURPS1710b_A1375	-	hypothetical protein
1373	 70.06	0	1678772..1679803	-	343	76819616	-	BURPS1710b_A1374	-	short chain dehydrogenase
1374	 72.38	0	1679831..1680355	-	174	76819770	osmY1	BURPS1710b_A1376	-	osmotically inducible protein Y
1375	 72.82	0	1680622..1681953	+	443	76817601	-	BURPS1710b_A1377	-	glycosyl transferase, group 1 family protein
1376	 68.48	0	1681950..1682996	+	348	76818296	rfbB	BURPS1710b_A1378	-	NAD-dependent epimerase/dehydratase family protein
1377	 72.90	0	1683125..1685434	-	769	76817567	-	BURPS1710b_A1379	-	sensory box histidine kinase/response regulator
1378	 73.02	0	1685569..1686261	+	230	76818294	-	BURPS1710b_A1380	-	hypothetical protein
1379	 76.13	+1	1686279..1687187	+	302	76818706	-	BURPS1710b_A1381	-	glycosyl transferase, group 2 family protein
1380	 68.42	0	1687211..1688581	-	456	76819447	-	BURPS1710b_A1382	-	putative sigma-54 interacting response regulator
1381	 64.04	-1	1688682..1689938	+	418	76819836	-	BURPS1710b_A1383	-	putative sigma-54 interacting transcriptional regulator
1382	 68.56	0	1690172..1691122	-	316	76817957	rfaG	BURPS1710b_A1384	-	glycosyltransferase
1383	 74.01	+1	1691112..1692227	-	371	76818321	-	BURPS1710b_A1385	-	ADP-heptose--LPS heptosyltransferase II
1384	 73.75	+1	1692224..1693225	-	333	76819828	-	BURPS1710b_A1386	-	glycosyl transferase, group 2 family protein
1385	 69.97	0	1693222..1694976	-	584	76819822	-	BURPS1710b_A1387	-	carbamoyltransferase family protein
1386	 72.62	0	1694980..1696911	-	643	76818969	-	BURPS1710b_A1388	-	heptosyltransferase family protein
1387	 71.29	0	1696908..1698485	-	525	76818239	-	BURPS1710b_A1389	-	HAD-superfamily hydrolase
1388	 71.96	0	1697522..1698277	-	251	76819460	-	BURPS1710b_A1390	-	short chain dehydrogenase/reductase family oxidoreductase
1389	 71.31	0	1698490..1698984	-	164	76819451	-	BURPS1710b_A1391	-	hypothetical protein
1390	 71.35	0	1698959..1701925	-	988	76818763	-	BURPS1710b_A1392	-	ATP-binding transmembrane ABC transporter protein
1391	 73.72	+1	1702023..1703369	-	448	76817984	-	BURPS1710b_A1393	-	hypothetical protein
1392	 68.82	0	1704000..1705301	-	433	76817801	-	BURPS1710b_A1394	-	phosphatidylserine decarboxylase precursor
1393	 69.79	0	1705409..1707682	+	757	76818037	-	BURPS1710b_A1396	-	hypothetical protein
1394	 67.80	0	1705463..1706170	-	235	76819207	sdhB	BURPS1710b_A1395	-	succinate dehydrogenase iron-sulfur subunit
1395	 70.83	0	1706801..1707688	-	295	76817777	-	BURPS1710b_A1397	-	2-hydroxy-3-oxopropionate reductase
1396	 66.89	0	1707829..1709178	-	449	76818951	-	BURPS1710b_A1398	-	nitrilotriacetate monooxygenase
1397	 67.98	0	1707851..1709368	-	505	76819467	-	BURPS1710b_A1399	-	hypothetical protein
1398	 71.60	0	1709459..1710229	-	256	76817283	mtaA	BURPS1710b_A1400	-	4'-phosphopantetheinyl transferase family protein
1399	 69.38	0	1710492..1711745	-	417	76818946	-	BURPS1710b_A1401	-	oxalate/formate antiporter
1400	 68.75	0	1711765..1711860	-	31	76818801	-	BURPS1710b_A1402	-	hypothetical protein
1401	 73.22	+1	1712108..1712794	-	228	76817370	-	BURPS1710b_A1403	-	flavin reductase domain-containing protein
1402	 71.26	0	1712794..1713294	-	166	76817895	-	BURPS1710b_A1404	-	hypothetical protein
1403	 69.54	0	1712976..1714820	-	614	76819181	-	BURPS1710b_A1405	-	hypothetical protein
1404	 70.27	0	1713488..1714708	-	406	76819174	-	BURPS1710b_A1406	-	hypothetical protein
1405	 70.83	0	1713554..1714753	+	399	76817315	-	BURPS1710b_A1407	-	hypothetical protein
1406	 70.95	0	1715298..1716698	-	466	76818035	lpdA	BURPS1710b_A1408	-	dihydrolipoamide dehydrogenase
1407	 72.06	0	1716703..1718148	-	481	76818033	bkdB	BURPS1710b_A1409	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1408	 68.26	0	1718156..1719160	-	334	76818778	bkdA2	BURPS1710b_A1410	-	2-oxoisovalerate dehydrogenase, E1 component, beta subunit
1409	 67.64	0	1719205..1720437	-	410	76819484	bkdA1	BURPS1710b_A1411	-	2-oxoisovalerate dehydrogenase alpha subunit
1410	 65.45	0	1721558..1722130	+	190	76817619	-	BURPS1710b_A1412	-	hypothetical protein
1411	 69.27	0	1722432..1723547	-	371	76817716	-	BURPS1710b_A1413	-	hypothetical protein
1412	 68.48	0	1723845..1724780	+	311	76818219	-	BURPS1710b_A1414	-	LysR family regulatory protein
1413	 73.77	+1	1724796..1725386	+	196	76818085	-	BURPS1710b_A1416	-	hypothetical protein
1414	 69.11	0	1725018..1725140	-	40	76819113	-	BURPS1710b_A1415	-	hypothetical protein
1415	 70.14	0	1725446..1727344	+	632	76818661	-	BURPS1710b_A1417	-	GMC oxidoreductase family protein
1416	 70.40	0	1727634..1729907	-	757	76819228	fprD	BURPS1710b_A1418	-	pyridine nucleotide-disulphide oxidoreductase family protein
1417	 70.96	0	1730040..1730435	-	131	76819737	-	BURPS1710b_A1419	-	C4-type zinc finger DksA/TraR family protein
1418	 72.11	0	1730767..1731501	+	244	76817588	-	BURPS1710b_A1420	-	hypothetical protein
1419	 73.98	+1	1731790..1733061	+	423	76817511	phaZ	BURPS1710b_A1421	-	intracellular polyhydroxyalkanoate depolymerase
1420	 74.27	+1	1733199..1735118	+	639	76818060	nrdE	BURPS1710b_A1422	-	hypothetical protein
1421	 75.33	+1	1735163..1737043	-	626	76819420	-	BURPS1710b_A1423	-	hypothetical protein
1422	 74.91	+1	1735295..1737004	+	569	76819494	-	BURPS1710b_A1424	-	hypothetical protein
1423	 75.65	+1	1735615..1737417	+	600	76818228	-	BURPS1710b_A1425	-	hypothetical protein
1424	 70.35	0	1737515..1738546	+	343	76819010	-	BURPS1710b_A1426	-	hypothetical protein
1425	 73.27	+1	1738543..1740375	+	610	76818527	-	BURPS1710b_A1427	-	ulfate transporter family protein
1426	 63.03	-1	1740497..1740826	-	109	76817739	-	BURPS1710b_A1428	-	hypothetical protein
1427	 67.77	0	1740830..1741465	-	211	76819482	-	BURPS1710b_A1429	-	CBS domain-containing protein
1428	 71.45	0	1741323..1742702	+	459	76817768	-	BURPS1710b_A1431	-	hypothetical protein
1429	 71.86	0	1741603..1742391	+	262	76818780	-	BURPS1710b_A1430	-	nitroreductase family protein
1430	 61.61	-1	1742461..1742895	-	144	76818032	hsp	BURPS1710b_A1432	-	HSP20/alpha crystallin family protein
1431	 69.08	0	1742705..1744321	-	538	76819724	-	BURPS1710b_A1433	-	hypothetical protein
1432	 68.95	0	1743301..1744440	-	379	76818990	-	BURPS1710b_A1434	-	putative porin protein
1433	 69.82	0	1744508..1746313	-	601	76818360	-	BURPS1710b_A1435	-	medium-chain-fatty-acid--CoA ligase
1434	 74.55	+1	1746615..1749380	-	921	76817917	acoK	BURPS1710b_A1436	-	GerE family regulatory protein
1435	 72.72	0	1749333..1751711	+	792	76817423	-	BURPS1710b_A1438	-	hypothetical protein
1436	 75.14	+1	1749544..1750605	+	353	76819163	-	BURPS1710b_A1437	-	hypothetical protein
1437	 70.33	0	1750708..1751691	+	327	76819341	qor-2	BURPS1710b_A1439	-	quinone oxidoreductase
1438	 69.73	0	1751693..1752541	+	282	76818141	tauD	BURPS1710b_A1440	-	taurine catabolism dioxygenase TauD, TfdA family protein
1439	 66.57	0	1752604..1753659	+	351	76819841	-	BURPS1710b_A1441	-	hypothetical protein
1440	 71.95	0	1753826..1755151	+	441	76817620	dgoT	BURPS1710b_A1442	-	major facilitator family transporter
1441	 72.86	0	1755174..1755770	+	198	76818093	-	BURPS1710b_A1443	-	hypothetical protein
1442	 70.68	0	1755767..1756489	+	240	76818995	-	BURPS1710b_A1444	-	DSBA-like thioredoxin domain-containing protein
1443	 67.45	0	1756998..1759934	+	978	76819425	-	BURPS1710b_A1445	-	molybdopterin oxidoreductase family protein
1444	 68.42	0	1759948..1760745	+	265	76818979	-	BURPS1710b_A1446	-	iron-sulfur cluster-binding protein
1445	 71.50	0	1760803..1761753	+	316	76819527	-	BURPS1710b_A1447	-	DMSO reductase chain C
1446	 71.06	0	1762568..1763704	+	378	76817837	-	BURPS1710b_A1448	-	polysaccharide deacetylase family protein
68.61	MEAN

4.48	STD DEV
