IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei K96243

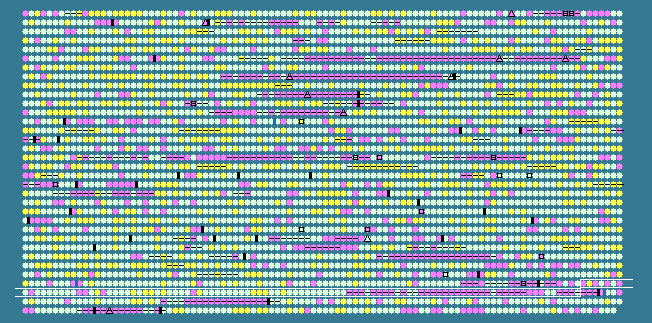

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3094	 63.47	0	3731572..3732354	-	260	53720733	tatC	BPSL3126	-	Sec-independent protein translocase protein TatC
3095	 71.40	0	3732393..3732920	-	175	53720734	tatB	BPSL3127	-	sec-independent translocase
3096	 61.54	-1	3732947..3733180	-	77	53720735	tatA	BPSL3128	-	twin argininte translocase protein A
3097	 66.94	0	3733269..3733634	-	121	53720736	-	BPSL3129	-	hypothetical protein
3098	 60.26	-1	3733663..3734052	-	129	53720737	-	BPSL3130	-	hypothetical protein
3099	 67.48	0	3734105..3734473	-	122	53720738	hisE	BPSL3131	-	phosphoribosyl-ATP pyrophosphatase
3100	 63.31	0	3734470..3734886	-	138	53720739	hisI	BPSL3132	-	phosphoribosyl-AMP cyclohydrolase
3101	 69.90	0	3734883..3735656	-	257	161723193	hisF	BPSL3133	-	imidazole glycerol phosphate synthase subunit HisF
3102	 63.89	0	3735739..3736494	-	251	53720741	hisA	BPSL3134	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
3103	 66.51	0	3736662..3737303	-	213	53720742	hisH	BPSL3135	-	imidazole glycerol phosphate synthase subunit HisH
3104	 64.41	0	3737300..3737920	-	206	53720743	-	BPSL3136	-	hypothetical protein
3105	 65.14	0	3737976..3738563	-	195	53720744	hisB	BPSL3137	-	imidazoleglycerol-phosphate dehydratase
3106	 69.37	0	3738627..3739697	-	356	53720745	hisC	BPSL3138	-	histidinol-phosphate aminotransferase
3107	 69.36	0	3739853..3741190	-	445	53720746	hisD	BPSL3139	-	histidinol dehydrogenase
3108	 68.19	0	3741232..3741888	-	218	53720747	hisG	BPSL3140	-	ATP phosphoribosyltransferase catalytic subunit
3109	 70.44	0	3741885..3743234	-	449	53720748	murA	BPSL3141	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3110	 61.25	-1	3743248..3743487	-	79	53720749	-	BPSL3142	-	BolA-like protein
3111	 63.76	0	3743573..3744328	-	251	53720750	-	BPSL3143	-	putative ABC transporter inner membrane subunit
3112	 67.09	0	3744325..3745266	-	313	53720751	-	BPSL3144	-	putative ABC transporter ATP-binding subunit
3113	 73.33	+1	3745547..3745816	-	89	53720752	-	BPSL3145	-	hypothetical protein
3114	 63.82	0	3745813..3746445	-	210	53720753	-	BPSL3146	-	hypothetical protein
3115	 69.93	0	3746560..3747570	-	336	53720754	-	BPSL3147	-	putative lipoprotein
3116	 65.42	0	3747567..3748127	-	186	53720755	-	BPSL3148	-	hypothetical protein
3117	 65.49	0	3748140..3748907	-	255	53720756	-	BPSL3149	-	hypothetical protein
3118	 68.50	0	3748904..3749722	-	272	53720757	-	BPSL3150	-	putative ABC transporter ATP-binding subunit
3119	 74.52	+1	3749822..3750916	-	364	53720758	thiE	BPSL3151	-	thiamine-phosphate pyrophosphorylase
3120	 69.49	0	3750913..3751728	-	271	53720759	thiG	BPSL3152	-	thiazole synthase
3121	 72.73	+1	3751781..3751978	-	65	53720760	thiS	BPSL3153	-	sulfur carrier protein ThiS
3122	 73.85	+1	3752027..3753154	-	375	53720761	thiO	BPSL3154	-	putative thiamine biosynthesis oxidoreductase ThiO
3123	 66.94	0	3753709..3755529	+	606	53720762	-	BPSL3155	-	putative ABC transporter
3124	 76.04	+1	3755758..3756312	-	184	53720763	-	BPSL3156	-	hypothetical protein
3125	 68.39	0	3756315..3757826	-	503	53720764	-	BPSL3157	-	putative sodium:amino acid symporter
3126	 67.69	0	3758107..3759573	-	488	161723192	gltD	BPSL3158	-	glutamate synthase subunit beta
3127	 66.62	0	3759667..3764370	-	1567	53720766	glt1	BPSL3159	-	glutamate synthase large subunit
3128	 68.07	0	3764662..3765375	-	237	53720767	-	BPSL3160	-	hypothetical protein
3129	 62.43	-1	3765568..3766299	+	243	53720768	-	BPSL3161	-	putative outer membrane protein
3130	 72.31	+1	3766445..3767206	-	253	53720769	ugpQ	BPSL3162	-	cytoplasmic glycerophosphodiester phosphodiesterase
3131	 70.54	0	3767251..3768333	-	360	53720770	ugpC	BPSL3163	-	glycerol-3-phosphate transporter ATP-binding subunit
3132	 65.01	0	3768359..3769204	-	281	53720771	-	BPSL3164	-	glycerol-3-phosphate transporter membrane protein
3133	 65.42	0	3769201..3770085	-	294	53720772	-	BPSL3165	-	putative ABC transporter permease
3134	 65.76	0	3770216..3771541	-	441	53720773	-	BPSL3166	-	glycerol-3-phosphate transporter periplasmic binding protein
3135	 67.88	0	3771626..3772858	-	410	53720774	-	BPSL3167	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
3136	 68.24	0	3772907..3773986	-	359	53720775	aroB	BPSL3168	-	3-dehydroquinate synthase
3137	 65.41	0	3773983..3774537	-	184	53720776	aroK	BPSL3169	-	shikimate kinase
3138	 69.98	0	3774618..3775946	-	442	53720777	-	BPSL3170	-	putative secretion system protein
3139	 75.10	+1	3776333..3777292	-	319	53720778	-	BPSL3171	-	hypothetical protein
3140	 74.74	+1	3777289..3777969	-	226	53720779	-	BPSL3172	-	hypothetical protein
3141	 75.74	+1	3777966..3778913	-	315	53720780	-	BPSL3173	-	hypothetical protein
3142	 66.49	0	3779227..3781548	+	773	53720781	mrcA	BPSL3174	-	penicillin-binding protein 1A
3143	 66.36	0	3781664..3781990	-	108	53720782	cyaY	BPSL3175	-	frataxin-like protein
3144	 72.98	+1	3782027..3782311	+	94	53720783	-	BPSL3175A	-	putative lipoprotein
3145	 68.79	0	3782322..3783593	+	423	53720784	lysA	BPSL3176	-	diaminopimelate decarboxylase
3146	 69.89	0	3783852..3784565	-	237	53720785	-	BPSL3177	-	putative sulfite oxidase subunit YedZ
3147	 65.26	0	3784587..3785582	-	331	53720786	-	BPSL3178	-	putative sulfite oxidase subunit YedY
3148	 65.91	0	3785760..3786950	-	396	53720787	-	BPSL3179	-	putative cytochrome C biogenesis protein
3149	 66.33	0	3786955..3789054	-	699	53720788	-	BPSL3180	-	putative cytochrome C biogenesis protein
3150	 65.90	0	3789263..3789910	-	215	53720789	-	BPSL3181	-	cytochrome C
3151	 65.91	0	3790127..3790786	+	219	53720790	engB	BPSL3182	-	GTPase EngB
3152	 65.16	0	3791004..3792068	+	354	53720791	hemB	BPSL3183	-	delta-aminolevulinic acid dehydratase
3153	 69.00	0	3792284..3794167	-	627	53720792	dsbD	BPSL3184	-	thiol:disulfide interchange protein DsbD
3154	 65.24	0	3794160..3794510	-	116	53720793	-	BPSL3185	-	putative periplasmic cytochrome biogenesis protein
3155	 62.63	-1	3794645..3795040	-	131	53720794	rplQ	BPSL3186	-	50S ribosomal protein L17
3156	 62.68	0	3795181..3796158	-	325	53720795	rpoA	BPSL3187	-	DNA-directed RNA polymerase subunit alpha
3157	 62.66	0	3796286..3796909	-	207	53720796	rpsD	BPSL3188	-	30S ribosomal protein S4
3158	 65.17	0	3797060..3797461	-	133	53720797	rpsK	BPSL3189	-	30S ribosomal protein S11
3159	 61.75	-1	3797485..3797850	-	121	53720798	rpsM	BPSL3190	-	30S ribosomal protein S13
3160	 54.70	-2	3797889..3798005	-	38	53720799	rpmJ	BPSL3191	-	50S ribosomal protein L36
3161	 53.42	-2	3798026..3798244	-	72	53720800	infA	BPSL3192	-	translation initiation factor IF-1
3162	 61.02	-1	3798254..3799600	-	448	161723191	secY	BPSL3193	-	preprotein translocase subunit SecY
3163	 64.14	0	3799645..3800079	-	144	53720802	rplO	BPSL3194	-	50S ribosomal protein L15
3164	 60.11	-1	3800108..3800290	-	60	53720803	rpmD	BPSL3195	-	50S ribosomal protein L30
3165	 64.55	0	3800306..3800824	-	172	53720804	rpsE	BPSL3196	-	30S ribosomal protein S5
3166	 65.57	0	3800838..3801203	-	121	53720805	rplR	BPSL3197	-	50S ribosomal protein L18
3167	 62.34	-1	3801216..3801746	-	176	53720806	rplF	BPSL3198	-	50S ribosomal protein L6
3168	 62.37	-1	3801767..3802162	-	131	53720807	rpsH	BPSL3199	-	30S ribosomal protein S8
3169	 61.44	-1	3802177..3802482	-	101	53720808	rpsN	BPSL3200	-	30S ribosomal protein S14
3170	 58.70	-1	3802490..3803029	-	179	53720809	rplE	BPSL3201	-	50S ribosomal protein L5
3171	 59.87	-1	3803047..3803355	-	102	53720810	rplX	BPSL3202	-	50S ribosomal protein L24
3172	 59.08	-1	3803365..3803733	-	122	53720811	rplN	BPSL3203	-	50S ribosomal protein L14
3173	 57.88	-1	3804043..3804315	-	90	53720812	rpsQ	BPSL3204	-	30S ribosomal protein S17
3174	 57.95	-1	3804312..3804506	-	64	53720813	rpmC	BPSL3205	-	50S ribosomal protein L29
3175	 61.15	-1	3804516..3804932	-	138	53720814	rplP	BPSL3206	-	50S ribosomal protein L16
3176	 63.05	0	3804935..3805735	-	266	53720815	rpsC	BPSL3207	-	30S ribosomal protein S3
3177	 59.39	-1	3805747..3806076	-	109	53720816	rplV	BPSL3208	-	50S ribosomal protein L22
3178	 56.52	-2	3806089..3806364	-	91	53720817	rpsS	BPSL3209	-	30S ribosomal protein S19
3179	 66.30	0	3806375..3807202	-	275	53720818	rplB	BPSL3210	-	50S ribosomal protein L2
3180	 56.19	-2	3807205..3807519	-	104	53720819	rplW	BPSL3211	-	50S ribosomal protein L23
3181	 61.03	-1	3807516..3808136	-	206	53720820	rplD	BPSL3212	-	50S ribosomal protein L4
3182	 63.03	0	3808136..3808795	-	219	53720821	rplC	BPSL3213	-	50S ribosomal protein L3
3183	 61.86	-1	3808983..3809294	-	103	53720822	rpsJ	BPSL3214	-	30S ribosomal protein S10
3184	 62.97	0	3809447..3810637	-	396	53720823	tuf	BPSL3215	-	elongation factor Tu
3185	 61.96	-1	3810679..3812781	-	700	53720824	fusA	BPSL3216	-	elongation factor G
3186	 60.08	-1	3812903..3813373	-	156	53720825	rpsG	BPSL3217	-	30S ribosomal protein S7
3187	 61.68	-1	3813544..3813924	-	126	53720826	rpsL	BPSL3218	-	30S ribosomal protein S12
3188	 67.65	0	3814140..3816074	-	644	53720827	recQ	BPSL3219	-	ATP-dependent DNA helicase RecQ
3189	 64.05	0	3816188..3820426	-	1412	53720828	rpoC	BPSL3220	-	DNA-directed RNA polymerase subunit beta'
3190	 63.06	0	3820448..3824554	-	1368	53720829	rpoB	BPSL3221	-	DNA-directed RNA polymerase subunit beta
3191	 61.56	-1	3824918..3825250	-	110	53720830	rplL	BPSL3222	-	50S ribosomal protein L7/L12
3192	 60.64	-1	3825356..3825853	-	165	53720831	rplJ	BPSL3223	-	50S ribosomal protein L10
3193	 65.24	0	3826151..3826849	-	232	53720832	rplA	BPSL3224	-	50S ribosomal protein L1
67.43	MEAN

4.78	STD DEV
