IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei K96243

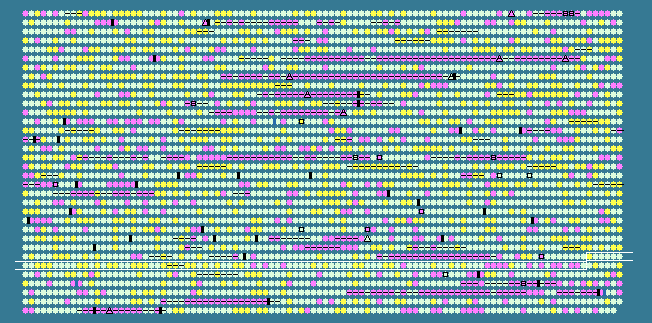

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2795	 72.26	+1	3376582..3378600	-	672	53720434	-	BPSL2825	-	hypothetical protein
2796	 66.76	0	3378622..3379752	-	376	53720435	dnaJ	BPSL2826	-	putative DnaJ chaperone protein
2797	 64.98	0	3380019..3381971	-	650	53720436	dnaK	BPSL2827	-	molecular chaperone DnaK
2798	 68.46	0	3382564..3383121	-	185	53720437	-	BPSL2829	-	putative heat shock protein
2799	 69.36	0	3383618..3384025	-	135	53720438	hslR	BPSL2830	-	putative heat shock protein 15
2800	 69.38	0	3384031..3385134	-	367	53720439	hemH	BPSL2831	-	ferrochelatase
2801	 66.67	0	3385307..3386329	-	340	53720440	hrcA	BPSL2832	-	heat-inducible transcription repressor
2802	 67.55	0	3386463..3387365	+	300	53720441	ppnK	BPSL2833	-	inorganic polyphosphate/ATP-NAD kinase
2803	 71.58	0	3387395..3389044	+	549	53720442	-	BPSL2834	-	putative RecN DNA repair protein
2804	 72.23	+1	3389443..3392226	-	927	53720443	glnE	BPSL2835	-	putative glutamate-ammonia-ligase adenylyltransferase
2805	 72.60	+1	3392387..3396580	+	1397	53720444	-	BPSL2836	-	hypothetical protein
2806	 70.89	0	3396632..3397459	+	275	53720445	-	BPSL2837	-	putative carbon-nitrogen hydrolase protein
2807	 69.67	0	3397539..3399035	+	498	53720446	tldD	BPSL2838	-	putative DNA gyrase control protein
2808	 66.76	0	3399445..3400518	+	357	53720447	aroG	BPSL2839	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2809	 67.82	0	3400797..3402005	-	402	53720448	hmpA	BPSL2840	-	flavohemoprotein
2810	 73.65	+1	3402117..3402689	-	190	53720449	-	BPSL2841	-	hypothetical protein
2811	 70.92	0	3402853..3404262	+	469	53720450	-	BPSL2842	-	putative FAD-binding oxidase
2812	 69.08	0	3404327..3405820	+	497	53720451	glcD	BPSL2843	-	putative glycolate oxidase subunit GlcD
2813	 72.64	+1	3405922..3407010	+	362	53720452	glcE	BPSL2844	-	glycolate oxidase FAD binding subunit
2814	 69.52	0	3407017..3408243	+	408	53720453	glcF	BPSL2845	-	glycolate oxidase iron-sulfur subunit
2815	 71.67	0	3408489..3409187	+	232	53720454	-	BPSL2846	-	hypothetical protein
2816	 73.06	+1	3409222..3410034	+	270	53720455	-	BPSL2847	-	pyrroline-5-carboxylate reductase
2817	 69.73	0	3410457..3411272	-	271	53720456	phnE	BPSL2848	-	putative phosphonate transport protein PhnE
2818	 65.36	0	3411269..3412264	-	331	53720457	phnD	BPSL2849	-	putative phosphonates-binding periplasmic protein precursor
2819	 71.81	0	3412347..3413318	-	323	53720458	phnC	BPSL2850	-	putative phosphonates transport ATP-binding protein PhnC
2820	 72.06	0	3413504..3414634	-	376	53720459	phnM	BPSL2851	-	putative phosphonate metabolism PhnM protein
2821	 72.81	+1	3414649..3415446	-	265	53720460	phnL	BPSL2852	-	putative phosphonates transport ATP-binding protein PhnL
2822	 68.74	0	3415455..3416225	-	256	53720461	phnK	BPSL2853	-	phosphonates transport ATP-binding protein
2823	 68.62	0	3416222..3417196	-	324	53720462	phnJ	BPSL2854	-	putative phosphonate metabolism PhnJ protein
2824	 71.44	0	3417193..3418407	-	404	53720463	phnI	BPSL2855	-	putative phosphonate metabolism PhnI protein
2825	 73.97	+1	3418407..3419036	-	209	53720464	phnH	BPSL2856	-	carbon-phosphorus lyase complex subunit
2826	 72.50	+1	3419033..3419581	-	182	53720465	phnG	BPSL2857	-	putative phosphonate metabolism PhnG protein
2827	 68.86	0	3419714..3420532	+	272	53720466	phnF	BPSL2858	-	GntR family transcriptional regulator
2828	 77.32	+2	3420522..3421319	+	265	53720467	-	BPSL2859	-	hypothetical protein
2829	 71.17	0	3421316..3421870	+	184	53720468	phnN	BPSL2860	-	putative ATP-binding protein PhnN
2830	 66.04	0	3422301..3423251	-	316	53720469	ubiA	BPSL2861	-	4-hydroxybenzoate octaprenyltransferase
2831	 72.07	0	3423627..3424163	-	178	53720470	-	BPSL2862	-	hypothetical protein
2832	 64.42	0	3424448..3424936	-	162	53720471	-	BPSL2863	-	ferritin DPS family DNA-binding protein
2833	 78.16	+2	3425136..3425309	-	57	53720472	-	BPSL2864	-	hypothetical protein
2834	 69.16	0	3425408..3427654	-	748	53720473	katG	BPSL2865	-	catalase-peroxidase protein
2835	 65.62	0	3428080..3429039	-	319	53720474	oxyR	BPSL2866	-	oxidative stress regulatory protein
2836	 73.25	+1	3429175..3431421	-	748	53720475	recG	BPSL2867	-	putative ATP-dependent DNA helicase
2837	 71.56	0	3432038..3433120	+	360	53720476	queA	BPSL2868	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2838	 66.58	0	3433421..3434614	+	397	53720477	tgt	BPSL2869	-	queuine tRNA-ribosyltransferase
2839	 60.86	-1	3435044..3435370	+	108	53720478	yajC	BPSL2870	-	preprotein translocase subunit YajC
2840	 68.69	0	3435478..3437502	+	674	53720479	secD	BPSL2871	-	preprotein translocase subunit SecD
2841	 63.41	0	3437518..3438468	+	316	53720480	secF	BPSL2872	-	preprotein translocase subunit SecF
2842	 68.11	0	3438714..3439337	-	207	53720481	-	BPSL2873	-	hypothetical protein
2843	 64.25	0	3439438..3440016	-	192	53720482	-	BPSL2874	-	hypothetical protein
2844	 63.81	0	3440083..3440643	-	186	53720483	-	BPSL2875	-	hypothetical protein
2845	 66.49	0	3440655..3441218	-	187	53720484	-	BPSL2876	-	putative cytochrome b-561 membrane protein
2846	 67.73	0	3441483..3442139	+	218	53720485	-	BPSL2877	-	putative paraquat-inducible protein
2847	 68.33	0	3442136..3442798	+	220	53720486	-	BPSL2878	-	putative paraquat-inducible protein
2848	 67.39	0	3442785..3444446	+	553	53720487	lpw206-207	BPSL2879	-	paraquat-inducible protein
2849	 76.01	+1	3444443..3445213	+	256	53720488	-	BPSL2880	-	putative lipoprotein
2850	 70.25	0	3446148..3448265	+	705	53720489	-	BPSL2881	-	hypothetical protein
2851	 71.62	0	3448434..3449726	+	430	53720490	-	BPSL2882	-	putative RNA-methylase protein
2852	 64.23	0	3451155..3451565	+	136	53720491	-	BPSL2883	-	hypothetical protein
2853	 70.45	0	3452044..3452730	+	228	53720492	-	BPSL2884	-	hypothetical protein
2854	 65.36	0	3453240..3454694	-	484	53720493	pntB	BPSL2885	-	NAD(P) transhydrogenase subunit beta
2855	 64.85	0	3454691..3455020	-	109	53720494	pntAB	BPSL2886	-	NAD(P) transhydrogenase subunit alpha
2856	 71.23	0	3455033..3456172	-	379	53720495	pntAA	BPSL2887	-	NAD(P) transhydrogenase subunit alpha
2857	 71.37	0	3456416..3456925	+	169	53720496	-	BPSL2888	-	putative hydrolase
2858	 68.66	0	3456922..3458073	+	383	53720497	trmU	BPSL2889	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2859	 68.80	0	3458195..3459835	+	546	53720498	-	BPSL2890	-	putative glutamate synthase
2860	 65.85	0	3460103..3460711	-	202	53720499	-	BPSL2891	-	putative glutathione S-transferase-related protein
2861	 72.48	+1	3461269..3462678	+	469	53720500	-	BPSL2892	-	aminopeptidase P
2862	 74.62	+1	3462723..3463916	+	397	53720501	-	BPSL2893	-	hypothetical protein
2863	 67.70	0	3464124..3465188	+	354	53720502	-	BPSL2894	-	putative nitrogen regulation-related protein
2864	 59.40	-1	3465185..3465418	+	77	53720503	fis	BPSL2895	-	DNA-binding protein Fis
2865	 66.73	0	3465463..3467028	+	521	53720504	purH	BPSL2896	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
2866	 70.72	0	3467395..3467937	+	180	53720505	ruvC	BPSL2897	-	Holliday junction resolvase
2867	 66.84	0	3468011..3468592	+	193	53720506	ruvA	BPSL2898	-	Holliday junction DNA helicase motor protein
2868	 69.09	0	3468774..3469844	+	356	53720507	ruvB	BPSL2899	-	Holliday junction DNA helicase B
2869	 72.20	0	3469870..3470826	+	318	53720508	-	BPSL2900	-	hypothetical protein
2870	 70.43	0	3470958..3472100	+	380	53720509	-	BPSL2901	-	putative lipoprotein
2871	 68.99	0	3472256..3472945	-	229	53720510	-	BPSL2902	-	putative phosphoglycerate mutase
2872	 72.50	+1	3472953..3473432	-	159	53720511	dtd	BPSL2903	-	D-tyrosyl-tRNA deacylase
2873	 64.81	0	3473503..3474744	-	413	53720512	tyrZ	BPSL2904	-	tyrosyl-tRNA synthetase
2874	 72.85	+1	3474875..3476086	+	403	53720513	anmK	BPSL2905	-	anhydro-N-acetylmuramic acid kinase
2875	 66.95	0	3476197..3476895	-	232	53720514	-	BPSL2906	-	putative glutathione S-transferase-like protein
2876	 68.65	0	3476900..3477604	-	234	53720515	-	BPSL2907	-	putative glutathione S-transferase like protein
2877	 70.21	0	3477697..3478599	+	300	53720516	-	BPSL2908	-	AraC family transcriptional regulator
2878	 61.25	-1	3478769..3479137	-	122	53720517	-	BPSL2909	-	iron-sulfur cluster insertion protein ErpA
2879	 63.36	0	3479344..3479736	-	130	53720518	rpsI	BPSL2910	-	30S ribosomal protein S9
2880	 59.91	-1	3479748..3480176	-	142	53720519	rplM	BPSL2911	-	50S ribosomal protein L13
2881	 63.59	0	3480846..3481268	+	140	53720520	-	BPSL2912	-	putative OsmC-like protein
2882	 72.84	+1	3481935..3482777	-	280	53720521	-	BPSL2913	-	hypothetical protein
2883	 69.78	0	3483172..3484230	-	352	53720522	pyrC	BPSL2914	-	dihydroorotase
2884	 65.79	0	3484440..3485354	+	304	53720523	-	BPSL2915	-	hypothetical protein
2885	 63.72	0	3485801..3486139	-	112	53720524	-	BPSL2916	-	hypothetical protein
2886	 69.05	0	3486496..3486915	-	139	53720525	-	BPSL2917	-	putative heat shock Hsp20-related protein
2887	 62.81	0	3486981..3487421	-	146	53720526	-	BPSL2918	-	putative heat shock Hsp20-related protein
2888	 65.41	0	3487884..3488201	+	105	53720527	groES2	BPSL2919	-	10 kDa chaperonin
2889	 61.57	-1	3488496..3488750	+	84	53720528	-	BPSL2920	-	hypothetical protein
2890	 60.61	-1	3488860..3489585	-	241	53720529	gltL	BPSL2921	-	glutamate/aspartate transport ATP-binding protein
2891	 64.31	0	3489582..3490259	-	225	53720530	gltK	BPSL2922	-	glutamate/aspartate transport system permease protein
2892	 62.89	0	3490259..3490999	-	246	53720531	gltJ	BPSL2923	-	glutamate/aspartate transport system permease protein
2893	 60.24	-1	3491082..3491984	-	300	53720532	gltI	BPSL2924	-	glutamate/aspartate periplasmic binding protein precursor
2894	 66.21	0	3492208..3493512	-	434	53720533	-	BPSL2925	-	putative glutamate dehydrogenase
67.43	MEAN

4.78	STD DEV
