IslandPath Analysis: Burkholderia pseudomallei K96243

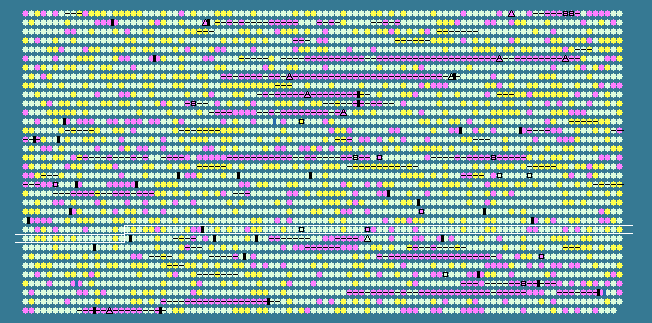

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2418	 67.86	0	2954013..2955020	-	335	53720057	rluC	BPSL2451	-	ribosomal large subunit pseudouridine synthase C
2419	 71.56	0	2955743..2959009	+	1088	53720058	-	BPSL2452	-	putative ribonuclease E
2420	 67.77	0	2959179..2960261	+	360	53720059	moaA	BPSL2453	-	molybdenum cofactor biosynthesis protein A
2421	 73.36	+1	2960277..2960918	+	213	53720060	mobA	BPSL2454	-	molybdopterin-guanine dinucleotide biosynthesis protein A
2422	 74.52	+1	2961030..2962328	+	432	53720061	-	BPSL2455	-	putative molybdopterin biosynthesis protein
2423	 61.11	-1	2962365..2962652	+	95	53720062	-	BPSL2456	-	hypothetical protein
2424	 71.63	0	2962649..2963152	+	167	53720063	-	BPSL2457	-	putative acetyltransferase
2425	 69.58	0	2963387..2964862	-	491	53720064	-	BPSL2458	-	hypothetical protein
2426	 70.71	0	2964859..2965848	-	329	53720065	-	BPSL2459	-	2-hydroxyacid dehydrogenase
2427	 66.60	0	2965914..2967356	-	480	53720066	-	BPSL2460	-	hypothetical protein
2428	 71.78	0	2967412..2968134	-	240	53720067	-	BPSL2461	-	hypothetical protein
2429	 62.83	0	2968219..2969418	-	399	53720068	-	BPSL2462	-	nicotinate phosphoribosyltransferase
2430	 62.65	0	2969687..2970010	+	107	53720069	-	BPSL2463	-	ferredoxin
2431	 66.67	0	2970498..2970977	+	159	53720070	-	BPSL2464	-	hypothetical protein
2432	 67.11	0	2971428..2972330	+	300	53720071	-	BPSL2465	-	hypothetical protein
2433	 71.81	0	2972515..2973039	-	174	53720072	-	BPSL2466	-	hypothetical protein
2434	 67.12	0	2973359..2973580	+	73	53720073	-	BPSL2467	-	hypothetical protein
2435	 71.43	0	2973705..2975111	+	468	53720074	norM	BPSL2468	-	putative multidrug resistance protein
2436	 67.31	0	2975700..2977094	+	464	53720075	fumC	BPSL2469	-	fumarate hydratase
2437	 66.67	0	2977573..2978079	-	168	53720076	-	BPSL2470	-	long-chain acyl-CoA thioester hydrolase
2438	 63.59	0	2978301..2978495	-	64	53720077	-	BPSL2470A	-	hypothetical protein
2439	 73.28	+1	2979129..2979839	+	236	53720078	-	BPSL2471	-	transcription regulator ArsR
2440	 74.63	+1	2979995..2982568	+	857	53720079	-	BPSL2472	-	putative prolin-rich exported protein
2441	 65.43	0	2982658..2983629	-	323	53720080	-	BPSL2473	-	putative thymidylate synthase
2442	 67.97	0	2983686..2985071	-	461	53720081	-	BPSL2474	-	sigma-54 interacting regulatory protein
2443	 70.46	0	2985594..2985962	+	122	53720082	-	BPSL2474A	-	hypothetical protein
2444	 71.05	0	2985959..2987236	+	425	53720083	-	BPSL2474B	-	hypothetical protein
2445	 69.54	0	2987882..2989342	+	486	53720084	-	BPSL2475	-	sigma-54 dependant regulatory protein
2446	 69.84	0	2989550..2990053	+	167	53720085	-	BPSL2476	-	dihydrofolate reductase
2447	 64.07	0	2990180..2991643	+	487	53720086	-	BPSL2477	-	putative transposase
2448	 69.15	0	2991780..2993150	-	456	53720087	-	BPSL2478	-	microcin-processing peptidase
2449	 69.46	0	2993296..2993904	+	202	53720088	-	BPSL2479	-	hypothetical protein
2450	 68.76	0	2993885..2994505	+	206	53720089	mogA	BPSL2480	-	molybdenum cofactor biosynthesis protein
2451	 65.02	0	2994786..2995391	-	201	53720090	orn	BPSL2481	-	oligoribonuclease
2452	 67.46	0	2995510..2996769	+	419	53720091	-	BPSL2482	-	peptidase
2453	 68.89	0	2996766..2997710	+	314	53720092	-	BPSL2483	-	ribosome-associated GTPase
2454	 75.47	+1	2997779..2998096	+	105	53720093	-	BPSL2484	-	hypothetical protein
2455	 65.45	0	2998263..2999252	-	329	53720094	-	BPSL2485	-	adenosylcobinamide-phosphate synthase
2456	 69.44	0	2999302..2999985	-	227	53720095	-	BPSL2486	-	hypothetical protein
2457	 69.54	0	3000900..3001490	+	196	53720096	-	BPSL2487	-	hypothetical protein
2458	 62.33	-1	3001719..3002939	-	406	53720097	tnpA	BPSL2488	-	transposase
2459	 62.05	-1	3003117..3003506	-	129	53720098	rplS	BPSL2489	-	50S ribosomal protein L19
2460	 67.55	0	3003644..3004438	-	264	53720099	trmD	BPSL2490	-	tRNA (guanine-N(1)-)-methyltransferase
2461	 68.40	0	3004440..3005075	-	211	53720100	rimM	BPSL2491	-	16S rRNA-processing protein
2462	 63.92	0	3005174..3005428	-	84	53720101	rpsP	BPSL2492	-	30S ribosomal protein S16
2463	 70.42	0	3005644..3006762	+	372	53720102	-	BPSL2493	-	hypothetical protein
2464	 66.88	0	3006869..3007336	+	155	53720103	-	BPSL2494	-	hypothetical protein
2465	 68.65	0	3007371..3008528	-	385	53720104	-	BPSL2495	-	hypothetical protein
2466	 61.35	-1	3008637..3009125	-	162	53720105	lrp	BPSL2496	-	leucine-responsive regulatory protein
2467	 68.14	0	3009273..3010559	+	428	53720106	dadA	BPSL2497	-	D-amino acid dehydrogenase small subunit
2468	 67.62	0	3010673..3012463	-	596	53720107	-	BPSL2498	-	putative acyl-CoA dehydrogenase
2469	 67.52	0	3012577..3013512	-	311	53720108	etfA	BPSL2499	-	electron transfer flavoprotein alpha-subunit
2470	 64.93	0	3013528..3014277	-	249	53720109	etfB	BPSL2500	-	electron transfer flavoprotein beta-subunit
2471	 67.17	0	3014504..3015298	-	264	53720110	-	BPSL2501	-	hypothetical protein
2472	 66.67	0	3015372..3016025	-	217	53720111	-	BPSL2502	-	ABC transporter, membrane permease
2473	 67.05	0	3016015..3017049	-	344	53720112	-	BPSL2503	-	ABC transporter, ATP-binding component
2474	 72.60	+1	3017358..3018200	+	280	53720113	-	BPSL2504	-	putative hydrolase
2475	 67.97	0	3018543..3019466	-	307	53720114	-	BPSL2505	-	putative histone deacetylase-family protein
2476	 66.74	0	3019594..3020946	+	450	53720115	-	BPSL2506	-	putative exported transglycosylase
2477	 64.89	0	3021173..3022075	-	300	53720116	cysM	BPSL2507	-	cysteine synthase B
2478	 72.76	+1	3022087..3022398	-	103	53720117	-	BPSL2507A	-	hypothetical protein
2479	 71.70	0	3022411..3022728	-	105	53720118	-	BPSL2508	-	hypothetical protein
2480	 64.35	0	3022800..3023792	-	330	53720119	gmhD	BPSL2509	-	putative ADP-glycero-mannoheptose epimerase
2481	 70.35	0	3023851..3024774	-	307	53720120	waaE	BPSL2510	-	putative ADP-heptose synthase
2482	 66.17	0	3024806..3026206	-	466	53720121	udg	BPSL2511	-	putative UDP-glucose dehydrogenase
2483	 65.56	0	3026327..3027496	-	389	53720122	-	BPSL2512	-	hypothetical protein
2484	 64.15	0	3027549..3028064	-	171	53720123	-	BPSL2513	-	hypothetical protein
2485	 62.35	-1	3028067..3028390	-	107	53720124	ihfB	BPSL2514	-	integration host factor subunit beta
2486	 62.00	-1	3028413..3030125	-	570	53720125	rpsA	BPSL2515	-	30S ribosomal protein S1
2487	 68.64	0	3030270..3030980	-	236	53720126	cmk	BPSL2516	-	cytidylate kinase
2488	 70.82	0	3030977..3032998	-	673	161723198	aroA/tyrA	BPSL2517	-	bifunctional prephenate dehydrogenase/3-phosphoshikimate 1-carboxyvinyltransferase
2489	 67.68	0	3033465..3034547	-	360	53720128	pheA	BPSL2518	-	chorismate mutase/prephenate dehydratase
2490	 64.27	0	3034582..3035664	-	360	53720129	serC	BPSL2519	-	phosphoserine aminotransferase
2491	 62.98	0	3035838..3036434	-	198	53720130	-	BPSL2520	-	hypothetical protein
2492	 65.21	0	3036533..3039133	-	866	53720131	gyrA	BPSL2521	-	DNA gyrase subunit A
2493	 62.81	0	3039644..3040318	+	224	53720132	ompA	BPSL2522	-	outer membrane protein a precursor
2494	 65.81	0	3040487..3041185	+	232	53720133	ubiG	BPSL2523	-	3-demethylubiquinone-9 3-methyltransferase
2495	 73.14	+1	3041211..3041936	+	241	53720134	-	BPSL2524	-	putative phosphatase
2496	 70.74	0	3042586..3043272	+	228	53720135	-	BPSL2525	-	hypothetical protein
2497	 65.53	0	3043453..3043716	-	87	53720136	-	BPSL2526	-	hypothetical protein
2498	 72.18	0	3043818..3044924	-	368	53720137	-	BPSL2527	-	regulatory protein
2499	 70.54	0	3045013..3045528	+	171	53720138	fdsG	BPSL2528	-	NAD-dependent formate dehydrogenase gamma subunit
2500	 71.52	0	3045525..3047090	+	521	53720139	fdsB	BPSL2529	-	NAD-dependent formate dehydrogenase beta subunit
2501	 68.97	0	3047105..3050059	+	984	53720140	fdsA	BPSL2530	-	NAD-dependent formate dehydrogenase alpha subunit
2502	 70.50	0	3050067..3050327	+	86	53720141	fdsD	BPSL2531	-	NAD-dependent formate dehydrogenase delta subunit
2503	 71.82	0	3050669..3052336	-	555	53720142	-	BPSL2532	-	putative oxygenase
2504	 72.62	+1	3053003..3054313	+	436	53720143	-	BPSL2533	-	hypothetical protein
2505	 65.90	0	3054702..3055997	-	431	53720144	citA	BPSL2534	-	citrate-proton symporter
2506	 71.36	0	3056494..3057558	-	354	53720145	-	BPSL2535	-	putative transferase
2507	 74.00	+1	3058425..3059801	+	458	53720146	-	BPSL2536	-	amidase
2508	 69.02	0	3059910..3060419	+	169	53720147	dsbB	BPSL2537	-	disulfide bond formation protein B
2509	 72.73	+1	3060961..3061983	+	340	53720148	-	BPSL2538	-	hypothetical protein
2510	 66.57	0	3062025..3063050	+	341	53720149	add	BPSL2539	-	adenosine deaminase
2511	 66.81	0	3063112..3064524	+	470	53720150	-	BPSL2540	-	hypothetical protein
2512	 70.71	0	3064550..3065860	+	436	53720151	guaD	BPSL2541	-	guanine deaminase
2513	 68.41	0	3066348..3066920	+	190	53720152	-	BPSL2542	-	hypothetical protein
2514	 67.37	0	3067254..3067967	-	237	53720153	-	BPSL2543	-	putative lipoprotein
2515	 69.15	0	3068188..3070890	+	900	53720154	-	BPSL2544	-	alanyl aminopeptidase
2516	 70.94	0	3071238..3073532	-	764	53720155	metE	BPSL2545	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2517	 69.88	0	3073649..3074581	+	310	53720156	metR	BPSL2546	-	transcriptional activator protein
67.43	MEAN

4.78	STD DEV
