IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei K96243

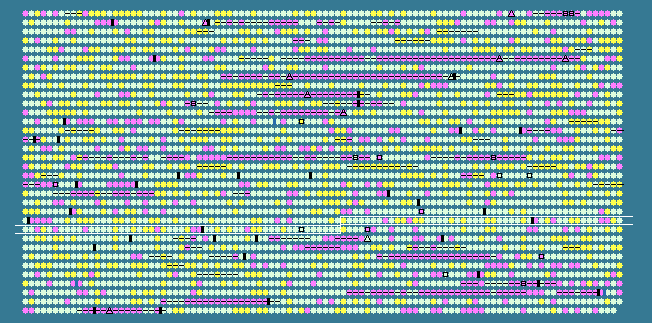

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2354	 71.58	0	2882521..2883984	-	487	53719993	astD	BPSL2387	-	succinylglutamic semialdehyde dehydrogenase
2355	 68.22	0	2883989..2885020	-	343	53719994	-	BPSL2388	-	putative arginine N-succinyltransferase, beta chain
2356	 70.35	0	2885017..2886075	-	352	53719995	-	BPSL2389	-	putative arginine N-succinyltransferase, alpha chain
2357	 68.13	0	2886121..2887353	-	410	53719996	argD	BPSL2390	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
2358	 68.29	0	2888093..2889139	-	348	53719997	-	BPSL2391	-	AraC family transcription regulator
2359	 65.66	0	2889158..2889952	-	264	53719998	hisP	BPSL2392	-	histidine transport ATP-binding protein
2360	 66.53	0	2889974..2890687	-	237	53719999	hisM	BPSL2393	-	histidine transport system permease protein
2361	 62.90	0	2890684..2891373	-	229	53720000	hisQ	BPSL2394	-	histidine transport system permease protein
2362	 66.67	0	2891689..2892249	-	186	53720001	-	BPSL2395	-	putative lipoprotein
2363	 71.63	0	2892943..2893989	-	348	53720002	-	BPSL2396	-	hypothetical protein
2364	 73.42	+1	2893986..2894873	-	295	53720003	-	BPSL2397	-	hypothetical protein
2365	 62.45	-1	2894877..2896298	-	473	53720004	-	BPSL2398	-	hypothetical protein
2366	 72.00	0	2896410..2897591	-	393	53720005	-	BPSL2399	-	putative glycosyltransferase
2367	 72.33	+1	2898218..2899276	+	352	53720006	-	BPSL2400	-	luciferase-like monooxygenase
2368	 68.90	0	2899747..2900775	-	342	53720007	-	BPSL2401	-	putative hydrolase
2369	 69.21	0	2901316..2902179	+	287	53720008	pdxY	BPSL2402	-	pyridoxamine kinase
2370	 68.33	0	2902870..2904972	+	700	53720009	plcN	BPSL2403	-	non-hemolytic phospholipase C precursor
2371	 67.45	0	2905792..2906940	+	382	53720010	-	BPSL2404	-	periplasmic ligand binding lipoprotein
2372	 71.27	0	2907039..2908211	+	390	53720011	-	BPSL2405	-	putative FAD dependent oxidoreductase
2373	 69.48	0	2908367..2908828	-	153	53720012	-	BPSL2406	-	hypothetical protein
2374	 75.00	+1	2908884..2909855	-	323	53720013	-	BPSL2407	-	hypothetical protein
2375	 66.20	0	2910122..2911186	-	354	53720014	-	BPSL2408	-	glycosyl transferase group 1 protein
2376	 69.40	0	2911753..2913618	+	621	53720015	-	BPSL2409	-	ABC transporter ATP binding protein
2377	 68.51	0	2913647..2915056	-	469	53720016	otsA	BPSL2410	-	alpha,alpha-trehalose-phosphate synthase
2378	 71.85	0	2915053..2915862	-	269	53720017	otsB	BPSL2411	-	putative trehalose-phosphatase
2379	 71.52	0	2916222..2916881	+	219	53720018	-	BPSL2412	-	SCO1/SenC family protein
2380	 66.67	0	2916908..2917354	+	148	53720019	-	BPSL2413	-	hypothetical protein
2381	 69.42	0	2917365..2918237	+	290	53720020	-	BPSL2414	-	hypothetical protein
2382	 67.26	0	2918372..2918875	-	167	53720021	-	BPSL2415	-	hypothetical protein
2383	 69.09	0	2919089..2919955	-	288	53720022	-	BPSL2416	-	hypothetical protein
2384	 71.95	0	2920082..2920990	+	302	53720023	-	BPSL2417	-	LysR family regulatory protein
2385	 66.67	0	2921155..2921667	+	170	53720024	-	BPSL2418	-	hypothetical protein
2386	 63.80	0	2923370..2923963	-	197	53720025	-	BPSL2419	-	putative CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2387	 69.79	0	2924091..2926328	-	745	53720026	-	BPSL2420	-	putative excinuclease ABC subunit C
2388	 72.32	+1	2926537..2927757	+	406	53720027	-	BPSL2421	-	hypothetical protein
2389	 59.32	-1	2927947..2928504	+	185	53720028	-	BPSL2422	-	elongation factor P
2390	 69.96	0	2928775..2930172	+	465	53720029	-	BPSL2423	-	sigma-54 interacting response regulator protein
2391	 70.26	0	2930286..2931314	-	342	53720030	-	BPSL2424	-	beta-hexosaminidase
2392	 71.30	0	2931342..2931773	-	143	53720031	acpS	BPSL2425	-	4'-phosphopantetheinyl transferase
2393	 71.32	0	2931779..2932552	-	257	53720032	pdxJ	BPSL2426	-	pyridoxal phosphate biosynthetic protein PdxJ
2394	 69.34	0	2932549..2933409	-	286	161723199	recO	BPSL2427	-	DNA repair protein RecO
2395	 64.33	0	2933396..2934295	-	299	53720034	era	BPSL2428	-	GTP-binding protein Era
2396	 67.45	0	2934365..2935768	-	467	53720035	rnc	BPSL2429	-	ribonuclease III
2397	 61.97	-1	2935919..2936812	-	297	53720036	lepB	BPSL2430	-	signal peptidase I
2398	 63.10	0	2936828..2938621	-	597	53720037	lepA	BPSL2431	-	GTP-binding protein LepA
2399	 72.16	0	2938862..2939116	-	84	53720038	-	BPSL2432	-	hypothetical protein
2400	 69.41	0	2939113..2940570	-	485	53720039	-	BPSL2433	-	peptidase
2401	 68.00	0	2940638..2941690	-	350	53720040	-	BPSL2434	-	putative sigma E factor regulatory protein
2402	 70.48	0	2941696..2942298	-	200	53720041	-	BPSL2435	-	putative sigma E factor negative regulatory protein
2403	 61.67	-1	2942382..2942981	-	199	53720042	rpoE	BPSL2436	-	RNA polymerase sigma factor RpoE
2404	 78.27	+2	2943087..2943560	-	157	53720043	-	BPSL2437	-	hypothetical protein
2405	 66.02	0	2943572..2944810	-	412	53720044	fabF	BPSL2438	-	3-oxoacyl-(acyl carrier protein) synthase II
2406	 57.92	-1	2944967..2945206	-	79	53720045	acpP	BPSL2439	-	acyl carrier protein
2407	 67.73	0	2945350..2946099	-	249	53720046	fabG	BPSL2440	-	3-ketoacyl-(acyl-carrier-protein) reductase
2408	 69.24	0	2946150..2947082	-	310	53720047	fabD	BPSL2441	-	acyl-carrier-protein S-malonyltransferase
2409	 66.87	0	2947153..2948142	-	329	53720048	fabH	BPSL2442	-	3-oxoacyl-(acyl carrier protein) synthase III
2410	 65.04	0	2948142..2949248	-	368	53720049	-	BPSL2443	-	putative glycerol-3-phosphate acyltransferase PlsX
2411	 57.78	-2	2949388..2949567	-	59	53720050	rpmF	BPSL2444	-	50S ribosomal protein L32
2412	 65.40	0	2949664..2950296	-	210	53720051	-	BPSL2445	-	hypothetical protein
2413	 70.83	0	2950540..2951187	+	215	53720052	maf	BPSL2446	-	Maf-like protein
2414	 70.26	0	2951184..2951906	+	240	53720053	-	BPSL2447	-	hypothetical protein
2415	 68.16	0	2951945..2952946	-	333	53720054	-	BPSL2448	-	peptidase
2416	 71.72	0	2952956..2953351	-	131	53720055	-	BPSL2449	-	Rieske iron-sulphur protein
2417	 70.30	0	2953348..2954007	-	219	53720056	-	BPSL2450	-	haloacid dehalogenase-like hydrolase
2418	 67.86	0	2954013..2955020	-	335	53720057	rluC	BPSL2451	-	ribosomal large subunit pseudouridine synthase C
2419	 71.56	0	2955743..2959009	+	1088	53720058	-	BPSL2452	-	putative ribonuclease E
2420	 67.77	0	2959179..2960261	+	360	53720059	moaA	BPSL2453	-	molybdenum cofactor biosynthesis protein A
2421	 73.36	+1	2960277..2960918	+	213	53720060	mobA	BPSL2454	-	molybdopterin-guanine dinucleotide biosynthesis protein A
2422	 74.52	+1	2961030..2962328	+	432	53720061	-	BPSL2455	-	putative molybdopterin biosynthesis protein
2423	 61.11	-1	2962365..2962652	+	95	53720062	-	BPSL2456	-	hypothetical protein
2424	 71.63	0	2962649..2963152	+	167	53720063	-	BPSL2457	-	putative acetyltransferase
2425	 69.58	0	2963387..2964862	-	491	53720064	-	BPSL2458	-	hypothetical protein
2426	 70.71	0	2964859..2965848	-	329	53720065	-	BPSL2459	-	2-hydroxyacid dehydrogenase
2427	 66.60	0	2965914..2967356	-	480	53720066	-	BPSL2460	-	hypothetical protein
2428	 71.78	0	2967412..2968134	-	240	53720067	-	BPSL2461	-	hypothetical protein
2429	 62.83	0	2968219..2969418	-	399	53720068	-	BPSL2462	-	nicotinate phosphoribosyltransferase
2430	 62.65	0	2969687..2970010	+	107	53720069	-	BPSL2463	-	ferredoxin
2431	 66.67	0	2970498..2970977	+	159	53720070	-	BPSL2464	-	hypothetical protein
2432	 67.11	0	2971428..2972330	+	300	53720071	-	BPSL2465	-	hypothetical protein
2433	 71.81	0	2972515..2973039	-	174	53720072	-	BPSL2466	-	hypothetical protein
2434	 67.12	0	2973359..2973580	+	73	53720073	-	BPSL2467	-	hypothetical protein
2435	 71.43	0	2973705..2975111	+	468	53720074	norM	BPSL2468	-	putative multidrug resistance protein
2436	 67.31	0	2975700..2977094	+	464	53720075	fumC	BPSL2469	-	fumarate hydratase
2437	 66.67	0	2977573..2978079	-	168	53720076	-	BPSL2470	-	long-chain acyl-CoA thioester hydrolase
2438	 63.59	0	2978301..2978495	-	64	53720077	-	BPSL2470A	-	hypothetical protein
2439	 73.28	+1	2979129..2979839	+	236	53720078	-	BPSL2471	-	transcription regulator ArsR
2440	 74.63	+1	2979995..2982568	+	857	53720079	-	BPSL2472	-	putative prolin-rich exported protein
2441	 65.43	0	2982658..2983629	-	323	53720080	-	BPSL2473	-	putative thymidylate synthase
2442	 67.97	0	2983686..2985071	-	461	53720081	-	BPSL2474	-	sigma-54 interacting regulatory protein
2443	 70.46	0	2985594..2985962	+	122	53720082	-	BPSL2474A	-	hypothetical protein
2444	 71.05	0	2985959..2987236	+	425	53720083	-	BPSL2474B	-	hypothetical protein
2445	 69.54	0	2987882..2989342	+	486	53720084	-	BPSL2475	-	sigma-54 dependant regulatory protein
2446	 69.84	0	2989550..2990053	+	167	53720085	-	BPSL2476	-	dihydrofolate reductase
2447	 64.07	0	2990180..2991643	+	487	53720086	-	BPSL2477	-	putative transposase
2448	 69.15	0	2991780..2993150	-	456	53720087	-	BPSL2478	-	microcin-processing peptidase
2449	 69.46	0	2993296..2993904	+	202	53720088	-	BPSL2479	-	hypothetical protein
2450	 68.76	0	2993885..2994505	+	206	53720089	mogA	BPSL2480	-	molybdenum cofactor biosynthesis protein
2451	 65.02	0	2994786..2995391	-	201	53720090	orn	BPSL2481	-	oligoribonuclease
2452	 67.46	0	2995510..2996769	+	419	53720091	-	BPSL2482	-	peptidase
2453	 68.89	0	2996766..2997710	+	314	53720092	-	BPSL2483	-	ribosome-associated GTPase
67.43	MEAN

4.78	STD DEV
