IslandPath Analysis: Burkholderia pseudomallei K96243

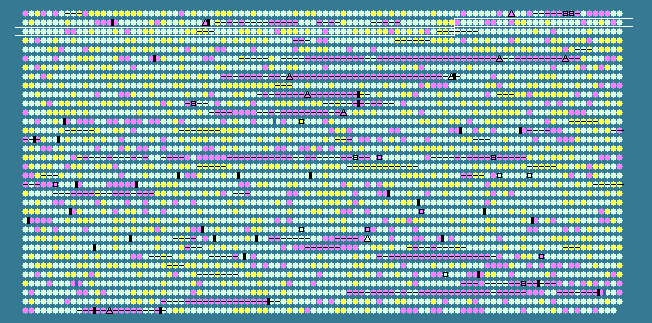

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
173	 63.11	0	173641..174651	-	336	53717812	-	BPSL0170	-	phage major capsid protein precursor
174	 66.54	0	174685..175494	-	269	53717813	-	BPSL0171	-	putative phage capsid scaffolding protein
175	 64.92	0	175638..177407	+	589	53717814	-	BPSL0172	-	phage terminase, ATPase subunit
176	 66.19	0	177404..178459	+	351	53717815	-	BPSL0173	-	putative phage portal vertex protein
177	 64.99	0	178503..178859	-	118	53717816	-	BPSL0174	-	putative phage DNA-binding protein
178	 56.79	-2	178862..179185	-	107	53717817	-	BPSL0175	-	hypothetical protein
179	 55.87	-2	179988..180728	-	246	53717818	-	BPSL0176	-	putative phage-encoded membrane protein
180	 66.39	0	182072..182806	+	244	53717819	-	BPSL0177	-	hypothetical protein
181	 66.19	0	182900..183532	+	210	53717820	-	BPSL0178	-	hypothetical protein
182	 62.69	0	183552..184004	+	150	53717821	-	BPSL0179	-	6-pyruvoyl tetrahydropterin synthase
183	 73.28	+1	184424..185209	+	261	53717822	-	BPSL0180	-	HpcH/HpaI aldolase family protein
184	 73.87	+1	185206..185982	+	258	53717823	-	BPSL0181	-	hypothetical protein
185	 65.36	0	186311..187459	-	382	53717824	rodA	BPSL0182	-	rod shape-determining protein
186	 68.82	0	187471..189927	-	818	53717825	mrdA	BPSL0183	-	penicillin-binding protein
187	 68.23	0	190111..190623	-	170	53717826	-	BPSL0184	-	putative rod shape-determining protein
188	 71.32	0	190620..191693	-	357	53717827	-	BPSL0185	-	putative rod shape-determining protein
189	 64.94	0	191813..192856	-	347	53717828	mreB	BPSL0186	-	putative rod shape-determining protein
190	 67.69	0	193227..193520	+	97	53717829	gatC	BPSL0187	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
191	 70.15	0	193633..195123	+	496	53717830	gatA	BPSL0188	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
192	 65.51	0	195126..196598	+	490	53717831	gatB	BPSL0189	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
193	 65.83	0	196725..197564	+	279	53717832	-	BPSL0190	-	hypothetical protein
194	 62.52	-1	197596..198366	+	256	53717833	-	BPSL0191	-	endonuclease/exonuclease/phosphatase family protein
195	 65.82	0	198655..199719	-	354	53717834	adhC	BPSL0192	-	NADP-dependent alcohol dehydrogenase
196	 70.05	0	199931..200875	+	314	53717835	-	BPSL0193	-	AraC family transcription regulator
197	 73.02	+1	201249..202193	-	314	53717836	-	BPSL0194	-	hypothetical protein
198	 67.12	0	202291..203604	-	437	53717837	-	BPSL0195	-	hypothetical protein
199	 63.74	0	203616..204230	-	204	53717838	-	BPSL0196	-	hypothetical protein
200	 66.49	0	204227..205372	-	381	53717839	metX	BPSL0197	-	homoserine O-acetyltransferase
201	 68.26	0	205721..206410	-	229	53717840	slmA	BPSL0198	-	nucleoid occlusion protein
202	 70.02	0	206377..207180	-	267	53717841	-	BPSL0199	-	haloacid dehalogenase-like hydrolase
203	 64.11	0	207177..208076	-	299	53717842	argB	BPSL0200	-	acetylglutamate kinase
204	 69.01	0	208670..209950	+	426	53717843	-	BPSL0201	-	sensor kinase protein
205	 65.94	0	209961..210512	+	183	53717844	-	BPSL0202	-	response regulator protein
206	 63.99	0	210930..212273	-	447	53717845	hslU	BPSL0203	-	ATP-dependent protease ATP-binding subunit
207	 67.41	0	212283..212819	-	178	53717846	hslV	BPSL0204	-	ATP-dependent protease peptidase subunit
208	 60.67	-1	213074..213490	-	138	53717847	-	BPSL0205	-	dksA/traR C4-type zinc finger family protein
209	 62.17	-1	214040..215152	-	370	53717848	-	BPSL0206	-	hypothetical protein
210	 70.42	0	215294..216571	-	425	53717849	-	BPSL0207	-	hypothetical protein
211	 69.35	0	216660..217592	-	310	53717850	xerC	BPSL0208	-	site-specific tyrosine recombinase XerC
212	 71.00	0	217630..218367	-	245	53717851	-	BPSL0209	-	hypothetical protein
213	 70.57	0	218391..219260	-	289	53717852	dapF	BPSL0210	-	diaminopimelate epimerase
214	 66.21	0	219301..220185	-	294	53717853	-	BPSL0211	-	lipid A biosynthesis lauroyl acyltransferase
215	 67.17	0	220451..221638	+	395	53717854	metK	BPSL0212	-	S-adenosylmethionine synthetase
216	 73.45	+1	221805..222158	-	117	53717855	-	BPSL0212A	-	hypothetical protein
217	 66.33	0	222402..223295	+	297	53717856	-	BPSL0213	-	hypothetical protein
218	 63.14	0	223564..223818	+	84	53717857	-	BPSL0214	-	hypothetical protein
219	 65.90	0	223950..224993	+	347	53717858	-	BPSL0215	-	aldo/keto reductase family protein
220	 68.28	0	225080..225265	-	61	53717859	-	BPSL0216	-	hypothetical protein
221	 71.41	0	225533..226396	-	287	53717860	-	BPSL0217	-	hypothetical protein
222	 71.86	0	226751..228040	-	429	53717861	-	BPSL0218	-	putative transporter protein
223	 65.26	0	228394..228606	+	70	53717862	-	BPSL0219	-	hypothetical protein
224	 69.19	0	228647..229678	+	343	53717863	-	BPSL0220	-	serine/threonine protein kinase
225	 68.43	0	230375..231793	-	472	53717864	calB	BPSL0222	-	putative coniferyl aldehyde dehydrogenase
226	 69.76	0	231828..233507	-	559	53717865	aidB	BPSL0223	-	putative acyl-CoA dehydrogenase
227	 69.04	0	233741..235384	+	547	53717866	-	BPSL0224	-	putative GMC oxidoreductase
228	 76.03	+1	235424..236833	-	469	53717867	-	BPSL0225	-	putative flagellar hook-length control protein
229	 71.96	0	236866..237318	-	150	53717868	fliJ	BPSL0226	-	flagellar fliJ protein
230	 72.58	+1	237324..238895	-	523	53717869	fliI	BPSL0227	-	flagellum-specific ATP synthase
231	 73.72	+1	238889..239569	-	226	53717870	fliH	BPSL0228	-	flagellar assembly protein H
232	 64.66	0	239562..240557	-	331	53717871	fliG	BPSL0229	-	flagellar motor switch protein G
233	 69.84	0	240547..242343	-	598	53717872	fliF	BPSL0230	-	flagellar MS-ring protein
234	 65.20	0	242591..242932	+	113	53717873	fliE	BPSL0231	-	flagellar hook-basal body complex protein
235	 66.67	0	243065..243499	+	144	53717874	fliS	BPSL0232	-	flagellar protein
236	 69.42	0	243496..243822	+	108	53717875	-	BPSL0233	-	hypothetical protein
237	 78.24	+2	243932..245443	+	503	53717876	-	BPSL0234	-	hypothetical protein
238	 72.33	+1	245440..245757	+	105	53717877	-	BPSL0235	-	putative export system protein
239	 69.88	0	245950..246696	+	248	53717878	-	BPSL0236	-	hypothetical protein
240	 71.64	0	246793..247818	-	341	53717879	-	BPSL0237	-	hypothetical protein
241	 67.74	0	248017..249420	-	467	53717880	-	BPSL0238	-	putative amino-acid transporter transmembrane protein
242	 64.99	0	249662..250318	-	218	53717881	-	BPSL0239	-	response regulator protein
243	 63.42	0	251607..252377	-	256	53717882	fpr	BPSL0241	-	ferredoxin--NADP reductase
244	 72.78	+1	252590..253243	-	217	53717883	-	BPSL0242	-	LysE type translocator
245	 72.32	+1	253309..254121	-	270	53717884	-	BPSL0243	-	endonuclease/exonuclease/phosphatase family protein
246	 71.99	0	254128..254691	-	187	53717885	-	BPSL0244	-	hypothetical protein
247	 67.46	0	255025..256032	+	335	53717886	-	BPSL0245	-	putative ATPase
248	 71.03	0	256104..257225	+	373	53717887	-	BPSL0246	-	putative FAD dependent oxidoreductase
249	 66.35	0	257360..257674	+	104	53717888	-	BPSL0247	-	putative iron-sulfur protein
250	 67.83	0	257907..259199	+	430	53717889	-	BPSL0248	-	putative transporter protein
251	 62.80	0	259630..261258	+	542	53717890	dppA	BPSL0249	-	putative periplasmic dipeptide transport protein
252	 66.86	0	261370..262380	+	336	53717891	dppB	BPSL0250	-	putative dipeptide transport system permease protein
253	 70.15	0	262479..263396	+	305	53717892	dppC	BPSL0251	-	putative dipeptide transport system permease protein
254	 67.07	0	263398..264390	+	330	53717893	dppD	BPSL0252	-	putative dipeptide transport system ATP-binding protein
255	 68.93	0	264387..265403	+	338	53717894	dppF	BPSL0253	-	dipeptide transporter ATP-binding subunit
256	 72.01	0	265516..266544	+	342	53717895	-	BPSL0254	-	hypothetical protein
257	 68.23	0	267022..267978	-	318	53717896	-	BPSL0255	-	hypothetical protein
258	 71.45	0	267975..268727	-	250	53717897	-	BPSL0256	-	hypothetical protein
259	 70.33	0	269350..270114	-	254	53717898	-	BPSL0257	-	hypothetical protein
260	 73.52	+1	270173..271252	-	359	53717899	-	BPSL0258	-	hypothetical protein
261	 72.75	+1	271249..271905	-	218	53717900	-	BPSL0259	-	hypothetical protein
262	 62.77	0	272055..272567	+	170	53717901	-	BPSL0260	-	hypothetical protein
263	 73.87	+1	272839..273435	-	198	53717902	-	BPSL0261	-	5-formyltetrahydrofolate cyclo-ligase family protein
264	 68.51	0	273457..275412	+	651	53717903	-	BPSL0262	-	putative transglycosylase
265	 73.85	+1	275534..276493	+	319	53717904	-	BPSL0263	-	hypothetical protein
266	 70.32	0	276548..277204	+	218	53717905	-	BPSL0264	-	hypothetical protein
267	 72.46	+1	277201..278442	+	413	53717906	cca	BPSL0265	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
268	 62.61	-1	279104..279325	-	73	53717907	-	BPSL0266	-	hypothetical protein
269	 68.93	0	279820..280260	-	146	53717908	-	BPSL0267	-	putative flagella synthesis protein
270	 71.59	0	280340..280684	-	114	53717909	-	BPSL0268	-	putative negative regulator of flagellin synthesis
271	 74.90	+1	280788..281552	-	254	161723214	flgA	BPSL0269	-	flagellar basal body P-ring biosynthesis protein FlgA
272	 68.90	0	282577..283068	+	163	53717911	flgB	BPSL0270	-	flagellar basal body rod protein FlgB
67.43	MEAN

4.78	STD DEV
