IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei K96243

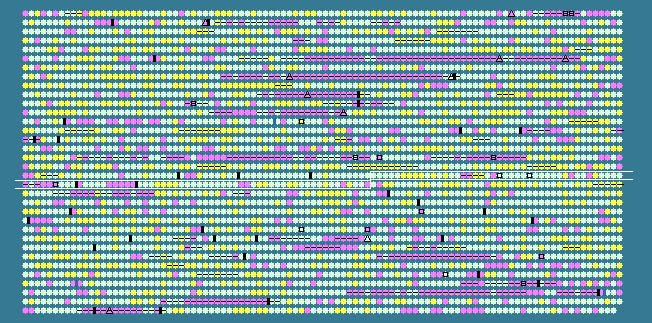

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1859	 68.50	0	2245609..2245881	-	90	53719498	-	BPSL1885	-	hypothetical protein
1860	 70.20	0	2246186..2246836	+	216	53719499	-	BPSL1885A	-	Hfq protein
1861	 68.03	0	2246987..2247718	-	243	53719500	-	BPSL1886	-	hypothetical protein
1862	 67.10	0	2247791..2249182	-	463	53719501	-	BPSL1887	-	putative sigma-54 related transcriptional regulatory protein
1863	 70.42	0	2249199..2250905	-	568	53719502	-	BPSL1888	-	hypothetical protein
1864	 76.01	+1	2251015..2251410	-	131	53719503	-	BPSL1889	-	putative lipoprotein
1865	 73.81	+1	2251432..2252397	-	321	53719504	-	BPSL1890	-	putative lipoprotein
1866	 73.29	+1	2252404..2253429	-	341	53719505	-	BPSL1891	-	putative outer-membrane protein
1867	 73.12	+1	2253426..2254433	-	335	53719506	-	BPSL1892	-	putative fimbriae-related outer membrane protein
1868	 67.63	0	2254426..2255769	-	447	53719507	-	BPSL1893	-	putative type II/IV secretion system ATP-binding protein
1869	 72.48	+1	2255773..2257011	-	412	53719508	-	BPSL1894	-	putative fimbriae assembly protein
1870	 69.83	0	2257078..2258403	-	441	53719509	-	BPSL1895	-	putative exported fimbriae assembly protein
1871	 74.33	+1	2258467..2259366	-	299	53719510	-	BPSL1896	-	putative membrane fimbriae assembly protein
1872	 67.31	0	2259446..2259913	-	155	53719511	-	BPSL1897	-	hypothetical protein
1873	 66.67	0	2259910..2260410	-	166	53719512	-	BPSL1898	-	hypothetical protein
1874	 61.40	-1	2260493..2260663	-	56	53719513	-	BPSL1899	-	putative fimbriae assembly related protein
1875	 42.75	-2	2260771..2260908	-	45	53719514	-	BPSL1900	-	hypothetical protein
1876	 74.47	+1	2261328..2262917	+	529	53719515	-	BPSL1901	-	hypothetical protein
1877	 74.33	+1	2262967..2264232	+	421	53719516	-	BPSL1902	-	hypothetical protein
1878	 66.25	0	2264383..2266062	+	559	53719517	-	BPSL1903	-	putative exported heme utilisation related protein
1879	 63.35	0	2266285..2266767	+	160	53719518	-	BPSL1904	-	hypothetical protein
1880	 68.61	0	2267004..2267414	-	136	53719519	-	BPSL1905	-	putative transposase
1881	 65.30	0	2267610..2268707	-	365	53719520	-	BPSL1906	-	hypothetical protein
1882	 65.55	0	2268814..2270244	-	476	53719521	odhL	BPSL1907	-	dihydrolipoamide dehydrogenase
1883	 68.15	0	2270344..2271621	-	425	53719522	sucB	BPSL1908	-	dihydrolipoamide acetyltransferase
1884	 64.36	0	2271756..2274620	-	954	53719523	kgd	BPSL1909	-	alpha-ketoglutarate decarboxylase
1885	 64.21	0	2274974..2276437	+	487	53719524	-	BPSL1910	-	putative transposase
1886	 66.89	0	2276550..2278376	-	608	53719525	typA	BPSL1911	-	GTP-binding protein
1887	 66.06	0	2278669..2279166	+	165	53719526	-	BPSL1912	-	putative transcriptional regulatory protein
1888	 70.21	0	2279266..2280762	+	498	53719527	-	BPSL1913	-	hypothetical protein
1889	 67.96	0	2280830..2282065	+	411	53719528	emrA	BPSL1914	-	putative multidrug resistance protein A
1890	 67.05	0	2282088..2283647	+	519	53719529	emrB	BPSL1915	-	putative multidrug resistance protein B
1891	 71.05	0	2283918..2284853	-	311	53719530	truB	BPSL1916	-	tRNA pseudouridine synthase B
1892	 60.70	-1	2284880..2285248	-	122	53719531	rbfA	BPSL1917	-	ribosome-binding factor A
1893	 68.20	0	2285354..2288281	-	975	53719532	infB	BPSL1918	-	translation initiation factor IF-2
1894	 64.84	0	2288373..2289848	-	491	53719533	nusA	BPSL1919	-	transcription elongation factor NusA
1895	 60.82	-1	2289845..2290306	-	153	53719534	-	BPSL1920	-	hypothetical protein
1896	 73.57	+1	2290611..2292275	-	554	53719535	-	BPSL1921	-	hypothetical protein
1897	 70.83	0	2292339..2293706	-	455	53719536	-	BPSL1922	-	hypothetical protein
1898	 70.43	0	2294125..2295027	-	300	53719537	-	BPSL1923	-	putative transcriptional regulator
1899	 68.67	0	2295449..2295847	+	132	53719538	-	BPSL1924	-	hypothetical protein
1900	 70.22	0	2296086..2296310	+	74	53719539	-	BPSL1925	-	hypothetical protein
1901	 60.38	-1	2296471..2296788	-	105	53719540	-	BPSL1926	-	hypothetical protein
1902	 65.70	0	2296989..2297711	+	240	53719541	-	BPSL1927	-	hypothetical protein
1903	 60.93	-1	2297950..2298228	+	92	53719542	-	BPSL1929	-	hypothetical protein
1904	 59.69	-1	2298377..2298634	+	85	53719543	-	BPSL1930	-	hypothetical protein
1905	 63.23	0	2298684..2298974	-	96	53719544	-	BPSL1931	-	hypothetical protein
1906	 62.33	-1	2299152..2300372	+	406	53719545	tnpA	BPSL1932	-	transposase
1907	 64.47	0	2300849..2302075	-	408	53719546	-	BPSL1933	-	hypothetical protein
1908	 70.73	0	2302404..2302895	+	163	53719547	-	BPSL1934	-	hypothetical protein
1909	 65.26	0	2303059..2304126	+	355	53719548	-	BPSL1935	-	hypothetical protein
1910	 56.54	-2	2304829..2306013	+	394	53719549	-	BPSL1936	-	hypothetical protein
1911	 66.43	0	2306519..2308639	+	706	53719550	-	BPSL1937	-	hypothetical protein
1912	 66.91	0	2308761..2309165	-	134	53719551	-	BPSL1938	-	putative transcriptional regulator
1913	 66.38	0	2309224..2309571	-	115	53719552	ihfA	BPSL1939	-	integration host factor subunit alpha
1914	 66.75	0	2309701..2312133	-	810	53719553	pheT	BPSL1940	-	phenylalanyl-tRNA synthetase subunit beta
1915	 63.83	0	2312221..2313243	-	340	161723202	pheS	BPSL1941	-	phenylalanyl-tRNA synthetase subunit alpha
1916	 60.56	-1	2313383..2313742	-	119	53719555	rplT	BPSL1942	-	50S ribosomal protein L20
1917	 59.60	-1	2313773..2313970	-	65	53719556	rpmI	BPSL1943	-	50S ribosomal protein L35
1918	 57.17	-2	2314163..2314699	-	178	53719557	infC	BPSL1944	-	translation initiation factor IF-3
1919	 62.26	-1	2314737..2316644	-	635	53719558	thrS	BPSL1945	-	threonyl-tRNA synthetase
1920	 68.72	0	2317104..2319341	-	745	53719559	relA	BPSL1946	-	GTP pyrophosphokinase
1921	 66.10	0	2319386..2319739	-	117	53719560	-	BPSL1947	-	hypothetical protein
1922	 69.65	0	2319812..2320717	-	301	53719561	-	BPSL1948	-	putative hydrolase
1923	 72.08	0	2322043..2322948	-	301	53719562	-	BPSL1950	-	LysR family transcriptional regulator
1924	 73.30	+1	2323136..2323693	+	185	53719563	-	BPSL1951	-	hypothetical protein
1925	 71.66	0	2323708..2324808	+	366	53719564	-	BPSL1952	-	putative polysaccharide deacetylase
1926	 74.83	+1	2324852..2325574	+	240	53719565	-	BPSL1953	-	short chain dehydrogenase
1927	 65.73	0	2325970..2326611	-	213	53719566	scoB	BPSL1954	-	succinyl-CoA:3-ketoacid-coenzyme A transferase subunit B
1928	 64.96	0	2326613..2327317	-	234	53719567	scoA	BPSL1955	-	succinyl-CoA:3-ketoacid-coenzyme A transferase subunit A
1929	 68.13	0	2327570..2328115	+	181	53719568	-	BPSL1956	-	LuxR family regulatory protein
1930	 64.71	0	2328707..2330239	+	510	53719569	-	BPSL1957	-	putative lipoprotein
1931	 67.04	0	2331168..2332241	+	357	53719570	-	BPSL1958	-	hypothetical protein
1932	 65.97	0	2332619..2333050	-	143	53719571	-	BPSL1959	-	putative thioesterase
1933	 66.67	0	2333095..2333874	-	259	53719572	-	BPSL1960	-	short chain dehydrogenase
1934	 65.47	0	2334055..2335728	+	557	53719573	-	BPSL1961	-	putative electron transport protein
1935	 70.81	0	2335915..2337024	-	369	53719574	aroC	BPSL1962	-	chorismate synthase
1936	 68.06	0	2337389..2339323	-	644	53719575	-	BPSL1963	-	hypothetical protein
1937	 61.94	-1	2339423..2339887	-	154	53719576	-	BPSL1964	-	hypothetical protein
1938	 62.62	-1	2340104..2340424	+	106	53719577	-	BPSL1965	-	hypothetical protein
1939	 68.58	0	2340641..2341945	-	434	53719578	-	BPSL1966	-	putative tRNA processing exoribonuclease
1940	 72.25	+1	2342060..2342668	+	202	53719579	-	BPSL1967	-	putative Trp repressor binding protein
1941	 74.00	+1	2342665..2343114	+	149	53719580	-	BPSL1968	-	hypothetical protein
1942	 69.55	0	2343149..2344570	+	473	53719581	-	BPSL1969	-	putative FAD-binding reductase
1943	 69.75	0	2344602..2345573	+	323	53719582	-	BPSL1970	-	calcineurin-like phosphoesterase
1944	 68.58	0	2345922..2346863	-	313	53719583	-	BPSL1971	-	LysR family transcriptional regulator
1945	 73.53	+1	2347021..2348973	+	650	53719584	-	BPSL1972	-	putative antibiotic resistance membrane protein
1946	 71.03	0	2348990..2351191	+	733	53719585	-	BPSL1973	-	putative antibiotic resistance protein
1947	 64.22	0	2351188..2351391	+	67	53719586	-	BPSL1974	-	hypothetical protein
1948	 67.67	0	2351393..2352286	+	297	53719587	-	BPSL1975	-	putative antibiotic resistance protein
1949	 70.60	0	2352657..2354333	-	558	53719588	-	BPSL1976	-	putative chemotaxis methyl-accepting membrane protein
1950	 66.91	0	2354685..2355935	+	416	53719589	fsr	BPSL1977	-	putative fosmidomycin resistance protein
1951	 71.74	0	2356296..2357084	-	262	53719590	-	BPSL1978	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1952	 69.04	0	2357081..2359444	-	787	53719591	-	BPSL1979	-	putative helicase
1953	 66.21	0	2359584..2362451	+	955	53719592	valS	BPSL1980	-	valyl-tRNA synthetase
1954	 63.83	0	2362538..2363419	+	293	53719593	galU	BPSL1981	-	UTP--glucose-1-phosphate uridylyltransferase
1955	 73.14	+1	2363480..2364097	-	205	53719594	-	BPSL1982	-	putative lipoprotein
1956	 69.26	0	2364186..2366579	-	797	53719595	-	BPSL1983	-	putative two component system, histidine kinase
1957	 70.82	0	2366590..2367936	-	448	53719596	-	BPSL1984	-	hypothetical protein
1958	 63.65	0	2367951..2368679	-	242	53719597	-	BPSL1985	-	putative two component system, response regulator
67.43	MEAN

4.78	STD DEV
