IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei K96243

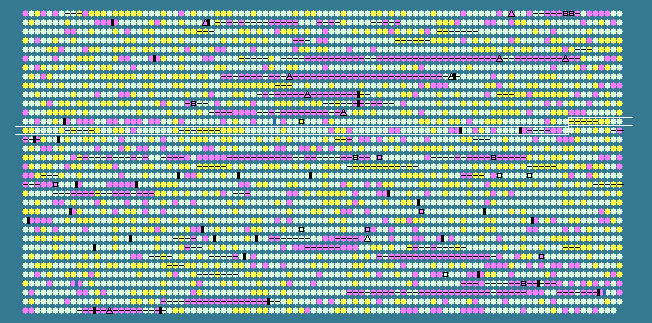

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1292	 71.79	0	1508343..1509278	+	311	53718931	-	BPSL1295	-	hypothetical protein
1293	 73.02	+1	1509665..1510861	-	398	53718932	-	BPSL1296	-	hypothetical protein
1294	 70.98	0	1511140..1511928	+	262	53718933	-	BPSL1297	-	hypothetical protein
1295	 71.05	0	1512096..1512506	+	136	53718934	-	BPSL1298	-	hypothetical protein
1296	 71.26	0	1512862..1513689	-	275	53718935	-	BPSL1299	-	putative phosphodiesterase
1297	 72.40	+1	1513884..1514912	-	342	53718936	-	BPSL1300	-	putative ABC transport system, ATP-binding protein
1298	 72.90	+1	1515088..1516002	-	304	53718937	-	BPSL1301	-	putative ABC transport system, membrane protein
1299	 69.58	0	1517203..1518027	-	274	53718938	-	BPSL1302	-	hypothetical protein
1300	 67.04	0	1518129..1519190	-	353	53718939	-	BPSL1303	-	hypothetical protein
1301	 72.27	+1	1519247..1520281	-	344	53718940	-	BPSL1304	-	LacI family transcriptional regulator
1302	 71.92	0	1520978..1521415	-	145	53718941	-	BPSL1304A	-	hypothetical protein
1303	 67.34	0	1521614..1522060	-	148	53718942	-	BPSL1304B	-	hypothetical protein
1304	 69.09	0	1522632..1523786	-	384	53718943	-	BPSL1305	-	hypothetical protein
1305	 65.93	0	1524128..1525492	-	454	53718944	-	BPSL1306	-	hypothetical protein
1306	 65.51	0	1526205..1526807	+	200	53718945	-	BPSL1307	-	hypothetical protein
1307	 72.93	+1	1526860..1527657	+	265	53718946	-	BPSL1308	-	hypothetical protein
1308	 69.33	0	1528053..1528691	-	212	53718947	-	BPSL1309	-	hypothetical protein
1309	 74.45	+1	1528813..1530354	+	513	53718948	-	BPSL1310	-	GntR family regulatory protein
1310	 68.08	0	1530602..1531096	-	164	53718949	-	BPSL1311	-	AsnC family transcriptional regulator
1311	 69.61	0	1531255..1533156	+	633	53718950	glmS2	BPSL1312	-	glucosamine--fructose-6-phosphate aminotransferase [isomerizing] 2
1312	 72.97	+1	1533366..1534697	-	443	53718951	-	BPSL1313	-	putative dioxygenase
1313	 75.32	+1	1534719..1535423	-	234	53718952	-	BPSL1314	-	hypothetical protein
1314	 69.78	0	1535587..1536486	-	299	53718953	-	BPSL1315	-	LysR family transcriptional regulator
1315	 67.57	0	1536737..1537507	+	256	53718954	-	BPSL1316	-	short chain dehydrogenase
1316	 73.56	+1	1537725..1539116	-	463	53718955	-	BPSL1317	-	putative lipoprotein
1317	 72.30	+1	1539500..1539907	-	135	53718956	-	BPSL1318	-	hypothetical protein
1318	 70.35	0	1539904..1541721	-	605	53718957	-	BPSL1319	-	putative nitrite/sulfite reductase
1319	 63.59	0	1542263..1542457	+	64	53718958	-	BPSL1320	-	hypothetical protein
1320	 69.85	0	1542534..1544009	-	491	53718959	-	BPSL1321	-	GntR family transcriptional regulator
1321	 68.16	0	1544714..1545115	-	133	53718960	-	BPSL1322	-	putative heat shock protein
1322	 65.30	0	1545147..1545584	-	145	53718961	-	BPSL1323	-	putative heat shock protein
1323	 66.98	0	1545977..1546300	+	107	53718962	-	BPSL1323a	-	hypothetical protein
1324	 68.86	0	1547220..1549085	+	621	53718963	pckG	BPSL1324	-	phosphoenolpyruvate carboxykinase
1325	 69.56	0	1549366..1550298	+	310	53718964	-	BPSL1325	-	putative 3-hydroxyacyl-CoA dehydrogenase
1326	 72.44	+1	1550869..1551717	-	282	53718965	-	BPSL1326	-	LysR family transcriptional regulator
1327	 70.45	0	1551987..1552382	+	131	53718966	-	BPSL1327	-	putative malonate transport-related system membrane protein
1328	 71.81	0	1552405..1553163	+	252	53718967	-	BPSL1328	-	putative malonate transport-related system membrane protein
1329	 70.61	0	1553456..1555102	+	548	53718968	-	BPSL1329	-	putative malonate decarboxylase alpha-subunit
1330	 71.38	0	1555116..1555433	+	105	53718969	-	BPSL1330	-	malonate decarboxylase subunit delta
1331	 75.32	+1	1555430..1556377	+	315	53718970	-	BPSL1331	-	malonate decarboxylase subunit beta
1332	 74.10	+1	1556364..1557089	+	241	53718971	-	BPSL1332	-	putative malonate decarboxylase gamma-subunit
1333	 73.35	+1	1557064..1557990	+	308	161723206	-	BPSL1333	-	phosphoribosyl-dephospho-CoA transferase
1334	 77.95	+2	1558572..1559342	+	256	53718973	-	BPSL1334	-	putative coenzyme-A synthase
1335	 77.00	+2	1559339..1560277	+	312	53718974	-	BPSL1335	-	acyl-carrier-protein S-malonyltransferase
1336	 71.61	0	1560371..1560916	+	181	53718975	-	BPSL1336	-	hypothetical protein
1337	 70.93	0	1561322..1562236	+	304	53718976	-	BPSL1337	-	hypothetical protein
1338	 68.25	0	1562684..1563313	+	209	53718977	-	BPSL1338	-	putative glutathione S-transferase related protein
1339	 70.30	0	1563720..1565207	-	495	53718978	-	BPSL1339	-	putative proline/betaine transporter
1340	 70.57	0	1565742..1566074	+	110	53718979	-	BPSL1340	-	hypothetical protein
1341	 66.80	0	1566419..1567141	-	240	53718980	dnaQ	BPSL1341	-	DNA polymerase III subunit epsilon
1342	 66.67	0	1567199..1567645	-	148	53718981	rnhA	BPSL1342	-	ribonuclease HI
1343	 69.00	0	1567642..1568454	-	270	53718982	-	BPSL1343	-	hypothetical protein
1344	 72.86	+1	1568475..1569281	+	268	53718983	-	BPSL1344	-	putative gultathione hydrolase
1345	 66.97	0	1569365..1571026	+	553	53718984	-	BPSL1345	-	putative exported transglycosylase protein
1346	 70.15	0	1571107..1572399	+	430	53718985	-	BPSL1346	-	hypothetical protein
1347	 69.75	0	1572506..1573639	-	377	53718986	-	BPSL1347	-	hypothetical protein
1348	 70.28	0	1573867..1574889	+	340	53718987	-	BPSL1348	-	AraC family transcriptional regulator
1349	 67.45	0	1575304..1576449	+	381	53718988	carA	BPSL1349	-	carbamoyl phosphate synthase small subunit
1350	 69.23	0	1576481..1577143	+	220	53718989	-	BPSL1350	-	leucine export protein LeuE
1351	 66.51	0	1577195..1580449	+	1084	53718990	carB	BPSL1351	-	carbamoyl phosphate synthase large subunit
1352	 63.52	0	1580568..1581044	+	158	53718991	greA	BPSL1352	-	transcription elongation factor GreA
1353	 72.22	+1	1581044..1581547	+	167	53718992	-	BPSL1353	-	hypothetical protein
1354	 71.35	0	1581618..1582172	-	184	53718993	-	BPSL1354	-	hypothetical protein
1355	 62.14	-1	1582366..1583028	+	220	53718994	-	BPSL1355	-	putative ribosomal RNA large subunit methyltransferase
1356	 65.39	0	1583196..1585082	+	628	53718995	ftsH	BPSL1356	-	FtsH endopeptidase
1357	 70.15	0	1585195..1586085	+	296	53718996	folP	BPSL1357	-	dihydropteroate synthase
1358	 68.58	0	1586111..1587469	+	452	53718997	-	BPSL1358	-	putative phosphoglucomutase
1359	 65.11	0	1587905..1588933	+	342	53718998	pstS	BPSL1359	-	phosphate transport system, substrate-binding exported periplasmic protein
1360	 65.86	0	1589040..1590026	+	328	53718999	pstC	BPSL1360	-	phosphate transporter permease subunit
1361	 67.45	0	1590023..1590916	+	297	161723205	pstA	BPSL1361	-	phosphate transporter permease subunit
1362	 63.02	0	1590932..1591780	+	282	53719001	pstB	BPSL1362	-	phosphate transport system ATP-binding protein
1363	 63.69	0	1591800..1592504	+	234	53719002	-	BPSL1363	-	phosphate transport system-related protein
1364	 64.81	0	1592533..1593234	+	233	53719003	phoB	BPSL1364	-	phosphate regulon two-component system response regulator
1365	 66.44	0	1593304..1594614	+	436	53719004	-	BPSL1365	-	putative phosphate regulon two-component system sensor kinase
1366	 65.02	0	1594813..1597056	-	747	161723204	ppk	BPSL1366	-	polyphosphate kinase
1367	 68.59	0	1597104..1598663	+	519	53719006	-	BPSL1367	-	putative exopolyphosphatase
1368	 70.47	0	1598976..1599869	-	297	53719007	-	BPSL1368	-	hypothetical protein
1369	 71.79	0	1599935..1601008	+	357	53719008	-	BPSL1369	-	hypothetical protein
1370	 64.41	0	1601034..1601699	+	221	53719009	-	BPSL1370	-	hypothetical protein
1371	 66.85	0	1601862..1602416	+	184	53719010	-	BPSL1371A	-	hypothetical protein
1372	 62.45	-1	1603053..1603313	-	86	53719011	-	BPSL1372	-	hypothetical protein
1373	 60.58	-1	1603310..1603720	-	136	53719012	-	BPSL1373	-	hypothetical protein
1374	 69.70	0	1604281..1604742	+	153	53719013	-	BPSL1374	-	putative hydrolase
1375	 68.13	0	1604894..1605712	+	272	53719014	-	BPSL1375	-	hypothetical protein
1376	 61.74	-1	1606063..1606326	-	87	53719015	-	BPSL1376	-	hypothetical protein
1377	 72.92	+1	1606401..1606592	+	63	53719016	-	BPSL1377	-	putative lipoprotein
1378	 69.90	0	1606854..1608245	-	463	53719017	-	BPSL1378	-	putative membrane protein (DNA-damage-inducible protein)
1379	 63.53	0	1608253..1608603	-	116	53719018	-	BPSL1379	-	hypothetical protein
1380	 69.30	0	1608868..1610535	-	555	53719019	-	BPSL1380	-	putative acetyl-CoA synthetase
1381	 69.61	0	1610849..1611562	-	237	53719020	-	BPSL1381	-	peptidase
1382	 69.31	0	1611847..1612755	-	302	53719021	-	BPSL1382	-	hypothetical protein
1383	 65.22	0	1613303..1614133	+	276	53719022	uppP	BPSL1383	-	undecaprenyl pyrophosphate phosphatase
1384	 56.16	-2	1615048..1615761	-	237	53719023	-	BPSL1385	-	hypothetical protein
1385	 58.19	-1	1615770..1616276	-	168	53719024	-	BPSL1386	-	hypothetical protein
1386	 66.89	0	1616248..1616697	-	149	53719025	-	BPSL1387	-	hypothetical protein
1387	 68.06	0	1616714..1617217	-	167	53719026	-	BPSL1388	-	hypothetical protein
1388	 52.53	-2	1617923..1618318	-	131	53719027	-	BPSL1390	-	hypothetical protein
1389	 61.11	-1	1618835..1619068	-	77	53719028	-	BPSL1392	-	hypothetical protein
1390	 53.85	-2	1619144..1619650	-	168	53719029	-	BPSL1393	-	putative exported avidin family protein
1391	 66.03	0	1620853..1621476	-	207	53719030	-	BPSL1394	-	putative exported endonuclease
67.43	MEAN

4.78	STD DEV
