IslandPath Analysis: Burkholderia pseudomallei K96243

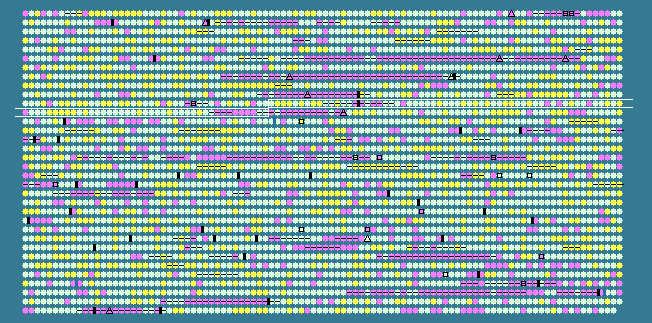

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1042	 68.83	0	1210503..1211843	+	446	53718681	-	BPSL1040	-	putative ABC transport system, ATP-binding protein
1043	 75.31	+1	1212010..1212171	-	53	53718682	-	BPSL1041	-	hypothetical protein
1044	 73.57	+1	1212228..1212734	-	168	53718683	-	BPSL1042	-	putative lipoprotein
1045	 71.92	0	1212731..1213282	-	183	53718684	-	BPSL1043	-	putative lipoprotein
1046	 67.44	0	1213901..1215319	+	472	53718685	otsA	BPSL1044	-	alpha,alpha-trehalose-phosphate synthase
1047	 71.97	0	1215312..1215914	+	200	53718686	-	BPSL1045	-	hypothetical protein
1048	 70.75	0	1216087..1216698	-	203	53718687	-	BPSL1046	-	hypothetical protein
1049	 74.81	+1	1217068..1217325	+	85	53718688	-	BPSL1047	-	hypothetical protein
1050	 71.57	0	1217526..1218953	-	475	53718689	-	BPSL1048	-	putative sugar transport, integral membrane protein
1051	 66.28	0	1219023..1219535	-	170	53718690	-	BPSL1049	-	hypothetical protein
1052	 69.29	0	1220110..1220490	-	126	53718691	-	BPSL1050	-	hypothetical protein
1053	 72.44	+1	1221524..1221904	-	126	53718692	-	BPSL1053	-	putative lipoprotein
1054	 66.48	0	1222077..1222616	+	179	53718693	eco	BPSL1054	-	ecotin precursor
1055	 69.92	0	1222714..1223850	-	378	53718694	-	BPSL1055	-	murein-DD-endopeptidase
1056	 63.94	0	1224788..1225264	+	158	53718695	-	BPSL1057	-	hypothetical protein
1057	 63.86	0	1227014..1227298	+	94	53718696	-	BPSL1059	-	hypothetical protein
1058	 64.69	0	1227309..1227611	+	100	53718697	-	BPSL1060	-	hypothetical protein
1059	 63.93	0	1227608..1227826	+	72	53718698	-	BPSL1061	-	hypothetical protein
1060	 59.18	-1	1228340..1228606	+	88	53718699	infA	BPSL1062	-	translation initiation factor IF-1
1061	 67.54	0	1228626..1228970	+	114	53718700	-	BPSL1063	-	hypothetical protein
1062	 65.05	0	1229071..1229997	-	308	53718701	-	BPSL1064	-	putative dehydrogenase
1063	 66.10	0	1230018..1231604	-	528	53718702	-	BPSL1065	-	hypothetical protein
1064	 60.11	-1	1232050..1232232	-	60	53718703	rubA	BPSL1066	-	rubredoxin
1065	 65.35	0	1232690..1233145	+	151	53718704	-	BPSL1067	-	hypothetical protein
1066	 69.39	0	1233313..1235259	+	648	53718705	-	BPSL1068	-	putative ABC transport system, ATP-binding protein
1067	 66.82	0	1235465..1237447	+	660	53718706	parE	BPSL1069	-	DNA topoisomerase IV subunit B
1068	 68.95	0	1237506..1239824	+	772	53718707	parC	BPSL1070	-	DNA topoisomerase IV subunit A
1069	 68.19	0	1240517..1240975	+	152	53718708	-	BPSL1071	-	hypothetical protein
1070	 71.41	0	1241121..1242005	-	294	53718709	-	BPSL1072	-	LysR family transcriptional regulator
1071	 66.67	0	1242099..1242566	+	155	53718710	-	BPSL1073	-	hypothetical protein
1072	 66.67	0	1242775..1243737	-	320	53718711	-	BPSL1074	-	LysR family transcriptional regulator
1073	 70.40	0	1243953..1245266	+	437	53718712	-	BPSL1075	-	putative transport system, integral membrane protein
1074	 73.40	+1	1245268..1246530	+	420	53718713	-	BPSL1076	-	allantoate amidohydrolase
1075	 69.20	0	1246813..1247838	+	341	53718714	-	BPSL1078	-	putative aminohydrolase
1076	 71.36	0	1248218..1249411	-	397	53718715	-	BPSL1079	-	putative metal transport integral membrane protein
1077	 66.75	0	1249558..1251918	-	786	53718716	-	BPSL1080	-	hypothetical protein
1078	 75.67	+1	1252138..1253037	-	299	53718717	-	BPSL1081	-	putative phenazine biosynthesis-like protein
1079	 64.96	0	1253042..1253509	-	155	53718718	-	BPSL1082	-	hypothetical protein
1080	 69.08	0	1253565..1254767	-	400	53718719	-	BPSL1083	-	putative aminotransferase
1081	 73.60	+1	1254807..1255715	-	302	53718720	-	BPSL1084	-	hypothetical protein
1082	 73.98	+1	1255816..1256499	-	227	53718721	-	BPSL1085	-	hypothetical protein
1083	 69.80	0	1256635..1258104	+	489	53718722	-	BPSL1086	-	GntR family regulatory protein
1084	 64.19	0	1258240..1260138	+	632	53718723	htpG	BPSL1087	-	heat shock protein 90
1085	 75.76	+1	1260147..1260740	+	197	53718724	-	BPSL1088	-	hypothetical protein
1086	 68.12	0	1260737..1261216	+	159	53718725	-	BPSL1089	-	hypothetical protein
1087	 67.74	0	1261467..1262396	+	309	53718726	-	BPSL1091	-	hypothetical protein
1088	 61.25	-1	1262588..1262827	+	79	53718727	-	BPSL1092	-	hypothetical protein
1089	 65.96	0	1262824..1264374	+	516	53718728	-	BPSL1093	-	hypothetical protein
1090	 62.99	0	1264502..1264936	-	144	53718729	-	BPSL1094	-	hypothetical protein
1091	 64.68	0	1265301..1266254	-	317	53718730	talB	BPSL1095	-	transaldolase B
1092	 71.18	0	1266656..1267873	-	405	53718731	-	BPSL1096	-	putative transport related membrane protein
1093	 65.31	0	1267966..1269141	-	391	53718732	-	BPSL1097	-	hypothetical protein
1094	 64.65	0	1269354..1270196	-	280	53718733	-	BPSL1098	-	hypothetical protein
1095	 62.78	0	1270430..1270789	+	119	53718734	-	BPSL1099	-	putative cytochrome C precursor-related protein
1096	 65.04	0	1270830..1271198	+	122	53718735	-	BPSL1100	-	putative cytochrome C precursor-related protein
1097	 67.57	0	1271697..1272248	-	183	53718736	-	BPSL1101	-	hypothetical protein
1098	 74.04	+1	1272686..1273756	+	356	53718737	-	BPSL1102	-	hypothetical protein
1099	 65.43	0	1273889..1274533	-	214	53718738	nth	BPSL1103	-	endonuclease III
1100	 73.42	+1	1274538..1275410	-	290	53718739	-	BPSL1104	-	ferredoxin
1101	 61.93	-1	1275668..1276300	+	210	53718740	-	BPSL1105	-	TetR family regulatory protein
1102	 66.33	0	1276435..1277901	-	488	53718741	-	BPSL1106	-	putative depolymerase/histone-like protein
1103	 70.10	0	1278121..1279953	-	610	53718742	-	BPSL1107	-	hypothetical protein
1104	 69.01	0	1280130..1281365	+	411	53718743	-	BPSL1108	-	hypothetical protein
1105	 74.34	+1	1281716..1287241	-	1841	53718744	-	BPSL1109	-	hypothetical protein
1106	 72.03	0	1287413..1287934	-	173	53718745	-	BPSL1110	-	putative lipoprotein
1107	 71.93	0	1288695..1289909	+	404	53718746	purT	BPSL1111	-	phosphoribosylglycinamide formyltransferase 2
1108	 72.07	0	1290012..1290233	+	73	53718747	-	BPSL1112	-	putative lipoprotein
1109	 72.61	+1	1290292..1290678	+	128	53718748	-	BPSL1113	-	hypothetical protein
1110	 68.94	0	1291364..1292812	+	482	53718749	rhlE2	BPSL1114	-	putative ATP-dependent RNA helicase 2
1111	 74.16	+1	1293310..1294203	-	297	53718750	-	BPSL1115	-	glutamyl-Q tRNA(Asp) synthetase
1112	 67.11	0	1294247..1295146	-	299	53718751	-	BPSL1116	-	hypothetical protein
1113	 66.98	0	1295759..1299283	+	1174	53718752	dnaE	BPSL1117	-	DNA polymerase III subunit alpha
1114	 65.10	0	1299323..1301113	+	596	53718753	-	BPSL1118	-	putative ABC transport system, ATP-binding protein
1115	 68.88	0	1301167..1302249	+	360	53718754	-	BPSL1119	-	putative LPS biosynthesis-related protein
1116	 69.98	0	1302531..1303676	+	381	53718755	-	BPSL1120	-	putative transferase (LPS biosynthesis-related)
1117	 67.44	0	1303673..1304971	+	432	53718756	-	BPSL1121	-	hypothetical protein
1118	 70.23	0	1304968..1306230	+	420	53718757	-	BPSL1122	-	putative glycosyl transferase (LPS biosynthesis-related)
1119	 69.11	0	1306305..1307489	+	394	53718758	-	BPSL1123	-	putative LPS core biosynthesis-related protein
1120	 72.28	+1	1307464..1307730	-	88	53718759	-	BPSL1123b	-	hypothetical protein
1121	 65.49	0	1307754..1308518	-	254	53718760	-	BPSL1124	-	putative LPS biosynthesis-related protein
1122	 70.34	0	1308976..1309356	+	126	53718761	-	BPSL1125	-	hypothetical protein
1123	 67.00	0	1309637..1310230	-	197	53718762	-	BPSL1126	-	hypothetical protein
1124	 70.76	0	1310507..1311775	-	422	53718763	-	BPSL1127	-	putative ABC transport system, integral membrane protein
1125	 74.90	+1	1311772..1312755	-	327	53718764	-	BPSL1128	-	putative lipoprotein
1126	 64.02	0	1313442..1313894	-	150	53718765	-	BPSL1129	-	hypothetical protein
1127	 70.02	0	1314397..1315290	-	297	53718766	-	BPSL1130	-	putative sigma factor
1128	 65.31	0	1316037..1316330	-	97	53718767	-	BPSL1132	-	hypothetical protein
1129	 70.90	0	1317018..1317371	+	117	53718768	-	BPSL1133	-	hypothetical protein
1130	 71.22	0	1318558..1319238	+	226	53718769	-	BPSL1134	-	hypothetical protein
1131	 65.24	0	1319300..1320697	+	465	53718770	-	BPSL1135	-	hypothetical protein
1132	 69.11	0	1320725..1322113	-	462	53718771	-	BPSL1136	-	hypothetical protein
1133	 45.70	-2	1322871..1323962	+	363	53718772	-	BPSL1137	-	hypothetical protein
1134	 46.49	-2	1323959..1324657	+	232	53718773	-	BPSL1138	-	hypothetical protein
1135	 63.21	0	1325353..1325670	-	105	53718774	-	BPSL1139	-	hypothetical protein
1136	 63.80	0	1325660..1326949	-	429	53718775	-	BPSL1140	-	putative phage-related protein
1137	 61.11	-1	1326949..1327128	-	59	53718776	-	BPSL1141	-	hypothetical protein
1138	 63.66	0	1327141..1329036	-	631	53718777	-	BPSL1142	-	putative phage-related protein
1139	 62.72	0	1329087..1330607	-	506	53718778	-	BPSL1143	-	putative phage terminase
1140	 65.99	0	1330589..1331029	-	146	53718779	-	BPSL1144	-	hypothetical protein
1141	 64.29	0	1331134..1331427	-	97	53718780	-	BPSL1145	-	putative phage-related protein
67.43	MEAN

4.78	STD DEV
