IslandPathversion 1.0

IslandPath Analysis: Burkholderia pseudomallei K96243

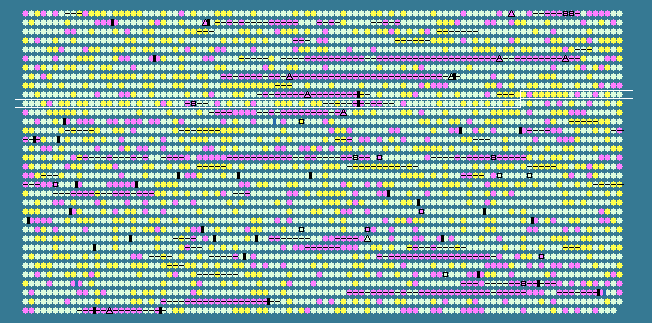

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.43 STD DEV: 4.78
Burkholderia pseudomallei K96243 chromosome 1, complete sequence - 1..4074542
3399 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
984	 74.83	+1	1139494..1140093	+	199	53718623	-	BPSL0981	-	phosphoglycerate mutase family protein
985	 62.84	0	1140236..1141072	-	278	53718624	-	BPSL0982	-	hypothetical protein
986	 72.45	+1	1141238..1142170	-	310	53718625	btuF	BPSL0983	-	putaive vitamin B12 transport protein
987	 75.97	+1	1142176..1143228	-	350	53718626	cobC	BPSL0984	-	putative threonine-phosphate decarboxylase
988	 77.25	+2	1143221..1144165	-	314	53718627	cobD	BPSL0985	-	cobalamin biosynthesis protein
989	 73.48	+1	1144159..1144716	-	185	53718628	-	BPSL0986	-	putative bifunctional cobalamin biosynthesis protein
990	 72.42	+1	1144873..1146333	+	486	53718629	cobQ	BPSL0987	-	cobyric acid synthase
991	 71.46	0	1146614..1147030	+	138	53718630	-	BPSL0988	-	hypothetical protein
992	 67.31	0	1147399..1148022	+	207	53718631	-	BPSL0989	-	ParA family ATPase
993	 61.76	-1	1148137..1148523	-	128	53718632	panD	BPSL0990	-	aspartate alpha-decarboxylase
994	 68.33	0	1148576..1149415	-	279	53718633	panC	BPSL0991	-	pantoate--beta-alanine ligase
995	 66.67	0	1150167..1151042	-	291	53718634	-	BPSL0992	-	hypothetical protein
996	 60.85	-1	1151047..1151235	-	62	53718635	-	BPSL0993	-	hypothetical protein
997	 68.54	0	1151442..1153259	+	605	53718636	-	BPSL0994	-	hypothetical protein
998	 72.88	+1	1153273..1157391	+	1372	53718637	-	BPSL0995	-	hypothetical protein
999	 68.21	0	1157739..1158449	+	236	53718638	-	BPSL0996	-	hypothetical protein
1000	 69.63	0	1158446..1159459	+	337	53718639	-	BPSL0997	-	putative methyltransferase
1001	 67.08	0	1159815..1161992	-	725	53718640	metG	BPSL0998	-	methionyl-tRNA synthetase
1002	 69.75	0	1162474..1163121	-	215	53718641	-	BPSL0999	-	OmpA family transmembrane protein
1003	 69.88	0	1163502..1164590	+	362	53718642	-	BPSL1000	-	putative ATP-binding protein
1004	 73.70	+1	1164723..1165262	+	179	53718643	-	BPSL1001	-	putative membrane-attached superoxide dismutase
1005	 60.88	-1	1165366..1165935	+	189	53718644	dcd	BPSL1002	-	deoxycytidine triphosphate deaminase
1006	 65.04	0	1166038..1168317	+	759	53718645	-	BPSL1003	-	putative ornithine decarboxylase
1007	 73.72	+1	1168320..1169042	+	240	53718646	-	BPSL1004	-	hypothetical protein
1008	 73.78	+1	1169176..1169850	-	224	53718647	-	BPSL1005	-	putative hydrolase
1009	 68.16	0	1169883..1171292	-	469	53718648	argH	BPSL1006	-	argininosuccinate lyase
1010	 71.79	0	1171461..1173761	-	766	53718649	-	BPSL1007	-	putative fimbriae usher protein
1011	 73.14	+1	1174516..1175226	-	236	53718650	-	BPSL1008	-	putative exported fimbriae-related chaperone
1012	 64.74	0	1175234..1175752	-	172	53718651	-	BPSL1009	-	hypothetical protein
1013	 67.98	0	1176147..1177136	+	329	53718652	-	BPSL1010	-	putative lipoprotein
1014	 72.30	+1	1177309..1178124	-	271	53718653	-	BPSL1011	-	putative DNA-binding protein
1015	 71.96	0	1178289..1179062	+	257	53718654	-	BPSL1012	-	putative biotin biosyntehsis related protein
1016	 70.32	0	1179480..1182464	-	994	53718655	-	BPSL1013	-	phosphoenolpyruvate carboxylase
1017	 72.22	+1	1182577..1182756	+	59	53718656	-	BPSL1014	-	hypothetical protein
1018	 73.03	+1	1182791..1183780	+	329	53718657	hemC	BPSL1015	-	porphobilinogen deaminase
1019	 70.50	0	1183777..1185759	+	660	53718658	-	BPSL1016	-	bifunctional uroporphyrinogen-III synthetase/uroporphyrin-III C-methyltransferase
1020	 71.03	0	1185764..1186954	+	396	53718659	-	BPSL1017	-	putative porphyrin biosynthesis related protein
1021	 67.66	0	1187123..1188430	-	435	53718660	-	BPSL1018	-	putative permease transmembrane protein
1022	 70.09	0	1188469..1189227	-	252	53718661	-	BPSL1019	-	3-ketoacyl-(acyl-carrier-protein) reductase
1023	 72.92	+1	1189316..1190755	-	479	53718662	-	BPSL1020	-	putative aldehyde dehydrogenase
1024	 63.26	0	1190916..1191443	+	175	53718663	ppa	BPSL1021	-	inorganic pyrophosphatase
1025	 73.07	+1	1191502..1192266	-	254	53718664	-	BPSL1022	-	hypothetical protein
1026	 69.89	0	1193265..1194443	-	392	53718665	-	BPSL1025	-	hypothetical protein
1027	 69.61	0	1194534..1196264	+	576	53718666	nadE	BPSL1026	-	NAD synthetase
1028	 62.83	0	1196325..1196663	+	112	53718667	glnB2	BPSL1027	-	nitrogen regulatory protein P-II 2
1029	 62.33	-1	1197036..1198256	-	406	53718668	tnpA	BPSL1028	-	transposase
1030	 65.21	0	1198437..1199537	-	366	53718669	-	BPSL1029	-	putative exported outer membrane porin protein
1031	 65.51	0	1200419..1201198	-	259	53718670	hisP	BPSL1030	-	histidine transport ATP-binding protein
1032	 64.29	0	1201221..1201934	-	237	53718671	hisM	BPSL1031	-	histidine transport system permease protein
1033	 63.77	0	1201931..1202620	-	229	53718672	hisQ	BPSL1032	-	histidine transport system permease protein
1034	 65.89	0	1202831..1203607	-	258	53718673	hisJ	BPSL1033	-	histidine-binding periplasmic protein precursor
1035	 72.25	+1	1204000..1204698	+	232	53718674	-	BPSL1034	-	hypothetical protein
1036	 68.38	0	1205046..1205744	-	232	53718675	-	BPSL1035	-	hypothetical protein
1037	 69.56	0	1205833..1206558	+	241	53718676	-	BPSL1036	-	putative two-component system, response regulator
1038	 72.83	+1	1206542..1207855	+	437	53718677	-	BPSL1037	-	putative two-component system, sensor kinase
1039	 58.80	-1	1207929..1208195	-	88	53718678	-	BPSL1038	-	hypothetical protein
1040	 69.57	0	1208322..1208597	-	91	53718679	-	BPSL1038a	-	hypothetical protein
1041	 66.04	0	1208692..1210449	+	585	53718680	-	BPSL1039	-	putative ABC transport system, membrane protein
1042	 68.83	0	1210503..1211843	+	446	53718681	-	BPSL1040	-	putative ABC transport system, ATP-binding protein
1043	 75.31	+1	1212010..1212171	-	53	53718682	-	BPSL1041	-	hypothetical protein
1044	 73.57	+1	1212228..1212734	-	168	53718683	-	BPSL1042	-	putative lipoprotein
1045	 71.92	0	1212731..1213282	-	183	53718684	-	BPSL1043	-	putative lipoprotein
1046	 67.44	0	1213901..1215319	+	472	53718685	otsA	BPSL1044	-	alpha,alpha-trehalose-phosphate synthase
1047	 71.97	0	1215312..1215914	+	200	53718686	-	BPSL1045	-	hypothetical protein
1048	 70.75	0	1216087..1216698	-	203	53718687	-	BPSL1046	-	hypothetical protein
1049	 74.81	+1	1217068..1217325	+	85	53718688	-	BPSL1047	-	hypothetical protein
1050	 71.57	0	1217526..1218953	-	475	53718689	-	BPSL1048	-	putative sugar transport, integral membrane protein
1051	 66.28	0	1219023..1219535	-	170	53718690	-	BPSL1049	-	hypothetical protein
1052	 69.29	0	1220110..1220490	-	126	53718691	-	BPSL1050	-	hypothetical protein
1053	 72.44	+1	1221524..1221904	-	126	53718692	-	BPSL1053	-	putative lipoprotein
1054	 66.48	0	1222077..1222616	+	179	53718693	eco	BPSL1054	-	ecotin precursor
1055	 69.92	0	1222714..1223850	-	378	53718694	-	BPSL1055	-	murein-DD-endopeptidase
1056	 63.94	0	1224788..1225264	+	158	53718695	-	BPSL1057	-	hypothetical protein
1057	 63.86	0	1227014..1227298	+	94	53718696	-	BPSL1059	-	hypothetical protein
1058	 64.69	0	1227309..1227611	+	100	53718697	-	BPSL1060	-	hypothetical protein
1059	 63.93	0	1227608..1227826	+	72	53718698	-	BPSL1061	-	hypothetical protein
1060	 59.18	-1	1228340..1228606	+	88	53718699	infA	BPSL1062	-	translation initiation factor IF-1
1061	 67.54	0	1228626..1228970	+	114	53718700	-	BPSL1063	-	hypothetical protein
1062	 65.05	0	1229071..1229997	-	308	53718701	-	BPSL1064	-	putative dehydrogenase
1063	 66.10	0	1230018..1231604	-	528	53718702	-	BPSL1065	-	hypothetical protein
1064	 60.11	-1	1232050..1232232	-	60	53718703	rubA	BPSL1066	-	rubredoxin
1065	 65.35	0	1232690..1233145	+	151	53718704	-	BPSL1067	-	hypothetical protein
1066	 69.39	0	1233313..1235259	+	648	53718705	-	BPSL1068	-	putative ABC transport system, ATP-binding protein
1067	 66.82	0	1235465..1237447	+	660	53718706	parE	BPSL1069	-	DNA topoisomerase IV subunit B
1068	 68.95	0	1237506..1239824	+	772	53718707	parC	BPSL1070	-	DNA topoisomerase IV subunit A
1069	 68.19	0	1240517..1240975	+	152	53718708	-	BPSL1071	-	hypothetical protein
1070	 71.41	0	1241121..1242005	-	294	53718709	-	BPSL1072	-	LysR family transcriptional regulator
1071	 66.67	0	1242099..1242566	+	155	53718710	-	BPSL1073	-	hypothetical protein
1072	 66.67	0	1242775..1243737	-	320	53718711	-	BPSL1074	-	LysR family transcriptional regulator
1073	 70.40	0	1243953..1245266	+	437	53718712	-	BPSL1075	-	putative transport system, integral membrane protein
1074	 73.40	+1	1245268..1246530	+	420	53718713	-	BPSL1076	-	allantoate amidohydrolase
1075	 69.20	0	1246813..1247838	+	341	53718714	-	BPSL1078	-	putative aminohydrolase
1076	 71.36	0	1248218..1249411	-	397	53718715	-	BPSL1079	-	putative metal transport integral membrane protein
1077	 66.75	0	1249558..1251918	-	786	53718716	-	BPSL1080	-	hypothetical protein
1078	 75.67	+1	1252138..1253037	-	299	53718717	-	BPSL1081	-	putative phenazine biosynthesis-like protein
1079	 64.96	0	1253042..1253509	-	155	53718718	-	BPSL1082	-	hypothetical protein
1080	 69.08	0	1253565..1254767	-	400	53718719	-	BPSL1083	-	putative aminotransferase
1081	 73.60	+1	1254807..1255715	-	302	53718720	-	BPSL1084	-	hypothetical protein
1082	 73.98	+1	1255816..1256499	-	227	53718721	-	BPSL1085	-	hypothetical protein
1083	 69.80	0	1256635..1258104	+	489	53718722	-	BPSL1086	-	GntR family regulatory protein
67.43	MEAN

4.78	STD DEV
