IslandPath Analysis: Burkholderia mallei SAVP1

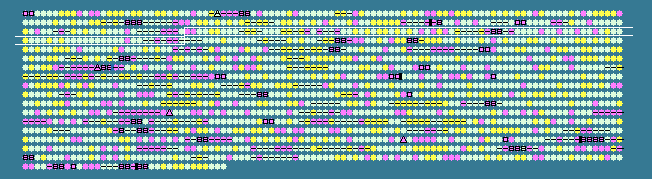

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.39 STD DEV: 5.20
Burkholderia mallei SAVP1 chromosome II, complete sequence - 1..1734922
1734 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
228	 64.60	0	270613..271047	-	144	121596982	-	BMASAVP1_0239	-	hypothetical protein
229	 63.90	0	271139..273124	-	661	121598164	-	BMASAVP1_0240	-	Rhs element Vgr protein
230	 71.11	0	273477..274625	+	382	121596980	-	BMASAVP1_0241	-	hypothetical protein
231	 67.56	0	274683..275132	+	149	121598124	-	BMASAVP1_0242	-	hypothetical protein
232	 73.81	+1	275167..275292	+	41	121597414	-	BMASAVP1_0244	-	hypothetical protein
233	 78.19	+1	275261..275503	-	80	121596895	-	BMASAVP1_0243	-	hypothetical protein
234	 69.58	0	275616..276506	+	296	121596651	-	BMASAVP1_0245	-	hypothetical protein
235	 69.82	0	276526..277095	+	189	121597635	vanX	BMASAVP1_0246	-	D-alanyl-D-alanine dipeptidase
236	 65.92	0	277244..278845	+	533	121596798	-	BMASAVP1_0247	-	ABC transporter, periplasmic substrate-binding protein
237	 69.84	0	278866..279936	+	356	121597039	-	BMASAVP1_0248	-	ABC transporter, permease protein
238	 72.29	0	279979..280920	+	313	121597566	-	BMASAVP1_0249	-	ABC transporter, permease protein
239	 72.79	0	280922..281803	+	293	121597242	-	BMASAVP1_0250	-	ABC transporter, ATP-binding protein
240	 70.96	0	281800..282567	+	255	121596574	-	BMASAVP1_0251	-	ABC transporter, ATP-binding protein
241	 71.54	0	283143..283265	-	40	121596522	-	BMASAVP1_0252	-	hypothetical protein
242	 67.86	0	283409..283744	+	111	121597347	-	BMASAVP1_0253	-	hypothetical protein
243	 68.18	0	283854..284846	-	330	121597893	-	BMASAVP1_0254	-	LysR family transcriptional regulator
244	 72.40	0	284770..285240	+	156	121596935	-	BMASAVP1_0256	-	hypothetical protein
245	 79.10	+2	285224..285400	-	58	121597746	-	BMASAVP1_0255	-	beta-lactamase, class A
246	 70.26	0	285457..286401	-	314	121597865	blaA	BMASAVP1_0257	-	class A beta-lactamase
247	 73.17	0	286519..287487	-	322	121597179	-	BMASAVP1_0258	-	putative peptidoglycan-binding LysM/M23B peptidase
248	 62.35	-1	287543..287959	+	138	121597476	-	BMASAVP1_0259	-	hypothetical protein
249	 67.00	0	288084..288995	+	303	121597656	-	BMASAVP1_0260	-	LysR family transcriptional regulator
250	 64.23	0	289006..289128	+	40	121597118	-	BMASAVP1_0262	-	hypothetical protein
251	 66.67	0	289110..289289	-	59	121597386	-	BMASAVP1_0261	-	hypothetical protein
252	 65.37	0	289497..290651	-	384	121597890	-	BMASAVP1_0263	-	putative outer membrane porin
253	 57.03	-2	290670..290918	+	82	121597937	-	BMASAVP1_0264	-	hypothetical protein
254	 69.18	0	291072..292226	+	384	121596952	-	BMASAVP1_0265	-	hypothetical protein
255	 70.33	0	292291..293136	+	281	121597538	-	BMASAVP1_0267	-	putative esterase
256	 74.47	+1	293108..294055	-	315	121596883	-	BMASAVP1_0266	-	ornithine cyclodeaminase
257	 69.67	0	294727..295125	-	132	121597434	pcaC	BMASAVP1_0268	-	4-carboxymuconolactone decarboxylase
258	 72.39	0	295508..296398	+	296	121596605	-	BMASAVP1_0269	-	alpha/beta fold family hydrolase
259	 65.85	0	296452..297432	-	326	121597594	-	BMASAVP1_0270	-	putative potassium channel protein
260	 75.36	+1	297592..297729	-	45	121597657	-	BMASAVP1_0271	-	hypothetical protein
261	 71.93	0	297829..299157	-	442	121597740	-	BMASAVP1_0272	-	hypothetical protein
262	 66.67	0	299336..300244	+	302	121597024	-	BMASAVP1_0273	-	hypothetical protein
263	 71.90	0	300595..300747	-	50	121598046	-	BMASAVP1_0274	-	hypothetical protein
264	 69.43	0	300887..302551	+	554	121597239	-	BMASAVP1_0275	-	hypothetical protein
265	 78.07	+1	302784..302897	-	37	121597223	-	BMASAVP1_0276	-	hypothetical protein
266	 69.62	0	302898..304490	-	530	121598072	-	BMASAVP1_0277	-	methyl-accepting chemotaxis protein
267	 63.69	0	304338..304505	+	55	121597578	-	BMASAVP1_0278	-	hypothetical protein
268	 70.17	0	304578..306092	+	504	121596491	-	BMASAVP1_0279	-	EmrB/QacA family drug resistance transporter
269	 64.03	0	306127..307149	-	340	121596774	-	BMASAVP1_0280	-	hypothetical protein
270	 74.56	+1	307146..307259	-	37	121598047	-	BMASAVP1_0281	-	hypothetical protein
271	 60.67	-1	307320..307469	-	49	121597546	-	BMASAVP1_0282	-	hypothetical protein
272	 70.30	0	307468..308211	+	247	121596616	pat	BMASAVP1_0284	-	phosphinothricin N-acetyltransferase
273	 75.83	+1	307488..307607	+	39	121596824	-	BMASAVP1_0283	-	hypothetical protein
274	 67.83	0	308239..309096	+	285	121597562	-	BMASAVP1_0285	-	MerR family transcriptional regulator
275	 69.51	0	309221..310204	+	327	121596836	-	BMASAVP1_0286	-	aliphatic sulfonate ABC transporter substrate-binding protein
276	 65.08	0	310238..310363	-	41	121597622	-	BMASAVP1_0287	-	hypothetical protein
277	 72.81	0	310391..311041	+	216	121597835	-	BMASAVP1_0288	-	hypothetical protein
278	 63.48	0	311287..311913	+	208	121597052	-	BMASAVP1_0289	-	monooxygenase, truncation
279	 57.20	-2	311944..312207	+	87	121598020	-	BMASAVP1_0290	-	IS407A, transposase OrfA
280	 61.75	-1	312231..313064	+	277	121596677	-	BMASAVP1_0291	-	IS407A, transposase OrfB
281	 71.17	0	313481..314545	-	354	121597477	-	BMASAVP1_0292	-	pyridine nucleotide-disulphide oxidoreductase, class II, truncation
282	 64.74	0	314618..315136	+	172	121596479	-	BMASAVP1_0293	-	transcriptional regulator
283	 68.69	0	315256..316095	-	279	121597826	-	BMASAVP1_0294	-	hypothetical protein
284	 66.90	0	316109..316981	-	290	121596668	nhoA	BMASAVP1_0295	-	N-hydroxyarylamine O-acetyltransferase
285	 69.52	0	317098..317799	-	233	121598055	-	BMASAVP1_0296	-	hypothetical protein
286	 70.51	0	317860..318093	-	77	121596912	-	BMASAVP1_0297	-	hypothetical protein
287	 60.44	-1	318236..318460	+	74	121596527	-	BMASAVP1_0298	-	hypothetical protein
288	 70.94	0	318493..318609	+	38	121597152	-	BMASAVP1_0299	-	hypothetical protein
289	 66.13	0	318628..319929	-	433	121596734	-	BMASAVP1_0300	-	methionine gamma-lyase
290	 61.08	-1	320117..320599	+	160	121597815	-	BMASAVP1_0301	-	AsnC family transcriptional regulator
291	 69.14	0	320764..322218	-	484	121597821	-	BMASAVP1_0302	-	amidase
292	 69.28	0	322439..322591	-	50	121596789	-	BMASAVP1_0303	-	hypothetical protein
293	 64.37	0	322782..323216	+	144	121597612	-	BMASAVP1_0304	-	UspA family protein
294	 67.15	0	323377..324207	-	276	121596633	-	BMASAVP1_0305	-	OmpA/SmpA/OmlA family outer membrane lipoprotein
295	 70.50	0	324266..326716	-	816	121596561	-	BMASAVP1_0306	-	haemagluttinin family protein
296	 52.94	-2	326717..326869	+	50	121597265	-	BMASAVP1_0307	-	hypothetical protein
297	 68.14	0	327286..328710	-	474	121598010	-	BMASAVP1_0308	-	major facilitator family transporter
298	 72.43	0	328727..329941	-	404	121597027	-	BMASAVP1_0309	-	pyridine nucleotide-disulfide oxidoreductase, class I
299	 69.25	0	329967..330932	-	321	121597045	-	BMASAVP1_0310	-	glyoxalase family protein
300	 70.69	0	330949..332439	-	496	121597247	-	BMASAVP1_0311	-	aldehyde dehydrogenase family protein
301	 72.18	0	332465..333280	-	271	121597235	-	BMASAVP1_0312	-	L-aspartate dehydrogenase
302	 70.76	0	333273..334958	-	561	121597985	-	BMASAVP1_0313	-	hypothetical protein
303	 68.80	0	334951..335748	-	265	121596502	-	BMASAVP1_0314	-	short chain dehydrogenase
304	 68.19	0	335745..336599	-	284	121597726	-	BMASAVP1_0315	-	IclR family transcriptional regulator
305	 74.94	+1	336596..337501	-	301	121597638	-	BMASAVP1_0316	-	alpha/beta fold family hydrolase
306	 64.98	0	337518..338051	-	177	121597944	-	BMASAVP1_0317	-	hypothetical protein
307	 73.02	0	338084..338854	-	256	121597215	-	BMASAVP1_0318	-	short chain dehydrogenase
308	 66.67	0	338851..339918	-	355	121598013	-	BMASAVP1_0319	-	Rieske family iron-sulfur cluster-binding protein
309	 68.59	0	339953..340264	-	103	121597997	-	BMASAVP1_0320	-	hypothetical protein
310	 66.35	0	340266..340583	-	105	121597764	-	BMASAVP1_0321	-	naphthalene 1,2-dioxygenase system ferredoxin component
311	 66.32	0	340955..342106	+	383	121597478	-	BMASAVP1_0322	-	putative outer membrane porin
312	 69.72	0	342414..343364	-	316	121597294	-	BMASAVP1_0323	-	IclR family transcriptional regulator
313	 71.29	0	343451..344077	-	208	121597693	-	BMASAVP1_0324	-	2OG-Fe(II) oxygenase family oxidoreductase
314	 65.98	0	344210..344794	+	194	121596754	-	BMASAVP1_0325	-	hypothetical protein
315	 71.72	0	344856..346061	+	401	121597737	-	BMASAVP1_0326	-	Ser/Thr protein phosphatase family protein
316	 68.33	0	346756..346875	-	39	121597820	-	BMASAVP1_0327	-	hypothetical protein
317	 66.25	0	346874..347590	+	238	121597103	-	BMASAVP1_0328	-	MgtC family protein
318	 64.03	0	347626..348345	-	239	121598108	bpsR	BMASAVP1_0329	-	autoinducer-binding transcriptional regulator BpsR
319	 67.12	0	348419..348862	+	147	121597121	-	BMASAVP1_0330	-	hypothetical protein
320	 69.12	0	349087..349698	+	203	121598144	bpsI	BMASAVP1_0331	-	autoinducer synthase BpsI
321	 70.32	0	349760..350608	+	282	121596997	-	BMASAVP1_0333	-	hypothetical protein
322	 65.60	0	350571..351224	-	217	121597798	ribA	BMASAVP1_0332	-	GTP cyclohydrolase II
323	 59.14	-1	351401..351865	+	154	121597823	-	BMASAVP1_0334	-	CBS domain-containing protein
324	 66.37	0	352070..352411	-	113	121596851	-	BMASAVP1_0335	-	hypothetical protein
325	 60.65	-1	352931..353329	+	132	121598026	-	BMASAVP1_0336	-	putative nucleoside diphosphate kinase regulator
326	 62.42	-1	353547..354677	-	376	121597058	opcP	BMASAVP1_0337	-	putative outer membrane porin
327	 70.63	0	354992..355924	+	310	121596579	-	BMASAVP1_0338	-	hypothetical protein
68.39	MEAN

5.20	STD DEV
