IslandPathversion 1.0

IslandPath Analysis: Burkholderia mallei SAVP1

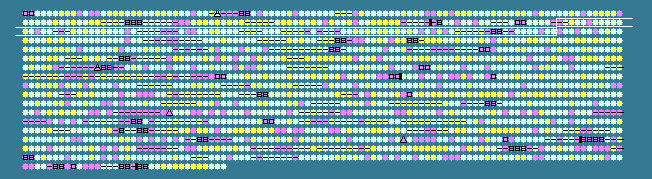

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.39 STD DEV: 5.20
Burkholderia mallei SAVP1 chromosome II, complete sequence - 1..1734922
1734 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
190	 61.90	-1	228706..228873	-	55	121597175	-	BMASAVP1_0201	-	hypothetical protein
191	 67.25	0	228936..229280	+	114	121596525	-	BMASAVP1_0203	-	hypothetical protein
192	 73.19	0	229264..229401	-	45	121598155	-	BMASAVP1_0202	-	hypothetical protein
193	 70.80	0	229398..230147	-	249	121596731	-	BMASAVP1_0204	-	hypothetical protein
194	 68.48	0	230401..230895	-	164	121597920	-	BMASAVP1_0205	-	hypothetical protein
195	 63.39	0	230947..231129	-	60	121596945	-	BMASAVP1_0206	-	hypothetical protein
196	 67.67	0	231136..232437	+	433	121597999	-	BMASAVP1_0207	-	putative UDP-N-acetylglucosamine 1-carboxyvinyltransferase
197	 66.31	0	232502..233341	-	279	121597120	hisP	BMASAVP1_0208	-	histidine ABC transporter, ATP-binding protein
198	 66.39	0	233338..234051	-	237	121596555	hisM-1	BMASAVP1_0209	-	histidine ABC transporter, permease protein
199	 65.22	0	234048..234737	-	229	121597350	hisQ-1	BMASAVP1_0210	-	histidine ABC transporter, permease protein
200	 65.83	0	234937..236007	+	356	121597922	-	BMASAVP1_0212	-	hypothetical protein
201	 79.26	+2	236000..236134	-	44	121596803	-	BMASAVP1_0211	-	pseudouridine synthase, Rsu
202	 66.13	0	236206..237321	-	371	121596961	-	BMASAVP1_0213	-	putative outer membrane porin
203	 64.48	0	237374..237877	-	167	121596611	-	BMASAVP1_0214	-	DoxD-like family protein
204	 69.76	0	237979..239337	-	452	121597732	-	BMASAVP1_0215	-	cytochrome c family protein
205	 64.93	0	239337..240950	-	537	121596509	-	BMASAVP1_0216	-	hypothetical protein
206	 68.60	0	240950..241465	-	171	121597892	-	BMASAVP1_0217	-	putative oxidoreductase
207	 62.78	-1	241515..242003	-	162	121596966	-	BMASAVP1_0218	-	hypothetical protein
208	 69.17	0	242127..242246	+	39	121597117	-	BMASAVP1_0219	-	hypothetical protein
209	 74.56	+1	242390..242617	-	75	121596560	-	BMASAVP1_0220	-	hypothetical protein
210	 71.48	0	243006..244625	+	539	121597334	-	BMASAVP1_0221	-	serine metalloprotease MrpA
211	 77.78	+1	245203..245319	+	38	121596566	-	BMASAVP1_0222	-	hypothetical protein
212	 66.81	0	245365..248151	+	928	121597650	-	BMASAVP1_0223	-	magnesium-translocating P-type ATPase
213	 68.68	0	248227..248970	+	247	121596691	-	BMASAVP1_0224	-	hypothetical protein
214	 76.67	+1	249129..249548	-	139	121597513	-	BMASAVP1_0225	-	hypothetical protein
215	 69.70	0	249559..250977	-	472	121597508	-	BMASAVP1_0226	-	GntR family transcriptional regulator
216	 68.99	0	251114..253480	+	788	121597722	-	BMASAVP1_0227	-	molybdopterin oxidoreductase, alpha subunit
217	 68.98	0	253493..254401	+	302	121597801	-	BMASAVP1_0228	-	hypothetical protein
218	 63.92	0	254629..255102	+	157	121596904	-	BMASAVP1_0229	-	hypothetical protein
219	 71.54	0	255538..256851	-	437	121597950	-	BMASAVP1_0230	-	manganese/iron transporter
220	 67.14	0	256950..258206	-	418	121597203	oxdD	BMASAVP1_0231	-	oxalate decarboxylase
221	 65.79	0	258498..260090	+	530	121597333	-	BMASAVP1_0232	-	solute-binding family 5 protein
222	 69.07	0	260286..260951	-	221	121598160	-	BMASAVP1_0233	-	hypothetical protein
223	 71.55	0	261012..264407	-	1131	121597692	-	BMASAVP1_0234	-	serine protease
224	 63.45	0	264432..264680	+	82	121596576	-	BMASAVP1_0235	-	hypothetical protein
225	 50.83	-2	264775..264894	-	39	121597696	-	BMASAVP1_0236	-	hypothetical protein
226	 57.08	-2	265450..265929	-	159	121596685	-	BMASAVP1_0237	-	hypothetical protein
227	 66.95	0	265936..270561	-	1541	121597919	-	BMASAVP1_0238	-	YD repeat-containing protein
228	 64.60	0	270613..271047	-	144	121596982	-	BMASAVP1_0239	-	hypothetical protein
229	 63.90	0	271139..273124	-	661	121598164	-	BMASAVP1_0240	-	Rhs element Vgr protein
230	 71.11	0	273477..274625	+	382	121596980	-	BMASAVP1_0241	-	hypothetical protein
231	 67.56	0	274683..275132	+	149	121598124	-	BMASAVP1_0242	-	hypothetical protein
232	 73.81	+1	275167..275292	+	41	121597414	-	BMASAVP1_0244	-	hypothetical protein
233	 78.19	+1	275261..275503	-	80	121596895	-	BMASAVP1_0243	-	hypothetical protein
234	 69.58	0	275616..276506	+	296	121596651	-	BMASAVP1_0245	-	hypothetical protein
235	 69.82	0	276526..277095	+	189	121597635	vanX	BMASAVP1_0246	-	D-alanyl-D-alanine dipeptidase
236	 65.92	0	277244..278845	+	533	121596798	-	BMASAVP1_0247	-	ABC transporter, periplasmic substrate-binding protein
237	 69.84	0	278866..279936	+	356	121597039	-	BMASAVP1_0248	-	ABC transporter, permease protein
238	 72.29	0	279979..280920	+	313	121597566	-	BMASAVP1_0249	-	ABC transporter, permease protein
239	 72.79	0	280922..281803	+	293	121597242	-	BMASAVP1_0250	-	ABC transporter, ATP-binding protein
240	 70.96	0	281800..282567	+	255	121596574	-	BMASAVP1_0251	-	ABC transporter, ATP-binding protein
241	 71.54	0	283143..283265	-	40	121596522	-	BMASAVP1_0252	-	hypothetical protein
242	 67.86	0	283409..283744	+	111	121597347	-	BMASAVP1_0253	-	hypothetical protein
243	 68.18	0	283854..284846	-	330	121597893	-	BMASAVP1_0254	-	LysR family transcriptional regulator
244	 72.40	0	284770..285240	+	156	121596935	-	BMASAVP1_0256	-	hypothetical protein
245	 79.10	+2	285224..285400	-	58	121597746	-	BMASAVP1_0255	-	beta-lactamase, class A
246	 70.26	0	285457..286401	-	314	121597865	blaA	BMASAVP1_0257	-	class A beta-lactamase
247	 73.17	0	286519..287487	-	322	121597179	-	BMASAVP1_0258	-	putative peptidoglycan-binding LysM/M23B peptidase
248	 62.35	-1	287543..287959	+	138	121597476	-	BMASAVP1_0259	-	hypothetical protein
249	 67.00	0	288084..288995	+	303	121597656	-	BMASAVP1_0260	-	LysR family transcriptional regulator
250	 64.23	0	289006..289128	+	40	121597118	-	BMASAVP1_0262	-	hypothetical protein
251	 66.67	0	289110..289289	-	59	121597386	-	BMASAVP1_0261	-	hypothetical protein
252	 65.37	0	289497..290651	-	384	121597890	-	BMASAVP1_0263	-	putative outer membrane porin
253	 57.03	-2	290670..290918	+	82	121597937	-	BMASAVP1_0264	-	hypothetical protein
254	 69.18	0	291072..292226	+	384	121596952	-	BMASAVP1_0265	-	hypothetical protein
255	 70.33	0	292291..293136	+	281	121597538	-	BMASAVP1_0267	-	putative esterase
256	 74.47	+1	293108..294055	-	315	121596883	-	BMASAVP1_0266	-	ornithine cyclodeaminase
257	 69.67	0	294727..295125	-	132	121597434	pcaC	BMASAVP1_0268	-	4-carboxymuconolactone decarboxylase
258	 72.39	0	295508..296398	+	296	121596605	-	BMASAVP1_0269	-	alpha/beta fold family hydrolase
259	 65.85	0	296452..297432	-	326	121597594	-	BMASAVP1_0270	-	putative potassium channel protein
260	 75.36	+1	297592..297729	-	45	121597657	-	BMASAVP1_0271	-	hypothetical protein
261	 71.93	0	297829..299157	-	442	121597740	-	BMASAVP1_0272	-	hypothetical protein
262	 66.67	0	299336..300244	+	302	121597024	-	BMASAVP1_0273	-	hypothetical protein
263	 71.90	0	300595..300747	-	50	121598046	-	BMASAVP1_0274	-	hypothetical protein
264	 69.43	0	300887..302551	+	554	121597239	-	BMASAVP1_0275	-	hypothetical protein
265	 78.07	+1	302784..302897	-	37	121597223	-	BMASAVP1_0276	-	hypothetical protein
266	 69.62	0	302898..304490	-	530	121598072	-	BMASAVP1_0277	-	methyl-accepting chemotaxis protein
267	 63.69	0	304338..304505	+	55	121597578	-	BMASAVP1_0278	-	hypothetical protein
268	 70.17	0	304578..306092	+	504	121596491	-	BMASAVP1_0279	-	EmrB/QacA family drug resistance transporter
269	 64.03	0	306127..307149	-	340	121596774	-	BMASAVP1_0280	-	hypothetical protein
270	 74.56	+1	307146..307259	-	37	121598047	-	BMASAVP1_0281	-	hypothetical protein
271	 60.67	-1	307320..307469	-	49	121597546	-	BMASAVP1_0282	-	hypothetical protein
272	 70.30	0	307468..308211	+	247	121596616	pat	BMASAVP1_0284	-	phosphinothricin N-acetyltransferase
273	 75.83	+1	307488..307607	+	39	121596824	-	BMASAVP1_0283	-	hypothetical protein
274	 67.83	0	308239..309096	+	285	121597562	-	BMASAVP1_0285	-	MerR family transcriptional regulator
275	 69.51	0	309221..310204	+	327	121596836	-	BMASAVP1_0286	-	aliphatic sulfonate ABC transporter substrate-binding protein
276	 65.08	0	310238..310363	-	41	121597622	-	BMASAVP1_0287	-	hypothetical protein
277	 72.81	0	310391..311041	+	216	121597835	-	BMASAVP1_0288	-	hypothetical protein
278	 63.48	0	311287..311913	+	208	121597052	-	BMASAVP1_0289	-	monooxygenase, truncation
279	 57.20	-2	311944..312207	+	87	121598020	-	BMASAVP1_0290	-	IS407A, transposase OrfA
280	 61.75	-1	312231..313064	+	277	121596677	-	BMASAVP1_0291	-	IS407A, transposase OrfB
281	 71.17	0	313481..314545	-	354	121597477	-	BMASAVP1_0292	-	pyridine nucleotide-disulphide oxidoreductase, class II, truncation
282	 64.74	0	314618..315136	+	172	121596479	-	BMASAVP1_0293	-	transcriptional regulator
283	 68.69	0	315256..316095	-	279	121597826	-	BMASAVP1_0294	-	hypothetical protein
284	 66.90	0	316109..316981	-	290	121596668	nhoA	BMASAVP1_0295	-	N-hydroxyarylamine O-acetyltransferase
285	 69.52	0	317098..317799	-	233	121598055	-	BMASAVP1_0296	-	hypothetical protein
286	 70.51	0	317860..318093	-	77	121596912	-	BMASAVP1_0297	-	hypothetical protein
287	 60.44	-1	318236..318460	+	74	121596527	-	BMASAVP1_0298	-	hypothetical protein
288	 70.94	0	318493..318609	+	38	121597152	-	BMASAVP1_0299	-	hypothetical protein
289	 66.13	0	318628..319929	-	433	121596734	-	BMASAVP1_0300	-	methionine gamma-lyase
68.39	MEAN

5.20	STD DEV
