IslandPath Analysis: Burkholderia mallei SAVP1

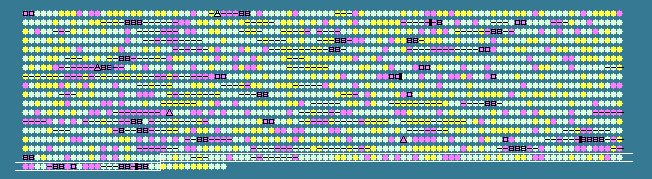

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.39 STD DEV: 5.20
Burkholderia mallei SAVP1 chromosome II, complete sequence - 1..1734922
1734 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1624	 66.32	0	1619246..1620118	+	290	121596953	accD	BMASAVP1_1652	-	acetyl-CoA carboxylase subunit beta
1625	 67.97	0	1620158..1621543	+	461	121597599	folC	BMASAVP1_1653	-	FolC bifunctional protein
1626	 74.24	+1	1621663..1622388	+	241	121597080	-	BMASAVP1_1654	-	sporulation repeat-containing protein
1627	 67.07	0	1622395..1622889	+	164	121598125	-	BMASAVP1_1655	-	CvpA family protein
1628	 65.56	0	1622942..1624477	+	511	121597199	purF	BMASAVP1_1656	-	amidophosphoribosyltransferase
1629	 67.25	0	1624733..1625923	+	396	121596659	metZ	BMASAVP1_1657	-	O-succinylhomoserine sulfhydrylase
1630	 78.11	+1	1626017..1626217	-	66	121597416	-	BMASAVP1_1658	-	hypothetical protein
1631	 71.68	0	1626605..1627621	-	338	121596831	-	BMASAVP1_1659	-	putative GDP-6-deoxy-D-lyxo-4-hexulose reductase
1632	 65.23	0	1627608..1628651	-	347	121597938	gmd	BMASAVP1_1660	-	GDP-mannose 4,6-dehydratase
1633	 69.97	0	1628687..1629745	-	352	121597665	-	BMASAVP1_1661	-	acyltransferase family protein
1634	 67.38	0	1629699..1629839	+	46	121596923	-	BMASAVP1_1663	-	hypothetical protein
1635	 48.55	-2	1629803..1629940	-	45	121596445	-	BMASAVP1_1662	-	acyltransferase 3
1636	 69.76	0	1630158..1632326	+	722	121596733	-	BMASAVP1_1664	-	hypothetical protein
1637	 68.18	0	1632387..1633841	+	484	121597673	-	BMASAVP1_1665	-	polysaccharide biosynthesis family protein
1638	 70.60	0	1633838..1636300	+	820	121596546	-	BMASAVP1_1666	-	glycosyl transferase, group 1 family protein
1639	 68.41	0	1636414..1636815	-	133	121597455	-	BMASAVP1_1667	-	acyltransferase 3
1640	 59.03	-1	1637806..1637949	+	47	121597132	-	BMASAVP1_1668	-	hypothetical protein
1641	 65.54	0	1638135..1639112	+	325	121597783	galU-2	BMASAVP1_1669	-	UTP-glucose-1-phosphate uridylyltransferase
1642	 66.44	0	1639643..1641400	-	585	121597250	-	BMASAVP1_1670	-	acyltransferase family protein
1643	 65.96	0	1641066..1641488	+	140	121596682	bph2	BMASAVP1_1671	-	DNA-binding protein BpH2
1644	 66.67	0	1641948..1642415	-	155	121596999	-	BMASAVP1_1672	-	hypothetical protein
1645	 68.42	0	1643015..1643128	-	37	121597993	-	BMASAVP1_1673	-	hypothetical protein
1646	 64.48	0	1643266..1644501	-	411	121597035	-	BMASAVP1_1674	-	putative outer membrane porin
1647	 69.81	0	1644878..1645801	-	307	121596477	-	BMASAVP1_1675	-	putative ribonuclease BN
1648	 69.32	0	1646061..1646399	-	112	121597245	-	BMASAVP1_1676	-	hypothetical protein
1649	 69.31	0	1646956..1647978	+	340	121596877	-	BMASAVP1_1677	-	hypothetical protein
1650	 67.26	0	1648219..1648386	+	55	121597636	-	BMASAVP1_1678	-	hypothetical protein
1651	 70.49	0	1648621..1649274	+	217	121597079	-	BMASAVP1_1679	-	acetyltransferase
1652	 69.10	0	1649327..1650313	+	328	121598012	-	BMASAVP1_1680	-	putative amino acid ABC transporter, periplasmic amino acid-binding protein
1653	 77.49	+1	1650374..1650604	+	76	121596791	-	BMASAVP1_1681	-	hypothetical protein
1654	 72.95	0	1650633..1651634	+	333	121597778	-	BMASAVP1_1682	-	luciferase-like monooxygenase
1655	 69.61	0	1651690..1653012	+	440	121596612	ntaA	BMASAVP1_1683	-	nitrilotriacetate monooxygenase component A
1656	 72.36	0	1653009..1653131	+	40	121597605	-	BMASAVP1_1684	-	hypothetical protein
1657	 71.22	0	1653128..1655038	+	636	121597406	-	BMASAVP1_1685	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease/periplasmic amino acid-binding protein
1658	 59.93	-1	1655281..1655577	+	98	121596642	-	BMASAVP1_1686	-	hypothetical protein
1659	 73.82	+1	1655574..1656509	+	311	121598049	-	BMASAVP1_1687	-	putative amino acid ABC transporter, periplasmic amino acid-binding protein
1660	 70.31	0	1656762..1657529	+	255	121597067	-	BMASAVP1_1688	-	hypothetical protein
1661	 64.44	0	1657892..1658026	-	44	121596938	-	BMASAVP1_1689	-	hypothetical protein
1662	 67.01	0	1658477..1659067	+	196	121596837	-	BMASAVP1_1690	-	formate dehydrogenase, alpha subunit, selenocysteine-containing
1663	 63.92	0	1659080..1660099	+	339	121597570	-	BMASAVP1_1691	-	formate dehydrogenase, nitrate-inducible, major subunit
1664	 66.25	0	1660112..1661548	+	478	121596577	-	BMASAVP1_1692	-	formate dehydrogenase-O, major subunit
1665	 66.12	0	1661559..1662473	+	304	121597338	fdoH	BMASAVP1_1693	-	formate dehydrogenase, beta subunit
1666	 64.27	0	1662470..1663096	+	208	121598056	fdoI	BMASAVP1_1694	-	formate dehydrogenase, gamma subunit
1667	 70.59	0	1663271..1664239	+	322	121596480	fdhE	BMASAVP1_1695	-	formate dehydrogenase accessory protein
1668	 74.01	+1	1664236..1665678	+	480	121597715	selA	BMASAVP1_1696	-	selenocysteine synthase
1669	 72.96	0	1665645..1667600	+	651	121596746	selB	BMASAVP1_1697	-	translation elongation factor, selenocysteine-specific
1670	 67.48	0	1667981..1668103	+	40	121597910	-	BMASAVP1_1698	-	hypothetical protein
1671	 57.29	-2	1668181..1668468	-	95	121597266	-	BMASAVP1_1699	-	hypothetical protein
1672	 63.69	0	1669027..1669194	-	55	121598057	-	BMASAVP1_1700	-	glutamyl-tRNA
1673	 60.77	-1	1669455..1669946	-	163	121597449	-	BMASAVP1_1701	-	hypothetical protein
1674	 66.67	0	1670221..1670364	-	47	121596519	-	BMASAVP1_1702	-	hypothetical protein
1675	 68.88	0	1670431..1671558	-	375	121597551	-	BMASAVP1_1703	-	putative beta-glucosidase
1676	 66.23	0	1671589..1672731	-	380	121596812	-	BMASAVP1_1704	-	beta-glucosidase
1677	 70.64	0	1673377..1674633	-	418	121596680	-	BMASAVP1_1705	-	putative transporter
1678	 73.76	+1	1674705..1674845	-	46	121597452	-	BMASAVP1_1706	-	hypothetical protein
1679	 69.98	0	1675124..1677478	+	784	121597323	rhf	BMASAVP1_1707	-	cytochrome P450
1680	 72.81	0	1677546..1678115	+	189	121597467	-	BMASAVP1_1708	-	putative transporter
1681	 66.67	0	1678554..1678658	-	34	121597046	-	BMASAVP1_1709	-	hypothetical protein
1682	 65.51	0	1678607..1679734	+	375	121597782	-	BMASAVP1_1710	-	patatin-like phospholipase
1683	 72.03	0	1679835..1680449	-	204	121597641	-	BMASAVP1_1711	-	hypothetical protein
1684	 72.36	0	1680436..1680927	-	163	121597909	-	BMASAVP1_1712	-	hypothetical protein
1685	 66.83	0	1680924..1683344	-	806	121596901	-	BMASAVP1_1713	-	lectin repeat-containing protein
1686	 57.97	-2	1683377..1683514	-	45	121597398	-	BMASAVP1_1714	-	hypothetical protein
1687	 53.92	-2	1683556..1683657	-	33	121596718	-	BMASAVP1_1715	-	hypothetical protein
1688	 68.91	0	1683730..1685157	+	475	121598053	-	BMASAVP1_1716	-	response regulator
1689	 68.45	0	1685230..1686408	+	392	121597288	-	BMASAVP1_1717	-	hypothetical protein
1690	 65.38	0	1686401..1687570	+	389	121596756	-	BMASAVP1_1718	-	sensor histidine kinase
1691	 67.17	0	1687733..1688131	-	132	121597527	-	BMASAVP1_1719	-	hypothetical protein
1692	 71.93	0	1688128..1689534	-	468	121597066	-	BMASAVP1_1720	-	major facilitator family transporter
1693	 68.16	0	1689616..1690554	+	312	121597572	-	BMASAVP1_1721	-	LysR family transcriptional regulator
1694	 70.62	0	1690650..1690826	-	58	121596758	-	BMASAVP1_1722	-	hypothetical protein
1695	 73.87	+1	1690854..1690964	-	36	121597093	-	BMASAVP1_1723	-	hypothetical protein
1696	 67.76	0	1691116..1692027	+	303	121596909	-	BMASAVP1_1724	-	LysR family transcriptional regulator
1697	 72.00	0	1692132..1693013	+	293	121597899	-	BMASAVP1_1725	-	putative citrate lyase, beta subunit
1698	 61.55	-1	1693050..1693577	+	175	121597159	-	BMASAVP1_1726	-	MoaC domain-containing protein
1699	 65.47	0	1693602..1694933	+	443	121597975	-	BMASAVP1_1727	-	acetyl-CoA hydrolase/transferase family protein
1700	 68.23	0	1694934..1696664	+	576	121598137	poxB	BMASAVP1_1728	-	pyruvate dehydrogenase
1701	 64.15	0	1696818..1696976	+	52	121596500	-	BMASAVP1_1729	-	hypothetical protein
1702	 51.19	-2	1697067..1697234	-	55	121597604	-	BMASAVP1_1730	-	hypothetical protein
1703	 67.87	0	1697941..1698189	+	82	121596600	-	BMASAVP1_1731	-	hypothetical protein
1704	 67.13	0	1698404..1701187	+	927	121596964	-	BMASAVP1_1732	-	putative diaminobutyrate--pyruvate aminotransferase/membrane protein
1705	 64.53	0	1701358..1705944	+	1528	121598158	-	BMASAVP1_1733	-	putative peptide synthetase
1706	 61.75	-1	1705989..1706822	-	277	121597069	-	BMASAVP1_1734	-	A, transposase OrfB
1707	 57.20	-2	1706846..1707109	-	87	121597608	-	BMASAVP1_1735	-	transposase subfamily protein
1708	 55.10	-2	1707280..1707426	+	48	121597611	-	BMASAVP1_1736	-	hypothetical protein
1709	 63.56	0	1707551..1709032	-	493	121597943	-	BMASAVP1_1737	-	ISBma2, transposase
1710	 66.50	0	1709172..1710371	-	399	121597982	tyrB-2	BMASAVP1_1738	-	aromatic amino acid aminotransferase
1711	 64.47	0	1710659..1712749	+	696	121597246	uvrB	BMASAVP1_1739	-	excinuclease ABC subunit B
1712	 63.45	0	1712904..1713524	+	206	121597218	-	BMASAVP1_1740	-	putative antigen
1713	 64.55	0	1713584..1713913	+	109	121597768	-	BMASAVP1_1741	-	hypothetical protein
1714	 65.72	0	1713973..1714815	+	280	121597987	-	BMASAVP1_1742	-	OFeT family iron transporter
1715	 68.52	0	1714812..1716212	+	466	121597317	-	BMASAVP1_1743	-	hypothetical protein
1716	 69.59	0	1716272..1716682	+	136	121596876	-	BMASAVP1_1744	-	glcG protein
1717	 57.20	-2	1716828..1717091	+	87	121597410	-	BMASAVP1_1745	-	IS407A, transposase OrfA
1718	 61.75	-1	1717115..1717948	+	277	121597754	-	BMASAVP1_1746	-	IS407A, transposase OrfB
1719	 64.00	0	1718035..1718184	+	49	121596998	-	BMASAVP1_1747	-	undecaprenyl-diphosphatase 1
1720	 61.75	-1	1718747..1719580	-	277	121597279	-	BMASAVP1_1749	-	IS407A, transposase OrfB
1721	 57.20	-2	1719604..1719867	-	87	121598162	-	BMASAVP1_1750	-	IS407A, transposase OrfA
1722	 70.66	0	1720889..1722943	-	684	121597343	-	BMASAVP1_1752	-	putative 4-hydroxyphenylpyruvate dioxygenase
1723	 68.42	0	1723203..1723658	+	151	121596672	aroQ-2	BMASAVP1_1753	-	3-dehydroquinate dehydratase
68.39	MEAN

5.20	STD DEV
