IslandPath Analysis: Burkholderia mallei SAVP1

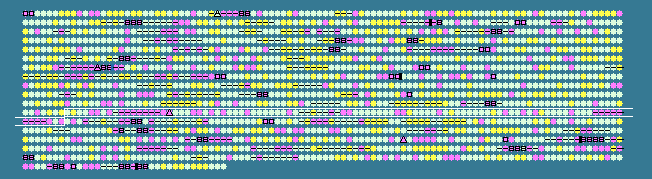

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.39 STD DEV: 5.20
Burkholderia mallei SAVP1 chromosome II, complete sequence - 1..1734922
1734 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1108	 69.38	0	1148960..1149808	-	282	121597019	-	BMASAVP1_1131	-	putative phytoene synthase
1109	 73.07	0	1150353..1151258	+	301	121597836	-	BMASAVP1_1132	-	esterase EstC
1110	 66.67	0	1151305..1152240	-	311	121597761	-	BMASAVP1_1133	-	diguanylate cyclase
1111	 68.27	0	1152237..1152860	-	207	121597138	-	BMASAVP1_1134	-	CheC family phosphatase
1112	 61.79	-1	1152853..1153221	-	122	121597059	-	BMASAVP1_1135	-	response regulator
1113	 62.35	-1	1153569..1153730	+	53	121597847	-	BMASAVP1_1136	-	hypothetical protein
1114	 68.24	0	1153727..1156009	+	760	121596771	-	BMASAVP1_1137	-	sensor histidine kinase/response regulator
1115	 63.44	0	1156267..1156824	-	185	121597624	-	BMASAVP1_1138	-	NADPH-dependent FMN reductase domain-containing protein
1116	 69.84	0	1157059..1157184	-	41	121596666	-	BMASAVP1_1139	-	hypothetical protein
1117	 63.70	0	1157188..1157793	+	201	121597433	-	BMASAVP1_1140	-	RNA polymerase sigma factor
1118	 63.64	0	1157774..1157971	+	65	121596781	-	BMASAVP1_1141	-	hypothetical protein
1119	 57.98	-2	1158308..1158664	-	118	121597559	-	BMASAVP1_1142	-	arsenate reductase
1120	 58.22	-1	1159086..1159748	+	220	121596657	-	BMASAVP1_1143	-	ParA family protein
1121	 60.77	-1	1159773..1160840	+	355	121597353	-	BMASAVP1_1144	-	parB family protein
1122	 63.01	-1	1160931..1162271	-	446	121598070	-	BMASAVP1_1145	-	putative plasmid replication protein
1123	 41.27	-2	1165233..1165358	-	41	121597285	-	BMASAVP1_1146	-	hypothetical protein
1124	 62.63	-1	1165330..1166517	+	395	121597844	-	BMASAVP1_1147	-	hypothetical protein
1125	 64.46	0	1166611..1167654	-	347	121597050	-	BMASAVP1_1148	-	phage integrase family protein
1126	 67.72	0	1167817..1168197	-	126	121597519	-	BMASAVP1_1149	-	hypothetical protein
1127	 68.97	0	1168277..1168885	-	202	121596499	-	BMASAVP1_1150	-	DNA-binding protein
1128	 67.08	0	1169053..1170252	+	399	121597806	kbl	BMASAVP1_1151	-	2-amino-3-ketobutyrate coenzyme A ligase
1129	 64.34	0	1170265..1171296	+	343	121596805	tdh	BMASAVP1_1152	-	L-threonine 3-dehydrogenase
1130	 59.55	-1	1171320..1171586	+	88	121597105	-	BMASAVP1_1153	-	hypothetical protein
1131	 67.43	0	1171631..1172284	-	217	121597756	-	BMASAVP1_1154	-	putative lipoprotein
1132	 63.27	0	1172196..1172342	+	48	121598153	-	BMASAVP1_1155	-	hypothetical protein
1133	 70.55	0	1172374..1172991	+	205	121597124	-	BMASAVP1_1156	-	TetR family transcriptional regulator
1134	 63.12	-1	1173092..1173571	+	159	121597077	-	BMASAVP1_1157	-	hypothetical protein
1135	 67.16	0	1173793..1175019	-	408	121597819	-	BMASAVP1_1158	-	succinylglutamate desuccinylase / aspartoacylase family protein
1136	 67.76	0	1175133..1176323	-	396	121597106	ttuC	BMASAVP1_1159	-	tartrate dehydrogenase
1137	 67.21	0	1176387..1177304	+	305	121596750	-	BMASAVP1_1160	-	LysR family transcriptional regulator
1138	 58.77	-1	1177378..1177491	+	37	121596661	-	BMASAVP1_1161	-	hypothetical protein
1139	 67.11	0	1177790..1178467	+	225	121597396	-	BMASAVP1_1162	-	hypothetical protein
1140	 70.83	0	1178464..1178655	+	63	121597160	-	BMASAVP1_1163	-	hypothetical protein
1141	 65.71	0	1178662..1179285	+	207	121597901	-	BMASAVP1_1164	-	glutathione S-transferase
1142	 70.04	0	1179720..1180253	-	177	121597236	-	BMASAVP1_1165	-	hypothetical protein
1143	 65.86	0	1180264..1181502	-	412	121597008	-	BMASAVP1_1166	-	patatin family phospholipase
1144	 65.65	0	1181499..1182284	-	261	121597785	bdhA-1	BMASAVP1_1167	-	3-hydroxybutyrate dehydrogenase
1145	 62.10	-1	1182331..1183272	-	313	121597655	adc	BMASAVP1_1168	-	acetoacetate decarboxylase
1146	 70.91	0	1183491..1184126	+	211	121597976	-	BMASAVP1_1169	-	PAP2 family protein
1147	 66.24	0	1184149..1184385	-	78	121597441	-	BMASAVP1_1170	-	sperm-specific protein Phi-1
1148	 68.55	0	1184384..1184542	+	52	121596859	-	BMASAVP1_1171	-	hypothetical protein
1149	 73.33	0	1184708..1184827	+	39	121597675	-	BMASAVP1_1172	-	hypothetical protein
1150	 68.36	0	1185151..1185978	-	275	121597098	-	BMASAVP1_1173	-	siderophore-interacting protein
1151	 69.71	0	1186018..1186641	-	207	121597833	-	BMASAVP1_1174	-	PadR family transcriptional regulator
1152	 63.12	-1	1186606..1186746	+	46	121597946	-	BMASAVP1_1175	-	hypothetical protein
1153	 65.25	0	1187133..1188539	+	468	121596984	-	BMASAVP1_1176	-	cytochrome P450-related protein
1154	 57.50	-2	1188770..1188889	+	39	121597211	-	BMASAVP1_1177	-	hypothetical protein
1155	 64.55	0	1189063..1189914	+	283	121597731	-	BMASAVP1_1178	-	hypothetical protein
1156	 66.67	0	1189911..1190744	+	277	121596542	-	BMASAVP1_1179	-	hypothetical protein
1157	 66.72	0	1190741..1192684	+	647	121597537	-	BMASAVP1_1180	-	radical SAM domain/B12 binding domain-containing protein
1158	 68.79	0	1192698..1193687	+	329	121596601	-	BMASAVP1_1181	-	hypothetical protein
1159	 67.95	0	1193859..1194479	-	206	121596917	-	BMASAVP1_1182	-	LysE family protein
1160	 69.46	0	1194587..1195480	+	297	121596801	-	BMASAVP1_1183	-	chromosome replication initiation inhibitor protein
1161	 67.20	0	1195527..1196282	-	251	121596864	-	BMASAVP1_1184	-	Crp/FNR family transcriptional regulator
1162	 67.09	0	1196432..1196899	-	155	121597661	-	BMASAVP1_1185	-	universal stress protein
1163	 63.04	-1	1196965..1197102	-	45	121596471	-	BMASAVP1_1186	-	hypothetical protein
1164	 63.64	0	1197323..1197553	+	76	121597640	-	BMASAVP1_1187	-	hypothetical protein
1165	 73.15	0	1197686..1197901	+	71	121597501	-	BMASAVP1_1188	-	hypothetical protein
1166	 70.93	0	1197929..1199899	+	656	121596748	-	BMASAVP1_1189	-	aldehyde dehydrogenase (NADP) family protein
1167	 66.14	0	1199896..1200846	+	316	121598171	-	BMASAVP1_1190	-	putative gluconolactonase
1168	 69.28	0	1200903..1201592	-	229	121596498	-	BMASAVP1_1191	-	hypothetical protein
1169	 69.85	0	1201632..1202039	-	135	121597109	-	BMASAVP1_1192	-	hypothetical protein
1170	 59.92	-1	1202315..1202551	+	78	121598085	-	BMASAVP1_1193	-	hypothetical protein
1171	 66.67	0	1202675..1203598	+	307	121597616	-	BMASAVP1_1194	-	putative serine O-acetyltransferase
1172	 78.31	+1	1203619..1203867	+	82	121596793	-	BMASAVP1_1196	-	hypothetical protein
1173	 66.79	0	1203822..1204625	-	267	121596780	-	BMASAVP1_1195	-	short chain dehydrogenase/reductase family oxidoreductase
1174	 66.89	0	1204626..1205504	-	292	121597088	folE	BMASAVP1_1197	-	GTP cyclohydrolase I
1175	 68.29	0	1205492..1206415	-	307	121597859	-	BMASAVP1_1198	-	LysR family transcriptional regulator
1176	 68.52	0	1206514..1207755	+	413	121597331	pobA	BMASAVP1_1199	-	4-hydroxybenzoate 3-monooxygenase
1177	 66.31	0	1207828..1208676	+	282	121596994	pcaI	BMASAVP1_1200	-	3-oxoadipate CoA-transferase, alpha subunit
1178	 65.91	0	1208695..1209351	+	218	121597917	-	BMASAVP1_1201	-	3-oxoadipate CoA-succinyl transferase beta subunit
1179	 71.96	0	1209487..1210845	+	452	121596725	pcaB	BMASAVP1_1202	-	3-carboxy-cis,cis-muconate cycloisomerase
1180	 67.43	0	1210858..1211643	+	261	121597629	pcaD	BMASAVP1_1203	-	3-oxoadipate enol-lactonase
1181	 64.34	0	1211659..1212045	+	128	121597654	-	BMASAVP1_1204	-	3-oxoadipate enol-lactone hydrolase/4-carboxymuconolactone decarboxylase
1182	 69.17	0	1212224..1213579	+	451	121597765	pcaK	BMASAVP1_1205	-	4-hydroxybenzoate transporter
1183	 65.86	0	1213647..1213895	-	82	121596621	-	BMASAVP1_1206	-	hypothetical protein
1184	 63.59	0	1213996..1214613	-	205	121597565	-	BMASAVP1_1207	-	LysE family translocator protein
1185	 70.25	0	1214808..1216064	-	418	121597270	-	BMASAVP1_1208	-	major facilitator transporter
1186	 64.40	0	1216051..1216668	-	205	121597400	-	BMASAVP1_1209	-	hypothetical protein
1187	 74.31	+1	1216708..1216851	-	47	121598069	-	BMASAVP1_1210	-	hypothetical protein
1188	 67.20	0	1216881..1217444	-	187	121597286	-	BMASAVP1_1211	-	chromate transport protein
1189	 66.84	0	1217505..1218071	-	188	121596786	-	BMASAVP1_1212	-	chromate transport protein
1190	 68.81	0	1218068..1219045	-	325	121597086	-	BMASAVP1_1213	-	chromate resistance protein ChrB
1191	 69.95	0	1219264..1219689	-	141	121596816	-	BMASAVP1_1214	-	ABC transporter, permease protein
1192	 62.78	-1	1220011..1220550	+	179	121597755	-	BMASAVP1_1215	-	hypothetical protein
1193	 67.81	0	1220555..1220905	+	116	121597590	-	BMASAVP1_1216	-	hypothetical protein
1194	 66.81	0	1220914..1221609	+	231	121596846	-	BMASAVP1_1217	-	RNA polymerase sigma factor
1195	 70.25	0	1222086..1227998	+	1970	121597263	uvrA2	BMASAVP1_1218	-	excinuclease ABC, subunit A, form 2
1196	 57.84	-2	1228675..1228878	+	67	121596590	-	BMASAVP1_1219	-	hypothetical protein
1197	 61.30	-1	1229032..1229292	-	86	121598042	-	BMASAVP1_1220	-	hypothetical protein
1198	 62.59	-1	1229588..1229734	+	48	121596976	-	BMASAVP1_1221	-	hypothetical protein
1199	 62.19	-1	1229738..1229938	+	66	121596486	-	BMASAVP1_1222	-	hypothetical protein
1200	 58.61	-1	1229935..1230207	+	90	121597262	-	BMASAVP1_1223	-	hypothetical protein
1201	 53.03	-2	1230214..1230345	-	43	121597089	-	BMASAVP1_1224	-	hypothetical protein
1202	 61.33	-1	1230490..1230789	-	99	121597846	-	BMASAVP1_1225	-	H-NS histone family protein
1203	 56.61	-2	1230822..1231010	-	62	121597104	-	BMASAVP1_1226	-	hypothetical protein
1204	 64.56	0	1231339..1231623	+	94	121598036	-	BMASAVP1_1227	-	major facilitator family protein
1205	 62.83	-1	1231623..1232690	+	355	121597233	kgtP	BMASAVP1_1228	-	alpha-ketoglutarate permease
1206	 68.84	0	1232743..1233753	+	336	121597529	-	BMASAVP1_1229	-	C4-dicarboxylate transport sensor kinase
1207	 64.52	0	1233731..1234663	+	310	121596554	-	BMASAVP1_1230	-	Signal transduction histidine kinase regulating C4-dicarboxylate transport system
68.39	MEAN

5.20	STD DEV
