IslandPath Analysis: Burkholderia ambifaria AMMD

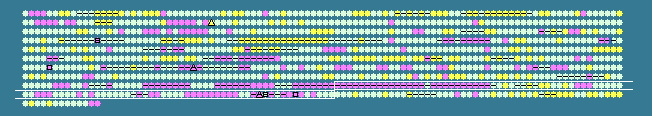

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
853	 55.60	-2	1057096..1057800	+	234	115361170	-	Bamb_6429	-	aspartate racemase
854	 59.63	-1	1058833..1059159	+	108	115361171	-	Bamb_6430	-	hypothetical protein
855	 62.63	0	1059503..1060246	-	247	115361172	-	Bamb_6431	-	short-chain dehydrogenase/reductase SDR
856	 59.18	-1	1060269..1060562	-	97	115361173	-	Bamb_6432	-	hypothetical protein
857	 60.40	-1	1060609..1061454	-	281	115361174	-	Bamb_6433	-	aminotransferase
858	 59.32	-1	1061600..1062565	+	321	115361175	-	Bamb_6434	-	LysR family transcriptional regulator
859	 62.33	0	1062824..1066330	-	1168	115361176	-	Bamb_6435	-	indolepyruvate ferredoxin oxidoreductase
860	 57.20	-2	1066480..1066944	+	154	115361177	-	Bamb_6436	-	AsnC family transcriptional regulator
861	 57.12	-2	1067193..1068449	-	418	115361178	-	Bamb_6437	-	hypothetical protein
862	 57.26	-2	1068508..1069857	-	449	115361179	-	Bamb_6438	-	glutathione-disulfide reductase
863	 57.97	-1	1069854..1070681	-	275	115361180	-	Bamb_6439	-	hypothetical protein
864	 60.57	-1	1070818..1071735	-	305	115361181	-	Bamb_6440	-	cysteine synthase A
865	 62.50	0	1071786..1072817	-	343	115361182	-	Bamb_6441	-	alcohol dehydrogenase
866	 62.68	0	1072977..1073729	-	250	115361183	-	Bamb_6442	-	short-chain dehydrogenase/reductase SDR
867	 62.43	0	1073770..1074996	-	408	115361184	-	Bamb_6443	-	OsmC family protein
868	 65.72	0	1075007..1076170	-	387	115361185	-	Bamb_6444	-	amine oxidase
869	 62.18	0	1076173..1076907	-	244	115361186	-	Bamb_6445	-	anti-ECFsigma factor, ChrR
870	 61.74	-1	1076919..1077263	-	114	115361187	-	Bamb_6446	-	alkylhydroperoxidase
871	 56.38	-2	1077324..1077605	-	93	115361188	-	Bamb_6447	-	hypothetical protein
872	 62.27	0	1077670..1078443	-	257	115361189	-	Bamb_6448	-	short-chain dehydrogenase/reductase SDR
873	 61.94	0	1078751..1079680	+	309	115361190	-	Bamb_6449	-	LysR family transcriptional regulator
874	 59.22	-1	1079753..1080370	-	205	115361191	-	Bamb_6450	-	TetR family transcriptional regulator
875	 56.31	-2	1080440..1081327	+	295	115361192	-	Bamb_6451	-	peptidase S15
876	 54.35	-2	1081345..1082172	+	275	115361193	-	Bamb_6452	-	short-chain dehydrogenase/reductase SDR
877	 50.64	-2	1082594..1083142	+	182	115361194	-	Bamb_6453	-	OsmC family protein
878	 59.50	-1	1083230..1084108	+	292	115361195	-	Bamb_6454	-	PhzF family phenazine biosynthesis protein
879	 64.97	0	1084358..1084888	+	176	115361196	-	Bamb_6455	-	GCN5-related N-acetyltransferase
880	 67.64	0	1084916..1085836	-	306	115361197	-	Bamb_6456	-	LysR family transcriptional regulator
881	 70.15	0	1085921..1087354	+	477	115361198	-	Bamb_6457	-	argininosuccinate lyase
882	 68.23	0	1087348..1088241	+	297	115361199	-	Bamb_6458	-	polar amino acid ABC transporter, inner membrane subunit
883	 69.01	0	1088274..1089041	+	255	115361200	-	Bamb_6459	-	ABC transporter related
884	 66.81	0	1089257..1089970	+	237	115361201	-	Bamb_6460	-	extracellular solute-binding protein
885	 70.56	+1	1089978..1090850	+	290	115361202	-	Bamb_6461	-	polysaccharide deacetylase
886	 69.64	0	1090847..1091755	+	302	115361203	-	Bamb_6462	-	polysaccharide deacetylase
887	 71.31	+1	1091752..1093128	+	458	115361204	-	Bamb_6463	-	MmgE/PrpD family protein
888	 69.77	0	1093581..1097960	+	1459	115361205	-	Bamb_6464	-	outer membrane autotransporter
889	 68.50	0	1098284..1100032	-	582	115361206	-	Bamb_6465	-	FAD linked oxidase domain-containing protein
890	 67.84	0	1101578..1102432	+	284	115361207	-	Bamb_6466	-	LuxR family transcriptional regulator
891	 72.67	+1	1102383..1102715	-	110	115361208	-	Bamb_6467	-	hypothetical protein
892	 69.47	0	1102700..1103590	-	296	115361209	-	Bamb_6468	-	LuxR family transcriptional regulator
893	 58.04	-1	1103736..1105439	-	567	115361210	-	Bamb_6469	-	cyclic peptide transporter
894	 58.43	-1	1105456..1105989	-	177	115361211	-	Bamb_6470	-	hypothetical protein
895	 61.19	-1	1105989..1106645	-	218	115361212	-	Bamb_6471	-	glycosyl transferase family protein
896	 67.77	0	1106642..1116172	-	3176	115361213	-	Bamb_6472	-	amino acid adenylation domain-containing protein
897	 68.51	0	1116260..1125316	-	3018	115361214	-	Bamb_6473	-	amino acid adenylation domain-containing protein
898	 68.25	0	1125367..1129281	-	1304	115361215	-	Bamb_6474	-	amino acid adenylation domain-containing protein
899	 62.77	0	1129269..1130885	-	538	115361216	-	Bamb_6475	-	beta-lactamase domain-containing protein
900	 68.98	0	1130896..1144332	-	4478	115361217	-	Bamb_6476	-	amino acid adenylation domain-containing protein
901	 68.68	0	1144329..1147652	-	1107	115361218	-	Bamb_6477	-	short-chain dehydrogenase/reductase SDR
902	 67.12	0	1147649..1152073	-	1474	115361219	-	Bamb_6478	-	beta-ketoacyl synthase
903	 62.26	0	1152264..1153262	-	332	115361220	-	Bamb_6479	-	taurine catabolism dioxygenase TauD/TfdA
904	 62.07	0	1153341..1154711	-	456	115361221	-	Bamb_6480	-	2,4-diaminobutyrate 4-transaminase
905	 62.39	0	1154845..1155873	-	342	115361222	-	Bamb_6481	-	NAD-dependent epimerase/dehydratase
906	 65.13	0	1155951..1156796	-	281	115361223	-	Bamb_6482	-	oleoyl-(acyl-carrier-protein) hydrolase
907	 65.89	0	1157846..1159126	+	426	115361224	-	Bamb_6483	-	polysaccharide export protein
908	 62.73	0	1159533..1160750	+	405	115361225	-	Bamb_6484	-	ATP-grasp enzyme-like protein
909	 62.96	0	1160737..1162005	+	422	115361226	-	Bamb_6485	-	putative oxidoreductase
910	 61.36	-1	1162103..1162969	+	288	115361227	-	Bamb_6486	-	polysaccharide deacetylase
911	 64.83	0	1163141..1165486	+	781	115361228	-	Bamb_6487	-	hypothetical protein
912	 62.53	0	1165552..1166880	+	442	115361229	-	Bamb_6488	-	O-antigen polymerase
913	 64.92	0	1166792..1168225	-	477	115361230	-	Bamb_6489	-	hypothetical protein
914	 63.37	0	1168209..1169453	-	414	115361231	-	Bamb_6490	-	glycosyl transferase, group 1
915	 63.90	0	1170120..1171202	+	360	115361232	-	Bamb_6491	-	undecaprenyl-phosphate galactose phosphotransferase
916	 63.11	0	1171267..1172475	+	402	115361233	-	Bamb_6492	-	glycosyl transferase, group 1
917	 64.28	0	1172477..1173856	+	459	115361234	-	Bamb_6493	-	virulence factor MVIN family protein
918	 66.73	0	1174083..1175627	+	514	115361235	-	Bamb_6494	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
919	 63.93	0	1175801..1176604	-	267	115361236	-	Bamb_6495	-	Crp/FNR family transcriptional regulator
920	 56.58	-2	1176687..1177172	+	161	115361237	-	Bamb_6496	-	hypothetical protein
921	 67.86	0	1177737..1177988	+	83	115361238	-	Bamb_6497	-	hypothetical protein
922	 58.06	-1	1178064..1179236	-	390	115361239	-	Bamb_6498	-	porin
923	 59.85	-1	1179311..1180660	-	449	115361240	-	Bamb_6499	-	major facilitator transporter
924	 63.62	0	1181416..1182300	+	294	115361241	-	Bamb_6500	-	AraC family transcriptional regulator
925	 63.09	0	1182621..1185335	+	904	115361242	-	Bamb_6501	-	2-oxoacid dehydrogenase subunit E1
926	 63.13	0	1185450..1186835	+	461	115361243	-	Bamb_6502	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
927	 64.98	0	1187117..1188895	+	592	115361244	-	Bamb_6503	-	dihydrolipoamide dehydrogenase
928	 58.63	-1	1189143..1189652	+	169	115361245	-	Bamb_6504	-	AsnC family transcriptional regulator
929	 62.49	0	1189675..1190823	+	382	115361246	-	Bamb_6505	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
930	 60.68	-1	1191024..1192661	+	545	115361247	-	Bamb_6506	-	AMP-dependent synthetase and ligase
931	 61.07	-1	1192699..1193520	-	273	115361248	-	Bamb_6507	-	AraC family transcriptional regulator
932	 60.20	-1	1193715..1194503	+	262	115361249	-	Bamb_6508	-	enoyl-CoA hydratase/isomerase
933	 61.67	-1	1194506..1195285	+	259	115361250	-	Bamb_6509	-	creatininase
934	 60.35	-1	1195576..1196730	+	384	115361251	-	Bamb_6510	-	luciferase family protein
935	 60.58	-1	1196739..1197527	+	262	115361252	-	Bamb_6511	-	enoyl-CoA hydratase/isomerase
936	 60.95	-1	1197524..1199431	+	635	115361253	-	Bamb_6512	-	AMP-dependent synthetase and ligase
937	 62.72	0	1199597..1200103	+	168	115361254	-	Bamb_6513	-	flavin reductase domain-containing protein
938	 63.43	0	1201727..1202932	+	401	115361255	-	Bamb_6514	-	alanine racemase
939	 60.57	-1	1203031..1203309	+	92	115361256	-	Bamb_6515	-	major facilitator family transporter
940	 62.44	0	1203408..1204898	+	496	115361257	-	Bamb_6516	-	integrase catalytic subunit
941	 64.84	0	1205128..1205730	+	200	115361258	-	Bamb_6517	-	transposase and inactivated derivatives
942	 52.56	-2	1205821..1206465	-	214	115361259	-	Bamb_6518	-	hypothetical protein
943	 62.94	0	1206692..1207924	+	410	115361260	-	Bamb_6519	-	hypothetical protein
944	 61.43	-1	1207925..1208497	-	190	115361261	-	Bamb_6520	-	hypothetical protein
945	 58.47	-1	1208519..1208896	-	125	115361262	-	Bamb_6521	-	hypothetical protein
946	 58.24	-1	1209274..1209546	+	90	115361263	-	Bamb_6522	-	transposase and inactivated derivatives
947	 61.26	-1	1209717..1210640	+	307	115361264	-	Bamb_6523	-	LysR family transcriptional regulator
948	 63.26	0	1210758..1212020	-	420	115361265	-	Bamb_6524	-	major facilitator transporter
949	 52.18	-2	1212343..1212777	+	144	115361266	-	Bamb_6525	-	hypothetical protein
950	 68.02	0	1213031..1214437	+	468	115361267	-	Bamb_6526	-	beta-lactamase domain-containing protein
951	 65.26	0	1214501..1215421	-	306	115361268	-	Bamb_6527	-	LysR family transcriptional regulator
952	 69.09	0	1215517..1216467	+	316	115361269	-	Bamb_6528	-	2-dehydropantoate 2-reductase
66.16	MEAN

4.31	STD DEV
