IslandPath Analysis: Burkholderia ambifaria AMMD

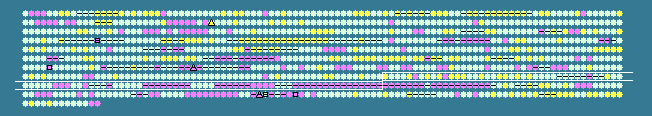

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
761	 69.88	0	943663..944595	-	310	115361078	-	Bamb_6337	-	LysR family transcriptional regulator
762	 67.24	0	944665..945540	+	291	115361079	-	Bamb_6338	-	putative oxidoreductase
763	 62.91	0	945608..946006	-	132	115361080	-	Bamb_6339	-	cupin 2 domain-containing protein
764	 65.05	0	946138..947001	-	287	115361081	-	Bamb_6340	-	NmrA family protein
765	 69.67	0	947112..948011	+	299	115361082	-	Bamb_6341	-	LysR family transcriptional regulator
766	 59.77	-1	948067..948240	-	57	115361083	-	Bamb_6342	-	hypothetical protein
767	 64.39	0	948237..949247	-	336	115361084	-	Bamb_6343	-	hypothetical protein
768	 69.88	0	949369..951327	-	652	115361085	-	Bamb_6344	-	beta strand repeat-containing protein
769	 68.70	0	951565..953085	-	506	115361086	-	Bamb_6345	-	diguanylate cyclase
770	 70.60	+1	953298..954770	-	490	115361087	-	Bamb_6346	-	succinate-semialdehyde dehydrogenase (NAD(P)(+))
771	 61.99	0	954882..955373	-	163	115361088	-	Bamb_6347	-	AsnC family transcriptional regulator
772	 70.09	0	955460..956860	-	466	115361089	-	Bamb_6348	-	hypothetical protein
773	 72.06	+1	957022..957948	-	308	115361090	-	Bamb_6349	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
774	 72.24	+1	957961..958821	-	286	115361091	-	Bamb_6350	-	GCN5-related N-acetyltransferase
775	 63.83	0	959301..959969	+	222	115361092	-	Bamb_6351	-	haloacid dehalogenase, type II
776	 68.55	0	960142..961680	+	512	115361093	-	Bamb_6352	-	methyl-accepting chemotaxis sensory transducer
777	 70.63	+1	961713..962141	-	142	115361094	-	Bamb_6353	-	hypothetical protein
778	 66.04	0	962356..963939	+	527	115361095	-	Bamb_6354	-	extracellular solute-binding protein
779	 67.09	0	964019..964972	+	317	115361096	-	Bamb_6355	-	binding-protein-dependent transport systems inner membrane component
780	 70.52	+1	965078..965959	+	293	115361097	-	Bamb_6356	-	binding-protein-dependent transport systems inner membrane component
781	 70.03	0	965959..967833	+	624	115361098	-	Bamb_6357	-	ABC transporter related
782	 68.31	0	967974..969308	+	444	115361099	-	Bamb_6358	-	FAD dependent oxidoreductase
783	 70.18	0	969395..969850	+	151	115361100	-	Bamb_6359	-	AraC family transcriptional regulator
784	 67.89	0	969972..970706	+	244	115361101	-	Bamb_6360	-	protein of unknown function DUF861, cupin_3
785	 69.68	0	970709..972034	+	441	115361102	-	Bamb_6361	-	FAD dependent oxidoreductase
786	 67.65	0	972124..973449	+	441	115361103	-	Bamb_6362	-	FAD dependent oxidoreductase
787	 69.25	0	973446..974915	+	489	115361104	-	Bamb_6363	-	betaine-aldehyde dehydrogenase
788	 66.16	0	974947..976134	+	395	115361105	-	Bamb_6364	-	amidohydrolase
789	 64.78	0	976304..977206	+	300	115361106	-	Bamb_6365	-	GCN5-related N-acetyltransferase
790	 66.89	0	977238..979457	-	739	115361107	-	Bamb_6366	-	putative transmembrane protein
791	 67.81	0	980170..982359	+	729	115361108	-	Bamb_6367	-	TonB-dependent siderophore receptor
792	 65.93	0	982384..983199	-	271	115361109	-	Bamb_6368	-	two component AraC family transcriptional regulator
793	 67.61	0	984107..987721	+	1204	115361110	-	Bamb_6369	-	YadA domain-containing protein
794	 67.83	0	987837..989207	-	456	115361111	-	Bamb_6370	-	TolC family type I secretion outer membrane protein
795	 61.90	0	989388..1000598	-	3736	115361112	-	Bamb_6371	-	hypothetical protein
796	 67.02	0	1000688..1002112	-	474	115361113	-	Bamb_6372	-	HlyD family type I secretion membrane fusion protein
797	 69.49	0	1002096..1004291	-	731	115361114	-	Bamb_6373	-	ABC transporter related
798	 70.69	+1	1004887..1006128	-	413	115361115	-	Bamb_6374	-	citrate synthase
799	 69.47	0	1006189..1006581	-	130	115361116	-	Bamb_6375	-	glyoxalase/bleomycin resistance protein/dioxygenase
800	 66.20	0	1006642..1007928	-	428	115361117	-	Bamb_6376	-	major facilitator transporter
801	 68.77	0	1008025..1008783	-	252	115361118	-	Bamb_6377	-	short-chain dehydrogenase/reductase SDR
802	 68.33	0	1009098..1010060	+	320	115361119	-	Bamb_6378	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
803	 66.96	0	1010244..1010588	-	114	115361120	-	Bamb_6379	-	hypothetical protein
804	 63.22	0	1010683..1012803	+	706	115361121	-	Bamb_6380	-	putative outer membrane protein
805	 69.34	0	1012838..1014070	+	410	115361122	-	Bamb_6381	-	hypothetical protein
806	 62.67	0	1014606..1014905	+	99	115361123	-	Bamb_6382	-	histone family protein nucleoid-structuring protein H-NS
807	 60.73	-1	1014919..1015137	+	72	115361124	-	Bamb_6383	-	hypothetical protein
808	 62.28	0	1015426..1015881	-	151	115361125	-	Bamb_6384	-	alkylhydroperoxidase
809	 64.75	0	1015907..1016323	-	138	115361126	-	Bamb_6385	-	cupin 2 domain-containing protein
810	 68.72	0	1016443..1017855	-	470	115361127	-	Bamb_6386	-	GntR family transcriptional regulator
811	 61.49	-1	1018003..1018659	+	218	115361128	-	Bamb_6387	-	metal-dependent phosphohydrolase
812	 63.49	0	1018973..1019413	+	146	115361129	-	Bamb_6388	-	heat shock protein Hsp20
813	 64.95	0	1019429..1019836	+	135	115361130	-	Bamb_6389	-	heat shock protein Hsp20
814	 63.48	0	1019932..1020495	+	187	115361131	-	Bamb_6390	-	heat shock protein Hsp20
815	 59.61	-1	1020532..1020786	-	84	115361132	-	Bamb_6391	-	hypothetical protein
816	 64.94	0	1020892..1022514	-	540	115361133	groEL	Bamb_6392	-	chaperonin GroEL
817	 64.15	0	1022592..1022909	-	105	115361134	-	Bamb_6393	-	chaperonin Cpn10
818	 68.70	0	1023081..1023719	-	212	115361135	-	Bamb_6394	-	hypothetical protein
819	 63.71	0	1024343..1024579	+	78	115361136	-	Bamb_6395	-	hypothetical protein
820	 63.94	0	1024596..1025072	-	158	115361137	-	Bamb_6396	-	hypothetical protein
821	 57.92	-1	1025182..1025421	+	79	115361138	-	Bamb_6397	-	hypothetical protein
822	 60.19	-1	1025598..1025813	+	71	115361139	-	Bamb_6398	-	hypothetical protein
823	 58.65	-1	1025863..1026174	-	103	115361140	-	Bamb_6399	-	hypothetical protein
824	 52.74	-2	1026244..1026480	-	78	115361141	-	Bamb_6400	-	hypothetical protein
825	 59.37	-1	1027042..1027356	-	104	115361142	-	Bamb_6401	-	hypothetical protein
826	 53.83	-2	1027522..1027887	-	121	115361143	-	Bamb_6402	-	HxlR family transcriptional regulator
827	 59.94	-1	1027979..1028305	+	108	115361144	-	Bamb_6403	-	hypothetical protein
828	 62.05	0	1028305..1029084	+	259	115361145	-	Bamb_6404	-	short chain dehydrogenase
829	 66.94	0	1029134..1030609	-	491	115361146	-	Bamb_6405	-	amidase
830	 69.59	0	1030625..1031854	-	409	115361147	-	Bamb_6406	-	major facilitator transporter
831	 65.50	0	1031877..1032815	-	312	115361148	-	Bamb_6407	-	hypothetical protein
832	 67.35	0	1032894..1033919	-	341	115361149	-	Bamb_6408	-	AraC family transcriptional regulator
833	 57.53	-1	1034210..1034986	-	258	115361150	-	Bamb_6409	-	AraC family transcriptional regulator
834	 58.93	-1	1035328..1036452	+	374	115361151	-	Bamb_6410	-	branched-chain amino acid aminotransferase
835	 59.78	-1	1036693..1038174	+	493	115361152	-	Bamb_6411	-	aldehyde dehydrogenase
836	 55.68	-2	1038378..1038914	+	178	115361153	-	Bamb_6412	-	hypothetical protein
837	 59.47	-1	1038928..1039497	+	189	115361154	-	Bamb_6413	-	thiamine pyrophosphate binding domain-containing protein
838	 58.25	-1	1039661..1041370	+	569	115361155	-	Bamb_6414	-	glucose-methanol-choline oxidoreductase
839	 58.76	-1	1041318..1042202	-	294	115361156	-	Bamb_6415	-	HpcH/HpaI aldolase
840	 57.55	-1	1042222..1042638	-	138	115361157	-	Bamb_6416	-	hypothetical protein
841	 59.90	-1	1042660..1043916	-	418	115361158	-	Bamb_6417	-	Formyl-CoA transferase
842	 59.25	-1	1044040..1044942	+	300	115361159	-	Bamb_6418	-	LysR family transcriptional regulator
843	 66.22	0	1045075..1045968	-	297	115361160	-	Bamb_6419	-	LysR family transcriptional regulator
844	 64.06	0	1046210..1047361	+	383	115361161	-	Bamb_6420	-	major facilitator transporter
845	 66.22	0	1047367..1048263	+	298	115361162	-	Bamb_6421	-	2-dehydropantoate 2-reductase
846	 57.78	-1	1048581..1050245	+	554	115361163	-	Bamb_6422	-	major facilitator transporter
847	 56.88	-2	1050385..1051089	+	234	115361164	-	Bamb_6423	-	haloacid dehalogenase, type II
848	 58.20	-1	1051292..1052236	-	314	115361165	-	Bamb_6424	-	LysR family transcriptional regulator
849	 59.58	-1	1052569..1053795	+	408	115361166	-	Bamb_6425	-	diaminopropionate ammonia-lyase
850	 58.44	-1	1054032..1054493	+	153	115361167	-	Bamb_6426	-	endoribonuclease L-PSP
851	 55.45	-2	1054611..1055930	+	439	115361168	-	Bamb_6427	-	sodium:dicarboxylate symporter
852	 56.51	-2	1056029..1056934	+	301	115361169	-	Bamb_6428	-	LysR family transcriptional regulator
853	 55.60	-2	1057096..1057800	+	234	115361170	-	Bamb_6429	-	aspartate racemase
854	 59.63	-1	1058833..1059159	+	108	115361171	-	Bamb_6430	-	hypothetical protein
855	 62.63	0	1059503..1060246	-	247	115361172	-	Bamb_6431	-	short-chain dehydrogenase/reductase SDR
856	 59.18	-1	1060269..1060562	-	97	115361173	-	Bamb_6432	-	hypothetical protein
857	 60.40	-1	1060609..1061454	-	281	115361174	-	Bamb_6433	-	aminotransferase
858	 59.32	-1	1061600..1062565	+	321	115361175	-	Bamb_6434	-	LysR family transcriptional regulator
859	 62.33	0	1062824..1066330	-	1168	115361176	-	Bamb_6435	-	indolepyruvate ferredoxin oxidoreductase
860	 57.20	-2	1066480..1066944	+	154	115361177	-	Bamb_6436	-	AsnC family transcriptional regulator
66.16	MEAN

4.31	STD DEV
