IslandPath Analysis: Burkholderia ambifaria AMMD

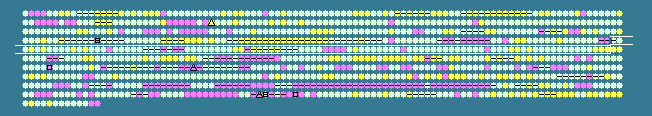

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
399	 62.79	0	517772..518209	+	145	115360716	-	Bamb_5975	-	hypothetical protein
400	 67.54	0	518376..519059	-	227	115360717	-	Bamb_5976	-	hypothetical protein
401	 64.95	0	519069..519593	-	174	115360718	-	Bamb_5977	-	metal dependent phosphohydrolase
402	 71.16	+1	519715..523185	-	1156	115360719	-	Bamb_5978	-	hypothetical protein
403	 66.75	0	523189..524439	-	416	115360720	-	Bamb_5979	-	metallophosphoesterase
404	 72.22	+1	524962..525519	-	185	115360721	-	Bamb_5980	-	late embryogenesis abundant protein
405	 65.01	0	525766..526188	-	140	115360722	-	Bamb_5981	-	hypothetical protein
406	 68.28	0	526283..528271	-	662	115360723	-	Bamb_5982	-	gamma-glutamyltransferase
407	 67.02	0	528857..529138	-	93	115360724	-	Bamb_5983	-	hypothetical protein
408	 66.95	0	529407..532637	+	1076	115360725	-	Bamb_5984	-	acriflavin resistance protein
409	 71.56	+1	532687..534054	+	455	115360726	-	Bamb_5985	-	RND family efflux transporter MFP subunit
410	 69.54	0	534085..535578	+	497	115360727	-	Bamb_5986	-	RND efflux system outer membrane lipoprotein
411	 69.91	0	535559..537040	-	493	115360728	-	Bamb_5987	-	heavy metal sensor signal transduction histidine kinase
412	 64.16	0	537037..537714	-	225	115360729	-	Bamb_5988	-	two component heavy metal response transcriptional regulator
413	 65.21	0	538060..538539	-	159	115360730	-	Bamb_5989	-	hypothetical protein
414	 68.64	0	538536..538991	-	151	115360731	-	Bamb_5990	-	hypothetical protein
415	 61.68	-1	539297..539938	-	213	115360732	-	Bamb_5991	-	metal dependent phosphohydrolase
416	 67.43	0	540082..541128	+	348	115360733	-	Bamb_5992	-	AraC family transcriptional regulator
417	 65.71	0	541587..541898	+	103	115360734	-	Bamb_5993	-	hypothetical protein
418	 64.85	0	542210..542923	+	237	115360735	-	Bamb_5994	-	carboxymethylenebutenolidase
419	 68.93	0	543030..544001	-	323	115360736	-	Bamb_5995	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
420	 67.41	0	544274..545215	-	313	115360737	-	Bamb_5996	-	LysR family transcriptional regulator
421	 69.46	0	545452..546741	-	429	115360738	-	Bamb_5997	-	adenylosuccinate synthase
422	 68.55	0	546883..547785	+	300	115360739	-	Bamb_5998	-	LysR family transcriptional regulator
423	 64.22	0	548002..548328	-	108	115360740	-	Bamb_5999	-	hypothetical protein
424	 60.82	-1	550797..552113	+	438	115360741	-	Bamb_6000	-	hypothetical protein
425	 64.15	0	552206..553237	-	343	115360742	-	Bamb_6001	-	parB-like partition proteins
426	 57.47	-2	553230..553925	-	231	115360743	-	Bamb_6002	-	cobyrinic acid a,c-diamide synthase
427	 61.58	-1	554315..554707	-	130	115360744	-	Bamb_6003	-	hypothetical protein
428	 64.44	0	555820..556944	-	374	115360745	-	Bamb_6004	-	Zn-dependent hydrolase of the beta-lactamase fold-like protein
429	 66.51	0	557056..557682	+	208	115360746	-	Bamb_6005	-	TetR family transcriptional regulator
430	 67.07	0	557984..558475	+	163	115360747	-	Bamb_6006	-	flavodoxin/nitric oxide synthase
431	 64.62	0	558653..559237	-	194	115360748	-	Bamb_6007	-	hypothetical protein
432	 68.42	0	559892..560746	+	284	115360749	-	Bamb_6008	-	ProQ activator of osmoprotectant transporter ProP
433	 67.56	0	561377..562495	+	372	115360750	-	Bamb_6009	-	hypothetical protein
434	 62.99	0	562595..563002	-	135	115360751	-	Bamb_6010	-	glyoxalase/bleomycin resistance protein/dioxygenase
435	 65.49	0	563106..563531	-	141	115360752	-	Bamb_6011	-	molybdenum-pterin binding
436	 71.20	+1	563714..565213	-	499	115360753	-	Bamb_6012	-	RND efflux system outer membrane lipoprotein
437	 69.68	0	565210..566205	-	331	115360754	-	Bamb_6013	-	RND family efflux transporter MFP subunit
438	 59.15	-1	566208..566420	-	70	115360755	-	Bamb_6014	-	hypothetical protein
439	 71.01	+1	566455..568596	-	713	115360756	-	Bamb_6015	-	fusaric acid resistance protein region
440	 71.25	+1	568593..569072	-	159	115360757	-	Bamb_6016	-	MarR family transcriptional regulator
441	 67.87	0	569482..570894	+	470	115360758	-	Bamb_6017	-	GntR family transcriptional regulator
442	 70.37	0	571000..571971	+	323	115360759	-	Bamb_6018	-	threonine dehydratase
443	 72.44	+1	571973..572977	+	334	115360760	-	Bamb_6019	-	ornithine cyclodeaminase
444	 67.66	0	572988..574196	+	402	115360761	-	Bamb_6020	-	peptidase M24
445	 69.40	0	574201..575226	+	341	115360762	-	Bamb_6021	-	succinylglutamate desuccinylase/aspartoacylase
446	 65.62	0	575231..575710	+	159	115360763	-	Bamb_6022	-	AsnC family transcriptional regulator
447	 69.06	0	575807..577312	+	501	115360764	-	Bamb_6023	-	succinate-semialdehyde dehydrogenase (NAD(P)(+))
448	 66.67	0	577333..578727	+	464	115360765	-	Bamb_6024	-	hypothetical protein
449	 63.67	0	578843..579775	-	310	115360766	-	Bamb_6025	-	beta-lactamase domain-containing protein
450	 62.86	0	579999..581651	-	550	115360767	-	Bamb_6026	-	AMP-dependent synthetase and ligase
451	 61.83	-1	581666..582430	-	254	115360768	-	Bamb_6027	-	nitroreductase
452	 61.44	-1	582510..583868	-	452	115360769	-	Bamb_6028	-	major facilitator transporter
453	 61.16	-1	584257..585945	-	562	115360770	-	Bamb_6029	-	tannase and feruloyl esterase
454	 61.90	0	586423..587451	-	342	115360771	-	Bamb_6030	-	AraC family transcriptional regulator
455	 68.54	0	587714..589099	-	461	115360772	-	Bamb_6031	-	general substrate transporter
456	 73.41	+1	589281..590999	-	572	115360773	-	Bamb_6032	-	Glycerone kinase
457	 68.88	0	591423..592553	-	376	115360774	-	Bamb_6033	-	sigma-54 dependent trancsriptional regulator
458	 69.16	0	593048..593608	+	186	115360775	-	Bamb_6034	-	FMN reductase
459	 64.86	0	593638..594741	+	367	115360776	-	Bamb_6035	-	luciferase family protein
460	 65.94	0	594904..595593	-	229	115360777	-	Bamb_6036	-	lysine exporter protein LysE/YggA
461	 68.78	0	595663..596514	+	283	115360778	-	Bamb_6037	-	LysR family transcriptional regulator
462	 66.16	0	596520..597512	-	330	115360779	-	Bamb_6038	-	LysR family transcriptional regulator
463	 68.80	0	597564..600617	+	1017	115360780	-	Bamb_6039	-	FAD linked oxidase domain-containing protein
464	 59.83	-1	600811..601497	-	228	115360781	-	Bamb_6040	-	LuxR family transcriptional regulator
465	 67.67	0	602089..602688	-	199	115360782	-	Bamb_6041	-	lysine exporter protein LysE/YggA
466	 66.12	0	602844..603752	+	302	115360783	-	Bamb_6042	-	LysR family transcriptional regulator
467	 66.75	0	603970..605214	+	414	115360784	-	Bamb_6043	-	sodium/hydrogen exchanger
468	 65.59	0	605279..606481	-	400	115360785	-	Bamb_6044	-	aminotransferase, class I and II
469	 64.48	0	606613..607434	-	273	115360786	-	Bamb_6045	-	hypothetical protein
470	 68.19	0	607459..608508	-	349	115360787	-	Bamb_6046	-	succinylglutamate desuccinylase/aspartoacylase
471	 64.36	0	608508..609329	-	273	115360788	-	Bamb_6047	-	hypothetical protein
472	 65.54	0	609377..609643	-	88	115360789	-	Bamb_6048	-	phosphopantetheine-binding
473	 63.11	0	609716..610642	-	308	115360790	-	Bamb_6049	-	chlorinating enzyme
474	 63.86	0	610721..610969	-	82	115360791	-	Bamb_6050	-	acyl carrier protein
475	 68.26	0	610986..612488	-	500	115360792	-	Bamb_6051	-	amino acid adenylation domain-containing protein
476	 64.69	0	612485..613345	-	286	115360793	-	Bamb_6052	-	alpha/beta hydrolase fold
477	 63.04	0	613425..614030	-	201	115360794	-	Bamb_6053	-	autoinducer synthesis protein
478	 62.05	0	614095..614592	-	165	115360795	-	Bamb_6054	-	hypothetical protein
479	 66.80	0	614917..615651	+	244	115360796	-	Bamb_6055	-	hypothetical protein
480	 69.24	0	615668..616522	+	284	115360797	-	Bamb_6056	-	thioesterase
481	 66.15	0	617001..618155	-	384	115360798	-	Bamb_6057	-	extracellular ligand-binding receptor
482	 70.23	0	618755..619651	-	298	115360799	-	Bamb_6058	-	hypothetical protein
483	 71.37	+1	619709..620728	+	339	115360800	-	Bamb_6059	-	LysR family transcriptional regulator
484	 66.67	0	620856..621515	+	219	115360801	-	Bamb_6060	-	hypothetical protein
485	 70.30	0	621553..622020	+	155	115360802	-	Bamb_6061	-	hypothetical protein
486	 65.20	0	622175..622651	+	158	115360803	-	Bamb_6062	-	hypothetical protein
487	 66.67	0	622728..623900	-	390	115360804	-	Bamb_6063	-	porin
488	 65.71	0	624062..624895	-	277	115360805	-	Bamb_6064	-	LuxR family transcriptional regulator
489	 64.97	0	625137..626258	+	373	115360806	-	Bamb_6065	-	extracellular solute-binding protein
490	 66.23	0	626270..627415	+	381	115360807	-	Bamb_6066	-	spermidine/putrescine ABC transporter ATPase subunit
491	 65.53	0	627423..628394	+	323	115360808	-	Bamb_6067	-	binding-protein-dependent transport systems inner membrane component
492	 67.74	0	628391..629323	+	310	115360809	-	Bamb_6068	-	binding-protein-dependent transport systems inner membrane component
493	 66.48	0	629345..630913	+	522	115360810	-	Bamb_6069	-	hypothetical protein
494	 68.06	0	630940..632232	+	430	115360811	-	Bamb_6070	-	FAD dependent oxidoreductase
495	 68.50	0	632308..632688	+	126	115360812	-	Bamb_6071	-	protein of unknown function DUF861, cupin_3
496	 72.67	+1	632735..634150	+	471	115360813	-	Bamb_6072	-	amidase
497	 70.22	0	634181..635671	+	496	115360814	-	Bamb_6073	-	betaine-aldehyde dehydrogenase
498	 72.31	+1	635959..636330	+	123	115360815	-	Bamb_6074	-	LrgA family protein
66.16	MEAN

4.31	STD DEV
