IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

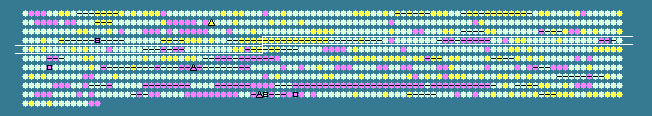

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
341	 71.50	+1	399149..400390	-	413	115360658	-	Bamb_5916	-	L-carnitine dehydratase/bile acid-inducible protein F
342	 75.42	+2	400483..401430	-	315	115360659	-	Bamb_5917	-	phosphopantetheine-binding
343	 73.09	+1	401424..402482	-	352	115360660	-	Bamb_5918	-	NADH:flavin oxidoreductase/NADH oxidase
344	 74.54	+1	402538..409929	-	2463	115360661	-	Bamb_5919	-	beta-ketoacyl synthase
345	 74.43	+1	409955..418882	-	2975	115360662	-	Bamb_5920	-	beta-ketoacyl synthase
346	 74.87	+2	418893..427850	-	2985	115360663	-	Bamb_5921	-	beta-ketoacyl synthase
347	 74.43	+1	427850..433915	-	2021	115360664	-	Bamb_5922	-	beta-ketoacyl synthase
348	 75.83	+2	433915..439152	-	1745	115360665	-	Bamb_5923	-	beta-ketoacyl synthase
349	 73.60	+1	439201..445806	-	2201	115360666	-	Bamb_5924	-	beta-ketoacyl synthase
350	 73.40	+1	445799..453733	-	2644	115360667	-	Bamb_5925	-	beta-ketoacyl synthase
351	 73.91	+1	453777..454577	-	266	115360668	-	Bamb_5926	-	thioesterase
352	 68.38	0	454673..455608	-	311	115360669	-	Bamb_5927	-	aspartyl/asparaginyl beta-hydroxylase
353	 64.79	0	455620..457167	-	515	115360670	-	Bamb_5928	-	FAD dependent oxidoreductase
354	 66.67	0	457722..458342	+	206	115360671	-	Bamb_5929	-	hypothetical protein
355	 68.01	0	458396..460180	-	594	115360672	-	Bamb_5930	-	carbamoyltransferase
356	 65.67	0	460248..460850	-	200	115360673	-	Bamb_5931	-	hypothetical protein
357	 69.94	0	461512..463527	-	671	115360674	-	Bamb_5932	-	quinate/shikimate dehydrogenase, putative
358	 65.72	0	463603..464973	-	456	115360675	-	Bamb_5933	-	MATE efflux family protein
359	 65.64	0	465410..465994	+	194	115360676	-	Bamb_5934	-	hypothetical protein
360	 68.93	0	466133..466750	+	205	115360677	-	Bamb_5935	-	hypothetical protein
361	 66.13	0	467040..468332	-	430	115360678	-	Bamb_5936	-	6-aminohexanoate-dimer hydrolase
362	 61.96	0	468639..469700	+	353	115360679	-	Bamb_5937	-	porin
363	 66.67	0	469745..470119	+	124	115360680	-	Bamb_5938	-	transport-associated
364	 64.35	0	470160..472187	-	675	115360681	-	Bamb_5939	-	beta-lactamase domain-containing protein
365	 67.90	0	472165..473466	-	433	115360682	-	Bamb_5940	-	major facilitator transporter
366	 64.81	0	473549..474733	-	394	115360683	-	Bamb_5941	-	acyl-CoA dehydrogenase domain-containing protein
367	 66.67	0	474743..476293	-	516	115360684	-	Bamb_5942	-	AMP-dependent synthetase and ligase
368	 66.12	0	476387..477304	+	305	115360685	-	Bamb_5943	-	LysR family transcriptional regulator
369	 64.21	0	477601..479838	-	745	115360686	-	Bamb_5944	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
370	 63.84	0	480206..480877	+	223	115360687	-	Bamb_5945	-	carbonate dehydratase
371	 61.78	-1	480939..481409	+	156	115360688	-	Bamb_5946	-	cyanate hydratase
372	 62.25	0	481492..482034	+	180	115360689	-	Bamb_5947	-	hypothetical protein
373	 62.79	0	482255..482512	+	85	115360690	-	Bamb_5948	-	hypothetical protein
374	 60.81	-1	482745..483632	-	295	115360691	-	Bamb_5949	-	DNA-binding transcriptional regulator CynR
375	 56.40	-2	483695..484327	+	210	115360692	-	Bamb_5950	-	hypothetical protein
376	 61.25	-1	484545..485024	-	159	115360693	-	Bamb_5951	-	hypothetical protein
377	 61.04	-1	485151..485399	-	82	115360694	-	Bamb_5952	-	hypothetical protein
378	 58.84	-1	485564..486151	+	195	115360695	-	Bamb_5953	-	TetR family transcriptional regulator
379	 67.05	0	486707..487741	-	344	115360696	-	Bamb_5954	-	alpha/beta hydrolase domain-containing protein
380	 65.73	0	487809..488234	-	141	115360697	-	Bamb_5955	-	OsmC family protein
381	 62.08	0	488460..489026	-	188	115360698	-	Bamb_5956	-	TetR family transcriptional regulator
382	 66.03	0	489446..491494	-	682	115360699	-	Bamb_5957	-	putative lipoprotein
383	 73.26	+1	492867..493382	+	171	115360700	-	Bamb_5959	-	methionine-R-sulfoxide reductase
384	 72.63	+1	493418..495295	+	625	115360701	-	Bamb_5960	-	cytochrome c biogenesis protein, transmembrane region
385	 68.42	0	495348..496088	+	246	115360702	-	Bamb_5961	-	methionine sulfoxide reductase A
386	 67.91	0	496307..497428	+	373	115360703	-	Bamb_5962	-	Rieske (2Fe-2S) domain-containing protein
387	 69.00	0	497490..498947	-	485	115360704	-	Bamb_5963	-	dihydropyrimidinase
388	 67.53	0	498994..500502	-	502	115360705	-	Bamb_5964	-	NCS1 nucleoside transporter
389	 66.97	0	500602..501909	-	435	115360706	-	Bamb_5965	-	dihydropyrimidine dehydrogenase
390	 70.85	+1	501982..503319	-	445	115360707	-	Bamb_5966	-	putative oxidoreductase
391	 67.60	0	503449..504729	-	426	115360708	-	Bamb_5967	-	allantoate amidohydrolase
392	 66.96	0	505093..505785	+	230	115360709	-	Bamb_5968	-	TetR family transcriptional regulator
393	 68.77	0	505901..507091	-	396	115360710	-	Bamb_5969	-	acetyl-CoA acetyltransferases
394	 68.62	0	507128..507895	-	255	115360711	-	Bamb_5970	-	short-chain dehydrogenase/reductase SDR
395	 68.16	0	507916..509589	-	557	115360712	-	Bamb_5971	-	AMP-dependent synthetase and ligase
396	 69.45	0	509727..510731	+	334	115360713	-	Bamb_5972	-	AraC family transcriptional regulator
397	 59.12	-1	510953..511111	+	52	115360714	-	Bamb_5973	-	hypothetical protein
398	 60.22	-1	511213..511584	+	123	115360715	-	Bamb_5974	-	hypothetical protein
399	 62.79	0	517772..518209	+	145	115360716	-	Bamb_5975	-	hypothetical protein
400	 67.54	0	518376..519059	-	227	115360717	-	Bamb_5976	-	hypothetical protein
401	 64.95	0	519069..519593	-	174	115360718	-	Bamb_5977	-	metal dependent phosphohydrolase
402	 71.16	+1	519715..523185	-	1156	115360719	-	Bamb_5978	-	hypothetical protein
403	 66.75	0	523189..524439	-	416	115360720	-	Bamb_5979	-	metallophosphoesterase
404	 72.22	+1	524962..525519	-	185	115360721	-	Bamb_5980	-	late embryogenesis abundant protein
405	 65.01	0	525766..526188	-	140	115360722	-	Bamb_5981	-	hypothetical protein
406	 68.28	0	526283..528271	-	662	115360723	-	Bamb_5982	-	gamma-glutamyltransferase
407	 67.02	0	528857..529138	-	93	115360724	-	Bamb_5983	-	hypothetical protein
408	 66.95	0	529407..532637	+	1076	115360725	-	Bamb_5984	-	acriflavin resistance protein
409	 71.56	+1	532687..534054	+	455	115360726	-	Bamb_5985	-	RND family efflux transporter MFP subunit
410	 69.54	0	534085..535578	+	497	115360727	-	Bamb_5986	-	RND efflux system outer membrane lipoprotein
411	 69.91	0	535559..537040	-	493	115360728	-	Bamb_5987	-	heavy metal sensor signal transduction histidine kinase
412	 64.16	0	537037..537714	-	225	115360729	-	Bamb_5988	-	two component heavy metal response transcriptional regulator
413	 65.21	0	538060..538539	-	159	115360730	-	Bamb_5989	-	hypothetical protein
414	 68.64	0	538536..538991	-	151	115360731	-	Bamb_5990	-	hypothetical protein
415	 61.68	-1	539297..539938	-	213	115360732	-	Bamb_5991	-	metal dependent phosphohydrolase
416	 67.43	0	540082..541128	+	348	115360733	-	Bamb_5992	-	AraC family transcriptional regulator
417	 65.71	0	541587..541898	+	103	115360734	-	Bamb_5993	-	hypothetical protein
418	 64.85	0	542210..542923	+	237	115360735	-	Bamb_5994	-	carboxymethylenebutenolidase
419	 68.93	0	543030..544001	-	323	115360736	-	Bamb_5995	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
420	 67.41	0	544274..545215	-	313	115360737	-	Bamb_5996	-	LysR family transcriptional regulator
421	 69.46	0	545452..546741	-	429	115360738	-	Bamb_5997	-	adenylosuccinate synthase
422	 68.55	0	546883..547785	+	300	115360739	-	Bamb_5998	-	LysR family transcriptional regulator
423	 64.22	0	548002..548328	-	108	115360740	-	Bamb_5999	-	hypothetical protein
424	 60.82	-1	550797..552113	+	438	115360741	-	Bamb_6000	-	hypothetical protein
425	 64.15	0	552206..553237	-	343	115360742	-	Bamb_6001	-	parB-like partition proteins
426	 57.47	-2	553230..553925	-	231	115360743	-	Bamb_6002	-	cobyrinic acid a,c-diamide synthase
427	 61.58	-1	554315..554707	-	130	115360744	-	Bamb_6003	-	hypothetical protein
428	 64.44	0	555820..556944	-	374	115360745	-	Bamb_6004	-	Zn-dependent hydrolase of the beta-lactamase fold-like protein
429	 66.51	0	557056..557682	+	208	115360746	-	Bamb_6005	-	TetR family transcriptional regulator
430	 67.07	0	557984..558475	+	163	115360747	-	Bamb_6006	-	flavodoxin/nitric oxide synthase
431	 64.62	0	558653..559237	-	194	115360748	-	Bamb_6007	-	hypothetical protein
432	 68.42	0	559892..560746	+	284	115360749	-	Bamb_6008	-	ProQ activator of osmoprotectant transporter ProP
433	 67.56	0	561377..562495	+	372	115360750	-	Bamb_6009	-	hypothetical protein
434	 62.99	0	562595..563002	-	135	115360751	-	Bamb_6010	-	glyoxalase/bleomycin resistance protein/dioxygenase
435	 65.49	0	563106..563531	-	141	115360752	-	Bamb_6011	-	molybdenum-pterin binding
436	 71.20	+1	563714..565213	-	499	115360753	-	Bamb_6012	-	RND efflux system outer membrane lipoprotein
437	 69.68	0	565210..566205	-	331	115360754	-	Bamb_6013	-	RND family efflux transporter MFP subunit
438	 59.15	-1	566208..566420	-	70	115360755	-	Bamb_6014	-	hypothetical protein
439	 71.01	+1	566455..568596	-	713	115360756	-	Bamb_6015	-	fusaric acid resistance protein region
440	 71.25	+1	568593..569072	-	159	115360757	-	Bamb_6016	-	MarR family transcriptional regulator
66.16	MEAN

4.31	STD DEV
