IslandPath Analysis: Burkholderia ambifaria AMMD

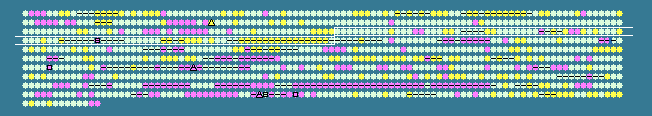

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
253	 67.33	0	299705..300613	+	302	115360570	-	Bamb_5827	-	AraC family transcriptional regulator
254	 67.47	0	300714..301703	-	329	115360571	-	Bamb_5828	-	beta-lactamase domain-containing protein
255	 69.09	0	301898..302803	+	301	115360572	-	Bamb_5829	-	LysR family transcriptional regulator
256	 67.28	0	302822..304297	-	491	115360573	-	Bamb_5830	-	hypothetical protein
257	 66.04	0	304297..305256	-	319	115360574	-	Bamb_5831	-	hypothetical protein
258	 68.33	0	305376..305915	-	179	115360575	-	Bamb_5832	-	hypothetical protein
259	 63.62	0	306054..307103	-	349	115360576	-	Bamb_5833	-	patatin
260	 66.87	0	307180..310635	-	1151	115360577	-	Bamb_5834	-	adenylate/guanylate cyclase
261	 66.40	0	310724..311479	-	251	115360578	-	Bamb_5835	-	histidine utilization repressor
262	 71.49	+1	311541..313034	-	497	115360579	-	Bamb_5836	-	phenylalanine/histidine ammonia-lyase
263	 66.92	0	313042..313833	-	263	115360580	-	Bamb_5837	-	ABC transporter related
264	 67.47	0	313862..314608	-	248	115360581	-	Bamb_5838	-	polar amino acid ABC transporter, inner membrane subunit
265	 68.74	0	314621..315343	-	240	115360582	-	Bamb_5839	-	polar amino acid ABC transporter, inner membrane subunit
266	 62.15	0	315436..316587	-	383	115360583	-	Bamb_5840	-	extracellular solute-binding protein
267	 59.26	-1	316636..317094	-	152	115360584	-	Bamb_5841	-	pseudoazurin
268	 63.12	0	317152..319377	-	741	115360585	-	Bamb_5842	-	catalase/peroxidase HPI
269	 68.68	0	319651..320841	-	396	115360586	-	Bamb_5843	-	amidohydrolase
270	 69.14	0	320921..322255	-	444	115360587	-	Bamb_5844	-	hypothetical protein
271	 71.67	+1	322304..323821	-	505	115360588	-	Bamb_5845	-	betaine-aldehyde dehydrogenase
272	 71.59	+1	323876..324748	-	290	115360589	-	Bamb_5846	-	6-phosphogluconate dehydrogenase, NAD-binding
273	 66.89	0	324892..325800	+	302	115360590	-	Bamb_5847	-	LysR family transcriptional regulator
274	 68.97	0	325932..326321	-	129	115360591	-	Bamb_5848	-	hypothetical protein
275	 63.07	0	326361..327167	-	268	115360592	-	Bamb_5849	-	type III secretion protein SpaR/YscT/HrcT
276	 69.14	0	327219..327704	-	161	115360593	-	Bamb_5850	-	putative type III secretory pathway protein
277	 69.04	0	327720..329111	-	463	115360594	-	Bamb_5851	-	type III secretion system ATPase
278	 71.83	+1	329162..330169	-	335	115360595	-	Bamb_5852	-	HrpE/YscL family type III secretion apparatus protein
279	 71.67	+1	330163..330921	-	252	115360596	-	Bamb_5853	-	hypothetical protein
280	 66.16	0	330974..331765	-	263	115360597	-	Bamb_5854	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
281	 64.41	0	331948..332346	-	132	115360598	-	Bamb_5855	-	hrpB2; type III secretion protein HrpB2
282	 65.79	0	332375..332944	-	189	115360599	-	Bamb_5856	-	hypothetical protein
283	 64.68	0	333337..334395	+	352	115360600	-	Bamb_5857	-	type III secretion system protein HrcU
284	 66.72	0	334401..336377	+	658	115360601	-	Bamb_5858	-	HrcV family type III secretion protein
285	 67.54	0	336394..337314	+	306	115360602	-	Bamb_5859	-	hypothetical protein
286	 68.40	0	337466..338446	+	326	115360603	-	Bamb_5860	-	type III secretion system apparatus protein YscQ/HrcQ
287	 61.34	-1	338433..339089	+	218	115360604	-	Bamb_5861	-	type III secretion system protein
288	 65.15	0	339100..339363	+	87	115360605	-	Bamb_5862	-	HrpO family type III secretion protein
289	 70.78	+1	339360..340574	+	404	115360606	-	Bamb_5863	-	hypothetical protein
290	 68.88	0	340709..341749	+	346	115360607	-	Bamb_5864	-	sctD; secretion-associated protein
291	 70.11	0	341773..342033	+	86	115360608	-	Bamb_5865	-	putative type III secretion protein
292	 60.95	-1	342207..342416	+	69	115360609	-	Bamb_5866	-	hypothetical protein
293	 60.31	-1	342540..342995	+	151	115360610	-	Bamb_5867	-	hypothetical protein
294	 71.22	+1	343131..344558	-	475	115360611	-	Bamb_5868	-	type II/III secretion system family protein
295	 65.39	0	344555..345340	-	261	115360612	-	Bamb_5869	-	two component transcriptional regulator
296	 70.13	0	345429..346553	-	374	115360613	-	Bamb_5870	-	PAS/PAC sensor signal transduction histidine kinase
297	 67.56	0	346678..348363	-	561	115360614	-	Bamb_5871	-	YscC/HrcC family type III secretion outer membrane protein
298	 65.49	0	348560..349660	+	366	115360615	-	Bamb_5872	-	type II secretion system protein E
299	 67.20	0	349767..351464	-	565	115360616	-	Bamb_5873	-	type IV prepilin
300	 71.88	+1	351457..351936	-	159	115360617	-	Bamb_5874	-	pilM; PilM
301	 64.65	0	351989..352483	-	164	115360618	-	Bamb_5875	-	putative type IV pilus biogenesis protein
302	 64.62	0	352658..353734	-	358	115360619	-	Bamb_5876	-	type II secretion system protein
303	 67.92	0	353724..355244	-	506	115360620	-	Bamb_5877	-	type II secretion system protein E
304	 70.07	0	355522..356109	-	195	115360621	-	Bamb_5878	-	hypothetical protein
305	 69.63	0	356099..357415	-	438	115360622	-	Bamb_5879	-	pilO; putative type IV pilus biosynthesis protein
306	 67.19	0	357441..359174	-	577	115360623	-	Bamb_5880	-	type IVB pilus formation outer membrane protein
307	 72.48	+1	359174..360412	-	412	115360624	-	Bamb_5881	-	hypothetical protein
308	 66.95	0	361210..362643	+	477	115360625	-	Bamb_5882	-	AraC family transcriptional regulator
309	 63.68	0	362818..363285	+	155	115360626	-	Bamb_5883	-	lytic transglycosylase, catalytic
310	 63.86	0	363494..364027	-	177	115360627	-	Bamb_5884	-	hypothetical protein
311	 67.57	0	364491..366803	+	770	115360628	-	Bamb_5885	-	hypothetical protein
312	 64.59	0	367059..367877	+	272	115360629	-	Bamb_5886	-	hypothetical protein
313	 55.30	-2	368012..368143	+	43	115360630	-	Bamb_5887	-	bacteriophage/transposase fusion protein
314	 63.89	0	368302..368661	-	119	115360631	-	Bamb_5888	-	hypothetical protein
315	 68.95	0	368681..368986	-	101	115360632	-	Bamb_5889	-	hypothetical protein
316	 67.18	0	369220..370989	+	589	115360633	-	Bamb_5890	-	hypothetical protein
317	 66.43	0	371158..372012	+	284	115360634	-	Bamb_5891	-	formyl transferase domain-containing protein
318	 69.47	0	372179..373321	-	380	115360635	-	Bamb_5892	-	hypothetical protein
319	 67.63	0	373474..374199	-	241	115360636	-	Bamb_5893	-	hypothetical protein
320	 65.57	0	375158..376072	-	304	115360637	-	Bamb_5895	-	LysR family transcriptional regulator
321	 66.16	0	376191..377378	+	395	115360638	-	Bamb_5896	-	amidohydrolase
322	 66.75	0	377439..378611	+	390	115360639	-	Bamb_5897	-	outer membrane protein (porin)-like protein
323	 67.43	0	378626..379927	+	433	115360640	-	Bamb_5898	-	major facilitator transporter
324	 70.68	+1	380472..381443	-	323	115360641	-	Bamb_5899	-	ferredoxin
325	 69.74	0	381466..382863	-	465	115360642	-	Bamb_5900	-	sodium/sulphate symporter
326	 66.67	0	382860..384086	-	408	115360643	-	Bamb_5901	-	Rieske (2Fe-2S) domain-containing protein
327	 69.70	0	384361..384921	+	186	115360644	-	Bamb_5902	-	Rossmann fold nucleotide-binding protein-like protein
328	 70.39	0	384979..386295	-	438	115360645	-	Bamb_5903	-	allantoate amidohydrolase
329	 71.47	+1	386295..387272	-	325	115360646	-	Bamb_5904	-	dihydroorotate dehydrogenase family protein
330	 73.24	+1	387265..388131	-	288	115360647	-	Bamb_5905	-	oxidoreductase FAD-binding subunit
331	 69.07	0	388171..389418	-	415	115360648	-	Bamb_5906	-	major facilitator transporter
332	 70.68	+1	389569..389892	-	107	115360649	-	Bamb_5907	-	hypothetical protein
333	 66.76	0	389997..391070	-	357	115360650	-	Bamb_5908	-	porin
334	 64.83	0	391183..392814	+	543	115360651	-	Bamb_5909	-	exodeoxyribonuclease V, beta subunit
335	 63.03	0	393560..394273	+	237	115360652	-	Bamb_5910	-	LuxR family transcriptional regulator
336	 64.08	0	394310..394657	+	115	115360653	-	Bamb_5911	-	LuxR family transcriptional regulator
337	 75.36	+2	394800..395627	+	275	115360654	-	Bamb_5912	-	xylose isomerase domain-containing protein
338	 75.63	+2	395624..396538	+	304	115360655	-	Bamb_5913	-	shikimate 5-dehydrogenase
339	 73.57	+1	396586..397599	-	337	115360656	-	Bamb_5914	-	alcohol dehydrogenase
340	 72.25	+1	397596..399134	-	512	115360657	-	Bamb_5915	-	condensation domain-containing protein
341	 71.50	+1	399149..400390	-	413	115360658	-	Bamb_5916	-	L-carnitine dehydratase/bile acid-inducible protein F
342	 75.42	+2	400483..401430	-	315	115360659	-	Bamb_5917	-	phosphopantetheine-binding
343	 73.09	+1	401424..402482	-	352	115360660	-	Bamb_5918	-	NADH:flavin oxidoreductase/NADH oxidase
344	 74.54	+1	402538..409929	-	2463	115360661	-	Bamb_5919	-	beta-ketoacyl synthase
345	 74.43	+1	409955..418882	-	2975	115360662	-	Bamb_5920	-	beta-ketoacyl synthase
346	 74.87	+2	418893..427850	-	2985	115360663	-	Bamb_5921	-	beta-ketoacyl synthase
347	 74.43	+1	427850..433915	-	2021	115360664	-	Bamb_5922	-	beta-ketoacyl synthase
348	 75.83	+2	433915..439152	-	1745	115360665	-	Bamb_5923	-	beta-ketoacyl synthase
349	 73.60	+1	439201..445806	-	2201	115360666	-	Bamb_5924	-	beta-ketoacyl synthase
350	 73.40	+1	445799..453733	-	2644	115360667	-	Bamb_5925	-	beta-ketoacyl synthase
351	 73.91	+1	453777..454577	-	266	115360668	-	Bamb_5926	-	thioesterase
352	 68.38	0	454673..455608	-	311	115360669	-	Bamb_5927	-	aspartyl/asparaginyl beta-hydroxylase
66.16	MEAN

4.31	STD DEV
