IslandPath Analysis: Burkholderia ambifaria AMMD

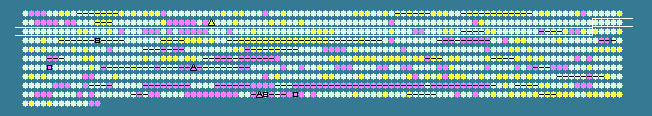

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
196	 65.87	0	236687..238825	+	712	115360513	-	Bamb_5769	-	hypothetical protein
197	 66.43	0	239005..239859	-	284	115360514	-	Bamb_5770	-	3-hydroxybutyryl-CoA dehydrogenase
198	 67.76	0	239898..241091	-	397	115360515	-	Bamb_5771	-	beta-ketothiolase
199	 65.35	0	241140..242813	-	557	115360516	-	Bamb_5772	-	electron-transferring-flavoprotein dehydrogenase
200	 67.28	0	242848..244638	-	596	115360517	-	Bamb_5773	-	acyl-CoA dehydrogenase domain-containing protein
201	 68.41	0	245124..246041	-	305	115360518	-	Bamb_5774	-	LysR family transcriptional regulator
202	 66.54	0	246180..246944	+	254	115360519	-	Bamb_5775	-	short-chain dehydrogenase/reductase SDR
203	 64.55	0	247019..247726	+	235	115360520	-	Bamb_5776	-	pirin domain-containing protein
204	 65.14	0	247966..248556	+	196	115360521	-	Bamb_5777	-	putative transcriptional regulator protein
205	 68.14	0	249076..250707	+	543	115360522	pntA	Bamb_5778	-	NAD(P) transhydrogenase subunit alpha
206	 66.03	0	250721..252133	+	470	115360523	-	Bamb_5779	-	NAD(P) transhydrogenase, beta subunit
207	 66.01	0	252243..253316	+	357	115360524	-	Bamb_5780	-	dihydrokaempferol 4-reductase
208	 67.43	0	253474..254520	-	348	115360525	-	Bamb_5781	-	AraC family transcriptional regulator
209	 68.56	0	254640..256274	-	544	115360526	-	Bamb_5782	-	AMP-dependent synthetase and ligase
210	 71.12	+1	256593..257693	+	366	115360527	-	Bamb_5783	-	AraC family transcriptional regulator
211	 71.55	+1	257720..259213	-	497	115360528	-	Bamb_5784	-	periplasmic sensor signal transduction histidine kinase
212	 68.75	0	259213..259932	-	239	115360529	-	Bamb_5785	-	two component transcriptional regulator
213	 64.16	0	260229..261266	-	345	115360530	-	Bamb_5786	-	LysR family transcriptional regulator
214	 68.82	0	261351..262094	-	247	115360531	-	Bamb_5787	-	NmrA family protein
215	 69.82	0	262300..263790	+	496	115360532	-	Bamb_5788	-	GntR family transcriptional regulator
216	 66.07	0	264080..264580	+	166	115360533	-	Bamb_5789	-	OsmC family protein
217	 59.38	-1	264701..265702	+	333	115360534	-	Bamb_5790	-	membrane protein-like protein
218	 64.09	0	265788..267341	-	517	115360535	-	Bamb_5791	-	EmrB/QacA family drug resistance transporter
219	 62.86	0	267444..267758	-	104	115360536	-	Bamb_5792	-	hypothetical protein
220	 66.87	0	267879..268379	+	166	115360537	-	Bamb_5793	-	OsmC family protein
221	 60.62	-1	268559..269038	+	159	115360538	-	Bamb_5794	-	alkylhydroperoxidase
222	 61.52	-1	269043..269450	+	135	115360539	-	Bamb_5795	-	cupin 2 domain-containing protein
223	 60.98	-1	269762..270007	+	81	115360540	-	Bamb_5796	-	Zn-dependent alcohol dehydrogenases class III-like protein
224	 63.54	0	270030..270605	+	191	115360541	-	Bamb_5797	-	glutathione-dependent formaldehyde-activating enzyme
225	 57.35	-2	271510..271713	+	67	115360542	-	Bamb_5798	-	cold-shock DNA-binding domain-containing protein
226	 65.51	0	271764..272108	+	114	115360543	-	Bamb_5799	-	hypothetical protein
227	 60.00	-1	272446..272730	+	94	115360544	-	Bamb_5800	-	hypothetical protein
228	 57.50	-2	272747..272986	+	79	115360545	-	Bamb_5801	-	hypothetical protein
229	 60.56	-1	273020..273232	+	70	115360546	-	Bamb_5802	-	ribosomal protein S21
230	 60.19	-1	273893..274108	+	71	115360547	-	Bamb_5804	-	hypothetical protein
231	 60.00	-1	274243..274527	+	94	115360548	-	Bamb_5805	-	hypothetical protein
232	 68.69	0	274845..275537	-	230	115360549	-	Bamb_5806	-	hypothetical protein
233	 66.00	0	275627..276073	-	148	115360550	-	Bamb_5807	-	DoxX family protein
234	 67.41	0	276075..277967	-	630	115360551	-	Bamb_5808	-	amidohydrolase 3
235	 61.31	-1	277986..278153	-	55	115360552	-	Bamb_5809	-	hypothetical protein
236	 63.61	0	278319..279005	-	228	115360553	-	Bamb_5810	-	isochorismatase hydrolase
237	 69.15	0	279312..279593	+	93	115360554	-	Bamb_5811	-	hypothetical protein
238	 69.42	0	279669..280577	+	302	115360555	-	Bamb_5812	-	LysR family transcriptional regulator
239	 70.38	0	280672..282447	-	591	115360556	-	Bamb_5813	-	transcriptional regulator
240	 66.06	0	282813..283634	-	273	115360557	-	Bamb_5814	-	alpha/beta hydrolase fold
241	 69.21	0	283703..284173	-	156	115360558	-	Bamb_5815	-	hypothetical protein
242	 66.05	0	284532..285506	+	324	115360559	-	Bamb_5816	-	alpha/beta hydrolase fold
243	 68.91	0	285510..285776	+	88	115360560	-	Bamb_5817	-	hypothetical protein
244	 69.48	0	285841..287121	+	426	115360561	-	Bamb_5818	-	cytochrome c, class I
245	 67.47	0	287118..287618	+	166	115360562	-	Bamb_5819	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
246	 67.99	0	287618..289879	+	753	115360563	-	Bamb_5820	-	putative aldehyde dehydrogenase
247	 66.01	0	289947..290864	+	305	115360564	-	Bamb_5821	-	LysR family transcriptional regulator
248	 69.38	0	291105..292322	+	405	115360565	-	Bamb_5822	-	major facilitator transporter
249	 69.72	0	292492..293604	+	370	115360566	-	Bamb_5823	-	NADH:flavin oxidoreductase/NADH oxidase
250	 71.43	+1	293683..294354	-	223	115360567	-	Bamb_5824	-	metal-dependent phosphohydrolase
251	 69.77	0	294429..296360	-	643	115360568	-	Bamb_5825	-	amidohydrolase 3
252	 71.76	+1	296467..299313	-	948	115360569	-	Bamb_5826	-	transcriptional regulator
253	 67.33	0	299705..300613	+	302	115360570	-	Bamb_5827	-	AraC family transcriptional regulator
254	 67.47	0	300714..301703	-	329	115360571	-	Bamb_5828	-	beta-lactamase domain-containing protein
255	 69.09	0	301898..302803	+	301	115360572	-	Bamb_5829	-	LysR family transcriptional regulator
256	 67.28	0	302822..304297	-	491	115360573	-	Bamb_5830	-	hypothetical protein
257	 66.04	0	304297..305256	-	319	115360574	-	Bamb_5831	-	hypothetical protein
258	 68.33	0	305376..305915	-	179	115360575	-	Bamb_5832	-	hypothetical protein
259	 63.62	0	306054..307103	-	349	115360576	-	Bamb_5833	-	patatin
260	 66.87	0	307180..310635	-	1151	115360577	-	Bamb_5834	-	adenylate/guanylate cyclase
261	 66.40	0	310724..311479	-	251	115360578	-	Bamb_5835	-	histidine utilization repressor
262	 71.49	+1	311541..313034	-	497	115360579	-	Bamb_5836	-	phenylalanine/histidine ammonia-lyase
263	 66.92	0	313042..313833	-	263	115360580	-	Bamb_5837	-	ABC transporter related
264	 67.47	0	313862..314608	-	248	115360581	-	Bamb_5838	-	polar amino acid ABC transporter, inner membrane subunit
265	 68.74	0	314621..315343	-	240	115360582	-	Bamb_5839	-	polar amino acid ABC transporter, inner membrane subunit
266	 62.15	0	315436..316587	-	383	115360583	-	Bamb_5840	-	extracellular solute-binding protein
267	 59.26	-1	316636..317094	-	152	115360584	-	Bamb_5841	-	pseudoazurin
268	 63.12	0	317152..319377	-	741	115360585	-	Bamb_5842	-	catalase/peroxidase HPI
269	 68.68	0	319651..320841	-	396	115360586	-	Bamb_5843	-	amidohydrolase
270	 69.14	0	320921..322255	-	444	115360587	-	Bamb_5844	-	hypothetical protein
271	 71.67	+1	322304..323821	-	505	115360588	-	Bamb_5845	-	betaine-aldehyde dehydrogenase
272	 71.59	+1	323876..324748	-	290	115360589	-	Bamb_5846	-	6-phosphogluconate dehydrogenase, NAD-binding
273	 66.89	0	324892..325800	+	302	115360590	-	Bamb_5847	-	LysR family transcriptional regulator
274	 68.97	0	325932..326321	-	129	115360591	-	Bamb_5848	-	hypothetical protein
275	 63.07	0	326361..327167	-	268	115360592	-	Bamb_5849	-	type III secretion protein SpaR/YscT/HrcT
276	 69.14	0	327219..327704	-	161	115360593	-	Bamb_5850	-	putative type III secretory pathway protein
277	 69.04	0	327720..329111	-	463	115360594	-	Bamb_5851	-	type III secretion system ATPase
278	 71.83	+1	329162..330169	-	335	115360595	-	Bamb_5852	-	HrpE/YscL family type III secretion apparatus protein
279	 71.67	+1	330163..330921	-	252	115360596	-	Bamb_5853	-	hypothetical protein
280	 66.16	0	330974..331765	-	263	115360597	-	Bamb_5854	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
281	 64.41	0	331948..332346	-	132	115360598	-	Bamb_5855	-	hrpB2; type III secretion protein HrpB2
282	 65.79	0	332375..332944	-	189	115360599	-	Bamb_5856	-	hypothetical protein
283	 64.68	0	333337..334395	+	352	115360600	-	Bamb_5857	-	type III secretion system protein HrcU
284	 66.72	0	334401..336377	+	658	115360601	-	Bamb_5858	-	HrcV family type III secretion protein
285	 67.54	0	336394..337314	+	306	115360602	-	Bamb_5859	-	hypothetical protein
286	 68.40	0	337466..338446	+	326	115360603	-	Bamb_5860	-	type III secretion system apparatus protein YscQ/HrcQ
287	 61.34	-1	338433..339089	+	218	115360604	-	Bamb_5861	-	type III secretion system protein
288	 65.15	0	339100..339363	+	87	115360605	-	Bamb_5862	-	HrpO family type III secretion protein
289	 70.78	+1	339360..340574	+	404	115360606	-	Bamb_5863	-	hypothetical protein
290	 68.88	0	340709..341749	+	346	115360607	-	Bamb_5864	-	sctD; secretion-associated protein
291	 70.11	0	341773..342033	+	86	115360608	-	Bamb_5865	-	putative type III secretion protein
292	 60.95	-1	342207..342416	+	69	115360609	-	Bamb_5866	-	hypothetical protein
293	 60.31	-1	342540..342995	+	151	115360610	-	Bamb_5867	-	hypothetical protein
294	 71.22	+1	343131..344558	-	475	115360611	-	Bamb_5868	-	type II/III secretion system family protein
295	 65.39	0	344555..345340	-	261	115360612	-	Bamb_5869	-	two component transcriptional regulator
66.16	MEAN

4.31	STD DEV
