IslandPath Analysis: Burkholderia ambifaria AMMD

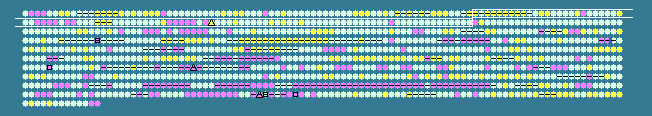

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.16 STD DEV: 4.31
Burkholderia cepacia AMMD chromosome 3, complete sequence - 1..1281472
1013 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
76	 72.06	+1	83274..84275	-	333	115360393	-	Bamb_5649	-	glycosyl transferase family protein
77	 69.42	0	84272..86017	-	581	115360394	-	Bamb_5650	-	carbamoyltransferase
78	 73.48	+1	86021..87223	-	400	115360395	-	Bamb_5651	-	glycosyl transferase family protein
79	 71.24	+1	87220..87831	-	203	115360396	-	Bamb_5652	-	histidinol-phosphate phosphatase family protein
80	 70.24	0	87822..88577	-	251	115360397	-	Bamb_5653	-	short-chain dehydrogenase/reductase SDR
81	 70.29	0	88759..89172	-	137	115360398	-	Bamb_5654	-	hypothetical protein
82	 70.51	+1	89228..92035	-	935	115360399	-	Bamb_5655	-	response regulator receiver protein
83	 71.86	+1	92083..92949	-	288	115360400	-	Bamb_5656	-	transport-associated
84	 72.95	+1	93224..93589	-	121	115360401	-	Bamb_5657	-	hypothetical protein
85	 69.06	0	93883..95469	+	528	115360402	-	Bamb_5658	-	PAS/PAC sensor hybrid histidine kinase
86	 69.07	0	95545..95877	-	110	115360403	-	Bamb_5659	-	hypothetical protein
87	 70.15	0	95906..97111	-	401	115360404	-	Bamb_5660	-	alcohol dehydrogenase
88	 71.93	+1	97297..98835	-	512	115360405	-	Bamb_5661	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
89	 64.00	0	99129..100553	-	474	115360406	-	Bamb_5662	-	GntR family transcriptional regulator
90	 68.42	0	101139..101594	-	151	115360407	-	Bamb_5663	-	membrane protein
91	 66.89	0	101758..102210	-	150	115360408	-	Bamb_5664	-	phosphate-starvation-inducible E
92	 68.25	0	102731..103801	+	356	115360409	-	Bamb_5665	-	Dyp-type peroxidase family protein
93	 71.08	+1	103794..104609	+	271	115360410	-	Bamb_5666	-	Linocin_M18 bacteriocin protein
94	 61.48	-1	104710..104979	+	89	115360411	-	Bamb_5667	-	hypothetical protein
95	 66.60	0	105470..108331	+	953	115360412	-	Bamb_5668	-	ATPase
96	 67.32	0	108429..110708	+	759	115360413	-	Bamb_5669	-	oxidoreductase alpha (molybdopterin) subunit
97	 66.67	0	110845..112266	-	473	115360414	-	Bamb_5670	-	permease for cytosine/purines, uracil, thiamine, allantoin
98	 65.70	0	112614..113543	+	309	115360415	-	Bamb_5671	-	LysR family transcriptional regulator
99	 68.38	0	113602..114765	-	387	115360416	-	Bamb_5672	-	acetylornithine deacetylase
100	 72.57	+1	114758..115435	-	225	115360417	-	Bamb_5673	-	hypothetical protein
101	 63.01	0	115444..115881	-	145	115360418	-	Bamb_5674	-	endoribonuclease L-PSP
102	 69.14	0	116001..117413	-	470	115360419	-	Bamb_5675	-	flavin-containing monooxygenase FMO
103	 58.65	-1	117576..117974	-	132	115360420	-	Bamb_5676	-	hypothetical protein
104	 59.76	-1	117971..118216	-	81	115360421	-	Bamb_5677	-	AbrB family transcriptional regulator
105	 61.48	-1	118367..119485	-	372	115360422	-	Bamb_5678	-	Sel1 domain-containing protein
106	 61.54	-1	119939..120094	+	51	115360423	-	Bamb_5679	-	hypothetical protein
107	 67.85	0	120304..121317	+	337	115360424	-	Bamb_5680	-	tryptophanyl-tRNA synthetase II
108	 52.04	-2	121631..122095	+	154	115360425	-	Bamb_5681	-	hypothetical protein
109	 58.12	-1	122095..122445	+	116	115360426	-	Bamb_5682	-	hypothetical protein
110	 63.95	0	122503..123423	-	306	115360427	-	Bamb_5683	-	hypothetical protein
111	 66.07	0	123524..124531	-	335	115360428	-	Bamb_5684	-	cytochrome d ubiquinol oxidase, subunit II
112	 63.81	0	124535..125935	-	466	115360429	-	Bamb_5685	-	cytochrome bd ubiquinol oxidase, subunit I
113	 72.39	+1	126354..127226	+	290	115360430	-	Bamb_5686	-	formate dehydrogenase family accessory protein FdhD
114	 74.49	+1	127223..128437	+	404	115360431	-	Bamb_5687	-	molybdenum cofactor synthesis domain-containing protein
115	 70.69	+1	128634..129752	+	372	115360432	-	Bamb_5688	-	molybdenum cofactor biosynthesis protein A
116	 66.49	0	129800..130363	+	187	115360433	-	Bamb_5689	-	molybdopterin biosynthesis MoaE
117	 63.95	0	130434..130691	+	85	115360434	-	Bamb_5690	-	thiamineS protein
118	 63.20	0	130756..131418	-	220	115360435	-	Bamb_5691	-	glutathione S-transferase domain-containing protein
119	 66.09	0	132016..134601	+	861	115360436	-	Bamb_5692	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
120	 67.21	0	134727..135650	-	307	115360437	-	Bamb_5693	-	LysR family transcriptional regulator
121	 64.89	0	135718..136335	+	205	115360438	-	Bamb_5694	-	lysine exporter protein LysE/YggA
122	 63.91	0	136487..137611	+	374	115360439	-	Bamb_5695	-	transaminase
123	 64.29	0	137649..139076	-	475	115360440	-	Bamb_5696	-	GntR family transcriptional regulator
124	 71.81	+1	139394..141802	+	802	115360441	-	Bamb_5697	-	hypothetical protein
125	 59.27	-1	141953..143776	+	607	115360442	-	Bamb_5698	-	ATPase
126	 60.47	-1	143780..144424	+	214	115360443	-	Bamb_5699	-	organic radical activating enzyme family protein
127	 62.15	0	144442..150756	+	2104	115360444	-	Bamb_5700	-	serine/threonine protein kinase
128	 61.02	-1	150753..152099	+	448	115360445	-	Bamb_5701	-	hypothetical protein
129	 55.45	-2	152170..152472	-	100	115360446	-	Bamb_5702	-	hypothetical protein
130	 66.45	0	153331..154242	-	303	115360447	-	Bamb_5703	-	hypothetical protein
131	 60.88	-1	154302..154664	-	120	115360448	-	Bamb_5704	-	TfoX domain-containing protein
132	 72.48	+1	154704..156440	-	578	115360449	-	Bamb_5705	-	phage integrase family protein
133	 67.85	0	156540..157805	-	421	115360450	-	Bamb_5706	-	major facilitator transporter
134	 69.33	0	157821..158609	-	262	115360451	-	Bamb_5707	-	PpiC-type peptidyl-prolyl cis-trans isomerase
135	 64.47	0	158619..159302	-	227	115360452	-	Bamb_5708	-	respiratory nitrate reductase, gamma subunit
136	 71.51	+1	159327..160028	-	233	115360453	-	Bamb_5709	-	nitrate reductase molybdenum cofactor assembly chaperone
137	 65.04	0	160025..161560	-	511	115360454	-	Bamb_5710	-	nitrate reductase, beta subunit
138	 66.30	0	161557..165402	-	1281	115360455	-	Bamb_5711	-	nitrate reductase, alpha subunit
139	 67.67	0	165755..166945	+	396	115360456	-	Bamb_5712	-	TPR repeat-containing protein
140	 67.71	0	167052..167243	-	63	115360457	-	Bamb_5713	-	hypothetical protein
141	 68.33	0	167258..167737	-	159	115360458	-	Bamb_5714	-	UspA domain-containing protein
142	 70.60	+1	168002..168763	+	253	115360459	-	Bamb_5715	-	2-keto-4-pentenoate hydratase-like protein
143	 69.35	0	168794..169054	+	86	115360460	-	Bamb_5716	-	hypothetical protein
144	 71.13	+1	169045..170457	+	470	115360461	-	Bamb_5717	-	hypothetical protein
145	 68.95	0	170503..171555	-	350	115360462	-	Bamb_5718	-	AraC family transcriptional regulator
146	 64.22	0	171703..172029	-	108	115360463	-	Bamb_5719	-	hypothetical protein
147	 70.32	0	172061..173566	-	501	115360464	-	Bamb_5720	-	hypothetical protein
148	 69.38	0	173969..176140	+	723	115360465	-	Bamb_5721	-	hypothetical protein
149	 68.64	0	176148..176855	+	235	115360466	-	Bamb_5722	-	hypothetical protein
150	 66.07	0	176937..177773	-	278	115360467	-	Bamb_5723	-	alpha/beta hydrolase fold
151	 67.20	0	178019..178393	+	124	115360468	-	Bamb_5724	-	glyoxalase/bleomycin resistance protein/dioxygenase
152	 68.71	0	178474..179307	-	277	115360469	-	Bamb_5725	-	short chain dehydrogenase
153	 68.00	0	179402..180373	+	323	115360470	-	Bamb_5726	-	AraC family transcriptional regulator
154	 67.52	0	180404..181576	-	390	115360471	-	Bamb_5727	-	aldose 1-epimerase
155	 65.09	0	181755..183083	-	442	115360472	-	Bamb_5728	-	major facilitator transporter
156	 67.88	0	183319..184224	+	301	115360473	-	Bamb_5729	-	2-dehydropantoate 2-reductase
157	 67.00	0	184645..185556	-	303	115360474	-	Bamb_5730	-	putative transmembrane anti-sigma factor
158	 67.21	0	185559..186107	-	182	115360475	-	Bamb_5731	-	ECF subfamily RNA polymerase sigma-24 factor
159	 65.48	0	186310..187155	-	281	115360476	-	Bamb_5732	-	abortive infection protein
160	 68.82	0	187213..187629	-	138	115360477	-	Bamb_5733	-	OsmC family protein
161	 65.85	0	187676..187921	-	81	115360478	-	Bamb_5734	-	hypothetical protein
162	 60.18	-1	188247..188693	+	148	115360479	-	Bamb_5735	-	protein of unknown function DUF861, cupin_3
163	 66.67	0	188784..190037	+	417	115360480	-	Bamb_5736	-	condensation domain-containing protein
164	 68.01	0	190130..191323	-	397	115360481	-	Bamb_5737	-	major facilitator transporter
165	 68.32	0	191496..191918	-	140	115360482	-	Bamb_5738	-	hypothetical protein
166	 67.02	0	191941..192789	-	282	115360483	-	Bamb_5739	-	short-chain dehydrogenase/reductase SDR
167	 68.08	0	193168..194298	-	376	115360484	-	Bamb_5740	-	periplasmic sensor signal transduction histidine kinase
168	 67.97	0	194434..194817	-	127	115360485	-	Bamb_5741	-	response regulator receiver protein
169	 63.64	0	195045..195704	-	219	115360486	-	Bamb_5742	-	two component LuxR family transcriptional regulator
170	 69.28	0	195822..200879	-	1685	115360487	-	Bamb_5743	-	ATPase domain-containing protein
171	 63.72	0	201242..201817	+	191	115360488	-	Bamb_5744	-	hypothetical protein
172	 66.46	0	202015..202500	+	161	115360489	-	Bamb_5745	-	hypothetical protein
173	 64.85	0	202577..203017	-	146	115360490	-	Bamb_5746	-	hypothetical protein
174	 63.08	0	203114..203503	-	129	115360491	-	Bamb_5747	-	hypothetical protein
175	 67.23	0	203742..205154	-	470	115360492	-	Bamb_5748	-	GAF sensor signal transduction histidine kinase
66.16	MEAN

4.31	STD DEV
