IslandPathversion 1.0

IslandPath Analysis: Burkholderia ambifaria AMMD

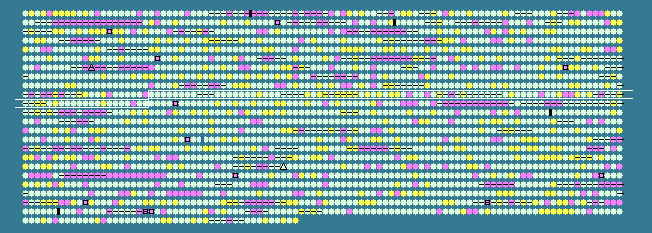

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
922	 69.30	0	1062930..1064069	+	379	115358892	-	Bamb_4143	-	patatin
923	 66.38	0	1064118..1064822	-	234	115358893	-	Bamb_4144	-	short-chain dehydrogenase/reductase SDR
924	 67.22	0	1064944..1065843	+	299	115358894	-	Bamb_4145	-	LysR family transcriptional regulator
925	 64.23	0	1065932..1066873	-	313	115358895	-	Bamb_4146	-	LysR family transcriptional regulator
926	 65.41	0	1066961..1068232	+	423	115358896	-	Bamb_4147	-	major facilitator transporter
927	 64.77	0	1068297..1069190	+	297	115358897	-	Bamb_4148	-	amidohydrolase 2
928	 67.31	0	1069378..1069686	+	102	115358898	-	Bamb_4149	-	ArsR family transcriptional regulator
929	 69.30	0	1069759..1070820	+	353	115358899	-	Bamb_4150	-	NADH:flavin oxidoreductase/NADH oxidase
930	 67.56	0	1070836..1071396	-	186	115358900	-	Bamb_4151	-	GCN5-related N-acetyltransferase
931	 70.26	0	1071447..1072058	+	203	115358901	-	Bamb_4152	-	lysine exporter protein LysE/YggA
932	 65.97	0	1072155..1072583	-	142	115358902	-	Bamb_4153	-	hypothetical protein
933	 69.06	0	1072853..1073773	-	306	115358903	-	Bamb_4154	-	phosphatidylinositol diacylglycerol-lyase
934	 69.99	0	1073780..1074802	+	340	115358904	-	Bamb_4155	-	LacI family transcription regulator
935	 69.45	0	1074812..1075672	-	286	115358905	-	Bamb_4156	-	binding-protein-dependent transport systems inner membrane component
936	 68.62	0	1075669..1076538	-	289	115358906	-	Bamb_4157	-	binding-protein-dependent transport systems inner membrane component
937	 69.28	0	1076573..1077913	-	446	115358907	-	Bamb_4158	-	extracellular solute-binding protein
938	 68.62	0	1077976..1079205	-	409	115358908	-	Bamb_4159	-	porin
939	 68.90	0	1079356..1080294	-	312	115358909	-	Bamb_4160	-	AraC family transcriptional regulator
940	 75.30	+2	1080355..1080945	-	196	115358910	-	Bamb_4161	-	hypothetical protein
941	 69.13	0	1080942..1082444	-	500	115358911	-	Bamb_4162	-	amino acid permease-associated region
942	 67.11	0	1082718..1084058	-	446	115358912	-	Bamb_4163	-	hypothetical protein
943	 69.33	0	1084131..1085633	-	500	115358913	-	Bamb_4164	-	betaine-aldehyde dehydrogenase
944	 64.10	0	1086055..1086717	-	220	115358914	-	Bamb_4165	-	hypothetical protein
945	 68.17	0	1086769..1087500	-	243	115358915	-	Bamb_4166	-	LuxR family transcriptional regulator
946	 67.47	0	1087658..1088533	-	291	115358916	-	Bamb_4167	-	protein of unknown function, zinc metallopeptidase putative
947	 65.17	0	1088627..1088893	+	88	115358917	-	Bamb_4168	-	hypothetical protein
948	 74.12	+1	1088974..1089765	+	263	115358918	-	Bamb_4169	-	short-chain dehydrogenase/reductase SDR
949	 70.38	0	1089971..1091020	+	349	115358919	-	Bamb_4170	-	LysR family transcriptional regulator
950	 71.83	+1	1091120..1091797	+	225	115358920	-	Bamb_4171	-	hypothetical protein
951	 70.45	0	1091886..1093205	+	439	115358921	-	Bamb_4172	-	major facilitator transporter
952	 69.23	0	1093255..1093956	+	233	115358922	-	Bamb_4173	-	hypothetical protein
953	 72.17	+1	1094033..1095013	-	326	115358923	-	Bamb_4174	-	NAD-dependent epimerase/dehydratase
954	 71.33	+1	1095113..1096012	+	299	115358924	-	Bamb_4175	-	LysR family transcriptional regulator
955	 71.94	+1	1096050..1096922	-	290	115358925	-	Bamb_4176	-	LysR family transcriptional regulator
956	 72.07	+1	1097079..1098539	+	486	115358926	-	Bamb_4177	-	major facilitator transporter
957	 64.72	0	1098937..1099347	+	136	115358927	-	Bamb_4178	-	endoribonuclease L-PSP
958	 71.43	+1	1099380..1100093	-	237	115358928	-	Bamb_4179	-	short chain dehydrogenase
959	 64.14	0	1100406..1101116	+	236	115358929	-	Bamb_4180	-	hypothetical protein
960	 71.85	+1	1101207..1102016	-	269	115358930	-	Bamb_4181	-	3-ketoacyl-(acyl-carrier-protein) reductase
961	 67.99	0	1102013..1102846	-	277	115358931	-	Bamb_4182	-	hypothetical protein
962	 71.45	+1	1103017..1103811	+	264	115358932	-	Bamb_4183	-	AraC family transcriptional regulator
963	 72.60	+1	1104171..1105130	+	319	115358933	-	Bamb_4184	-	hypothetical protein
964	 64.57	0	1105256..1105828	+	190	115358934	-	Bamb_4185	-	hypothetical protein
965	 61.48	-1	1105928..1106062	-	44	115358935	-	Bamb_4186	-	entericidin EcnAB
966	 64.89	0	1106298..1107593	+	431	115358936	-	Bamb_4187	-	aspartate carbamoyltransferase
967	 65.48	0	1107730..1108149	-	139	115358937	-	Bamb_4188	-	PilT domain-containing protein
968	 63.41	0	1108146..1108421	-	91	115358938	-	Bamb_4189	-	plasmid stability protein-like protein
969	 65.55	0	1108706..1110949	+	747	115358939	-	Bamb_4190	-	TonB-dependent siderophore receptor
970	 71.16	+1	1110953..1111708	+	251	115358940	-	Bamb_4191	-	Sel1 domain-containing protein
971	 63.60	0	1111705..1112388	+	227	115358941	-	Bamb_4192	-	putative hydroxylase
972	 61.67	-1	1112488..1112727	+	79	115358942	-	Bamb_4193	-	hypothetical protein
973	 67.42	0	1112724..1113119	+	131	115358943	-	Bamb_4194	-	PilT domain-containing protein
974	 71.28	+1	1113489..1114073	+	194	115358944	-	Bamb_4195	-	MobA-like protein-like protein
975	 69.30	0	1114536..1115294	-	252	115358945	-	Bamb_4196	-	short chain dehydrogenase
976	 69.51	0	1115291..1116838	-	515	115358946	-	Bamb_4197	-	xylulokinase
977	 65.93	0	1116870..1117958	-	362	115358947	-	Bamb_4198	-	alcohol dehydrogenase
978	 66.37	0	1118008..1119021	-	337	115358948	-	Bamb_4199	-	inner-membrane translocator
979	 67.04	0	1119008..1120594	-	528	115358949	-	Bamb_4200	-	ABC transporter related
980	 67.19	0	1120591..1121544	-	317	115358950	-	Bamb_4201	-	periplasmic binding protein/LacI transcriptional regulator
981	 67.40	0	1121661..1122620	-	319	115358951	-	Bamb_4202	-	AraC family transcriptional regulator
982	 71.52	+1	1122871..1123818	-	315	115358952	-	Bamb_4203	-	2-dehydropantoate 2-reductase
983	 67.25	0	1124075..1125628	+	517	115358953	-	Bamb_4204	-	methyl-accepting chemotaxis sensory transducer
984	 66.67	0	1125904..1126581	-	225	115358954	-	Bamb_4205	-	two component LuxR family transcriptional regulator
985	 66.26	0	1126942..1127433	+	163	115358955	-	Bamb_4206	-	hypothetical protein
986	 68.27	0	1127803..1129236	-	477	115358956	-	Bamb_4207	-	sigma-54 dependent trancsriptional regulator
987	 60.82	-1	1129605..1130117	+	170	115358957	-	Bamb_4208	-	hypothetical protein
988	 68.72	0	1130185..1131111	-	308	115358958	-	Bamb_4209	-	AraC family transcriptional regulator
989	 68.83	0	1131293..1131754	+	153	115358959	-	Bamb_4210	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
990	 70.51	0	1131757..1133967	+	736	115358960	-	Bamb_4211	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
991	 59.84	-1	1134076..1135350	-	424	115358961	-	Bamb_4212	-	filamentation induced by cAMP protein Fic
992	 61.40	-1	1135718..1136116	+	132	115358962	-	Bamb_4213	-	response regulator receiver protein
993	 74.52	+1	1136505..1137650	+	381	115358963	-	Bamb_4214	-	type III secretion system apparatus protein YscQ/HrcQ
994	 65.48	0	1137654..1138328	+	224	115358964	-	Bamb_4215	-	type III secretion system protein
995	 72.01	+1	1138325..1139128	+	267	115358965	-	Bamb_4216	-	lytic transglycosylase, catalytic
996	 70.12	0	1139201..1141168	-	655	115358966	-	Bamb_4217	-	asparagine synthase (glutamine-hydrolyzing)
997	 60.08	-1	1141178..1141435	-	85	115358967	-	Bamb_4218	-	hypothetical protein
998	 67.73	0	1141414..1142445	-	343	115358968	-	Bamb_4219	-	type III secretion exporter
999	 67.28	0	1142470..1143279	-	269	115358969	-	Bamb_4220	-	type III secretion protein SpaR/YscT/HrcT
1000	 74.30	+1	1143273..1143953	-	226	115358970	-	Bamb_4221	-	hypothetical protein
1001	 69.84	0	1143946..1145331	-	461	115358971	-	Bamb_4222	-	type III secretion apparatus H+-transporting two-sector ATPase
1002	 70.00	0	1145328..1145957	-	209	115358972	-	Bamb_4223	-	HrpE/YscL family type III secretion apparatus protein
1003	 72.20	+1	1145939..1146679	-	246	115358973	-	Bamb_4224	-	hypothetical protein
1004	 71.94	+1	1146676..1147605	-	309	115358974	-	Bamb_4225	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
1005	 68.55	0	1147684..1148214	-	176	115358975	-	Bamb_4226	-	hypothetical protein
1006	 72.99	+1	1148661..1150019	-	452	115358976	-	Bamb_4227	-	YscD/HrpQ family type III secretion apparatus protein
1007	 67.45	0	1150000..1152045	-	681	115358977	-	Bamb_4228	-	YscC/HrcC family type III secretion outer membrane protein
1008	 65.23	0	1152045..1152323	-	92	115358978	-	Bamb_4229	-	HrpO family type III secretion protein
1009	 69.73	0	1152320..1154569	-	749	115358979	-	Bamb_4230	-	type III secretion FHIPEP protein
1010	 64.63	0	1154763..1155596	-	277	115358980	-	Bamb_4231	-	LuxR family transcriptional regulator
1011	 66.67	0	1155876..1156781	+	301	115358981	-	Bamb_4232	-	LuxR family transcriptional regulator
1012	 67.09	0	1156860..1158506	-	548	115358982	-	Bamb_4233	-	natural resistance-associated macrophage protein
1013	 66.32	0	1158545..1158832	+	95	115358983	-	Bamb_4234	-	hypothetical protein
1014	 71.06	+1	1159810..1160082	+	90	115358984	-	Bamb_4235	-	hypothetical protein
1015	 69.57	0	1160194..1161672	+	492	115358985	-	Bamb_4236	-	carbohydrate-selective porin OprB
1016	 68.32	0	1161766..1163520	-	584	115358986	-	Bamb_4237	-	Alpha,alpha-trehalase
1017	 67.66	0	1163813..1165228	+	471	115358987	-	Bamb_4238	-	major facilitator transporter
1018	 68.56	0	1165577..1166788	+	403	115358988	-	Bamb_4239	-	hypothetical protein
1019	 61.64	-1	1166891..1167109	-	72	115358989	-	Bamb_4240	-	hypothetical protein
1020	 66.44	0	1167165..1167608	-	147	115358990	-	Bamb_4241	-	GCN5-related N-acetyltransferase
1021	 67.44	0	1167736..1168380	+	214	115358991	-	Bamb_4242	-	hydrolase
66.96	MEAN

4.07	STD DEV
