IslandPath Analysis: Burkholderia ambifaria AMMD

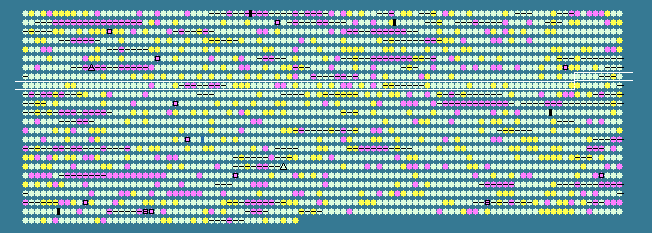

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.96 STD DEV: 4.07
Burkholderia cepacia AMMD chromosome 2, complete sequence - 1..2646969
2346 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
793	 63.56	0	930670..931926	-	418	115358763	-	Bamb_4014	-	oxalate decarboxylase
794	 67.56	0	932553..933446	+	297	115358764	-	Bamb_4015	-	RpiR family transcriptional regulator
795	 68.79	0	933461..934024	+	187	115358765	-	Bamb_4016	-	D-alanyl-D-alanine dipeptidase
796	 64.86	0	934107..935708	+	533	115358766	-	Bamb_4017	-	extracellular solute-binding protein
797	 69.19	0	935719..936789	+	356	115358767	-	Bamb_4018	-	binding-protein-dependent transport systems inner membrane component
798	 70.27	0	936856..937770	+	304	115358768	-	Bamb_4019	-	binding-protein-dependent transport systems inner membrane component
799	 70.93	0	937772..938686	+	304	115358769	-	Bamb_4020	-	ABC transporter related
800	 70.01	0	938683..939459	+	258	115358770	-	Bamb_4021	-	ABC transporter related
801	 66.49	0	939898..940449	+	183	115358771	-	Bamb_4022	-	fimbrial protein
802	 66.53	0	940562..941302	+	246	115358772	-	Bamb_4023	-	pili assembly chaperone
803	 68.67	0	941499..944099	+	866	115358773	-	Bamb_4024	-	fimbrial biogenesis outer membrane usher protein
804	 65.77	0	944109..945113	+	334	115358774	-	Bamb_4025	-	fimbrial protein
805	 69.80	0	945266..945520	+	84	115358775	-	Bamb_4026	-	transglycosylase-associated protein
806	 65.18	0	945870..946205	+	111	115358776	-	Bamb_4027	-	hypothetical protein
807	 68.04	0	946228..947100	-	290	115358777	-	Bamb_4028	-	LysR family transcriptional regulator
808	 72.33	+1	947225..948124	-	299	115358778	-	Bamb_4029	-	Beta-lactamase
809	 70.83	0	948325..949164	-	279	115358779	-	Bamb_4030	-	peptidase M23B
810	 63.96	0	949432..949542	-	36	115358780	-	Bamb_4031	-	hypothetical protein
811	 67.89	0	949702..950598	+	298	115358781	-	Bamb_4032	-	LysR family transcriptional regulator
812	 65.12	0	950659..951045	+	128	115358782	-	Bamb_4033	-	hypothetical protein
813	 69.40	0	951110..951913	-	267	115358783	-	Bamb_4034	-	hypothetical protein
814	 70.21	0	951995..953011	-	338	115358784	-	Bamb_4035	-	aldo/keto reductase
815	 69.30	0	953148..954059	+	303	115358785	-	Bamb_4036	-	LysR family transcriptional regulator
816	 64.68	0	954107..955261	-	384	115358786	-	Bamb_4037	-	porin
817	 69.87	0	955591..956745	+	384	115358787	-	Bamb_4038	-	hypothetical protein
818	 69.42	0	956807..957751	+	314	115358788	-	Bamb_4039	-	putative esterase
819	 69.71	0	957991..959205	-	404	115358789	-	Bamb_4040	-	salicylate 1-monooxygenase
820	 68.15	0	959389..960333	+	314	115358790	-	Bamb_4041	-	LysR family transcriptional regulator
821	 65.35	0	960434..961192	+	252	115358791	-	Bamb_4042	-	short-chain dehydrogenase/reductase SDR
822	 61.77	-1	961337..962317	+	326	115358792	-	Bamb_4043	-	MarR family transcriptional regulator
823	 64.86	0	962355..962687	-	110	115358793	-	Bamb_4044	-	cupin 2 domain-containing protein
824	 65.79	0	962914..964392	-	492	115358794	-	Bamb_4045	-	diguanylate cyclase
825	 66.03	0	964552..965646	-	364	115358795	-	Bamb_4046	-	TrkA domain-containing protein
826	 70.69	0	965750..967117	-	455	115358796	-	Bamb_4047	-	FAD dependent oxidoreductase
827	 64.35	0	967334..967981	+	215	115358797	-	Bamb_4048	-	GP32
828	 61.23	-1	968336..968611	-	91	115358798	-	Bamb_4049	-	hypothetical protein
829	 59.18	-1	968895..969161	-	88	115358799	-	Bamb_4050	-	hypothetical protein
830	 67.25	0	969641..970495	+	284	115358800	-	Bamb_4051	-	response regulator receiver protein
831	 68.35	0	970616..972283	+	555	115358801	-	Bamb_4052	-	hypothetical protein
832	 48.69	-2	972473..973696	+	407	115358802	-	Bamb_4053	-	hypothetical protein
833	 49.04	-2	973786..974097	+	103	115358803	-	Bamb_4054	-	hypothetical protein
834	 69.49	0	974235..975794	-	519	115358804	-	Bamb_4055	-	methyl-accepting chemotaxis sensory transducer
835	 69.15	0	976008..977537	+	509	115358805	-	Bamb_4056	-	EmrB/QacA family drug resistance transporter
836	 74.27	+1	977631..978629	-	332	115358806	-	Bamb_4057	-	alcohol dehydrogenase
837	 74.48	+1	978755..979675	+	306	115358807	-	Bamb_4058	-	LysR family transcriptional regulator
838	 71.63	+1	979705..980328	+	207	115358808	-	Bamb_4059	-	GCN5-related N-acetyltransferase
839	 67.84	0	980338..981186	+	282	115358809	-	Bamb_4060	-	MerR family transcriptional regulator
840	 67.48	0	981311..982291	+	326	115358810	-	Bamb_4061	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
841	 65.78	0	982383..983288	-	301	115358811	-	Bamb_4062	-	LysR family transcriptional regulator
842	 64.97	0	983407..983997	+	196	115358812	-	Bamb_4063	-	hypothetical protein
843	 55.88	-2	984325..984528	+	67	115358813	-	Bamb_4064	-	cold-shock DNA-binding domain-containing protein
844	 55.71	-2	984812..985021	+	69	115358814	-	Bamb_4065	-	hypothetical protein
845	 66.25	0	985077..986045	-	322	115358815	-	Bamb_4066	-	agmatinase
846	 71.88	+1	986417..987088	+	223	115358816	-	Bamb_4067	-	YhhN family protein
847	 67.04	0	987335..988924	+	529	115358817	-	Bamb_4068	-	flavin-containing monooxygenase FMO
848	 66.56	0	988946..989884	+	312	115358818	-	Bamb_4069	-	short-chain dehydrogenase/reductase SDR
849	 64.35	0	989881..990786	+	301	115358819	-	Bamb_4070	-	metal-dependent hydrolase
850	 71.60	+1	990791..991723	+	310	115358820	-	Bamb_4071	-	alpha/beta hydrolase fold
851	 67.21	0	991684..992238	-	184	115358821	-	Bamb_4072	-	hypothetical protein
852	 71.60	+1	992421..993311	+	296	115358822	-	Bamb_4073	-	Urea transporter
853	 68.98	0	993286..994062	+	258	115358823	-	Bamb_4074	-	hypothetical protein
854	 62.43	-1	994123..994311	+	62	115358824	-	Bamb_4075	-	4-oxalocrotonate tautomerase
855	 58.56	-2	994417..994638	+	73	115358825	-	Bamb_4076	-	putative cytoplasmic protein
856	 68.50	0	994790..999631	+	1613	115358826	-	Bamb_4077	-	NAD-glutamate dehydrogenase
857	 71.43	+1	999647..1000528	-	293	115358827	-	Bamb_4078	-	putative methyltransferase
858	 65.24	0	1000539..1000889	-	116	115358828	-	Bamb_4079	-	hypothetical protein
859	 61.36	-1	1000891..1001154	-	87	115358829	-	Bamb_4080	-	hypothetical protein
860	 68.59	0	1001174..1002007	-	277	115358830	-	Bamb_4081	-	N-hydroxyarylamine O-acetyltransferase
861	 70.85	0	1002134..1002826	-	230	115358831	-	Bamb_4082	-	hypothetical protein
862	 70.51	0	1003073..1004557	-	494	115358832	-	Bamb_4083	-	amidase
863	 65.52	0	1004955..1005389	+	144	115358833	-	Bamb_4084	-	hypothetical protein
864	 66.27	0	1006063..1006311	+	82	115358834	-	Bamb_4085	-	hypothetical protein
865	 66.36	0	1007002..1008291	+	429	115358835	-	Bamb_4086	-	natural resistance-associated macrophage protein
866	 66.98	0	1008374..1009636	+	420	115358836	-	Bamb_4087	-	hypothetical protein
867	 67.91	0	1009676..1010077	-	133	115358837	-	Bamb_4088	-	hypothetical protein
868	 71.55	+1	1010193..1011215	-	340	115358838	-	Bamb_4089	-	oxidoreductase FAD/NAD(P)-binding subunit
869	 68.88	0	1011229..1012896	-	555	115358839	-	Bamb_4090	-	hydroxylamine reductase
870	 65.40	0	1013090..1013326	-	78	115358840	-	Bamb_4091	-	hypothetical protein
871	 68.24	0	1013508..1014908	-	466	115358841	-	Bamb_4092	-	major facilitator transporter
872	 69.56	0	1014937..1016181	-	414	115358842	-	Bamb_4093	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
873	 67.29	0	1016178..1017140	-	320	115358843	-	Bamb_4094	-	glyoxalase/bleomycin resistance protein/dioxygenase
874	 68.54	0	1017159..1018649	-	496	115358844	-	Bamb_4095	-	betaine-aldehyde dehydrogenase
875	 70.53	0	1018748..1019575	-	275	115358845	-	Bamb_4096	-	L-aspartate dehydrogenase
876	 68.41	0	1019568..1021235	-	555	115358846	-	Bamb_4097	-	hypothetical protein
877	 67.17	0	1021228..1022025	-	265	115358847	-	Bamb_4098	-	short chain dehydrogenase
878	 66.55	0	1022022..1022879	-	285	115358848	-	Bamb_4099	-	IclR family transcriptional regulator
879	 72.48	+1	1022876..1023787	-	303	115358849	-	Bamb_4100	-	alpha/beta hydrolase fold
880	 64.96	0	1023807..1024334	-	175	115358850	-	Bamb_4101	-	cupin 2 domain-containing protein
881	 71.08	+1	1024374..1025144	-	256	115358851	-	Bamb_4102	-	short chain dehydrogenase
882	 66.85	0	1025137..1026207	-	356	115358852	-	Bamb_4103	-	Rieske (2Fe-2S) domain-containing protein
883	 66.03	0	1026262..1026573	-	103	115358853	-	Bamb_4104	-	hypothetical protein
884	 65.41	0	1026575..1026892	-	105	115358854	-	Bamb_4105	-	Rieske (2Fe-2S) domain-containing protein
885	 65.19	0	1027343..1028422	+	359	115358855	-	Bamb_4106	-	porin
886	 69.21	0	1028524..1029468	-	314	115358856	-	Bamb_4107	-	IclR family transcriptional regulator
887	 65.22	0	1029826..1030032	-	68	115358857	-	Bamb_4108	-	hypothetical protein
888	 68.65	0	1030361..1030966	-	201	115358858	-	Bamb_4109	-	2OG-Fe(II) oxygenase
889	 69.97	0	1031188..1032339	-	383	115358859	-	Bamb_4110	-	metallophosphoesterase
890	 69.51	0	1032708..1033094	+	128	115358860	-	Bamb_4111	-	hypothetical protein
891	 70.00	0	1033091..1034140	+	349	115358861	-	Bamb_4112	-	multidrug resistance protein MdtN
892	 71.37	+1	1034121..1036160	+	679	115358862	-	Bamb_4113	-	fusaric acid resistance protein region
66.96	MEAN

4.07	STD DEV
